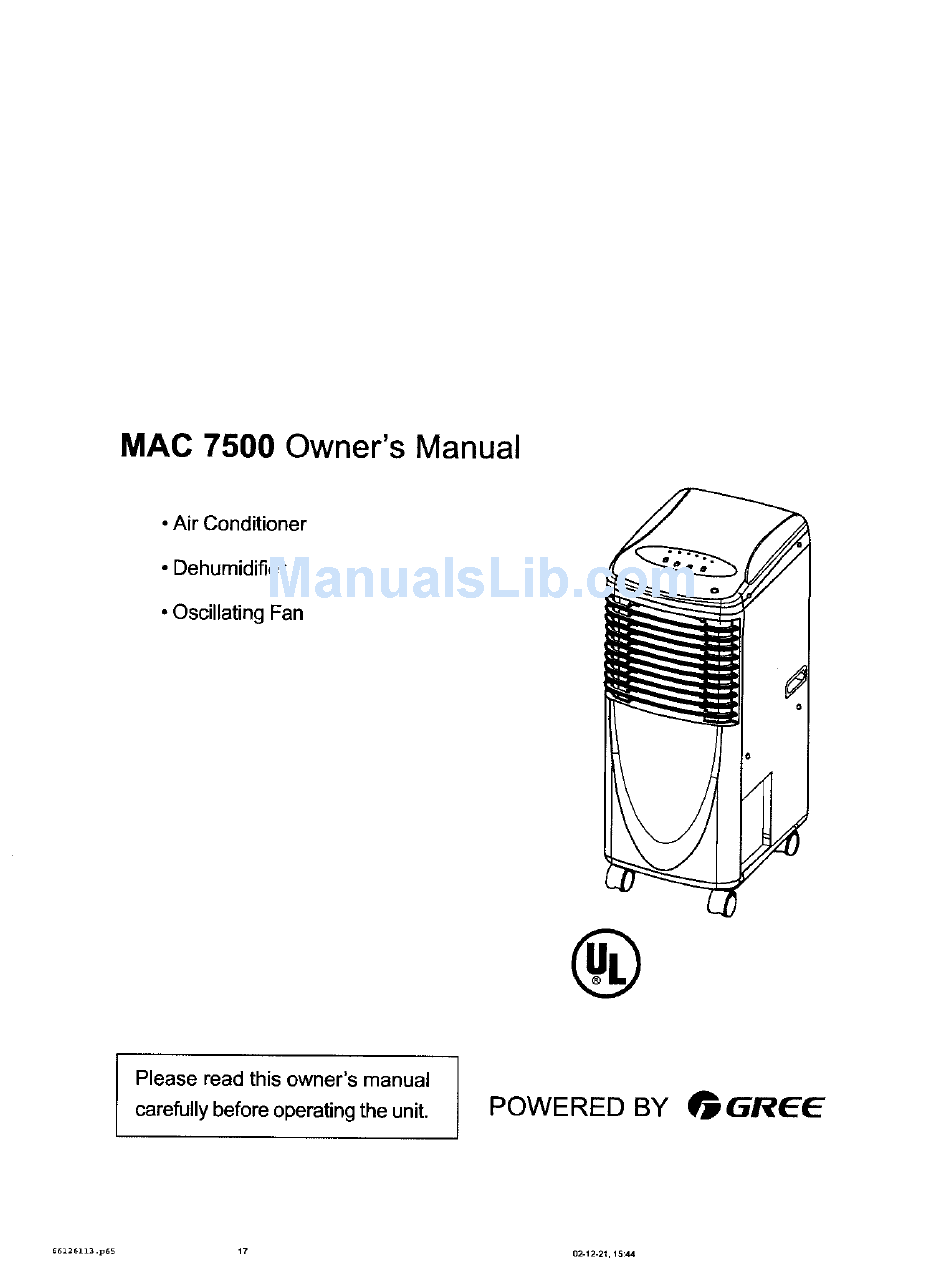

- Page 1 MAC 7500 Owner's Manual • Air Conditioner • Dehumidifier • Oscillating Fan ® Please read this owner's manual POWERED 41_GREE carefully before operating the unit. 66126113 .p65 02.12.2_ ' 15:44...
-
Page 2: Alert Symbols
INTRODUCTION Thank you for purchasing the 5ofeus .-_ Mac 7500 portable air-conditioner. This unit is designed for improving living and working comfort by providing cooling, dehumidifying fan functions only with a minimum installation required. With its whisper quite operation and attractive design, you will enjoy the convenience and comfort that this unit provides for many years to come. - Page 3 • Unplug unit from the electrical outlet when not in use and before cleaning it. • Do not use an adapter plug extension cord. • Do not use near gas appliances, open flames (fireplaces) or near the vicinity flammable liquids. •...
-
Page 4: Names Of Parts
PACKAGE CONTAINS: Mobile Air Conditioner LITHIUM BATTERY 3V- Air Exhaust Duct Window Kit - 3 Sliding Panels Exhaust Duct Window Kit Adapter Window Kit Fastener Screws (4) Remote Controller User Manual NAMES OF PARTS FRONT control pane' .__ air flow guider --handle front... - Page 5 Exhaust Duct Exhaust Duct Unit Terminal End Window Kit Adaptor Window Kits Exhaust Duct When you use the unit as an air conditioner, the hot exhaust air must be directed out of the room. The exhaust duct is used to allow the hot air out. DO NOT INSTALL OR USE THE EXHAUST DUCT WHEN THE UNIT IS OPERATED AS A DEHUMIDIFIER OR FAN.
- Page 6 Or connect the window kit adaptor to the external end of the exhaust duct for a window or sliding door hot air outlet installation. NOTE: In order to increase the efficiency, the exhaust duct should be keep as short and straight as possible, The exhaust hose can be cut shorter by unthreading either end of the exhaust duct counter clockwise.
- Page 7 CONTROL PANEL Mode/function indicators cool " op._u speed swing Mode button Fan speed button REMOTE CONTROLLER © ON/OFF FAN SPEED © SWING MODE --6 m 6512_Z3 02-12.21, 15:44...
-
Page 8: Operation Using Control Panel
OPERATION USING CONTROL PANEL For Manual Mode: Press the Mode Button Coot - Cooling function on indicator. Dry - Dehumidify function on indicator. Fan - Fan on indicator. For Coolina Ooeration: Be sure that the drain tank is properly placed in the unit. Install the exhaust duct properly. -
Page 9: Operation Using Remote Controller
Fan Oneration: Plug the Power Cord to the power outlet. Turn on the unit by pressing the ON/OFF Button on the control panel. Press the Mode Button until 'FAN' indicator is on. Select the fan speed by pressing the Fan Speed Button. NOTE: When the unit is running on fan mode, the exhaust duct is inoperative and is not required. -
Page 10: Condensate Water Drainage
CONDENSATE WATER DRAINAGE Internal Water Tank When operating in cooling or dehumidifying mode, the condensate water will drain into the internal water tank. Depending on the surrounding humidity, the unit can continu- ously operate for 2 to 12 hours before the internal water tank is full. When the internal water tank gets full, a beep slarrn will sound eight times for 15 seconds. - Page 11 Do not remove the water tank when the unit is in use. CAUTION I Always turn "Off' the unit before removing water tank. Periodically inspect and clean the drain valve to prevent dogging. METHOD OF CONTINUOUS DRAINAGE: 1. Slide out drain valve from the left side of the unit. 2.
- Page 12 FILTER • Soleus Air recommends cleaning your air filter at least after every two weeks of use. Keep- ing your air filter clean will maximize the performance and life of this product. • Open the air filter cover on the left side of the unit (fig. a) •...
-
Page 13: Maintenance
NOTE: Be very careful when using an external water tank. The unit will not shut off automati- cally when an external water tank is full. Spill water can cause substantial damages to carpet, furniture and other valuables. Do not use lengthy drainage tabing without a condensate water pump. MAINTENANCE NOTE: Make sure power is off and the plug is pulled out of the power outlet before performing any maintenance activities. - Page 14 TROUBLE SHOOTING PROBLEM POSSIBLE CAUSE REMEDY Unit does not operate Unit is umplugged Seoorely plug receptacle intothe power outlet Drain tank is full Empty water tank Water tank not installed correctly Completely insert water tank Air exhaust is clogged Clear exhaust hose Unit does not cool There is a heating source in the room Turn down or off the other heating...
-
Page 15: Specifications
SPECIFICATIONS Model # MAC - 7500 Power Source 115V~ / 60Hz 7500 BTU/h Cooling capacity Dehumidifyling capacity 24.0 liters/day 1000W Cooling input power Rated current 8.7A HCFC R22 Refrigerant type 1.15 Ib Refrigerant capacity Operating Range - Cooling Max 95°F Dry Bulb - 71°F Wet Bulb (indoor air temperature) Min 67°F Dry Bulb - 57°F Wet Bulb 31"x 12.8"... -
Page 16: Contact Information
DISCLAIMER ALL INFORMATION THE TECHNICAL SPECIFICATIONS PRESENTED IN THIS USER'S MANUAL THE PRESENTATION OF THE MANUFACTURER SOLEUS INTERNATIONAL HAS NOT CONDUCTED INDEPENDENT TESTS FOR THE INFORMA- TION AND THE SPECIFICATIONS PRESENTED HEREWITHIN. CONTACT INFORMATION Optional and Spare Parts Technical Support Warranty Claim Customer Service Please Call (888) 8-Soleus... -
Page 17: Warranty
WARRANTY ONE YEAR LIMITED WARRANTY Soleus International Inc. warrants the accompanying Soleus Air MAC-7500 Mobile Air Condi- tioner to be free of defects in material and workmanship for the applications specified in its operation instruction for a period of ONE ( 1) year from the date of original retail purchase in the United States or Canada. - Page 18 66126113 02-12-21,15:44...
