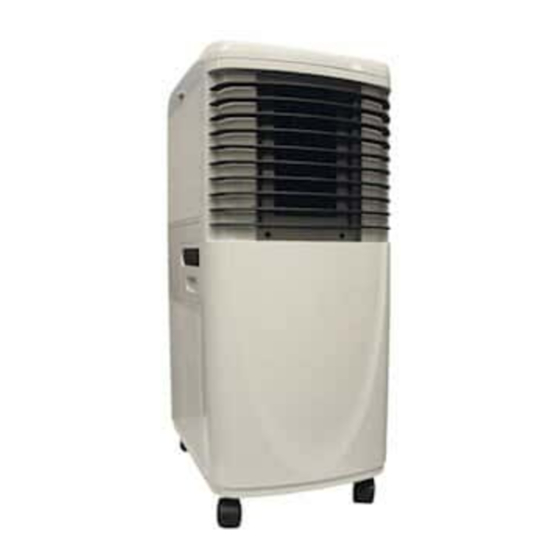

- Page 1 PORTABLE AIR CONDITIONER MAC 7500 Owner’s Manual • Air Conditioner • Dehumidifier • Oscillating Fan Please read this owner’s manual carefully before operating the unit. 66126113.p65 POWERED BY 02-12-21, 15:44...
- Page 2 When operating as an air conditioner, this unit is designed for spot cooling or cooling for a room no larger than 150 square feet with the standard ceiling height 7-...
- Page 3 • Close supervision is required when the unit is used by or near children. • Do not stick anything into the air outlet of the air conditioner. • Do not use in a room with poor air circulation. • Do not expose the unit to direct sunlight.
-
Page 4: Package Contains
PACKAGE CONTAINS: Mobile Air Conditioner Air Exhaust Duct Exhaust Duct Window Kit Adapter Romote Controller NAMES OF PARTS control panel air flow guider swing louver front air outlet grill hot air outlet grill lower air inlet grill 66126113.p65 LITHIUM BATTERY 3V... - Page 5 Window Kits Exhaust Duct When you use the unit as an air conditioner, the hot exhaust air must be directed out of the room. The exhaust duct is used to allow the hot air out. DO NOT INSTALL OR USE THE EXHAUST DUCT WHEN THE UNIT IS OPERATED AS A DEHUMIDIFIER OR FAN.
- Page 6 Or connect the window kit adaptor to the external end of the exhaust duct for a window or sliding door hot air outlet installation. NOTE: In order to increase the efficiency, the exhaust duct should be keep as short and straight as possible.
-
Page 7: Control Panel
CONTROL PANEL REMOTE CONTROLLER 02-12-21, 15:44 66126113.p65... - Page 8 OPERATION USING CONTROL PANEL For Manual Mode: Press the Mode Button Cool - Cooling function on indicator. Dry - Dehumidify function on indicator. Fan - Fan on indicator. For Cooling Operation: Be sure that the drain tank is properly placed in the unit. Install the exhaust duct properly.
- Page 9 NOTE: When the unit is running on fan mode, the exhaust duct is inoperative and is not required. OPERATION USING REMOTE CONTROLLER The remote controller provided with the unit may operate this portable air conditioner. The remote controller uses one LITHIUM BATTERY 3V mote controller.
- Page 10 CONDENSATE WATER DRAINAGE Internal Water Tank When operating in cooling or dehumidifying mode, the condensate water will drain into the internal water tank. Depending on the surrounding humidity , the unit can continu- ously operate for 2 to 12 hours before the internal water tank is full. When the internal water tank gets full, a beep slarm will sound eight times for 15 seconds.
- Page 11 METHOD OF CONTINUOUS DRAINAGE: 1. Slide out drain valve from the left side of the unit. 2. Connect a rubber pipe to the valve (not included). 3. Make sure the rubber pipe drains downward. 66126113.p65 Do not remove the water tank when the unit is in use. Always turn “Off”...
-
Page 12: Air Filter
AIR FILTER • Soleus Air recommends cleaning your air filter at least after every two weeks of use. Keep- ing your air filter clean will maximize the performance and life of this product. • Open the air filter cover on the left side of the unit (fig. a) •... - Page 13 NOTE: Be very careful when using an external water tank. The unit will not shut off automati- cally when an external water tank is full. Spill water can cause substantial damages to carpet, furniture and other valuables. Do not use lengthy drainage tabing without a condensate water pump. MAINTENANCE NOTE: Make sure power is off and the plug is pulled out of the power outlet before performing any maintenance activities.
-
Page 14: Trouble Shooting
TROUBLE SHOOTING PROBLEM Unit does not operate Unit is umplugged Drain tank is full Water tank not installed correctly Air exhaust is clogged Unit does not cool There is a heating source in the room room Air filter is dirty Air exhaust is not installed correctly Room is too big or too much amblent sunlight is reaching in... - Page 15 Specifications are subject to change without notice PRODUCT INFORMATION If you have problems or questions concerning your air conditioner, you will need the following information. Model and Serial numbers are on the nameplate on the back of the unit. Model No.
- Page 16 DISCLAIMER ALL INFORMATION AND THE TECHNICAL SPECIFICATIONS PRESENTED IN THIS USER’S MANUAL ARE THE PRESENTATION OF THE MANUFACTURER SOLEUS INTERNATIONAL HAS NOT CONDUCTED INDEPENDENT TESTS FOR THE INFORMA- TION AND THE SPECIFICATIONS PRESENTED HEREWITHIN. CONTACT INFORMATION For Optional and Spare Parts Technical Support Warranty Claim Customer Service...
