PEERLESS Partner PP-120 Installation, Operation & Maintenance Manual
Indirect-fired water heater
Hide thumbs
Also See for Partner PP-120:
- Installation & operation manual (12 pages) ,
- Installation, operation & maintenance manual (12 pages) ,
- Installation, operation & maintenance manual (18 pages)
Related Manuals for PEERLESS Partner PP-120
Summary of Contents for PEERLESS Partner PP-120

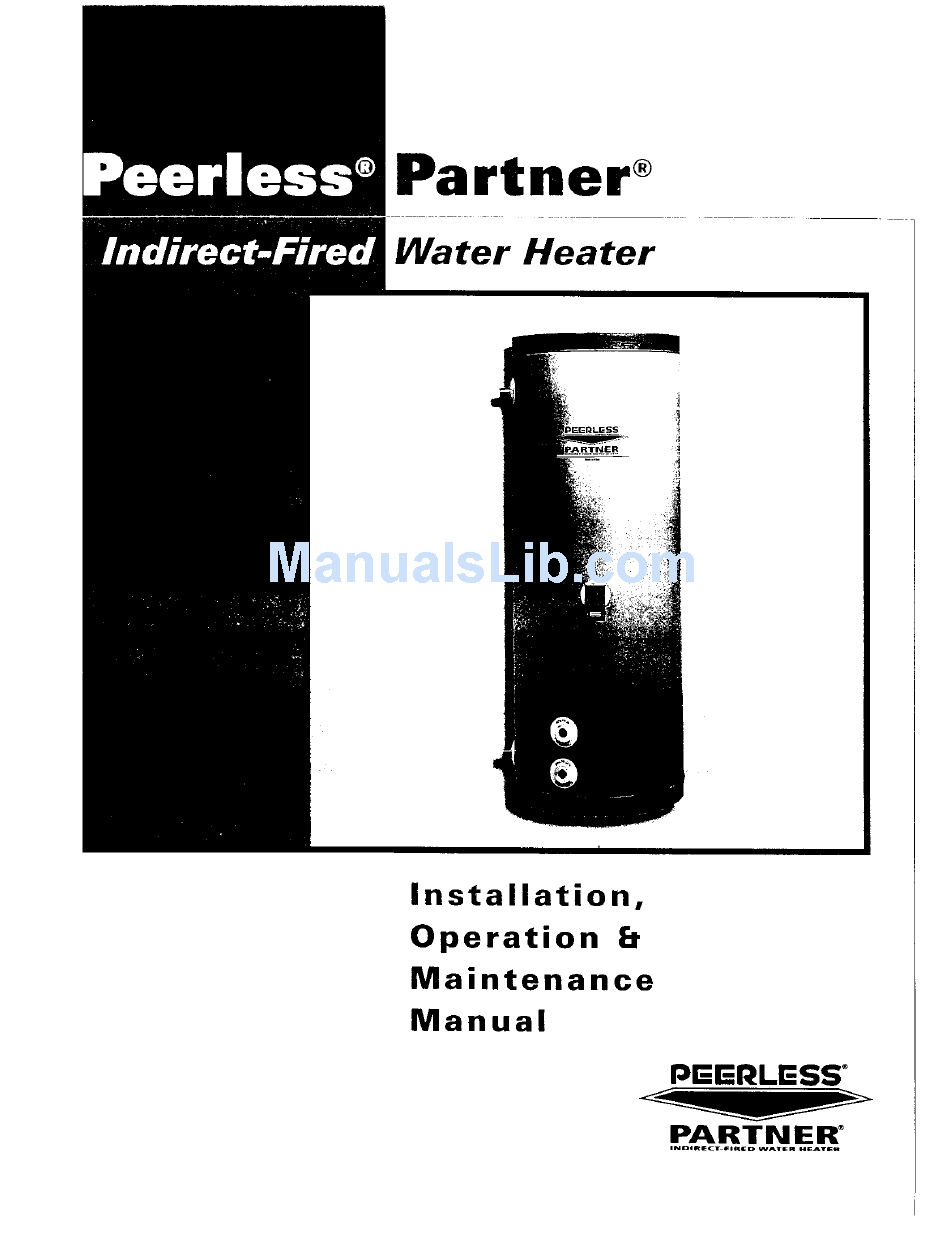

- Page 1 Partner ® Water Heater • RTNER Installation, Operation Maintenance Manual pr=-ERLES$ o PARTNER ° IN_l_t FI_D WATER HEATE_...
- Page 2 [(_F r('._icl_'tJliol applicatiotts aiid o limit ('d..]lv(_-y_,c2r tt,6ltTOlll_] ttgoitl_l I(?c_ks./}om I]lc I(tt!]¢ or tlpl)licoliotl._. [Jl('(t._(" Cotl.';ttlt h(!(llt'l'N,/(l(']t-_'l ]|C(JI t_VCh(Itl(]('!'.t()l ('Ol!ltlR'tY'i(ll P¢'crlt's_; Boilers.l_r complett" [L'OIT(II1QI iq/ormation. Peerless Boilers * 610-367-2153 * www.peerless heater.com PARTNER (303 Prlrll_?cI it1 L} _...
- Page 3 The modem coil design of the Peerless Partner indirect-fired water heater provides maximum heat transfer efficiency and resists mineral buildup that discolors water.
- Page 4 Inlet & Drain FLOOR The residential warranty covers: --the entire water heater, one year from date of installation. PEERLESS HEATER CO. ---outside jacket, inner tank, or heat exchanger, lifetime. 231 North Walnut Street The commercial warranty covers: Boyer_own, PA 19512-1021 --the entire water heater, one year from date of installation.
- Page 5 Ratings can be improved by increasing Peerless ® Partner ®thermostat setting and using a mixing valve to temper the hot water to the proper temperature. When temperatures greater than 119°F are required, use a mixing valve at the outlet of the water heater or anti-scald fittings at point of use.
- Page 6 PP-40 or PP-60 piped in series with an unfired storage tank (i.e. electric water heater without heating elements energized). Use a water boiler only. The Peerless Heater Company cannot recommend the use of steam boilers at this time. Contact factory for additional information.
- Page 7 3. Due to condensation in boiler, reduced output not recommended for PP-80, PP-120, PP-80-DW, and Category IV condensing boilers, such as Peerless Pinnacle, can be used for reduced output. Table 3: First Draw at 140°F '.2(in Minutes) Model Domestic W ater F lowRate[gpm]...
- Page 8 (2) the boiler water pressure is limited to a maximum of 30 psig by an approved safety or safety relief valve. 4. Peerless Partner(s) may be located adjacent to boiler to reduce piping heat loss or central to points of use to reduce response time to fixtures.
- Page 9 A heat trap will improve energy efficiency by reducing piping heat loss. c. Domestic Hot Water Out with Mixing Valve. See Figure 4. FIXTURES 3. Boiler. Install Peerless Partner as a separate space TEMPERATURE PRFSSURE heating zone. Place boiler circulator(s) in boiler RELEF VALVE supply piping.
- Page 10 RETURN Figure 6: Unfired Storage Tank 1. The Peerless Partner must be electrically grounded in accordance with local codes. In the absence of local codes follow the National Electrical Code, ANSI/NFPA 70. 2. Install thermostat provided with Peerless Partner. Insert bulb into immersion well. Secure to well by tightening screws on case.
- Page 11 10-15°F range. 5. Operate boiler until Peerless Partner thermostat satisfied. Measure domestic water temperature at hot water faucet. See Paragraph 3 above. 6. Draw hot water and allow Peerless Partner to operate through several recovery cycles to verify proper operation.
- Page 12 Controls on this appliance could ignite vapors causing an explosion. 2. Clean Inside of Tank (monthly). a. Mark temperature setting on Peerless Partner thermostat. Set thermostat to lowest setting. b. Close cold water inlet shutoff valve. Open a hot water faucet, c.
- Page 13 10°E vi. Compare total volume of water collected to Usable Hot Water in Table 1. If within 5 gallons the Peerless Partner is operating properly. Check PRODUCT SELECTION for proper model usage. vii. Compare calculated flow rate with first draw usage available per Table 3. If actual flow rate is greater than first draw usage available, consider use of flow restricting fixtures or mixing valve.
-
Page 14: Temperature And Pressure Relief Valve
2_"Polyurethane Foam Hot Water Cutlet, Insulation On Outside, T&P Relief Valve Less Than 1/2 ° F Per Hour Heat LOSS R 17 316L Stainless Steel Tank Plastic Jacket Domestic Water Enclosed Thermostat Weft for Connections (See Adjustable Honeywell Control Dimensional Data) (Boiler Water Supply &... -
Page 15: Water Heater
Peerless ® Partner ® Indirect-Fired Water Heater Installation, Operation Maintenance Manual INSTALLER: This manual is the property of the owner must affixed near water heater future reference. OWNER: This water heater should be inspected annually by a Qualified Service Agency.
