PEERLESS Indirect-Fired Water Heater Installation & Operation Manual
Peerless indirect-fired installation, operation & maintenance manual
Hide thumbs
Also See for Indirect-Fired Water Heater:
- Installation, operation & maintenance manual (12 pages)
Related Manuals for PEERLESS Indirect-Fired Water Heater
Summary of Contents for PEERLESS Indirect-Fired Water Heater

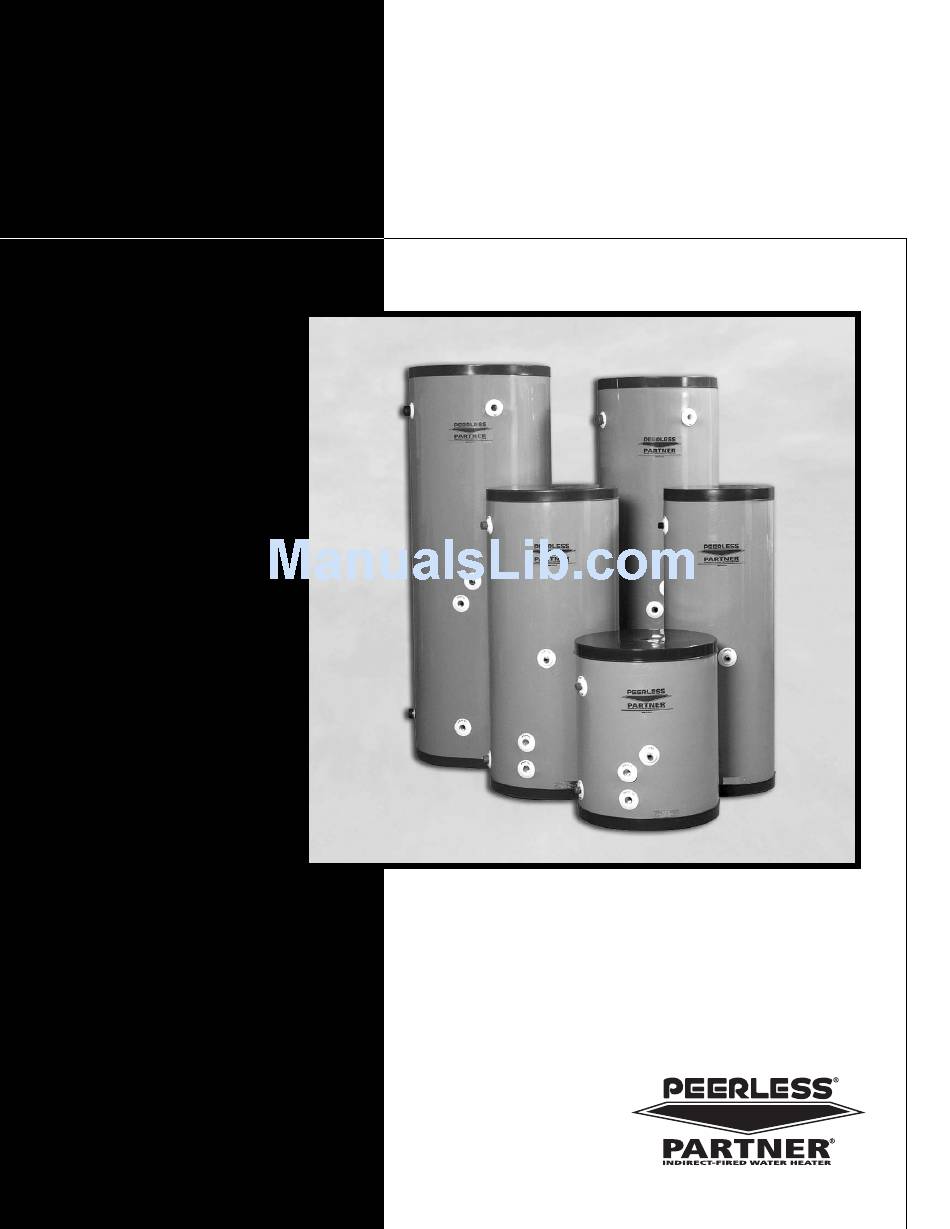

- Page 1 Peerless Partner ® ® Indirect-Fired Water Heater I n s t a l l a t i o n , O p e r a t i o n & M a i n t e n a n c e M a n u a l...
-
Page 2: Product Selection
Temperature limiting valves are available, see manual. The Peerless Partner indirect-fired water heater is deemed to be used in a "commercial setting" if at any time the unit is operated at a temperature over 150°F. Refer to warranty for additional information. - Page 3 d. Boiler. PP-80, PP-120, PP-80-DW, and PP-120-DW require full boiler output listed in Table 1. If boiler is a Category IV condensing boiler, such as Peerless used with reduced boiler output. If boiler output is less than shown in Table 1 reduce first hour rating as shown in Table 2.
-
Page 4: Pre-Installation Considerations
Table 2: First Hour Ratings for Reduced Boiler Output PP-30-LB Boiler Output [Btu per hour} 140°F 115°F 40,000 60,000 80,000 100,000 – – 120,000 – – 140,000 – – 160,000 – – 180,000 – – 200,000 – – 220,000 – –... - Page 5 4. Peerless Partner(s) may be located adjacent to boiler to reduce piping heat loss or central to points of use to reduce response time to fixtures. a. Install indoors in an area not exposed to freezing temperatures. Do not install outdoors. b.
- Page 6 2. Domestic Water a. Cold Water In. Install brass tee and drain valve (not provided). Install shutoff valve between water supply and cold water inlet for ease of service. See Figure 1. For systems using a back flow preventer or no return valve, install a thermal expansion tank between cold water supply and valve to offset expansion/pressure increase as water is heated.
- Page 7 Figure 5: Installation of Multiple Water Heaters as Single Unit Electrical 1. The Peerless Partner must be electrically grounded in accordance with local codes. In the absence of local codes follow the National Electrical Code , ANSI/NFPA 70. 2. Install thermostat provided with Peerless Partner. Insert bulb into immersion well. Secure to well by tightening screws on case.
- Page 8 Figure 7: Wiring Diagram – MI/MIH Start-up 1. General a. Open hot water faucet when filling or draining Peerless Partner. b. The Peerless Partner thermostat has three markings: Warm (120°F), Normal (140°F), and Hot (160°F). The thermostat is adjusted to its lowest temperature position when shipped from the factory. 2.
-
Page 9: Maintenance
Maintenance 1. General Housekeeping (continuous). Keep area clear of gasoline or other flammable vapors or liquids. Controls on this appliance could ignite vapors causing an explosion. 2. Clean Inside of Tank (monthly). a. Mark temperature setting on Peerless Partner thermostat. Set thermostat to lowest setting. b. - Page 10 v. Water temperature will remain constant within ±5°F until storage is exhausted. Continue to fill container until temperature drops 10°F. vi. Compare total volume of water collected to Usable Hot Water in Table 1. If within 5 gallons the Peerless Partner is operating properly.
-
Page 11: Repair Parts
Dimensions Table 7: Dimensions and Specifications Model Diameter Height PP-30-LB 23¼ 28½ PP-40 19¼ 52½ PP-60 23¼ 52½ PP-80 23¼ PP-120 73½ PP-40-DW 19¼ 52½ PP-60-DW 23¼ 52½ PP-80-DW 23¼ PP-120-DW 73½ Repair Parts Thermostat: Honeywell L4080B1295 (Operating range = 120°F to 160°F, 15° fixed differential) Temperature and Pressure Relief Valve: PP-40: Watts 100XL-8 (100 Mbh, 8”... - Page 12 Peerless Indirect-Fired PB HEAT, LLC P .O. BOX 447 • NEW BERLINVILLE, PA 19545-0447 ©2006 Partner ® Water Heater I n s t a l l a t i o n , O p e r a t i o n & M a i n t e n a n c e M a n u a l TO T H E I N S TA L L E R :...
