Model No. NTL09806.0
Serial No.
Find the serial number in the location
shown below. Write the serialnumber
in the space above for reference.
Serial
Decal
QUESTIONS?
As a manufacturer, we are com-
mitted to providing complete
customer satisfaction. If you
have questions, or if parts are
damaged or missing, PLEASE
CONTACT OUR CUSTOMER
SERVICE DEPARTMENT
DIRECTLY.
CALLTOLL-FREE:
1-888-825-2588
Mon.-Fri., 6 a.m.-6 p.m. MST
ON THE WEB:
www.nordictrackservice.com
_CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference,

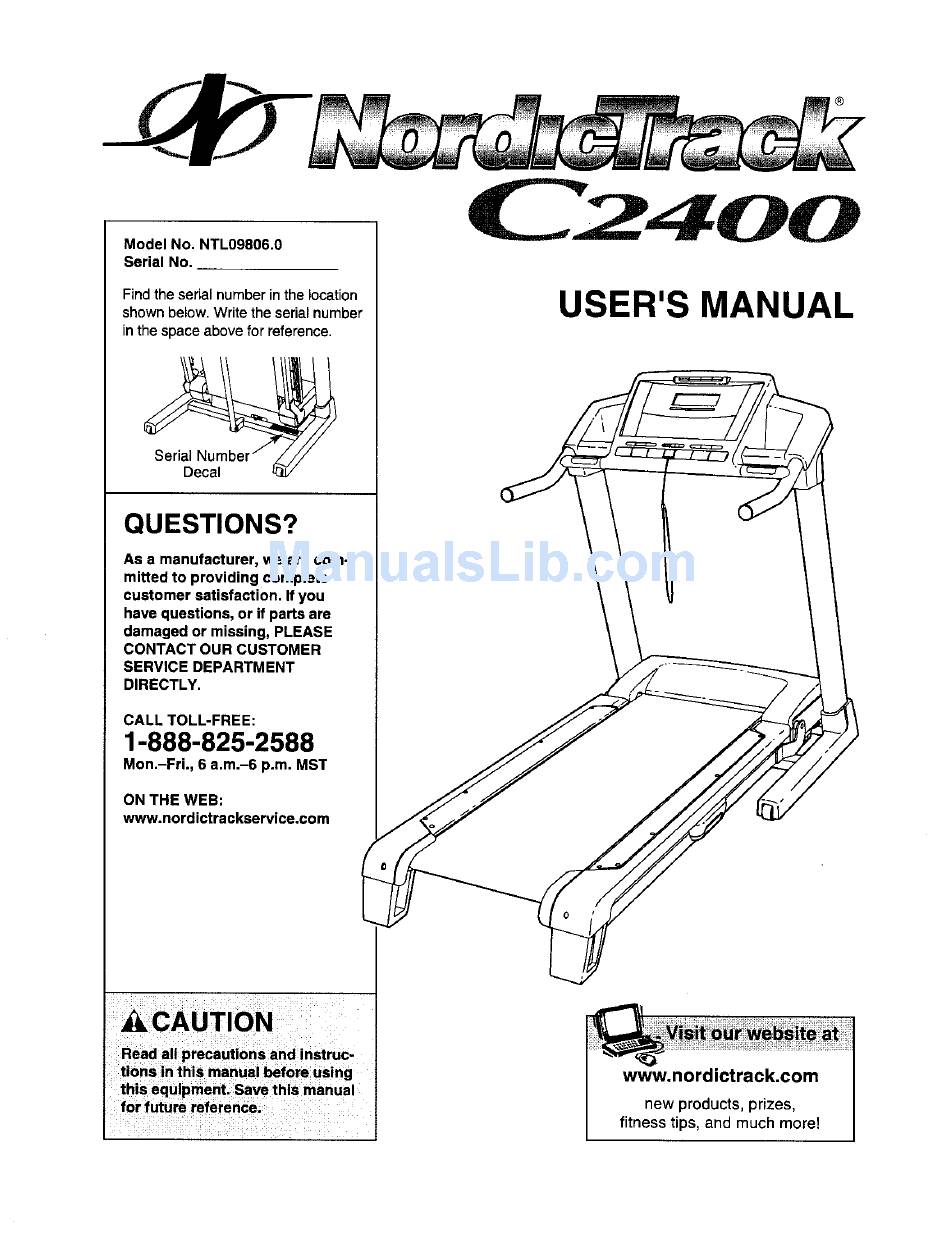

C24oo
USER'S MANUAL
www.nordictrack.com
new products, prizes,
fitness tips, and much more!
