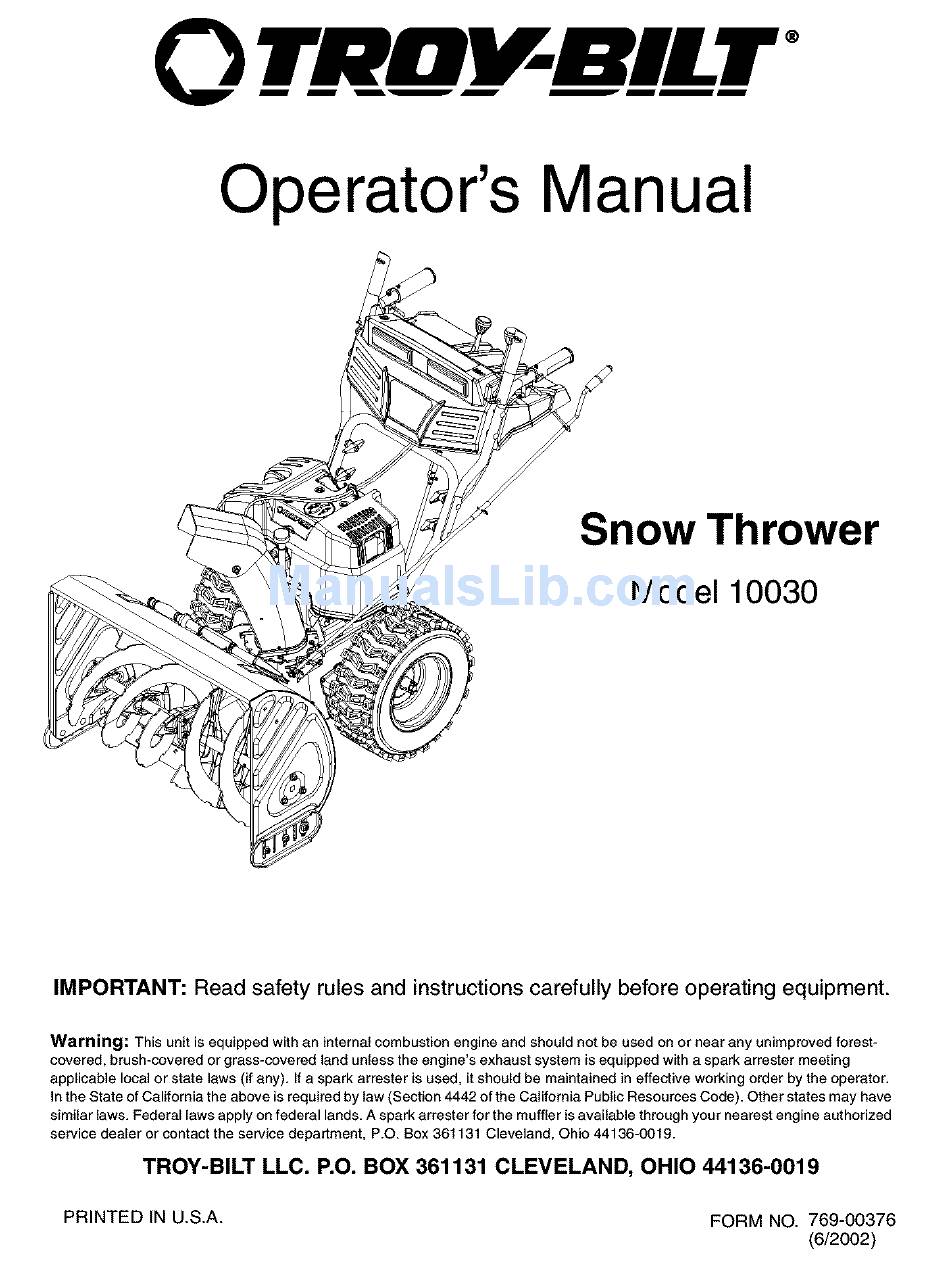

0 T_R£1KRILT"
Operator's Manual
Snow Thrower
Model 10030
IMPORTANT:
Read safety rules and instructions
carefully
before operating
equipment.
Warning:
This unit is equipped with an internal combustion engine and should not be used on or near any unimproved
forest-
covered, brush-covered
or grass-covered
land unless the engine's exhaust system is equipped with a spark arrester meeting
applicable local or state laws (if any). If a spark arrester is used, it should be maintained in effective working order by the operator.
In the State of California the above is required by law (Section 4442 of the California Public Resources Code). Other states may have
similar laws. Federal laws apply on federal lands. A spark attester for the muffler is available through your nearest engine authorized
service dealer or contact the service department,
P.O. 8ox 361131 Cleveland, Ohio 44136-0019.
TROY-BILT
LLC. P.O. BOX 361131 CLEVELAND,
OHIO 44136-0019
PRINTED IN U.S.A.
FORM NO. 769-00376
(6/2002)
Advertisement
Related Manuals for Troy-Bilt 10030
Summary of Contents for Troy-Bilt 10030
- Page 1 0 T_R£1KRILT" Operator's Manual Snow Thrower Model 10030 IMPORTANT: Read safety rules and instructions carefully before operating equipment. Warning: This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest- covered, brush-covered...
- Page 2 TABLEOFCONTENTS Content Page Important Safe Operation Practices ................... Assembling Your Snow Thrower ..................Know Your Snow Thrower ....................Operating Your Snow Thrower ................... Making Adjustments ......................Maintaining Your Snow Thrower ..................Servicing Your Snow Thrower .................... Off-Season Storage ......................Troubleshooting .........................
- Page 3 SECTION 1: IMPORTANT SAFEOPERATION P RACTICES WARNING: This symbol points out important safety instructions which, if not followed, could endanger the personal safety and/or property of yourself and others. Read and follow all instructions in this manual before attempting to operate this machine. Failure to comply with these instructions may result in personal injury.
- Page 4 5. Never runanengine i ndoors orinapoorly v entilated telephone 1-800-800-7310 forassistance and thename area. E ngine e xhaust contains carbon m onoxide, an ofyour n earest servicing dealer. odedess and deadly g as. Maintenance& Storage 6. Donot o perate m achine while under theinfluence of Never tamper with safety devices.
- Page 5 SECTION 2: ASSEMBLING YOUR SNOW THROWER Unpacking roller guides. Make sure the spring (found at the end of each cable) is attached to its actuator • Remove staples from the top, sides, and ends of bracket. the shipping crate. • Secure the upper handle and lower handle with the •...
- Page 6 • With the traction control released, push the snow Cable Cable thrower forward, then pull it back. The machine Guide should move freely. • Engage the traction control and attempt to move the machine both forward and back, resistance should be felt. •...
- Page 7 Tire Pressure(PneumaticTires) The tires are overinflated for shipping purposes. Auger • Check tire pressure. Maintain pressure between 10 and 14 psi. NOTE: If the tire pressure is not equal in all tires, the unit may pull to one side or the other. WARNING: Maximum tire pressure under any circumstance is 30 psi.
- Page 8 Traction C ontrol ChuteCrank / Auger ControlLock The chute crank is located on the left The traction control is located on the right handle. hand side of the snow thrower. Use it Squeeze the traction control to engage the wheel drive. Release to stop.
- Page 9 SECTION 4: OPERATING Y OUR SNOW THROWER Before Starting • If your house wiring system is not a three-wire grounded system, do not use this electric starter Read and understand all instructions and warnings on under any conditions. the machine and in this manual before operating. •...
- Page 10 Recoil Starter: With engine running, pull starter rope with a rapid, continuous full arm stroke three WARNING: The temperature of the muffler or four times. Pulling the starter rope will produce a and the surrounding areas may exceed 150°F. Avoid these areas. loud clattering sound, which is normal.
- Page 11 SECTION 5: MAKING ADJUSTMENTS Tip the snow thrower forward, allowing it to rest on the auger housing. See Figure 9. WARNING: NEVER attempt to clean chute or make any adjustments while engine is running. ShiftRod Clip Housing \Shift Figure 9 •...
- Page 12 SkidShoe ChuteAssembly The space between the shave plate and the ground can • The distance snow is thrown can be adjusted by be adjusted by raising or lowering the skid shoes. adjusting the angle of the chute assembly. Refer to page 8 for instrcutions.
- Page 13 SECTION 6: MAINTAINING YOUR SNOW THROWER AugerShaft WARNING: Before lubricating, repairing, or • At least once a season, remove the shear bolts inspecting, disengage all clutch levers and stop from the auger shaft and spray lubricant inside the engine. Wait until all moving parts have come shaft.
- Page 14 FrictionWheelRubber Follow the instructionsbelow to check the condition of the friction wheel rubber every 25 hours of operation. • Remove the six self-tapping screws from the frame cover underneath the snow thrower. • Visually inspect the friction wheel rubber for excessive wear, cracks, or loose fit on the friction wheel drive hub.
- Page 15 SECTION 7: SERVICING YOUR SNOW THROWER against the skid shoes). Make certain the skid shoes WARNING: Before servicing, repairing, or are adjusted to be level. inspecting, disengage all clutch levers and stop • To remove the shave plate, remove the carriage bolts, betlevilte washers and hex nuts which attach engine.
- Page 16 Friction Wheel \ Drive Plate Pulley AugerJ Drive Pulley Belt Stop Bolt Idler Pulley j Pulley _Auger Belts Frame Support Bracket _-_---- Auger Pulley Figure 21 Figure 19 Changing FrictionWheelRubber • Lift the rear auger belt from the auger pulley, and The rubber on the friction wheel is subject to wear and slip the belt between the support bracket and the should be checked after the first 25 hours of operation,...
- Page 17 Reassemble the new friction wheel rubber to the Shift Rod friction wheel plates and hub, tightening the six Assembly screws in rotation and with equal force. Gear Shaft Position the friction wheel assembly up onto the pin of the shift rod assembly, and slide the hex shaft through the friction wheel assembly.
- Page 18 SECTION 9: TROUBLESHOOTING Problem Cause Remedy Engine fails to start. Fuel tank empty, or stale fuel. Fill tank with fresh gasoline. Blocked fuel line. Clean the fuel line. Choke net in ON position Move switch to ON position Faulty spark plug. Clean, adjust gap or replace.
- Page 19 Safety& Decorative Labels 777D06574 777D06563 777D03165 777122052 777122049 777122053 777S32065 777S32066 777D06573 777122047 777D06572 PLACE A£OVE INGNmON Tecumseh Engine Labels CUT OUT 751T642082100 751T64141769 751T641393 On plastic engine cover On pJastic engine cover Top of pJastic engine cover _ef[ side o_ electdc starter above primer knob above mtJffler vents in plastic...
- Page 20 SECTION 10: PARTS LISTFORMODEL 10030...
- Page 21 ModellO030 Ref. Ref. Part No. Part No. Part Description Part Description Grease 05931A 737-0318 Bearing Housing 684-0065 738-0281 Shoulder Screw Impeller Assembly 705-5226 Chute Reinforcement 741-0245 Hex Flange Bearing 710-0451 741-0309 Carriage Bolt Ball Bearing 710-0459A Hex Bolt 3/8-24 x 1.5" 741-0493A Flange Bearing 710-0604A...
- Page 22 Model 1 0030...
- Page 23 ModellO030 Ref. Ref. Part No. Part No. Part Description Part Description 737-04027 Lubricant 618-0043 Dogg Assembly RH 738-0924 C Screw 1/4-28 x .375" 618-0044 Dogg Assembly LH 618-0575 Drive Shaft 741-0598 Hex Flange Bearing 741-0600 656-0012A Friction Wheel Disc Assembly Ball Bearing 741-1111 684-0014B...
- Page 24 ModellO030 2_13 HarnessAssembly Connector Plugs to: Alternator lead from engine B, C, L1, L2 Switch and Light 1 and 2 D, E Heated Grips of handles F indicates fuse; G indicates grounding wire.
- Page 25 ModellO030 Ref. Part No. Part Description 684-0008A Shift Arm Assembly 684-0053B Chute Crank assembly 705-5266 Chut Crank Bracket 710-0449 Carriage Screw 5/16-18 x 2.25" 710-0458 Carriage Bolt 5/16-18 x 1.75" 710-0643 Hex Screw 5/16-18 x 1.0" TT Screw 1/4-20 x 1.0" 710-0788 710-0837 AB Screw...
- Page 26 Model 1 0030 _,,,. on engine )_" 2 _\\\...
- Page 27 Model 1 0030 Ref. Part No. Description idler Bracket: Drive Clutch 05896A 710-1245B Hex Bolt 5/16-24 x .875" Hex Screw 1/4-28 x .50" 710-0230 Hex Screw 5/16-24 x .750" 710-0627 TT Screw 3/8-16 x 1.0" 710-0654A Hex Screw 3/8-24 x .875" 710-0696 TT Screw 1/4-20 x .625"...
- Page 28 Model 1 0030 Ref. Pa_ No. Descri_ion 710-04071 Carriage Bolt 5/16-18 x 1.0" 710-0262 Carriage Bolt 5/16-18 x 1.5" 710-0805 Hex Bolt 5/16-18 x 1.5" 710-0896 Hex AB Screw 1/4-14 x .625" 710-3015 Hex Screw 1/4-20 x .75" 712-0429 Hex Lock Nut 712-3027 Hex Flange Lock Nut 731-1320...
- Page 29 To locate the dealer in your area, check your incidental or consequential damages, or limitations on how Yellow Pages, or contact Troy-Bilt LLC at P.O. Box 361131, long an implied warranty lasts, so the above exclusions or Cleveland, Ohio 44136-0019, or call 1-866-840-6483 or 1- limitations may not apply to you.
