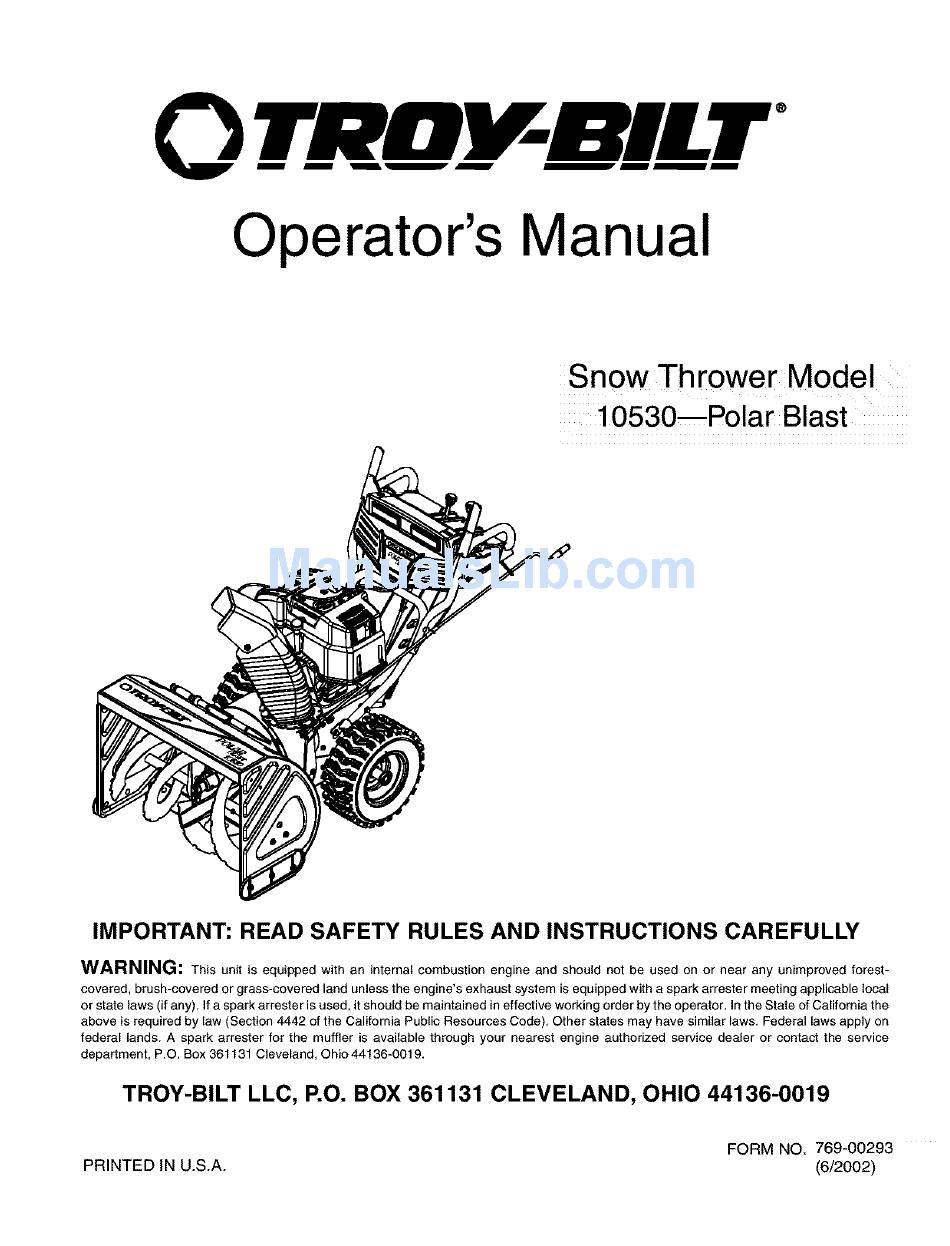

OTRO_ BILT__
Operator's Manual
Snow Thrower Model
10530mPolar Blast
IMPORTANT:
READ SAFETY
RULES AND INSTRUCTIONS
CAREFULLY
WARNING:
This unit is equipped with an internal combustion
engine and should not be used on or near any unimproved
forest-
covered, brush-covered
or grass-covered
land unless the engine's exhaust system is equipped with a spark arrester meeting applicable local
or state laws (if any). If a spark attester is used, it should be maintained in effective working order by the operator, in the State of California the
above is required by law (Section 4442 of the California Public Resources Code). Other states may have similar laws. Federal laws apply on
federal lands. A spark arrester for the muffler is available
through your nearest engine authorized
service dealer or contact the service
department,
P.O. Box 361 t 31 Cleveland, Ohio 44136-0019.
TROY-BILT
LLC, P.O. BOX 361131 CLEVELAND,
OHIO 44136-0019
FORM NO. 769-00293
PRINTED IN U.S.A.
(6/2002)
Advertisement
Related Manuals for Troy-Bilt 10530-polar blast
Summary of Contents for Troy-Bilt 10530-polar blast
- Page 1 A spark arrester for the muffler is available through your nearest engine authorized service dealer or contact the service department, P.O. Box 361 t 31 Cleveland, Ohio 44136-0019. TROY-BILT LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019 FORM NO. 769-00293 PRINTED IN U.S.A.
-
Page 2: Table Of Contents
TABLEOFCONTENTS Content Page Important Safe Operation Practices ................ Loose Parts & Hardware Pack ................. Assembling Your Snow Thrower ................Know Your Snow Thrower ..................Operating Your Snow Thrower ................Making Adjustments ....................Maintaining Your Snow Thrower ................Service ........................Off-Season Storage ....................Troubleshooting ...................... -
Page 3: Important Safe Operation Practices
SECTION 1: IMPORTANT SAFEOPERATION P RACTICES This symbol points out important safety instructions, which if not followed, could endanger the personal safety and/or property of yourself and others. Read and follow all instructions in this manual before attempting to operate this machine. Failure to comply with these instructions may result in personal injury. - Page 4 4. Never operate with a missing ordamaged discharge Contact your d ealer ortelephone I (866) 8 40-6483 for chute. Keep allsafety d evices inpiece a nd working. assistance and thename o fyour n earest servicing dealer. 5. Never runanengine i ndoors orinapoorly v entilated area.
-
Page 5: Assembling Your Snow Thrower
SECTION 2: ASSEMBLING YOUR SNOW THROWER NOTE: All references to right or left side of the snow thrower are determined from behind the unit in the operating position. The "operator's position" is defined as standing directly behind the snow thrower, facing the handle panel Loose Parts •... -
Page 6: Know Your Snow Thrower
Attaching ChuteDirectional Control Cable Guide Discharge Chute • Remove the hairpin clip from the upper rod and slide the upper rod through the bracket and into the lower rod. See Figure 4. • Align the two holes on both chute cranks and insert the hairpin clip removed earlier, through these holes. -
Page 7: Operating Your Snow Thrower
Traction Control / ,Shift Lever Auger Control Lock Chute Tilt Control Auger Control Fuel Tank Discharge Chute Directional Control Chute Electric Clean-out Tool Left Wheel Steering Control Starter (Right Control Not Visible) 3utton Primer.x Switch Safety Ignition Ke_ Recoil Starter Auger Handle Throttle Control... - Page 8 Wheel SteeringControls • Operate the snow thrower in open areas until becoming familiar with these controls. The left and right wheel steering controls are located on the underside of the handles and are used to assist in Headlights steering the snow thrower. When properly connected, both headlights illuminate •...
- Page 9 • In a well-ventilated area, start the snow thrower NOTE: Always cover vent hole in primer button when engine as instructed earlier in this section under the pushing. Additional priming may be necessary for first heading Starting Engine.Make sure the throttle is set start if temperature is below 15°F.
-
Page 10: Making Adjustments
Repeat A uger C ontrol Testtoverify proper Stop the engine by removing the ignition key. adjustment hasbeen achieved. Repeat the Remove the clean-out tool from the clip which previous s teps toprovide moreslackinthecable, i n secures it to the rear of the auger housing. necessary. - Page 11 • Thread the lock nut outward (down the coupler) • Remove the hairpin clip and flat washer from the three full turns to provide more slack in the cable shift handle under the handle panel. and reattach the spring to the bracket. •...
- Page 12 WARNING: Maximum tire pressure under any circumstance is 30 psi. Equal tire pressure should be maintained at all times. Excessive pressure (over 30 psi) when seating beads may cause tire/rim assembly to burst with force sufficient to cause serious injury Skid ShoeAdjustment The space between the shave plate and the ground can be adjusted by raising or lowering the skid shoes.
- Page 13 DischargeChute The base of the discharge chute and the spirals on the chute crank should be lubricated at least every 25 hours of use. Apply the lubricant under the base of the chute and where the spirals contact the discharge chute.
- Page 14 SECTION 7: SERVICING YOUR SNOW THROWER • Reassemble new skid shoes with the hardware WARNING: Before servicing, repairing, or removed earlier (cupped side of bell washer against inspecting, disengage all clutch levers and the skid shoes). Make certain the skid shoes are stop engine.
- Page 15 Brake Bracket Assembly Auger Belt Engine Pulley Shoulder Bolt Figure 18 Belt Keepers Auger Belt Bell Washer • Remove the cotter pin and washer from the ferrule Figure 20 in order to disconnect the auger idler rod from the brake bracket assembly. See Figure 19. •...
- Page 16 • Secure the two halves with the two bolts and lock Shift Arm Assembly washers removed earlier. Refer to Figure 18. • Attach the "Z" fitting of the cable into the brake bracket assembly. Refer to Figure 19. • Slip the auger control belt over engine pulley. •...
-
Page 17: Off-Season Storage
Auger control cable in need of adjustment. Refer to Auger Control Test on Page 9. Auger belt loose or damaged. Refer to Adjustments. Shear bolt(s) sheared. Replace shear bolt(s). NOTE: For repairs beyond the minor adjustments listed above, contact an authorized Troy-Bilt service dealer. -
Page 18: Parts List
SECTION 9: MODEL 10530PARTS LIST >... - Page 19 Model10530 Ref. Ref. Part No. Part Description Part Description Part No. 05244A Bearing Housing 741-0192 Flange Bearing w/Flats 618-0281A Bracket Assembly: Auger Break 741-0475 Plastic Bushing 684-0090A lmpellerAssembly: 16" 741-0494 Flange Bushing 710-0371 Hex Lock Bolt 5/16-18 x .875" 747-0980 Idler Rod: Auger 710-0451 V-Belt...
- Page 20 Model10530...
- Page 21 Model10530 Ref. Ref. Part No. Part No. Part Description Part Description 05523 Flat Washer Pivot Support Bracket 736-0163 750-1302A Lock Washer Spacer, .6725 x 1.125 x 2.485 736-0217 618-0279 Bell Washer Dogg Assembly LH 736-0242 618-0280 Dogg Assembly RH 710-0604A Self-tapping Screw, 5/16-18 x .625 618-0282B Flat Washer...
- Page 22 Model10530...
- Page 23 Model10530 Ref. Part No. Part Description 646-0012 Cable Assembly: Auger/Drive 684-0053B Chute Crank Assembly, Lower Chute Crank Bracket 705-5266 710-1879 Hex Screw, 3/8-16 x .88" 710-1878 Hex Screw, 3/8-16 x 1.75" 710-0458 Carriage Bolt 5/16-18 x 1.75" 710-0572 Carriage Bolt 5/16-18 x 2.5" 747-1136 Lamp Retainer Hex Screw 1/4-20 x .75"...
- Page 24 Model10530 " • <'" Ref. Part No. Description Ref. Part No. Description 738-0982 Shoulder Screw 07386 Washer 684-0123A Belt Cover Bracket Assembly 748-0234 Shoulder Spacer 784-0131 V-Belt 710-0191 Hex Screw 3/8-24 x 1.25" 710-0237 Hex Screw 5/16-24 x .625" 756-0240 Flat Idler 710-1008 756-0241B...
- Page 25 Model10530 Ref. Part No. Description 710-0276 Carriage Screw 710-0458 Carriage Bolt 5/16-18 x 1.75" 710-0805 Hex Bolt 5/16-18 x 1.5" Hex AB Screw 1/4-14 x .625" 710-0896 Hex Screw 1/4-20 x .75" 710-3015 712-0429 Hex Lock Nut 712-3027 Hex Flange Lock Nut 731-0846C Upper Chute 731-0851A...
- Page 26 Model10530 ® Part No. Description 618-0246 Housing Assembly, RH 618-0435 Housing Assembly, LH 710-1260A Screw, 5/16-18 x 0.75 711-0908A Axle, Auger 711-1133 Shaft, Auger Drive 714-0126 Key, Hi Pro, 3/16 x 3/4 714-0135 #91 Woodruff Key 1/4 x 3/4 716-0111 Snap Ring .875 Dia.
- Page 27 777D06575 777D06574 777122052 777122049 777122051 777S32066 777S32065 777D06576 777122047 777D06577 Tecumseh Engine Labels 751T642082100 751T64141769 751T641393 On plastic enginecover On plasticenginecover Topof plastic enginecover eft sideofele=ric starter aboveprimer knob abovemuffler v entsin plastic...
- Page 28 LIMITED WARRANTY FOR: O TRO_ B_ILT'_ The limited warranty set fodh below is given by Troy-Bilt LLC Troy-Bilt LLC does net extend any warranty for products sold or exported outside of the United States, with respect to new merchandise purchased and used in the United States, its possessions and territories.
