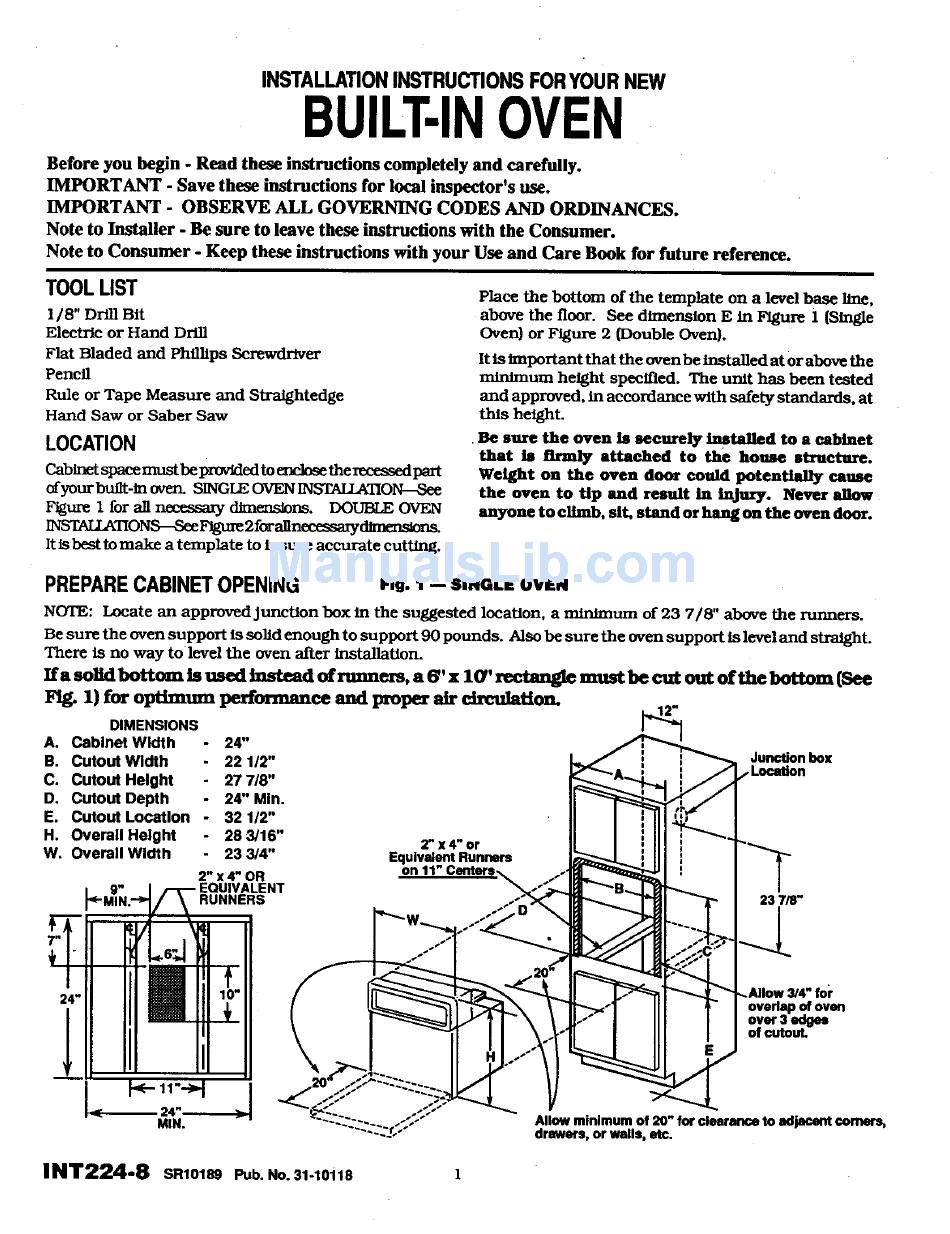

INSTALLATION INSTRUCTIONS FORYOURNEW
BUILT-IN OVEN
Before you begin - Read these instructions completely and carefully.
IMPORTANT - Save these instructions for local inspector's use.
IMPORTANT - OBSERVE ALL GOVERNING CODES AND ORDINANCES.
Note to Installer - Be sure to leave these instructions with the Consumer.
Note to Consumer - Keep these instructions with your Use and Care Book for future reference.
TOOLLIST
118" Drill Bit
Electric or Hand Drill
Flat Bladed and Phillips Screwdrlve_
Pencil
Rule or Tape Measure and Straightedge
Hand Saw or Saber Saw
LOCATION
Cabinet space must be provlded to _the recessed part
ofyour buflt-ln ove_ SINGLE OVEN INSFAIIATION----See
Figu_ 1 for an necessmy d_nensions. DOUBLE OVEN
INSTALLATIONS--See l_na_ 2 for allnecessa_d_fm-_on_
It is best to make a template to insure accurate cutting.
Place the bottom of the template on a level base llne,
above the floor. See dimension E in Figure i (Single
Oven)
or Figure
2 (Double
Oven).
It is important that the oven be instaUed at or above the
minimum height specified. The unit has been tested
and approved, in accordance with
safety
standards, at
this height.
•Be sure the oven is securely
installed to a cabinet
that is firmly attached to the house structure.
Weight on the oven do_ could potentially cause
the oven to tip and result in injury. Never allow
anyone to climb, sit, stand or hang on the oven door.
PREPARECABINETOPENING
Fig. I -- SINGLE OVEN
NOTE: Locate an approved Junction box in the suggested location, a minimum of 23 7/8" above the runners.
Be sure the oven support is solid enough to support 90 pounds. Also be sure the oven support is level and straight.
There is no way to level the oven after installation.
If a solid bottmn is used instead ¢grunners, a _' x I@' rectangle must be cut out of the bottom (See
FI_ I) for optimum perfmTmmce and proper air circuIaflo0nu
DIMENSIONS
A. Cabinet Width - 24"
B. Cutout Width - 22 1/2"
C. Cutout Height - 27 7/8"
D. Cutout Depth - 24" MIn.
E. Cutout Location - 32 1/2"
H. Overall Height - 28 3/16"
W. Overall Width - 23 3/4"
2"x4" OR
2"x4" or
Equivalent Runners
on 11" Centers-_
Junctionbox
RUNNERS 23 7/8"
24" ovedapof oven
over 3
edges
of cutout.
MIN. Allow minimumof 20"for clearanceto adjacent
drawers,or walls,etc.
INT224-8
SR10189 Pub. No. 31-10i18 1
