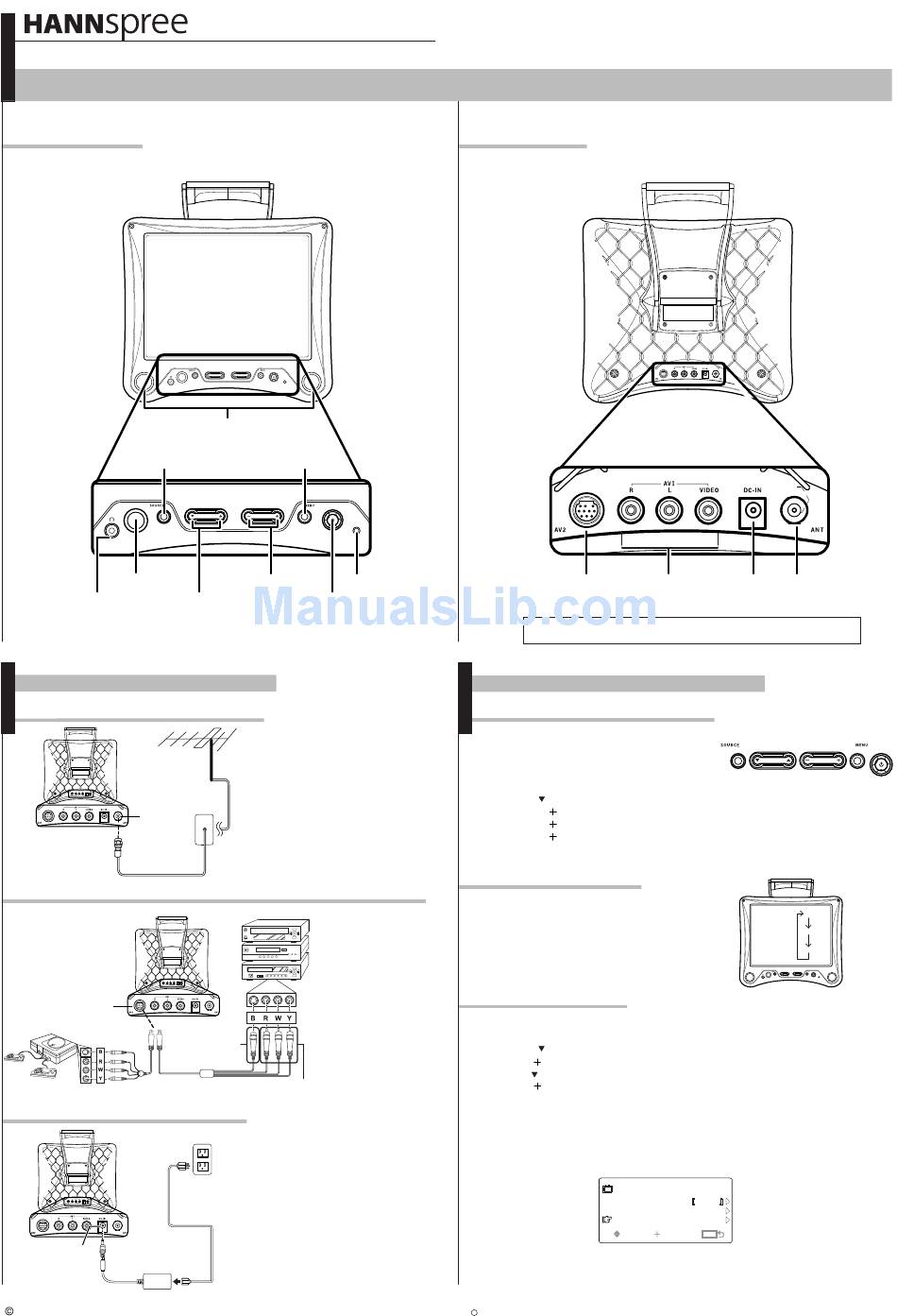

ST29-12U1 12.1" Liquid Crystal Display TV
This Guide is designed as a reference to help you start using your LCD TV quickly. Please Refer to the User's Manual for more detailed installation and safety instructions.
Front View
Source
Remote IR sensor
Headphone jack
Channel select
Making Connections
Connecting to Antenna/Cable TV
Antenna
ANT jack
(VHF/UHF
IN jack)
Antenna/CATV
coaxial cable
Connecting to a VCR, VCD,DVD Player,or Gaming Device
1. The illustration presented
here shows you how to
connect your TV to a
VCR, VCD, DVD player
or gaming device.
4-IN-1 A/V jack
Gaming device
4-IN-1 A/V cable
Connecting the Power Adapter
Power outlet
Power cord
DC-IN
Power adapter
Copyright 2005, Hannspree California, Inc. All rights reserved.
Quick Start Guide
Speakers
Menu
Volume adjust
Power
indicator LED
Power
1. Connect one end of the VHF/UHF
(Antenna) or CATV cable to ANT Jack
(VHF/UHF IN Jack) on the back of the TV.
2. Connect the other end of the VHF/UHF
(Antenna) or CATV cable to the Antenna
or CATV socket.
2. The cables are
VCR
color-coded (black,
red, white, and yellow).
VCD
Connect each color-
DVD
coded cable to
the appropriate
connector on your
device.
S-Video
connector
AV connectors
1. Connect the power cord to the power
adapter as illustrated.
2. Plug the power adapter connector into
the DC-IN input jack on the rear panel
of the TV.
3. Insert the three-pronged plug at the
other end of the power cord into a
power outlet.
Rear
View
AV2
Note : Install the display unit using a mounting device. For details , refer to
the operating instructions supplied with your mounting device .
A/V and Channel Setup
Watching Broadcast or Cable TV
1. After you have made the appropriate power and
source connections, press the power button to turn
on your television.
2. Press the SOURCE button to select TV.
3. Press the MENU button to open the OSD menu.
4. Use the CH
button to select "TV".
5. Press the VOL
button to enter "TV MENU".
6. Press the VOL
button to enter "TV/CATV".
7. Press the VOL
button to select "TV" (broadcast
TV) or "CATV" (cable TV).
Selecting A/V Sources
1. Make sure your TV is turned on and a
device such as a DVD player is connected.
2. Press the SOURCE button on the control
panel to select different source signals.
The channel number, "AV1" or "AV2" appears on
the screen.
Auto Channel Setup
Please follow the instructions by using the control panel.
1. Press the MENU button to enter the OSD menu.
2. Use the CH
button to select "TV".
3. Press VOL
button into the "TV MENU".
4. Press CH
button until the "AUTO PROGRAM" feature is selected.
5. Press VOL
to begin "AUTO PROGRAM".
6. Your television will begin automatically memorizing the available channels.
Auto Program
TV
MENU
TV/CATV
CH
ADD/ERASE
AUTO PROGRAM
SEL
SEL
The NBA and individual NBA member team identifications reproduced on this product are trademarks and copyrighted designs,
and/or other forms of intellectual property, that are the exclusive property of NBA Properties, Inc. and the respective NBA member teams
and may not be used, in whole or in part, without the prior written consent of NBA Properties, Inc. All rights reserved.
2005 NBA Properties, Inc.
C
AV1
DC-IN
ANT
CH:
AV1
AV2
TV MENU
CATV
ENTER
ENTER
ENTER
ENTER
MENU
MENU
4
