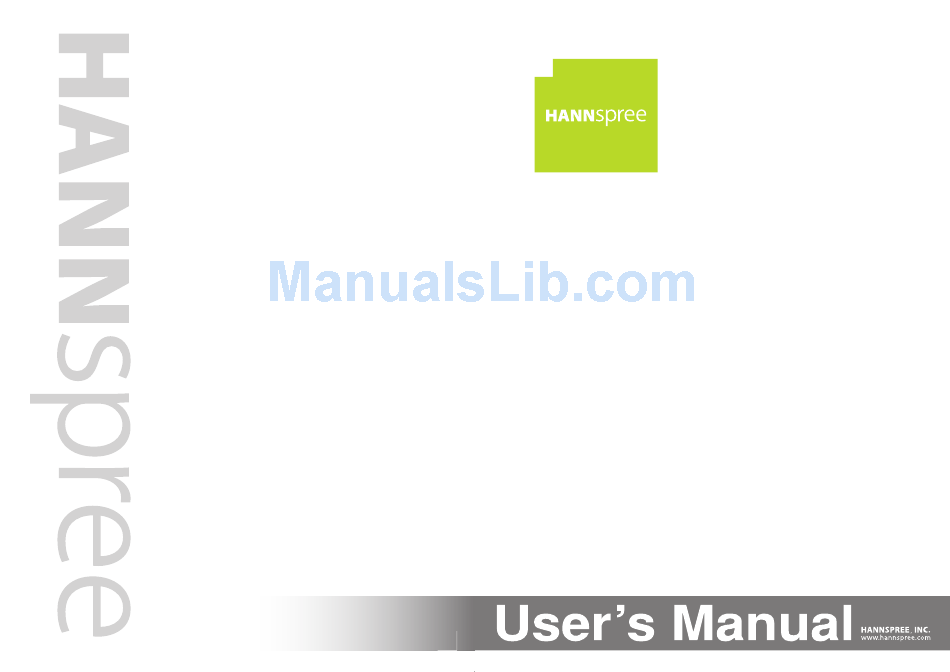

- Page 1 28” Liquid Crystal Display Television Téléviseur à Écran à Cristaux Liquides TV de Pantalla de Cristal Líquido 1506-060B000...
-
Page 2: Table Of Contents
Table of Contents Regulatory Information ... 3 Description of Warning Symbols ... 4 Safety Notices ... 5 Important Safety Instructions ... 6 Preface ... 9 Warranty and Service ... 9 1. Getting Started ... 11 1.1 Package Contents ... 11 1.2 Introducing the TV ... - Page 3 Table of Contents 3. Adjusting On-Screen Display (OSD) Settings ... 27 3.1 OSD Setting Menus ... 28 3.2 Adjusting Picture Settings ... 28 3.3 Adjusting Audio Settings ... 29 3.4 Adjusting Channel Settings ... 30 3.5 Adjusting V-CHIP Settings ... 31 3.6 Adjusting Setup Settings ...
-
Page 4: Regulatory Information
Regulatory Information FCC Compliance Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 5: Description Of Warning Symbols
Description of Warning Symbols WARNING This symbol is used to alert users to pay attention to important descriptions regarding usage, maintenance (repair), and additional important information related to this TV. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION This symbol is used to alert users to the risk of electric shocks due to dangerous and uninsulated components. -
Page 6: Safety Notices
Safety Notices Installation Safety Notes Location Avoid allowing the TV to get prolonged exposure to sunlight or other strong sources of heat. Leave sufficient distance between the TV and the wall to provide enough space for the emission of heat. WARNING To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. -
Page 7: Important Safety Instructions
Important Safety Instructions Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. - Page 8 Unplug this apparatus during lightning storms or when unused for long periods of time. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
-
Page 9: Personal Safety
Personal safety 1. To avoid overloading the power supply, never plug too many electrical devices into an outlet, power strip, or extension cable. 2. Dangerous high-voltage electric power components are located inside the TV. To avoid electric shock, do not disassemble the casing. 3. -
Page 10: Preface
The information in this manual is subject to change without notice. To the extent allowed by applicable law, Hannspree, Inc. (“Hannspree”) shall not be liable for direct, indirect, special, exemplary, incidental or consequential damages arising from any defect or omission in this manual, even if advised of the possibility of such damages in advance. -
Page 11: Trademark Notice
Hannspree. The TV described in this manual may include copyrighted software of Hannspree (or other third parties). Hannspree (or other third parties) preserves the exclusive rights for copyrighted software, such as the right to distribute or reproduce the copyrighted software. -
Page 12: Getting Started
Getting Started Package Contents Make sure the following components are included in the box. Please contact Hannspree Customer Service immediately if anything is missing or damaged. • • Power cord • Remote control and batteries • User’s manual • Quick start guide •... -
Page 13: Introducing The Tv
Introducing the TV You can watch NTSC/ATSC broadcast, cable, or digital television channels, and easily connect a VCR, STB or DVD player to the standard CVBS, S-Video, component, and HDMI input ports (location of these ports depends on model). You can also use the TV as a monitor for your PC by connecting it through the VGA port. -
Page 14: Control Panel
Control Panel Description Button Power Input source INPUT Menu MENU Channel select Channel select Volume adjust Volume adjust Remote IR sensor Power/ Standby indicator Speakers Function Power button. Press to turn the TV on or off. Press to open the input source list or mark an item on the OSD menu. -
Page 15: Input And Output Jacks
Input and Output Jacks Description Connector Power connector HDMI 1 input HDMI 2 input VGA (PC) input Audio input (PC) Component inputs (audio) Component inputs (video) Earphone output Cable/ Antenna S-Video input Composite inputs SERVICE Function Connect to the included power cord. AC IN Connect to an external device, such as a DVD player, set-top box, or a... -
Page 16: Remote Control
Remote Control Description Icon Power INPUT Input source Keypad Program entry LAST Last Information INFO Menu MENU Arrows Select Guide channel GUIDE list Return RETURN Select channel Volume adjust Function Press to turn the TV on or off. Press to open the input source list. Use to select a channel directly. - Page 17 Description Icon SLEEP Sleep timer MUTE Mute Multichannel television sound AUDIO AUDIO CABLE CABLE Favorite FAV. channels ASPECT Aspect ratio Close caption C.C. Function Press repeatedly to set the sleep time (Sleep off, 15, 30, 45, 60, 90, or 120 minutes).
- Page 18 CAUTION • If the remote control is not used for a long period, remove the batteries and store them properly. • Handle damaged or leaking batteries carefully, and wash hands with soap if they come in contact with leaked chemical fluids. •...
-
Page 19: Inserting The Remote Control Batteries
Inserting the Remote Control Batteries 1 Open the battery compartment cover at the back of the remote control (A). 2 Insert the batteries paying attention to the polarity markings inside the battery compartment (B). 3 Close the battery compartment cover (C). -
Page 20: Setting Up Your Tv
Setting up your TV Basic Connections 2.1.1 Power Connection 1 Connect the power cord to the AC IN input jack on the rear of the TV. 2 Insert the plug at the other end of the power cord into a power outlet. 2.1.2 Connecting an Antenna or Cable TV Connect one end of the VHF/UHF (Antenna) or CATV cable to VHF/UHF jack on... -
Page 21: Connecting External Devices
Connecting External Devices Connect external devices such as VCRs, Set-Top-Box, DVD players, video game consoles, earphones, or a PC to the TV using the appropriate ports on the rear of the 2.2.1 Connecting External Earphones PHONE Note: • External speakers or headphones are not included with the TV. •... -
Page 22: Connecting To Av Devices
2.2.2 Connecting to AV Devices AUDIO AUDIO VIDEO S-Video HDMI 1 HDMI 2 Audio Cable Video Cable (Optional) (Optional) HDMI Cable Audio/ Video Cable (Optional) (Optional) HDMI L VIDEO S-VIDEO Game Console... -
Page 23: Connecting A Vcr/ Stb/ Dvd Player Using Component Video
2.2.3 Connecting a VCR/ STB/ DVD Player Using Component Video Connect the TV to a VCR/ STB/ DVD player using the component video inputs. 2.2.4 Connecting a VCR/ STB/ DVD Player Using Composite Video Connect the TV to a VCR/ STB/ DVD player using the composite video input. AUDIO Audio Cable Video Cable... -
Page 24: Connecting A Pc Using Vga
2.2.5 Connecting a PC using VGA Connect the TV to your PC to use it as the monitor using the VGA port as shown. 1 Connect the VGA port of the TV to the VGA output of the PC. 2 Connect the PC LINE IN port of your TV to the line out port of the PC to listen to audio from the PC. -
Page 25: Connecting Hdmi
2.2.7 Connecting HDMI HDMI (High Definition Multimedia Interface) assures that the best video signal is always sent from source to the TV. Refer to the following illustration to connect an HDMI device to the TV. HDMI 1 HDMI 2 HDMI Cable (Optional) Note: When the HDMI cable is connected, connecting the audio cable is not necessary. -
Page 26: Using The Tv
Using the TV 2.3.1 Turning the TV On and Off 1 Press on the control panel or remote control. The power LED indicator on the TV changes from red to green, indicating that the TV is on. 2 Press again. The power LED changes from green to red, indicating that the TV is off. -
Page 27: Editing Channel Table Or Favorite Channel
MUTE 3 Press to eliminate sounds, and press buttons to restore the original volume. 2.3.6 Editing Channel Table or Favorite Channel 1 Press MENU on the control panel or remote control, then select to enter the Channel menu. 2 Select Channel List. 3 If you want to add or remove channel from channel table, please select the channel and press OK to mark "S"... -
Page 28: Adjusting On-Screen Display (Osd) Settings
Adjusting On-Screen Display (OSD) Settings The On-Screen Display (OSD) menu system provides a quick and simple method to adjust the TV settings. The OSD menu can be accessed through the buttons either on the control panel or the remote control. Before going to details of each OSD item, you may get acquainted with the placement of the OSD system: CURRENT MENU:... -
Page 29: Osd Setting Menus
OSD Setting Menus Follow the instructions indicated on the bottom of the OSD Function Menu. Press on the control panel or through the menus. press INPUT/ VOL+ on the control panel or OK key on the remote control to select an item and then press MENU/ VOL- key to exit the OSD menu. -
Page 30: Adjusting Audio Settings
Adjusting Audio Settings Press MENU to enter the OSD Main Menu screen. Press on the remote control or / CH on the control panel to select Audio menu. Press / OK on the remote control or INPUT/ VOL+ on the control panel to enter the Audio menu. -
Page 31: Adjusting Channel Settings
Adjusting Channel Settings Press MENU to enter the OSD Main Menu screen. Press on the remote control or / CH on the control panel to select Channel menu. Press / OK on the remote control or INPUT/ VOL+ on the control panel to enter the Channel menu. -
Page 32: Adjusting V-Chip Settings
Adjusting V-CHIP Settings Press MENU to enter the OSD Main Menu screen. Press on the remote control or / CH on the control panel to select V-CHIP menu. Press / OK on the remote control or INPUT/ VOL+ on the control panel to enter the V-CHIP menu. -
Page 33: Adjusting Setup Settings
Adjusting Setup Settings Press MENU to enter the OSD Main Menu screen. Press on the remote control or / CH on the control panel to select Setup menu. Press / OK on the remote control or INPUT/ VOL+ on the control panel to enter the Setup menu. -
Page 34: Troubleshooting
Troubleshooting Situation No picture and sound. No picture, or poor picture, sound is OK. Picture is not in color. Picture is OK, no sound. One of the speakers has no sound. Cannot receive some TV channels using cable TV. Want to reset TV settings. Cannot operate menus. -
Page 35: Specifications
Specifications LCD Panel Size Screen Format Panel Resolution TV System Video System Audio System Built-in Stereo Amplifier Output ACInput Power Consumption Standby Power Consumption (W) AC Power Supply (Vac) Dimension W x H x D Weight 28 inch TFT 16:10 1920 (H) x 1200 (V) ATV: NTSC HDMI Input x 2... -
Page 36: Pc Mode Support Timing
PC Mode Support Timing Mode Resolution (active dot) 640x480@60Hz SVGA 800x600@60Hz 1024x768@60Hz SXGA 1280x1024@60Hz WXGA+ 1440x900@60Hz WSXGA+ 1680x1050@60Hz WUXGA 1920x1200@60Hz Video Mode Support Timing Resolution HDMI (active dot) 640x480p@60Hz 720x480i@60Hz 720x480p@60Hz 1280x720p@60Hz 1920x1080i@60Hz 1920x1080p@60Hz Horizontal Vertical Nominal Frequency Frequency Pixel (KHz) (Hz) Clock... -
Page 37: Appendix: Remote Control Guide
Ap pendix: Remote Control Guide Introduction The electronic equipment type switch buttons are used for switching the current electronic equipment type on the remote control. The remote control includes 4 electronic equipment types: DVD, AUDIO, CABLE and The remote control keypad matrix includes 4 electronic equipment type switch buttons (DVD, AUDIO, CABLE and TV). -
Page 38: Searching Codes
6. During the setting process, only digit keys ‘0’ through ‘9’ are valid inputs, while other buttons are deemed invalid and do not affect the code setting. For example, inputting “02” then pressing RETURN does affect the “02” already input. 6.1.3 Searching Codes If the desired electronic equipment code for setting can not be found on the list in the... -
Page 39: Setting Channel Lock
1. Press the corresponding electronic equipment button. The indicator light will come on for 2 seconds then it goes off; after 3 seconds, the indicator light will come on again, showing that the setting mode has been entered. 2. While holding the electronic equipment button, press VOL+ twice consecutively to assign volume lock to that electronic equipment (meaning the volume buttons will only transmit code values to the assigned electronic equipment even under other electronic equipment modes). -
Page 40: Factory Setting Mode
4. During the setting process, releasing the electronic equipment button exits the setting mode immediately without changing the status prior to setting. 5. Buttons other than CH+/CH- are not functional during search. Channel buttons include CH+ and CH-. 6.1.6 Factory Setting Mode Factory setting operation procedures are as follows: 1. - Page 41 6. Default volume lock setting: Electronic VOL+, VOL- and Mute equipment CABLE Transmit CABLE code AUDIO Transmit AUDIO code Transmit DVD code 7. Default channel lock setting: Electronic equipment CABLE Transmit CABLE code AUDIO Transmit AUDIO code Transmit DVD code Note: Each re-powering restores factory setting, and all electronic equipment modes transmit TV-mode infrared (IR) signal until being set up through code setting.
-
Page 42: Description
6.1.7 Description There is no multi-function code setting operation under TV mode but a fixed code for the TV manufacturer. Therefore, code setting and code-searching functions are disabled under this mode; other functions such as volume lock, channel lock and code display are operable. -
Page 43: Component Program Codes
Component Program Codes Setup Code for VCR’s 2102 Admiral 2012, 2022 Aiko 2025 Aiwa 2005, 2027 Alienware 2102 America 2025 Action American 2004 High Amoisonic 2027 2020, 2005, Anam 2024, 2025 Anam 2020 National Asha 2024 Audiovox 2005, 2025 Beaumark 2024 Bell &... - Page 44 Setup Code for VCR’s Magnin 2024 Marantz 2004, 2016 Marta 2005 Matsushita 2004, 2020 Media Center 2102 2004 2004, 2020, 2005, 2012, Memorex 2007, 2011, 2024, 2017, 2022, 2027 2024, 2009 2024 Technology Microsoft 2102 Mind 2102 Minolta 2008 Mitsubishi 2014, 2009 Motorola 2004, 2012...
- Page 45 Setup Code for VCR’s Tashiko 2005 Tatung 2010, 2014 Technics 2004, 2020 2004, 205, Teco 2012, 2006 Teknika 2004, 2005 2048, Tivo 2044, 2098, 2059 2024 2010, 2008, 2014, Toshiba 2009, 2098, 2079, 2102 Totevision 2005, 2024 Touch 2102 Unitech 2024 Vector 2010...
- Page 46 Setup Code for DVD’s Norcent 2078 2029, 2046, Onkyo 2064 Oritron 2051 Panasonic 2028, 2101 2029, 2036, Philips 2050 Pioneer 2033, 2039 Polarold 2090, 2086 Polk Audio 2036 Portland 2062 Proscan 2032 Qwestar 2051 2032, 2039, 2058, 2072 2076 Rotel 2045 Sampo 2061, 2056...
- Page 47 Setup Code for Cable Regal 0016, 0014 Runco 0001 Samsung 0001, 0010 Scientific 0059, 0037, Atlanta 0020, 0003 Sony 0041 Starcom 0002, 0006 Supercable 0015 Supermax 0038 Tocom 0005 Torx 0002 Toshiba 0001 Trans PX 0015 Tristar 0038 0002 0038 Viewmaster 0038 Vision...
- Page 48 Setup Code for CD Carver 3019, 3022 3001 3019 Electronics Dynamic 3022 Bass Fisher 3022 Garrard 3027 Genexxa 3005 Harman/ 3019, 3020 Kardon Hitachi 3005 Integra 3013 3009 3030, 3003, Kenwood 3007, 3006, 3023 Krell 3019 Linn 3019 Magnavox 3019 3030, 3004, Marantz 3019...
- Page 49 Setup Code for Audio Amp / Tuner’s Carver 3042 Denon 3051, 3040 Fonmix 3051 Harman/ 3014 Kardon Hitachi 3047 Integra 3017 3014 3010 Kenwood 3050, 3056 3053 3042, 3046, Magnavox 3029 Marantz 3042, 3046 Onkyo 3035, 3017 3036, 3018, Optimus 3002, 3031, 3029 Proscan...
-
Page 50: Setting The Tv On The Wall
*Installing the LCD TV requires special skill that should only be performed by qualified service personnel. Customers should not attempt to do the work themselves. Hannspree bears no responsibility for improper mounting or mounting that results in accident or injury. You can ask a qualified service personnel about using an optional bracket to mount the TV to the wall. -
Page 51: Using The Cable Organizer
Using the Cable Organizer Organzie your cables by routing the cables through the cable clamp.
