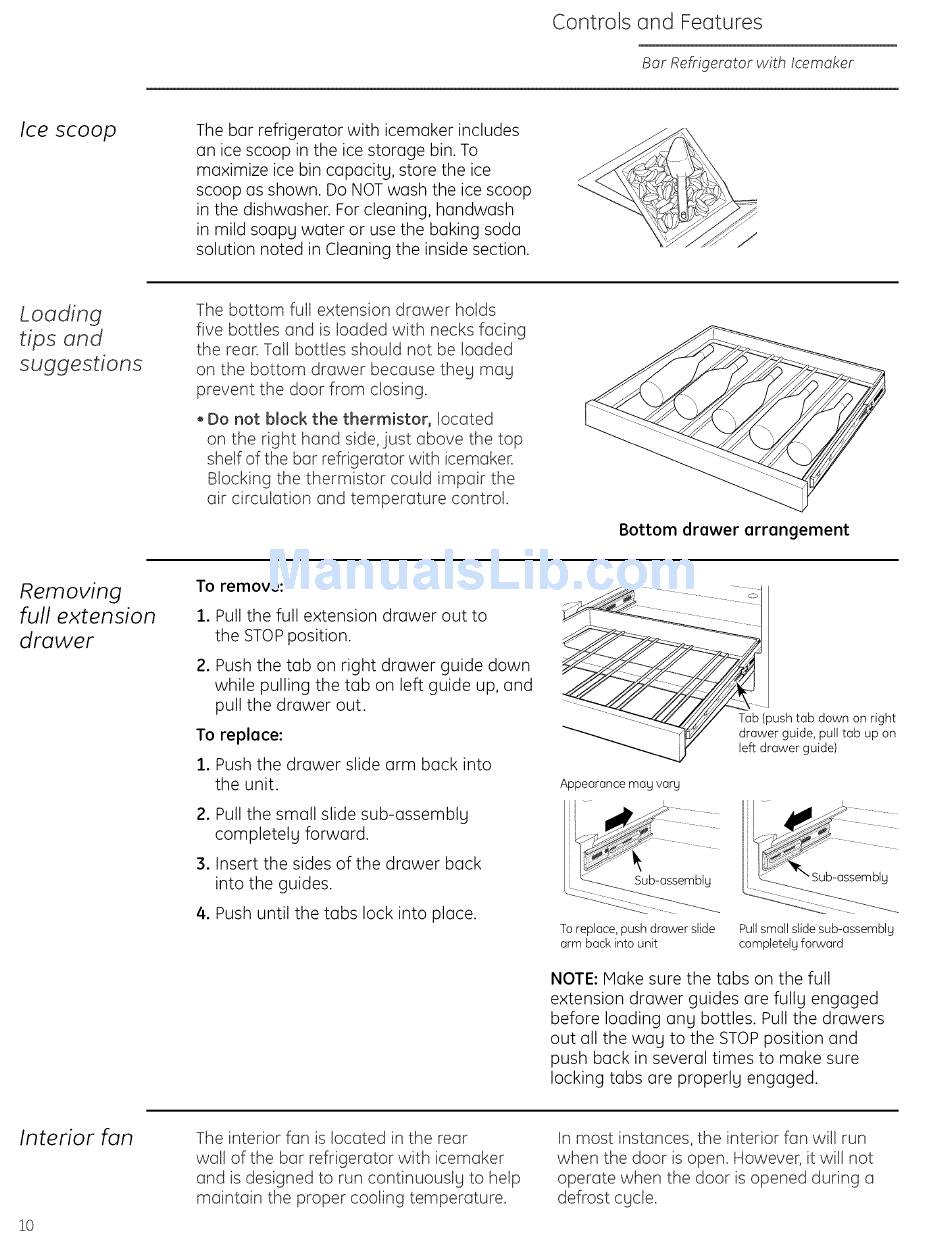

GE Monogram ZIBI240 Owner's Manual page 10

Controls and Features
Bar Refrigerator with tcemaker
Ice scoop
The bar refrigerator with icemaker includes
an ice scoop in the ice storage bin. To
maximize ice bin capacity, store the ice
scoop as shown. Do NOT wash the ice scoop
in the dishwasher. For cleaning, handwash
in mild soapy water or use the baking soda
solution noted in Cleaning the inside section.
Loading
tips and
suggestions
The bottom full extension drawer holds
five bottles and is loaded with necks facing
the rear. Tall bottles should not be loaded
on the bottom drawer because they may
prevent the door from closing.
• Do not block the thermistor, located
on the right hand side, just above the top
shelf of the bar refrigerator with icemaker.
Blocking the thermistor could impair the
air circulation and temperature control.
Bottom drawer arrangement
Removing
full extension
drawer
To remove:
1. Pull the full extension drawer out to
the STOP position.
2. Push the tab on right drawer guide down
while pulling the tab on left guide up, and
pull the drawer out.
To replace:
1. Push the drawer slide arm back into
the unit.
2. Pull the small slide sub-assembly
completely forward.
3. Insert the sides of the drawer back
into the guides.
4. Push until the tabs lock into place.
Appearance may vary
Tab )ush tab down on right
drawer guide, pull tab up on
left drawer guide)
Sub-assembly
To replace, push drawer slide Pullsmall slide sub-assembly
arm back into unit completely forward
NOTE: Make sure the tabs on the full
extension drawer guides are fully engaged
before loading any bottles. Pull the drawers
out all the wag to the STOP position and
push back in several times to make sure
locking tabs are properly engaged.
Interior fan
lO
The interior fan is located in the rear
wall of the bar refrigerator with icemaker
and is designed to run continuouslg to help
maintain the proper cooling temperature.
In most instances, the interior fan will run
when the door is open. However, it will not
operate when the door is opened during a
defrost cgcle.
