R S
ECORD OURCE
Select whether the signal coming from the source will include audio. The options are:
Video, and Video and Audio.
OSD S
ETTING
Define the information that will be recorded as the OSD (On-Screen Display) string. The
options are: Camera Name and Time stamp, Camera Name stamp, Time stamp, or None.
Use the arrow buttons to select an option.
R R
ECORD ESOLUTION
Select the record resolution (options: CIF, D1, and Half D1).
A S
DVANCED ETTING

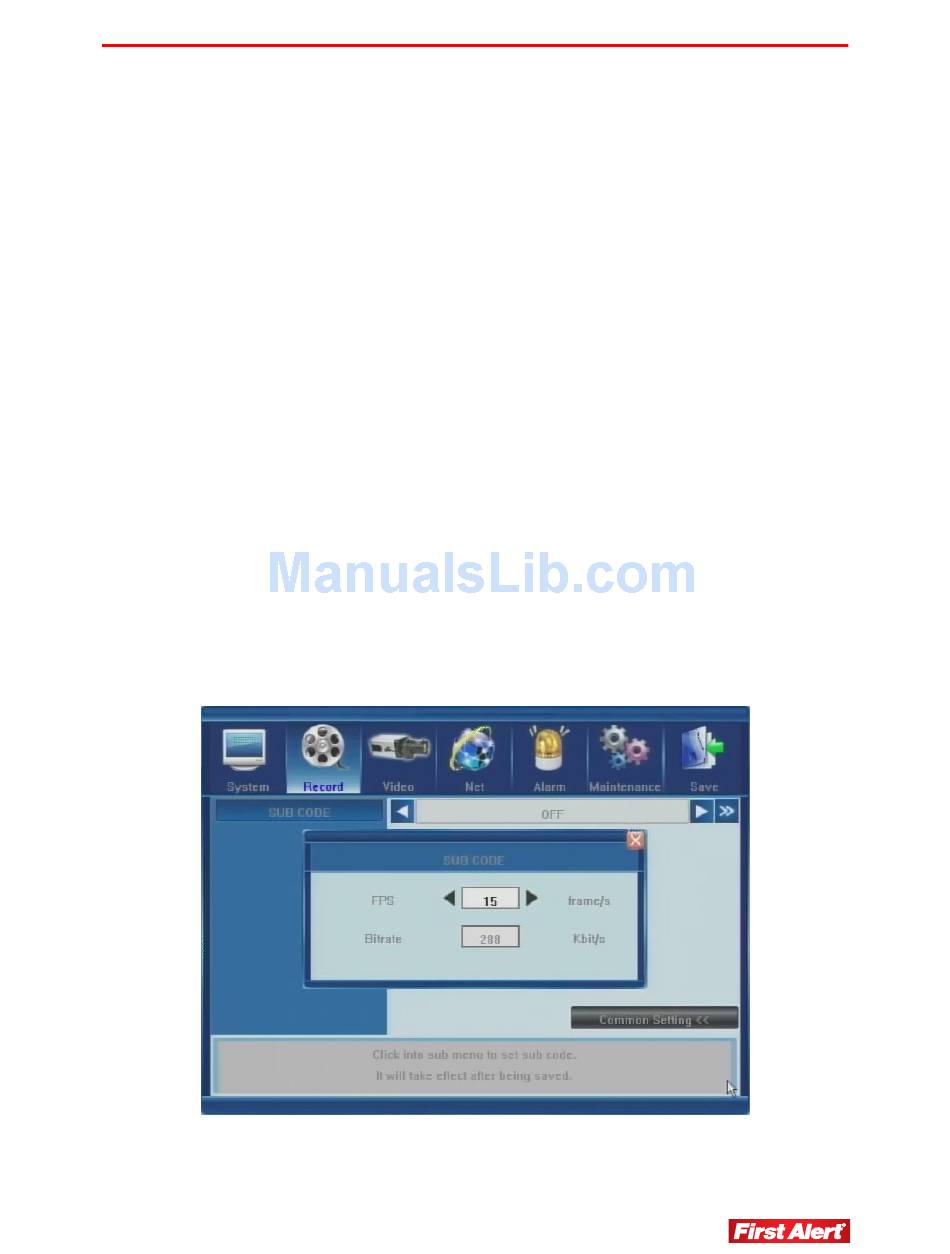

The Advanced Setting (lower right-hand corner) has one menu – Sub Code. The DVR can
stream information for viewing both with IE Browser and a mobile phone. You can
enable/disable sub code (ON/OFF options) or create customized settings by pressing the
>> button at the right end of the field in the SUB CODE pop-up window and adjusting the
frame per second (fps) and bit rate (Kbit/s) values.
Position the mouse over the required field and use the arrows to increase/decrease the
values. In case of a limited upload bandwidth, optimize the Sub Code values for the IE
client viewer and mobile streaming.
