Summary of Contents for X-TREME XR-101

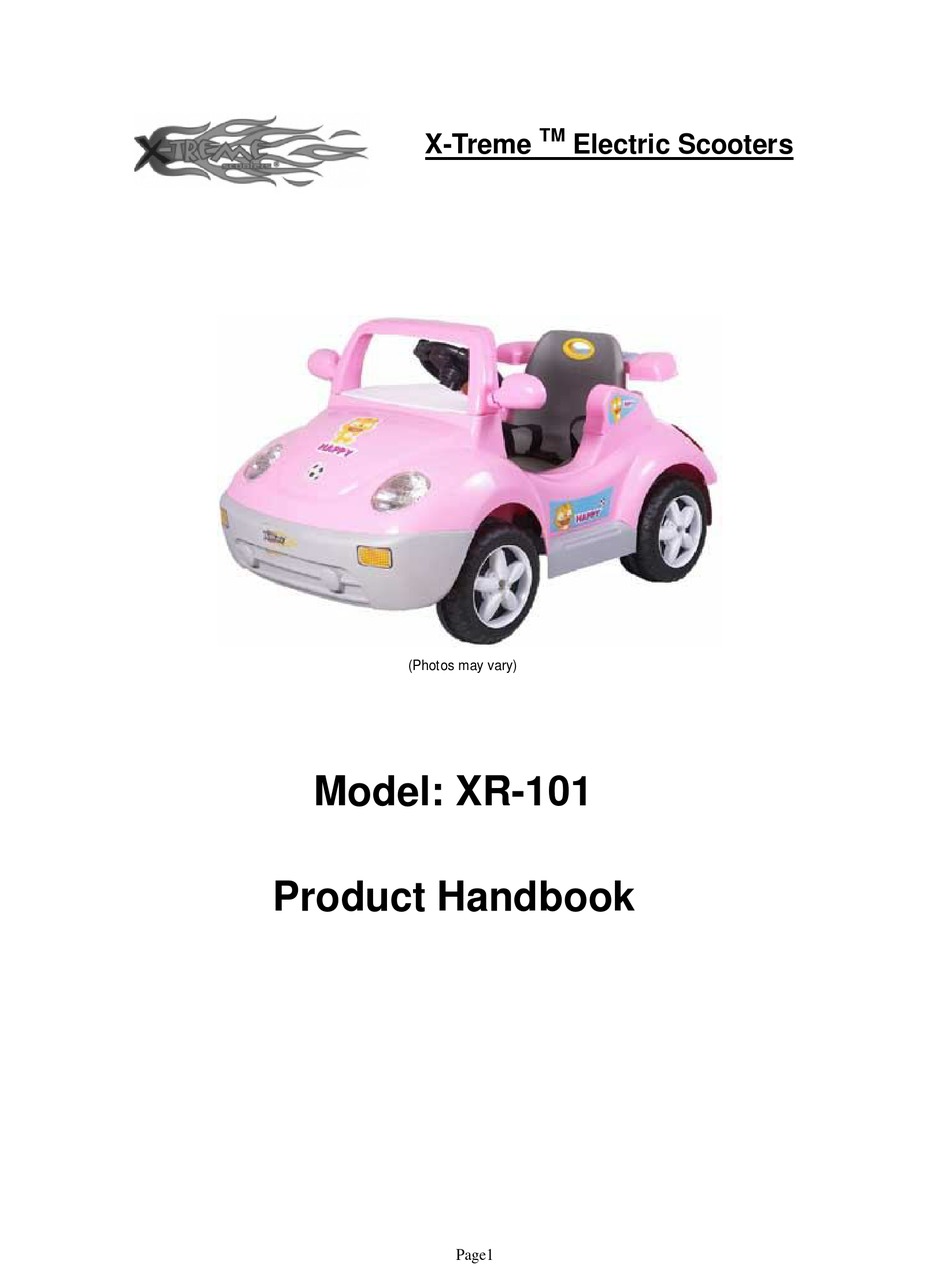

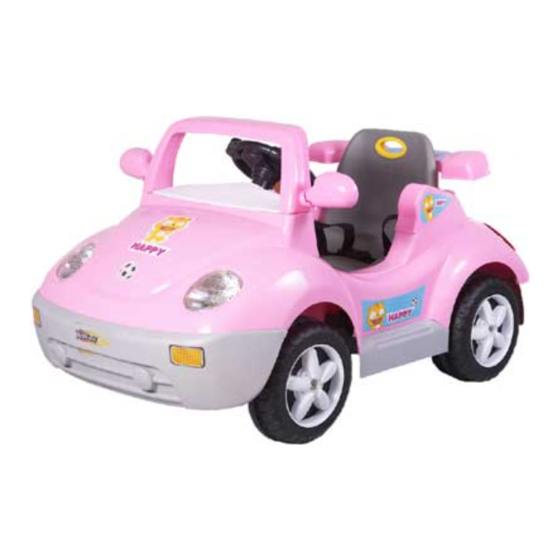

- Page 1 X-Treme Electric Scooters (Photos may vary) Model: XR-101 Product Handbook PLEASE BE SAFE WHEN RIDIN Page1...
-
Page 2: Information
Failure to follow these INSTRUCTIONS will VOID YOUR WARRANTY! This PRODUCT IS NOT INTENDED FOR EXTREME or OFF-ROAD Use! Please take care of your XR-101! DO NOT JUMP or ABUSE THIS PRODUCT! DO NOT RIDE IN WET/ICY CONDITIONS! Failure to follow these instructions will... - Page 3 IMPORTANT PLEASE READ THIS BEFORE USING THIS PRODUCT READ THIS FIRST! WARNING This product does not conform to Federal Motor Vehicle Standards and is not intended for operation on public streets, roads or highways. Serious injury can result from the unsafe operations of this product. Operator can minimize these risks by using certain safety equipment such as: safety helmet, goggles, gloves, elbow and kneepads and appropriate footwear.
-
Page 4: Quick Reference
Avoid unintentional starts by turning the scooter off while not in use. To avoid the risk of a short circuit in the electrical parts, do not use your X-Treme Electric scooter in the rain and never spray or wash off your scooter with water. ... -
Page 5: Table Of Contents
TABLE OF CONTENTS IMPORTANT INFORMATION…………………………………….………………………...……2-3 QUICK REFERENCE……………………………………………………………….4 TABLE OF CONTENTS……………………………….…………….………………5 GETTING TO KNOW YOUR X-TREME XR-101………………..………...……..6 PACKAGE CONTENTS…………………………………………………………….7 GETTING STARTED………………..……………………………..………………..7 ASSEMBLY………………………………………………………………….…..…7-9 CHARGING……………………………………………………………..………….10 OPERATING INSTRUCTIONS…………………………………………………….9 IMPORTANT SAFETY GUILDINES..…………………………….………………10 MAINTENANCE…………………………………………………………………….11 OTHER QUESTIONS….…………………………………………………………..11 GENERAL INFORMATION/TECH SUPPORT………………………………….12 Page5... -
Page 6: Getting To Know Your X-Treme Xr-101
GETTING TO KNOW YOUR X-TREME XR-101 (Photo’s may vary) Recommended Age 3-8yrs Speed 1.5mph – 3mph Maximum Weight 80lbs Battery 6V 10AH Assembled Size 44 x 26.5 x 23 Charge Time 6-8 hours Acceleration Foot Pedal Charge AC110V Fuse 20A Glass... -
Page 7: Package Contents
PACKAGE CONTENTS Your X-Treme XR-101 comes with the following items in the box. Please locate all of the following: Car Body, 1pc Remote Control, 1 pc Front Windshield, 1pc Gearbox with motor, 1pc Steering Wheel, 1pc 10. Gearbox Hub, 1pc Seat, 1pc 11. - Page 8 d) Attach wheels and appropriate washers finishing with decorative wheel covers. Secure each end of the axle with the enclosed washers and nuts. Continue with the Installation of Front Wheels by attaching one washer to the front axle. Install the wheel in the correct position ending with the decorative ring.
-
Page 9: Operating Instructions
Next, remove the two gray seat bolts from the seat area, install seat to the desired leg position and re-install the seat bolts, tightening securely. Your XR-101 is now complete and ready for use. Operation Instructions *Be sure all assembly is complete before riding. -
Page 10: Charging
6. To stop, simply release the foot button. 7. To park the car, keep the slow/fast switch in the middle (neutral) position. Charging Instructions ***WARNING*** An adult should perform charging of the scooter. TO AVOID ELECTRIC SHOCK, NEVER ALLOW CHILDREN TO HANDLE THE CHARGER OR ATTEMPT TO PLUG THE BATTERY CHARGER INTO A WALL OUTLET! 1. -
Page 11: Maintenance
For additional questions, service instructions, further information and important phone numbers, please go to the X-Treme website at www.x-tremescooters.com Thank you for purchasing an X-Treme XR-101 and please tell your friends how much fun you’re having on the X-Treme XR-101... -
Page 12: General Information/Tech Support
For General Information or Parts Visit www.x-tremescooters.com For Technical Support or Assistance Visit www.x-tremescooters.com/support/ Page12...
