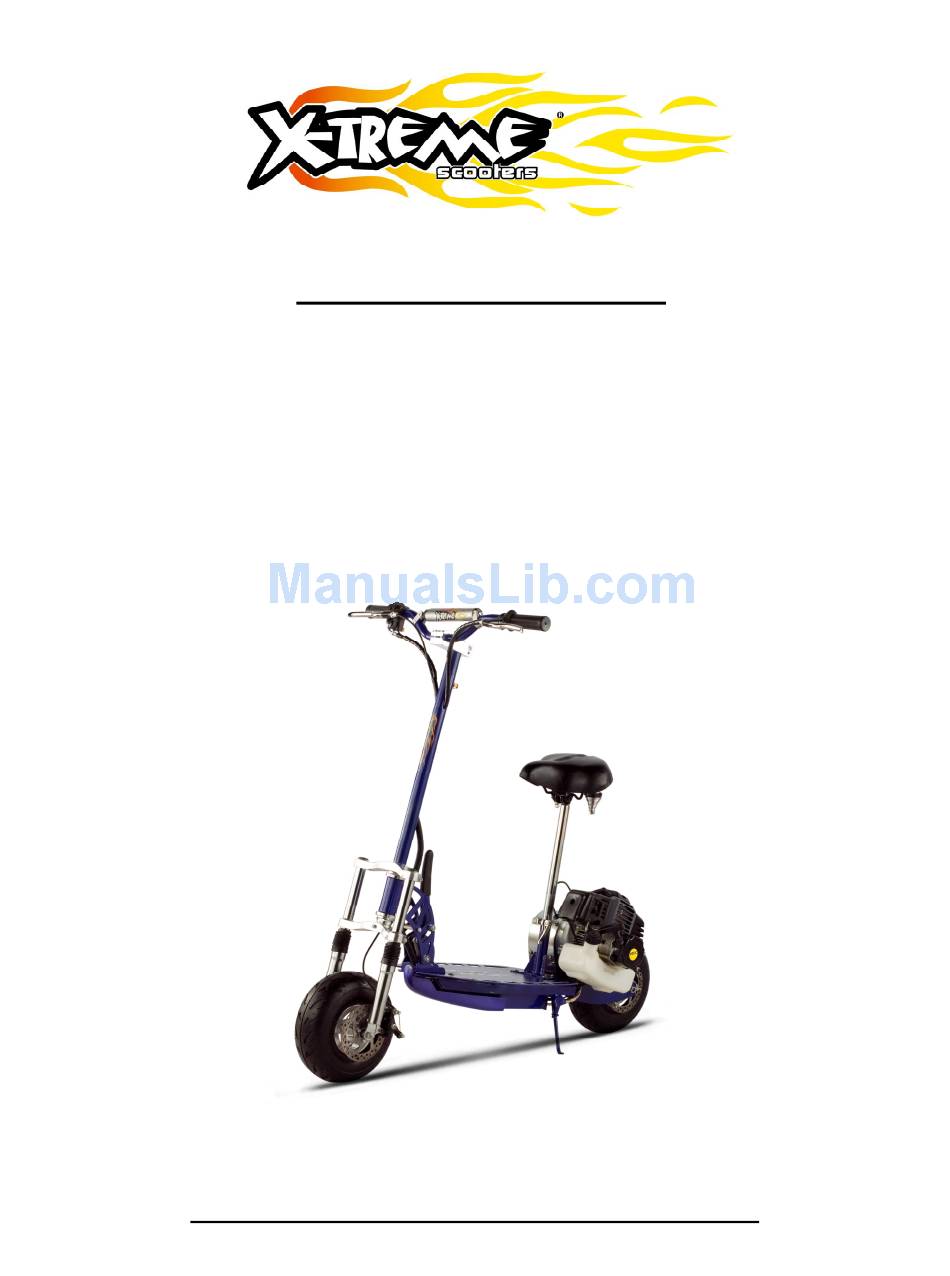

- Page 1 X-Treme Electric Scooters XG-550 Gas Scooter Owner’s Manual PLEASE BE SAFE WHEN RIDING ALWAYS WEAR A HELMET AND OBEY ALL LAWS! Page1...
-
Page 2: Important Information
2. Use 32:1 Gas/Oil Mixture. Combine 4oz of oil for every gallon of High-Octane Gasoline. 3. Tanaka Perfect Mix, or similar quality 2-Cycle Engine Oil recommended. Oil can be purchased from your local X-Treme Dealer, Outdoor Power Equipment Dealer or Power Sports Dealer. - Page 3 IMPORTANT PLEASE READ BEFORE USING THIS PRODUCT READ THIS FIRST! WARNING This product does not conform to Federal Motor Vehicle Standards and is not intended for operation on public streets, roads or highways. Serious injury can result from the unsafe operations of this product. Operator can minimize these risks by using certain safety equipment such as: safety helmet, goggles, gloves, elbow and kneepads and appropriate footwear.
-
Page 4: Quick Reference
Use only quality replacement parts as recommended by the manufacturer. Transportation and Storage Carry your X-Treme XG-550 by the handle bar tube with the engine off and the muffler away from your body. Allow the engine to cool, empty the fuel tank and fold the X-Treme XG-550 before carrying or storage. -
Page 5: Table Of Contents
TABLE OF CONTENTS IMPORTANT INFORMATION…………………………………….…..2 QUICK REFERENCE…………………………………………………4 TABLE OF CONTENTS……………………………….……………...5 GETTING TO KNOW YOUR X-TREME XG-550…………………..6 PACKING CONTENTS…………….………………………………….7 GETTING STARTED………………...……………………………..…7 UNFOLDING………………….….………………………………..7 FUSE INSTALLATION……….….………………………………..7 FUELING…………………………………………………………..8 STARTING…………………………………………………………8 RIDING/BRAKING………………………………………………..9 FOLDING AND STORAGE……………..…………………..………..9 OPERATING PROCEDURES…………………………………….…10 MAINTENANCE………………………………………………………11 RECOMMENDED TOOLS……………………………………...11 CARBURETOR ADJUSTMENT…………………………….….11 BRAKE SYSTEM………………………………………………..12 TIRES AND WHEELS…………………………………………..13 ADJUSTING THE HEAD UNIT…………….…………………..14... -
Page 6: Getting To Know Your X-Treme Xg-550
GETTING TO KNOW YOUR X-TREME XG-550 Page6... -
Page 7: Packing Contents
PACKAGE CONTENTS Your X-Treme XG-550 comes with the following items in the box. Please locate all of the following: X-Treme XG-550 Gas Scooter Tool Kit Product Handbook 10amp Fuse Tire Tube Air Extension Valve (may be inside tool kit) 12V Charger... -
Page 8: Fueling
GAS LEVER. 13. It may be necessary to repeat step 12 several times until the motor starts When starting the XG-550 for the first time, it may be necessary to pull the starter handle multiple times until it starts. -
Page 9: Riding/Braking
OFF. FOLDING AND STORAGE When you are done riding the XG-550 you can fold it down for compact storage and transportation. To fold down the XG-550, use one hand to push down on the folding handle while also gently pushing down on the handlebars. -
Page 10: Operating Procedures
OPERATING PROCEDURES Mixing Fuel WARNING! This is a two-stroke engine. Only run the engine on fuel, which is properly mixed with 2-cycle engine oil. Provide good ventilation when fueling or handling fuel. Always use gas with a minimum octane number of 90. ... -
Page 11: Maintenance
MAINTENANCE RECOMMENDED TOOLS To adjust and service the X-Treme XG-550 you will need the following tools: Allen Wrenches: 3,4,5,6 mm. Wrenches: 10,13,13 mm Open and ring combination. Short reach Spark Plug Socket ... -
Page 12: Brake System
BRAKING SYSTEM The XG-550 uses both a front wheel disc/caliper braking system activated by a hand brake lever on each side of the handlebar. Squeezing the hand brake lever with your left hand activates the front brake. Squeezing the hand brake lever with your right hand activates the rear brake. -
Page 13: Tires And Wheels
TIRES AND WHEELS The X-Treme XG-550 uses an identical rim and tires assembly on the front and rear wheels, which means that the tires can be rotated. The wheels are actually two wheel halves (split rim) bolted together to make it easier to remove and replace the tire and tube. -
Page 14: Adjusting The Head Unit
ADJUSTING THE HEAD UNIT The head unit will should come adjusted from the factory. However, riding on rough terrain and general use may cause the head unit to become loose over time. It may be necessary to adjust the head unit from time to time. To adjust the head unit: 1. -
Page 15: Maintenance Schedule
Clean the air filter. OTHER QUESTIONS For additional questions or technical assistance, go to www.x-tremescooters.com/support/ Thank You for purchasing an X-Treme XG-550. Please tell your friends about how much fun you had on the X-Treme XG-550 Page15... -
Page 16: General Information/Tech Support
DO NOT RETURN TO STORE! IF YOU NEED HELP CALL TOLL FREE OR GO ONLINE 1-800-772-3852 www.x-tremescooters.com/support/ For General Information or Parts Visit www.x-tremescooters.com Revised 6/13/10 Page16...
