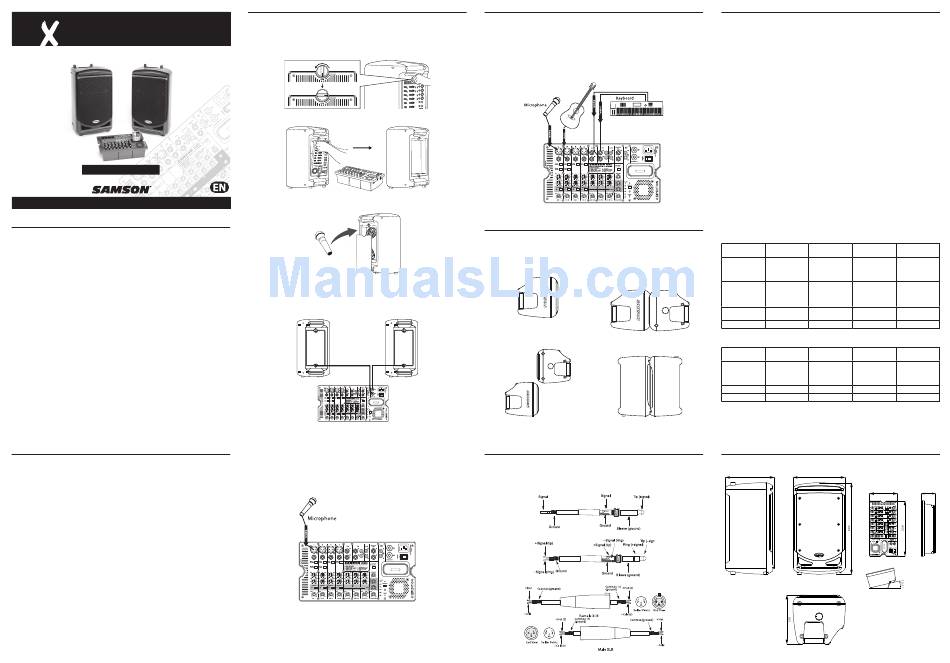

E PEDITION
XP510i
PORTABLE PA SYSTEM
Owners Manual
Introduction

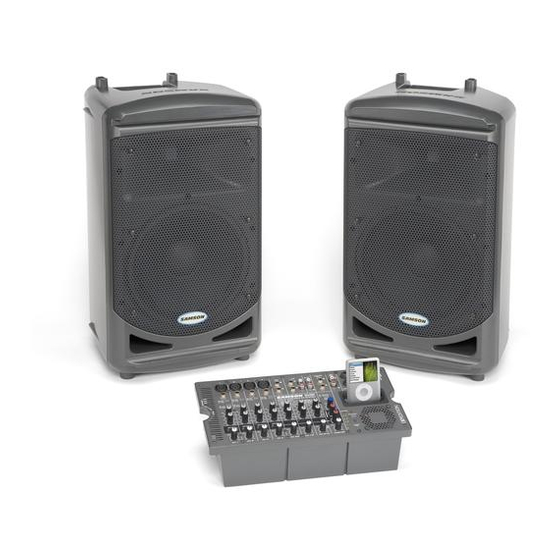

Thank you for purchasing the Expedition XP510i PORTABLE PA SYSTEM from Samson! The XP510i features a com-
pact, 10-channel mixer with 500 watts of onboard power and dual 2-way speakers, making it an ideal solution for
a variety of small to medium sized PA applications. The XP510i is extremely portable thanks to its lightweight and
unique "Slide and Lock" design.
The 10-channel mixer can be removed from the speaker for tabletop use. It features 4 inputs for connecting micro-
phones, plus three inputs for connecting stereo signals, like those from a CD player or electronic keyboard. There's
also a built-in, 24-bit digital effects processor to add studio quality effects to your voice or instruments. For music
playback, the XP510i features a convenient iPod dock. The mixer also provides a robust output, with 500 watts of
total power from the lightweight, Class D amplifier section. The XP510i employs a matched speaker system with
dual 2-way enclosures that have proprietary 10-inch woofers and 1-inch high frequency drivers. To help project
the sound to a larger audience, the XP510i speakers can be mounted on standard speaker stands, thanks to the
integral pole mount receptacles. The XP510i is constructed using durable ABS, high impact plastic, making it super
road tough, and at the same time, lightweight.
In this manual, you'll find a detailed description of the features of the XP510i PA system, as well as a description of
its front and rear panels, step-by-step instructions for its setup and use, and full specifications. You'll also find a war-
ranty card enclosed—please don't forget to fill it out and mail it in so that you can receive online technical support,
and so we can send you updated information about these and other Samson products in the future. Also, be sure
to check out our website (www.samsontech.com) for complete information about our full product line.
With proper care and adequate air circulation, your XP510i will operate trouble free for many years. We recommend
you record your serial number in the space provided below for future reference.
Serial number:_______________________________
Date of purchase:____________________________
Should your unit ever require servicing, a Return Authorization number (RA) must be obtained before shipping
your unit to Samson. Without this number, the unit will not be accepted. Please call Samson at 1-800-3SAMSON
(1-800-372-6766) for a Return Authorization number prior to shipping your unit. Please retain the original packing
materials and if possible, return the unit in the original carton and packing materials. If you purchased your Sam-
son product outside the United States, please contact your local distributor for warranty information and service.
Features
• The XP510i is a compact PA system with dual 2-way speakers, onboard mixer and 500 watt power amplifier.
• The XP510i is the ultimate in portable design. The lightweight and clever design allow you to connect all the
pieces together into a single, easy to move case.
• The mixer is stored in one of the speaker cabinets; the other cabinet has an accessory compartment for storing
the speaker cables, microphones, etc.
• The speakers are 2-way vented enclosures with 10-inch woofers for deep bass, complimented by a 1-inch high
frequency driver, set in a custom horn with a 60 x 90 degree coverage pattern producing a clean, clear sound.
• The internal 2 x 250 watt lightweight Class D power amplifier produces a powerful stereo sound.
• The XP510i's mixer can be removed from the speaker for tabletop use and you can use the kick stand to set the
mixer at an ergonomically correct angle.
• The 10-channel mixer features four Mic/Line inputs allowing you to connect microphones or line signals, plus
three stereo inputs for connecting line signals from keyboards, drum machines and MP3/CD players. You can
engage the Phantom Power switch if you are using condenser microphones.
• On each of the mixer's channel inputs there is a Bass and Treble control allowing you to equalize the tone of the
individual inputs.
• To create a lush sound on any of the microphone channels, you can select from the ten, onboard, 24-bit digital
effects.
• The XP510i features a built-in iPod dock allowing you to easily connect most iPod models for seamless music
playback. You can use the iPod to simply play music, add background tracks, or repeat a commercial message at a
fair or trade show.
• For added flexibility, the XP510i's mixer has a Monitor Out on two, 1/4 inch jacks allowing you to connect to exter-
nal powered monitor speakers.
XP510i Quick Start
Unpacking and Setting Up the XP510i
• Unpack all the system components from the shipping carton and save all packing materials in the (unlikely) event
your unit ever needs to be returned for service.
• Remove the mixer by turning the quarter turn screw counterclockwise towards the RELEASE position.
LOCK
RELEASE
• Carefully hold the mixer to remove it from the speaker.
• Remove the accessory compartment cover by turning the quarter turn screw counterclockwise towards the
RELEASE position, and remove the included speaker cables.
• Replace the accessory panel by aligning the bottom of the panel into the slots, make sure the quarter turn screw
is in the RELEASE position; then close the panel and turn the quarter turn screw clockwise to LOCK.
• Position the speakers on the floor or on stands, and using one of the included speaker cables, connect the mixer's
LEFT SPEAKER OUT to the left speaker's input connector. Next, use the second included speaker cable to connect
the RIGHT SPEAKER OUT to the right speaker's input connector.
Using a Microphone
• Be sure that the XP510i's Power switch is set to the OFF position.
• Turn all of the channel VOLUME (VOL) controls fully counterclockwise to the "0" position.
• If the speakers are not connected, connect the speaker wires as described in the previous section.
• Next, connect the power cable to an AC outlet.
• Using a standard XLR cable, plug a microphone into the XP510i's Channel 1 MIC INPUT.
• Switch the XP510i's Power switch to the ON position.
• Set the MIC/LINE switch to the MIC position.
• Set the Channel 1 VOLUME (VOL) control to about halfway.
• While speaking into the microphone, slowly raise the MASTER level control until you have reached the desired
level.
XP510i Quick Start cont'd
Using a Line Level Signal
• Be sure that the XP510i's Power switch is set to the OFF position.
• Turn all of the channel VOLUME (VOL) controls fully counterclockwise to the "0" position.
• Connect the power cable to an AC outlet.
• If using channels 1-4, set the MIC/LINE switch to the LINE position.
• Using standard 1⁄4-inch cables, connect a line level signal from a keyboard into the XP510i's LINE INPUTS.
Electric Acoustic
Guitar
• Switch the XP510i's Power switch to the ON position.
• Play your guitar or keyboard and slowly raise the channel control and the MASTER level control until you have
reached the desired VOLUME.
Configuring the XP510i for Transport
You can easily carry your sound system using the XP510i's "Slide and Lock" feature. The "Slide and Lock" speaker
enclosures allow you to connect both speakers together into a single, easy to carry unit. Follow these steps to
configure the XP510i for easy transport.
1.
3.
Place one speaker on the floor and set it on its side.
Slide the second speaker into the speaker on the
floor making certain that the two speakers stay parallel
to each other.
2.
Position the second speaker above the first speaker
and line up the "Slide and Lock" tracks and grooves so
that they are parallel to the speaker on the floor.
4.
You will feel a slight click when the two speakers are
in place.
Speaker cabinets must be reversed with respect to top and
bottom.
XP510i Wiring Guide
CONNECTING THE XP510i
There are several ways to interface the XP510i to support a variety of applications. The XP510i features balanced
inputs and outputs, so connecting balanced and unbalanced signals is possible.
Unbalanced 1/4" Connector
Balanced TRS 1/4" Connector
XLR Balanced Wiring Guide
Specifications*
System Specifications
Maximum Output Power
Crosstalk (at 1 kHz)
250 W + 250 W @ 8 Ω
-70 dB between input channels
-70 dB between input/output channels
Maximum Output Level (0.5% T.H.D. @ 1kHz)
+22dBu(MONITOR L/R) @ 10 kΩ
SPEECH/MUSIC
+14 dBu (REC) @ 10 kΩ
167 Hz, 3dB/Octave
T.H.D
Input Channel Equalization
<0.1% @+14 dB 20 Hz ~ 20 kHz (MONITOR L/R,REC L/R) @ 10 kΩ
HIGH: 10 kHz shelving ±15 dB
LOW: 100 Hz shelving ±15 dB
Frequency Response
20 Hz ~ 20 kHz +/-1 dB, 10 kΩ (MONITOR L/R)
LIMIT/COMP Switch
20 Hz ~ 20 kHz +0/-1 dB, 10 kΩ (REC L/R)
DOWN = Comp, UP = Limit (CH1/2)
Hum and Noise (Input GAIN=Maximum Input sensitivity, MIC)
Phantom Power
-112dBu equivalent input noise ( Rs = 150 Ω )
+15V DC
-90dBu
Residual noise (MONITOR L/R) all Levels at Minimum
-80dBu
MONITOR at nominal level and all channel Levels
Power Source/Power Consumption
minimum.
AC INPUT 100 V~240 V, 50/60 Hz, 600 W MAX.
-70dBu
MONITOR at maximum level and all channel Levels
minimum.
Weight
52.8 Ib (24 Kg)
Maximum Voltage Gain
50dB MIC 1/2(XLR,LIMIT Position) IN TO MONITOR L/R
Dimensions
60dB MIC 3/4(XLR) IN TO MONITOR L/R
22.7''(W) x 12.6''(D) x 22''(H)
40dB MIC 1/2(PHONE TRS,LIMIT Position) IN TO MONITOR L/R
577 mm(W) x 320 mm(D) x 560 mm(H)
50dB MIC 3/4(PHONE TRS) IN TO MONITOR L/R
Where 0 dBu = 0.775 V and 0 dBV = 1 V
14dB CH 1/2 LINE(PHONE TRS,LIMIT Position,MIC/LINE SW IN) IN TO
MONITOR L/R
24dB CH 3/4 LINE(PHONE TRS,MIC/LINE SW IN) IN TO MONITOR L/R
28dB ST LINE IN TO MONITOR L/R
48dB MIC 3/4(XLR) IN TO REC L/R
Input Specifications
Input Connector
Input Impedance
Nominal Source
Rated Input Level
Impedance
CH MIC
3.6 kΩ / 7.5 kΩ
50 ~ 600 Ω / 600 Ω
-32 dBu / -22dBu
XLR Type Balanced
/ Phone Jack (TRS)
CH LINE
3.6 kΩ / 7.5 kΩ
50 ~ 600 Ω / 600 Ω
-6 dBu / +4 dBu
XLR Type Balanced
/ Phone Jack (TRS)
STEREO INPUT
10 kΩ
600 Ω
0 dBu
Unbalanced Phone
STEREO INPUT
10 kΩ
600 Ω
0 dBu
Output Specifications
Output Connector
Output Impedance
Nominal Load
Rated Output
Impedance
Level
MONITOR L/R
1 kΩ
≥10 kΩ
+4 dBu
anced T=hot R=Cold
REC OUT
600 Ω
≥10 kΩ
+4 dBu
SPEAKER OUTPUT
8 Ω
250 W
*Specifications and design subject to change without notice
Dimensions
301
320
173
Connector Type
T=Hot R=Cold
S=GND
T=Hot R=Cold
S=GND
Jack
RCA pin Jack
Connector type
Phone Jack (TRS)
Impedance bal-
S=ground
RCA pin Jack
Phone Jack
88
