WARNING
CAUT I ON
Nickel Metal Hydride Battery
Regular charge 8 hours
Do not use non-rechargeable batteries. Only use the NiMH batteries
and power supply/charger provided by Ken-A-Vision. Replacement Power sup-
ply - catalog no. VFPS110R-2 (110v)
(230v)
Replacement Battery - catalog no. VFBATBU2
Do Not put battery pack in fire or mutilate, battery may burst or
release toxic materials that may cause burns!
WARRANTY: TEN YEAR WARRANTY AGAINST DEFECTIVE PARTS AND WORK-
MANSHIP. EXCLUDES BULB AND BATTERY.
Ken-A-Vision has quality technicians on staff to repair or service your micro-
scope. Contact us at 1.816.353.4787 for more details.
Ken-A-Vision reserves the right to make design improvements and other changes in accordance
with the latest technology. There is no obligation to make changes in products already man-
ufactured. Patents Pending.©2002 Ken-A-Vision Corporation.
K
-A-V
EN
ISION
5615 Raytown Road, Kansas City, MO 64133 U.S.A
816-358-5072
Email: info@ken-a-vision.com
VFPS230R-2
M
C
., I
.
ANUFACTURING
O
NC
Tel. 816-353-4787
www.ken-a-vision.com
kav.instcman.cordless704.pc.v2
Fax.
Part# INS-SC5C

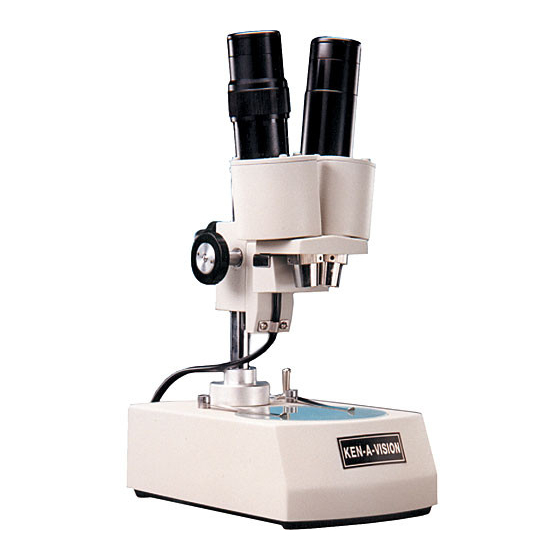

Cordless Vision
Cordless Vision
Supplemental
Instruction Manual
T-2200C Series
T-2400C
T-2600C
Advertisement
Related Manuals for Ken A Vision Cordless Vision T-2200C Series
Summary of Contents for Ken A Vision Cordless Vision T-2200C Series
- Page 1 WARNING CAUT I ON Nickel Metal Hydride Battery Regular charge 8 hours Do not use non-rechargeable batteries. Only use the NiMH batteries and power supply/charger provided by Ken-A-Vision. Replacement Power sup- ply - catalog no. VFPS110R-2 (110v) VFPS230R-2 (230v) Replacement Battery - catalog no. VFBATBU2 Do Not put battery pack in fire or mutilate, battery may burst or release toxic materials that may cause burns! WARRANTY: TEN YEAR WARRANTY AGAINST DEFECTIVE PARTS AND WORK-...
- Page 2 INSTRUCTIONS FOR CHARGING YOUR KEN-A-VISION CORDLESS ENVIRONMENTAL CONDITIONS STEREOSCOPE This equipment is designed to be safe at least under the following conditions: 1. Plug in the round pin adapter from the power supply to the back of · indoor use; your stereoscope.
- Page 3 screwdriver (1.5mm) into hole on right side near the top of the base. c. Turn the stage plate lock screw one to two turns counter clockwise. Carefully remove the stage plate, the lamp holder for the bottom light source should now be in view and accessible. d.
-
Page 4: Specifications
VISION SCOPE OPERATION APPLICATION a. Place the specimen you are viewing in the center of the stage. Use Stereomicroscopes for viewing larger specimens. Our easy to b. Accurately align the objective lens. Move the focus knob until the view, high quality Vision Scopes will magnify the object 10 to 80 times. specimen comes into view.
