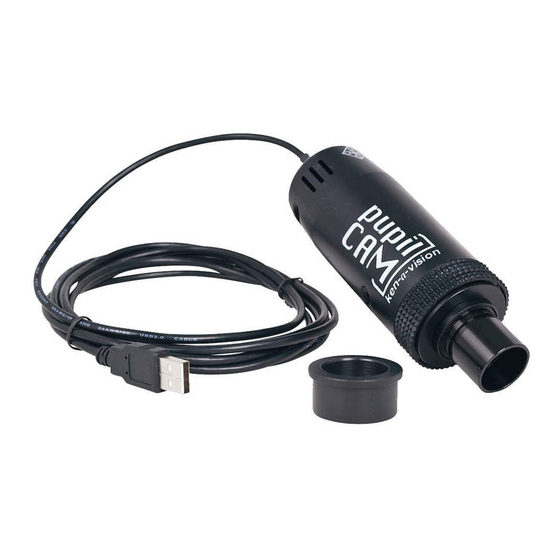

Ken A Vision PupilCAM 1401KEM Specification

PupilCAM
1401KEM
Image Sensor
Camera
Pixel Count
Frame Rate
OSD
Output Resolution
Output
RS232
USB Connection
USB Cable
Operating
Temperature
Lighting
Power Source
Cross Platform OS
UVC Driverless
MSI support
Memory
Advance Imaging
Average Set up time
Free Updates
IWB Compliant
Viewing Angle
Connect to Microscope
Lens
Digital Zoom
Controls
Focus
White Balance
Color/B&W
Gamma Adjustment
Negative/Positive
Image Rotation
Capture/Freeze
Audio Recording
Image Compression
Annotation
Light Control
Full Screen
Image Compression
Split Screen
Multiple Camera
Support
Ken-A-Vision Mfg. Co., Inc.
www.ken-a-vision.com soultions@ken-a-vision.com
®
Detailed Specifications (September 2012)
KAV 1/4" CMOS
ACT 1280(H) X 1024(V)
Yes Variable with selected screen size
Default 13 fps at max resolution of 1280 X 1024 (1.3)
VGA 30 fps at resolution of 640 X 480
Yes Controlled by software buttons
Yes 1.3 Mega pixel
Yes VGA, RGB (DVI, HDMI depending on your computer's configuration)
Yes via Software interface of computer
Yes USB 2.0 compliant
Yes Factory installed 1.7 m USB 2.0
Use 0° C - 50° C
Use Low Lighting to work with electtrical microscopes
N/A 5 VDC, 200 mA from USB port ONLY meeting green initiative
Yes Windows, Mac, LINUX
Yes Works on Windows, MAC, and Linux
Yes installation, maintenance, and removal of software via Microsoft server
Yes Image / Video
Image Recording: 400 minimum* average 132,000 images per standard hard drive space of 20GB
at 1280 X 1024
Video Recording: 8 minutes minimum* OR 4 hours per standard hard drive space of 20 GB at AVI
resolution 640 X 480
Yes For Science Studies to include 3D rendering, measurement of varied angles, counting, and much
more
N/A less than 5 minutes for 1 – 1,000 units using MSI for Cross platform software installations
Yes For the life of the product on software and hardware
Yes Interactive White Board Compliant for most current boards.
Yes 60 degree: diagonal, 50 degree: Horizontal
Yes Built-in 28mm 10x eyepiece replaces microscope eyepiece, Setreo adapter ring, to fit most Stereo
microscope eyepiece tubes.
8 mm
Yes Controlled by software buttons up to 16x
Factory Set for optimal viewing
Yes Auto or manual controlled by software buttons
Yes Black and White controlled by software buttons
Yes Auto or manual controlled by software buttons
Yes Controlled by software buttons
Yes 360° in both directions controlled by software buttons
Yes Freeze image via software button
Yes Synchronized recording via software buttons
Yes JPEG
Yes in software or working with Interactive Whiteboard interfaces
Yes Software controlled
Yes desktop enabled icon and single click software button via software
Yes Software Enabled JPEG
Yes Software
Yes Minimum of 2; up to 8 running simultaneously
Specifications are subject to change without notice.
