ROCMETRIX
FLASH STORAGE WITH FINGERPRINT
VERIFICATION
Ultimate Slimness, Mobility & Security beyond Capabilities
1
Warning: "Please read this manual thoroughly before
start using Rocmetrix". For QUICK SETUP and USE
please skip to "QUICK INSTALL", section
Rocmetrix User's Manual
1. Introduction

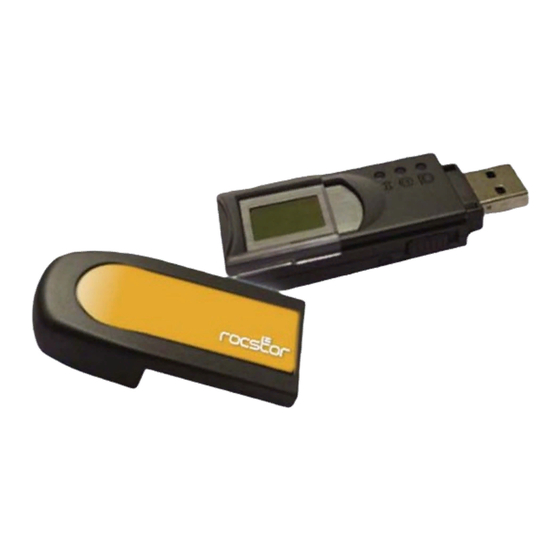

Rocmetrix is a biometrics USB flash storage device
employing state of the art capacitive fingerprint sensor.
The data stored within the Rocmetrix is encrypted.
Therefore Rocmetrix is a USB Flash Storage device that
is both easier to use and harder to be stolen compare to
that of password based USB flash storage device. In
addition, Rocmetrix is handy and does not require any
application software or driver (except WIN98) to work
with. The fingerprint sensor had added not only to the
security of your data but also personal touch. Rocmetrix
only works with your personal touch.
2. Features
1. The data stored inside Rocmetrix is encrypted.
2. There is no communication between the host PC and
Rocmetrix until an authorized fingerprint enables
Rocmetrix to do so.
3. User fingerprint template is not transmittable to host
PC and therefore adding a layer of protection to user
fingerprint identity.
4. Hot plug and play. Enable you to install Rocmetrix
anytime & anywhere without bringing along a CD
ROM or a requirement of internet connection for
driver or application software download.
5. Support
IBM
PCs
and
WIN98/WIN ME/WIN XP/WIN2000/ Linux OS
6. Support Mac computer
7. Slim, light, and handy.
8. USB Bus powered (4.5V ~ 5.5V)
2
compatibles
running
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Rocstor ROCMETRIX
Summary of Contents for Rocstor ROCMETRIX
- Page 1 3. User fingerprint template is not transmittable to host PC and therefore adding a layer of protection to user fingerprint identity. 4. Hot plug and play. Enable you to install Rocmetrix anytime & anywhere without bringing along a CD ROM or a requirement of internet connection for driver or application software download.
- Page 2 9. LED indicator light up when Rocmetrix is recognized clear the fingerprint on the sensor. This is by PC illustrated in “Pg 6” of the pictorial user manual. Normal Use of Rocmetrix – Authentication Mode 3. Technical Specifications 1. Dimension: 75mm X 24mm X 12mm (L X W X H) Please make sure the Enrollment Switch is in 2.
- Page 3 Mac OS 9.X / Mac OS X Installation Plug 5.1.2 Please download the Rocmetrix driver at Rocmetrix into the USB port of your Mac www.Rocmetrix.com computer. A new icon name “Untitled” 5.1.3 Unzip the file “rocmetrix98.zip” into a directory, representing Rocmetrix would display on the say C:\rocmetrix98.
- Page 4 Rocmetrix can 7.4 Do not store the Rocmetrix in dusty, dirty areas. It’s be stored more than 10 years. moving parts can be damage.
-
Page 5: Quick Install
What should I do if the Rocmetrix icon does not ROCMETRIX QUICK INSTALL appear / disappear on the screen after inserting / extracting? ANS: Simply click the “View” menu and select Introduction “Refresh” Q10: What should I do when Rocmetrix is plugged into It’s secure –... - Page 6 Enrollment Repeat for another 4 fingerprints entry Orange LED will be switch to Enrollment mode turned OFF indicating Rocmetrix had proceeded to USB mass before plugging into the storage mode. USB port. Enrollment (orange) LED is OFF and Remember to slid fingerprint cover back to its original mode.
- Page 7 Your Rocmetrix is a product of superior design and craftsman Do not store the Rocmetrix in cold areas. When it warms up and should be treated with care. The suggestions below will (to its normal temperature), moisture can form inside, help you to fulfill any warranty obligations and to enjoy this which may damage electronic circuit boards.
- Page 8 Rocstor warrants that the Rocstor hardware product and all the internal components of the product that you have purchased or leased from Rocstor are free from defects in materials or workmanship under normal use during the Limited Warranty Period.
- Page 9 Rocstor branded product in hardware performance. THE PRICE YOU HAVE PAID FOR THE PRODUCT OR THE COST OF Rocstor reserves the right to elect, at its sole discretion, to give you a refund REPAIR OR REPLACEMENT OF ANY HARDWARE COMPONENTS THAT of your purchase price or lease payments (less interest) instead of a MALFUNCTION IN CONDITIONS OF NORMAL USE.
-
Page 10: Software Technical Support
Warranty Period Contacting Rocstor In the United States, refer to the Rocstor website at Warranty Period for Rocmetrix USB Flash Drive is 1 Year Parts and www.rocstor.com Labor. 1.818.449.2000 Types of Warranty Service Toll-free technical support in the United States and Canada, 5 days a week, 9:00 a.m. - Page 11 Notes: This is how it should be printed 20 - 1 18 - 3 16 - 5 14 – 7 12 - 9 2 - 19 4 - 17 6 - 15 8 – 13 10 -11...
