4
RECEIVE AND TRANSMIT

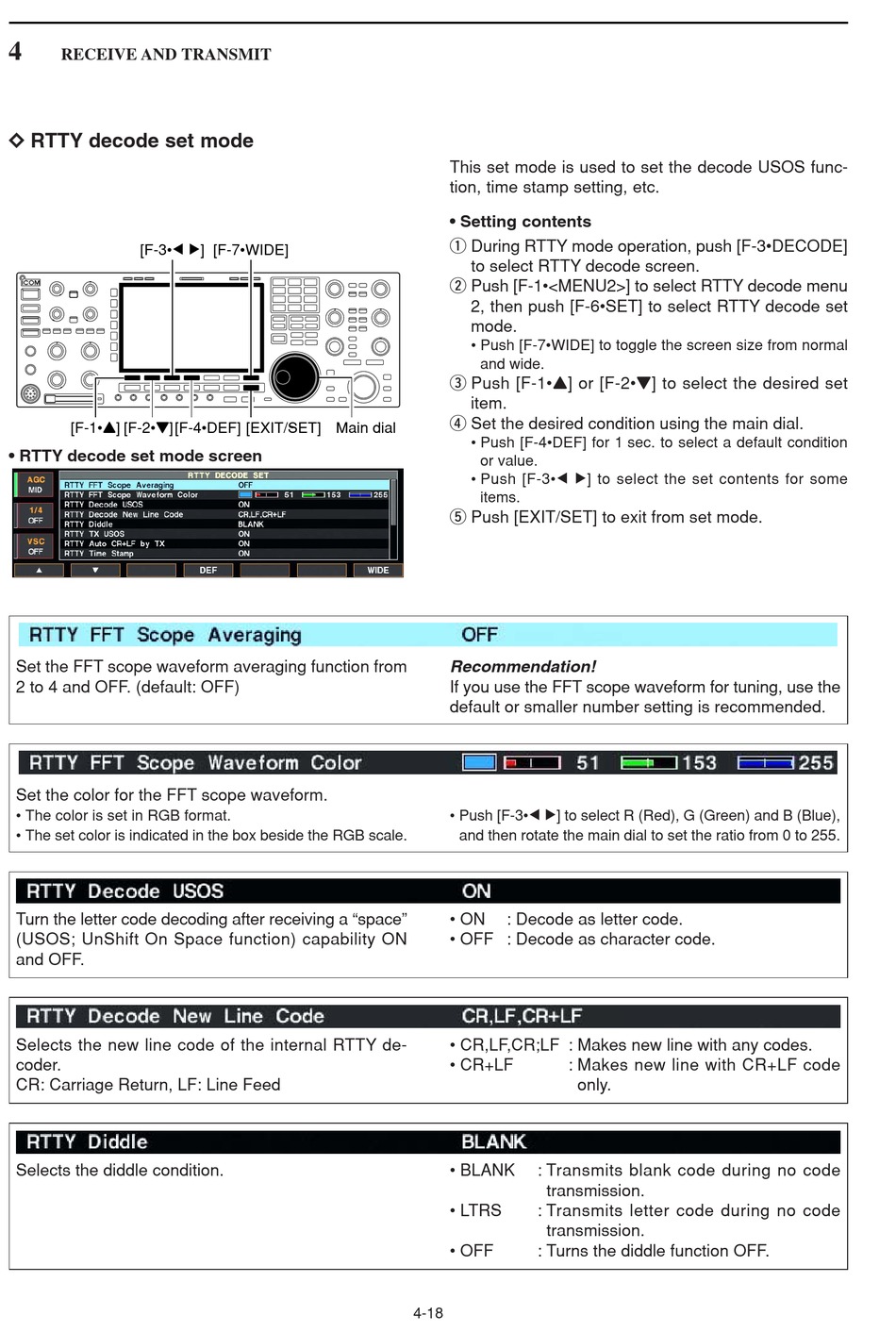

D D RTTY decode set mode
[F-3•Ω ≈] [F-7•WIDE]
[F-1•Y] [F-2•Z][F-4•DEF]
• RTTY decode set mode screen
Set the FFT scope waveform averaging function from
2 to 4 and OFF. (default: OFF)
Set the color for the FFT scope waveform.
• The color is set in RGB format.
• The set color is indicated in the box beside the RGB scale.
Turn the letter code decoding after receiving a "space"
(USOS; UnShift On Space function) capability ON
and OFF.
Selects the new line code of the internal RTTY de-
coder.
CR: Carriage Return, LF: Line Feed
Selects the diddle condition.
[EXIT/SET] Main dial
4-18
This set mode is used to set the decode USOS func-
tion, time stamp setting, etc.
• Setting contents
q During RTTY mode operation, push [F-3•DECODE]
to select RTTY decode screen.
w Push [F-1•<MENU2>] to select RTTY decode menu
2, then push [F-6•SET] to select RTTY decode set
mode.
• Push [F-7•WIDE] to toggle the screen size from normal
and wide.
e Push [F-1•Y] or [F-2•Z] to select the desired set
item.
r Set the desired condition using the main dial.
• Push [F-4•DEF] for 1 sec. to select a default condition
or value.
• Push [F-3•Ω ≈] to select the set contents for some
items.
t Push [EXIT/SET] to exit from set mode.
Recommendation!
If you use the FFT scope waveform for tuning, use the
default or smaller number setting is recommended.
• Push [F-3•Ω ≈] to select R (Red), G (Green) and B (Blue),
and then rotate the main dial to set the ratio from 0 to 255.
• ON : Decode as letter code.
• OFF : Decode as character code.
• CR,LF,CR;LF : Makes new line with any codes.
• CR+LF : Makes new line with CR+LF code
only.
• BLANK : Transmits blank code during no code
transmission.
• LTRS : Transmits letter code during no code
transmission.
• OFF : Turns the diddle function OFF.
