Battery Case; Optional Battery Case (Bp-240) - Icom IC-F34GT Instruction Manual

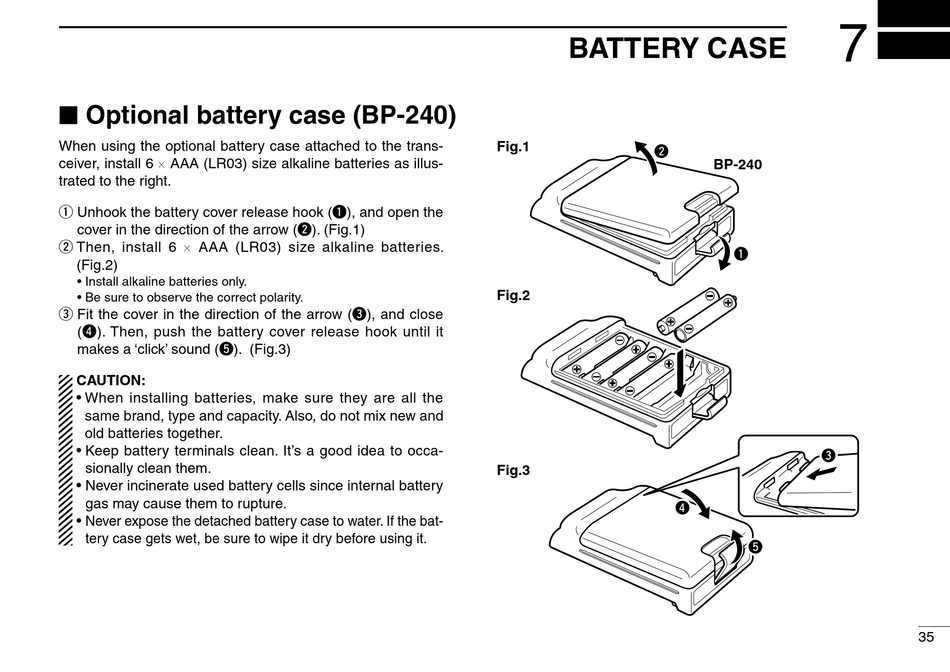

Optional battery case (BP-240)

■
When using the optional battery case attached to the trans-
ceiver, install 6 × AAA (LR03) size alkaline batteries as illus-
trated to the right.
q Unhook the battery cover release hook (q), and open the
cover in the direction of the arrow (w). (Fig.1)
w Then, install 6 × AAA (LR03) size alkaline batteries.
(Fig.2)
• Install alkaline batteries only.
• Be sure to observe the correct polarity.
e Fit the cover in the direction of the arrow (e), and close
(r). Then, push the battery cover release hook until it
makes a 'click' sound (t). (Fig.3)
CAUTION:
• When installing batteries, make sure they are all the
same brand, type and capacity. Also, do not mix new and
old batteries together.
• Keep battery terminals clean. It's a good idea to occa-
sionally clean them.
• Never incinerate used battery cells since internal battery
gas may cause them to rupture.
• Never expose the detached battery case to water. If the bat-
tery case gets wet, be sure to wipe it dry before using it.

BATTERY CASE

Fig.1
w
Fig.2
Fig.3
r
7
BP-240
q
e
t
35
