Grandstream Networks, Inc.
GXV3175v2
IP Multimedia Phone
GXV3175v2 USER MANUAL

Advertisement

Table of Contents
loading

Related Manuals for Grandstream Networks GXV3175v2

Summary of Contents for Grandstream Networks GXV3175v2

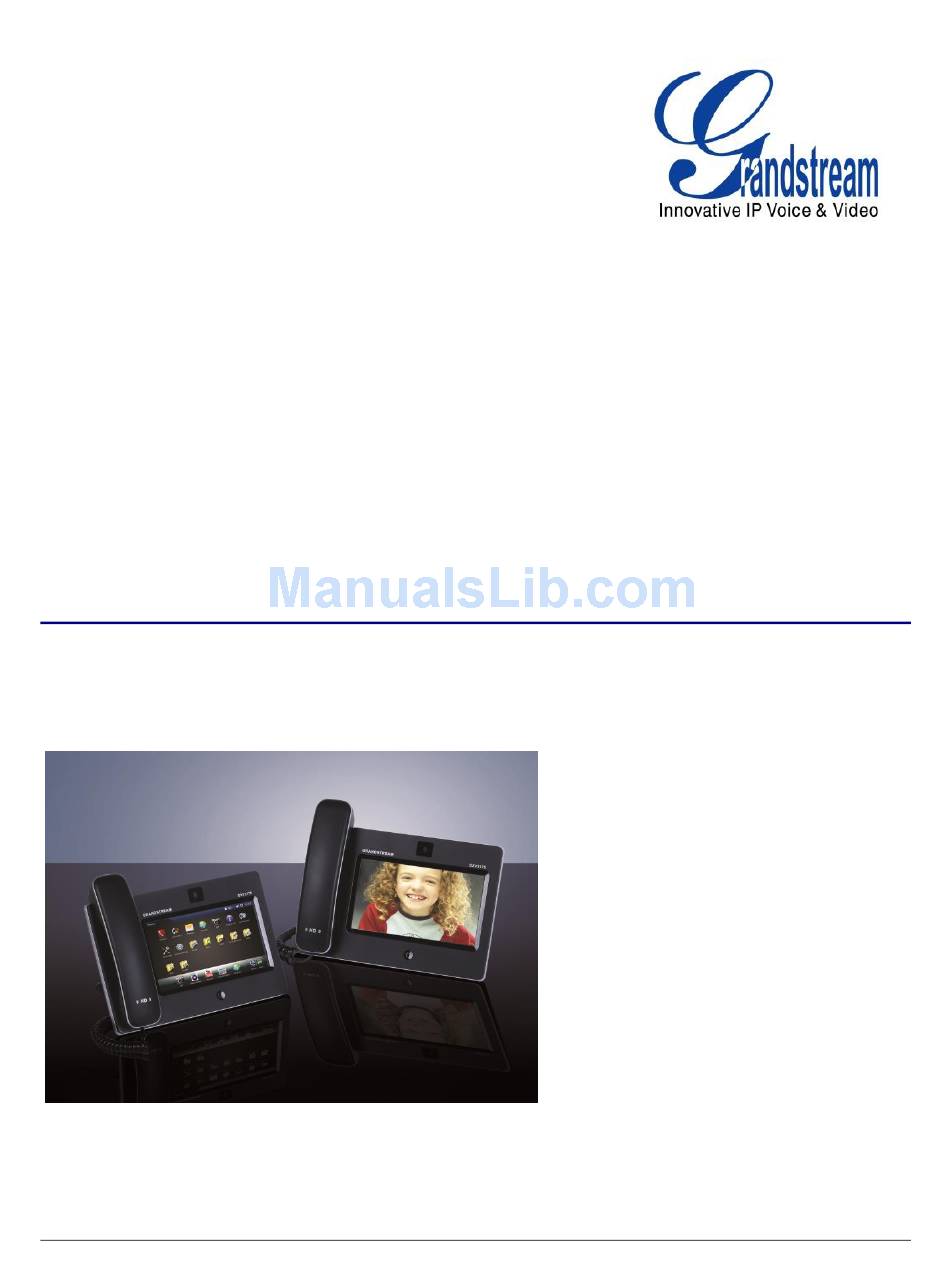

  • Page 1 Grandstream Networks, Inc. GXV3175v2 IP Multimedia Phone GXV3175v2 USER MANUAL...

  • Page 2: Table Of Contents

    GXV3175v2 User Manual Index GNU GPL INFORMATION ................6 WELCOME ....................7 GXV3175 OVERVIEW ........................... 7 PRODUCT OVERVIEW ................9 INSTALLATION ..................12 EQUIPMENT PACKAGING ......................... 12 SAFETY COMPLIANCES ........................13 WARRANTY ............................13 CONNECTING THE GXV3175 IP MULTIMEDIA PHONE ......14 WALL MOUNT .............................
  • Page 3 TUDOU ............................92 PHOTOS .............................. 94 PHOTO ALBUM ..........................94 WORLD PHOTO ........................... 95 PHOTO VIEWER .......................... 96 SLIDE SHOW ..........................98 NEWS ..............................99 NEWS VIDEOS ..........................99 TOOLS ..............................99 FIRMWARE VERSION 1.0.1.46 GXV3175v2 USER MANUAL Page 3 of 138...
  • Page 4 SOFTWARE UPGRADE ................. 135 UPGRADE VIA MENU ........................135 UPGRADE VIA WEB CONFIGURATION PAGE ................135 No LOCAL FIRMWARE SERVERS ....................135 CONFIGURATION FILE DOWNLOAD ....................136 RESTORE FACTORY DEFAULT SETTINGS ......... 137 FIRMWARE VERSION 1.0.1.46 GXV3175v2 USER MANUAL Page 4 of 138...
  • Page 5 Table 6: GXV3175 DIALPAD ........................26 Table 7: GXV3175 CALL FUNCTIONS ....................... 32 Table 8: GXV3175 KEYPAD ........................38 Table 9: GXV3175 CALL FEATURES ......................39 Table 10: GXV3175 AUDIO/VIDEO CODEC FEATURE CODES ............... 40 FIRMWARE VERSION 1.0.1.46 GXV3175v2 USER MANUAL Page 5 of 138...

  • Page 6: Gnu Gpl Information

    GXV3175 firmware contains third-party software licensed under the GNU General Public License (GPL). Grandstream uses software under the specific terms of the GPL. Please see the GNU General Public License (GPL) for the exact terms and conditions of the license.

  • Page 7: Welcome

    WELCOME Thank you for purchasing Grandstream GXV3175 IP Multimedia Phone. GXV3175 IP Multimedia Phone represents the future in personal IP multimedia communication as the ultimate desktop multimedia phone. You will experience a brand-new exploration with GXV3175’s 7” touch screen color LCD, plug-and-play access to free real-time video/voice call, always-on Internet web entertainment and social networking applications.
  • Page 8  Reproduction or transmittal of the entire or any part, in any form or by any means, electronic or print, for any purpose without the written permission of Grandstream Networks, Inc. is not permitted. FIRMWARE VERSION 1.0.1.46 GXV3175v2 USER MANUAL...

  • Page 9: Product Overview

    US/Euro/UK/Australian style plug available. Dimension 243.5mm x 168mm x 36mm. Weight 1.04kg (phone with handset and stand), 1.95kg (package weight). Operating Temperature 32°F - 104° F/0°C - 40°C. Humidity 10%-90% Non-Condensing. Compliance FCC/CE/C-Tick. FIRMWARE VERSION 1.0.1.46 GXV3175v2 USER MANUAL Page 9 of 138...

  • Page 10: Table 3: Gxv3175 Technical Specifications

    Caller ID, call waiting ID, call waiting/flash, call transfer, call holding, call forwarding, Do-Not-Disturb, three-way conference, redial, automatic dialing on off-hook, automatic answering, call records, volume control, voice message waiting indicator, downloadable custom ring tone, FIRMWARE VERSION 1.0.1.46 GXV3175v2 USER MANUAL Page 10 of 138...
  • Page 11 Security - MD5 and MD5-sess DIGEST encoding and authentication. - Security protection: SIP over TLS and SRTP. - Support for TR-069. - Support for OpenVPN for increased security and control. FIRMWARE VERSION 1.0.1.46 GXV3175v2 USER MANUAL Page 11 of 138...

  • Page 12: Installation

    5. One (1) Ethernet Cable 6. One (1) Phone Cord 7. One (1) 12V Power Adapter 8. One (1) Phone Stand 9. One (1) Wall Mount Figure 1: GXV3175 Equipment Packaging FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 12 of 138...

  • Page 13: Safety Compliances

    Grandstream Sales and Service Representative for a RMA (Return Materials Authorization) number before the product is returned. Grandstream reserves the right to remedy warranty policy without prior notification. WARNING: Use the power adapter provided with the phone. Do not use a different power adapter as this may damage the phone.

  • Page 14: Connecting The Gxv3175 Ip Multimedia Phone

    PC Ethernet Port 10/100Mbps RJ-45 port connecting to PC Network Ethernet Port 10/100Mbps RJ-45 port connecting to Ethernet Power Jack 12V DC Power connector port RJ11 Jack Phone handset connector port FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 14 of 138...

  • Page 15: Wall Mount

    GXV3175 can also be placed on the table or desk via the phone stand. (See Figure 4) There are two positions for the stand on the back of the phone with each position supporting a different angle. FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 15 of 138...

  • Page 16: Connecting Gxv3175 Ip Multimedia Phone

    Figure 4: Phone Stand for GXV3175 CONNECTING GXV3175 IP MULTIMEDIA PHONE Figure 5: Connecting the GXV3175 FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 16 of 138...

  • Page 17: Welcome Setup Guide

    Account 1. Users may choose to remove this account by inputting their own account information, or keep this account and select “Create one more account” to create a new account. The GXV3175 allows up to 3 accounts. Figure 7: Setup Guide Account Settings FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 17 of 138...
  • Page 18 Figure 9: Quick Setup Guide Completion The following screenshot shows the LCD idle screen after quick setup has finished. An IPVideoTalk account has been set up and is ready to make or receive calls. FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 18 of 138...

  • Page 19: Making The First Call With Ipvideotalk Service

    GXV3175 offers users the ability to send and receive free lifetime video calling to other GXV3175/GXV3140 on the IPVideoTalk network. Once the GXV3175 is connected, video calls can be made using Grandstream’s configuration peer-to-peer SIP technology and IPVideoTalk service. To place the first video call, complete the following three simple steps: 1.
  • Page 20 Figure 11: Select IPVideoTalk account in the marked area to make first call FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 20 of 138...

  • Page 21: Using The Gxv3175 Ip Multimedia Phone

    (4) green tabs indicating the current page of the screen. Figure 13 shows the screen that displays weather and currency information. Figure 13: LCD IDLE screen displaying Weather and Currency Information FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 21 of 138...
  • Page 22 Info, Weather, RSS News, Contacts and Internet Radio will be available to open and display in the main screen. (See Figure 16) FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 22 of 138...
  • Page 23 Figure 17: Close/Configure the widget in Idle screen By selecting the right hand side area of the status bar, users will be able to set the phone’s status in the pop out dropdown list. See Figure 18. FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 23 of 138...

  • Page 24: Table 5: Lcd Icons

    The headset is in use and is off hook The headset is plugged in The phone is on speaker The handset is off hook WiFi WiFi signal strength, ranging from 0 to 4 FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 24 of 138...

  • Page 25: Multiple Sip Accounts And Lines

    External devices SD card USB flash drive USB keyboard USB mouse USB LED light 1 USB LED light 2 HDMI MULTIPLE SIP ACCOUNTS AND LINES Figure 19: GXV3175 Dial Pad FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 25 of 138...

  • Page 26: Handset, Speaker And Headset Mode

    GXV3175 allows users to switch from handset to speaker or headset by pressing corresponding icons shown in Dial Pad (Table 6, Item 5). If headset is plugged in, the headset icon will be activated to select. MAKING A CALL FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 26 of 138...
  • Page 27 Take the handset off hook then the dial pad will show up with dial tone.  Select line/account.  Press “Redial” or dial the number and press “Audio Call”/”Video Call” to dial out. 4. By Call History FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 27 of 138...
  • Page 28 The LCD monitor will display the contact list. Scroll to the contact to be dialed.  Press to call the select contact. The primary number of the contact will be dialed out. See Figure 22. FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 28 of 138...
  • Page 29 In idle screen, press and select contact to the favorite list. Select the contact and press to dial out. (See Figure 24) Figure 24: Dial by Contact Favorite in idle screen FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 29 of 138...

  • Page 30: Answering Calls

    Figure 25: Answer incoming video call 2. Incoming Audio Call When an audio call is coming in, select “Accept Audio” or “Reject” in the screen shown as Figure FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 30 of 138...

  • Page 31: Call Function Options

    View to access the detail of the missed call. Figure 27: Missed Call Notification CALL FUNCTION OPTIONS Figure 28 shows the screen after users answer the call. Press “Options” button to access all the call functions. FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 31 of 138...

  • Page 32: Table 7: Gxv3175 Call Functions

    Press to decrease call volume Press to increase call volume Press to switch videos between the caller and callee Snapshot Press to take a snapshot of the current video. The FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 32 of 138...

  • Page 33: Call Hold

    The following will be displayed on the screen. (See Figure 30) Figure 30: Call Hold Call Resume In Figure 30, press “Unhold” button to resume to the call. Multiple Calls FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 33 of 138...

  • Page 34: Call Transfer

    During a call, press the “Transfer” button to place the other party on hold. The phone will display the following message: “Dial Number (Blind) OR Select Line (Attended)” (See Figure 32). Dial the extension number and press “Send”. This will transfer the call to the other party immediately. FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 34 of 138...

  • Page 35: 3-Way Conference

    “Video off” or pressing “Hold” to activate the screen to select another line. 3-WAY CONFERENCE GXV3175 supports 3-way video conferencing. See Figure 34. Please note that this only works with Grandstream video phones or video phones use QVGA resolution. FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL...
  • Page 36 If the user is on a video call with the first party, the users may need to turn off the video by pressing “Video off” or pressing “Hold” to activate the screen to select another line. FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 36 of 138...

  • Page 37: Voicemail（Message Waiting Indication

    KEYPAD INPUT The build-in soft keypad in GXV3175 supports English, Chinese, Russian and Korean for text input. See Figure 35. Figure 35: GXV3175 Soft Keypad FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 37 of 138...

  • Page 38: Table 8: Gxv3175 Keypad

    Switch between Letter/Number/Symbol Delete NOTE: External keyboard could also be used by plugging via USB port on the phone. To select input language, please go to Menu  Settings  Language. FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 38 of 138...

  • Page 39: Call Features

    Delayed Call Forward: Dial *92 + Phone/Ext. Number followed by the # key. Wait for a dial-tone and then hang up. Cancel Delayed Call Forward: Dial *93 and wait for a dial-tone before hanging up. FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 39 of 138...

  • Page 40: Table 10: Gxv3175 Audio/Video Codec Feature Codes

    Table 10: GXV3175 AUDIO/VIDEO CODEC FEATURE CODES Codec Feature Code PCMU 7110 PCMA 7111 G723.1 G726-32 72632 G729A/B G722 7200 L16-256 7202 H.264 H.263 H.263+ 2631998 FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 40 of 138...

  • Page 41: Gxv3175 Web Configuration Interface

    This address has the format: xxx.xxx.xxx.xxx, where xxx stands for a number from 0-255. Users will need this number to access the Web Configuration Menu. For example, if the phone FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 41 of 138...

  • Page 42: Definitions

    The device ID, in HEX format. This is a very important ID for ISP troubleshooting. Address Type This field shows the type of address configured: DHCP, Static IP or PPPoE. IP Address This field shows the IP address of the GXV-3175. FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 42 of 138...

  • Page 43: Advanced Settings Page Definitions

    This parameter specifies how often the GXV3175sends a blank UDP packet Keep-alive Intervals (s) to the SIP server in order to keep the “ping hole” on the NAT router to open. The default setting is 20 seconds. FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 43 of 138...

  • Page 44: Firmware Version 1.0.1.46

    Increasing the frame rate will increase the amount of transferred data significantly therefore consuming more bandwidth. Lack of bandwidth will impair the video due to packet loss. FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 44 of 138...

  • Page 45: Maintenance Page Definitions

    Default is GXV. Used by clients and servers to exchange vendor-specific (Option 60) information. Alternate DNS Server This field sets the alternate DNS server for user. Second Alternate This field sets a second alternate DNS server for user. FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 45 of 138...

  • Page 46: Firmware Version 1.0.1.46

    The following are supported: WEP/Shared, WEP/OPEN, WPA PSK TKIP, WPA PSK AES, WPA2 PSK TKIP, WPA2 PSK AES. The default setting is set to “Disabled”. Users will need to enter the corresponding authentication password for the FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 46 of 138...

  • Page 47: Firmware Version 1.0.1.46

    Time Display Format This parameter sets time display format to 12 Hour or 24 Hour Date Display Format This parameter sets date display format to YY-MM-DD or MM-DD-YY or DD-MM-YY. FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 47 of 138...

  • Page 48: Firmware Version 1.0.1.46

    The password used for encrypting the XML configuration file using OpenSSL. This is required for the phone to decrypt the encrypted XML configuration file. HTTP/HTTPS User Name The user name for XML configuration file download. FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 48 of 138...

  • Page 49: Firmware Version 1.0.1.46

    Interval (m) is 10080 minutes ( 7 days) Hour of the day (0-23) Defines the hour of the day to check the HTTP/TFTP server for firmware upgrades or configuration files changes. FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 49 of 138...

  • Page 50: Firmware Version 1.0.1.46

    View Trace was captured. Click on the name of the file to download and view the trace. Enable Application Debug When set to Yes, the trace captured will contain debug messages. FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 50 of 138...

  • Page 51: Firmware Version 1.0.1.46

    Set a name for the imported language. Import Language Import Now Click the Import button to import a language. Maintenance/TR-069 ACS URL Enter URL for TR-069 Auto Configuration Servers (ACS) FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 51 of 138...

  • Page 52: Firmware Version 1.0.1.46

    OpenVPN server and the authentication is correct, the phone will show the VPN IP address under the Status  Network Status, but it will still display the LAN IP on the LCD of the phone. FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 52 of 138...

  • Page 53: Firmware Version 1.0.1.46

    Reduces flicker of image shot with a video camera caused by luminance Flicker Control fluctuation of an illuminating light source. Users can select 50Hz/60Hz depending on the frequency of the commercial electrical power. The default setting is set to Auto. FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 53 of 138...

  • Page 54: Sip Account Configuration Page Definitions

    This setting decides whether the NAT traversal mechanism is activated. If it is set to “STUN” and STUN server is configured, the GXV3175 will route according the STUN server. In this mode, the STUN client embedded in the FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 54 of 138...

  • Page 55: Firmware Version 1.0.1.46

    UAS to use the phone as the refresher. Force INVITE The Session Timer can be refreshed using the INVITE or UPDATE methods. Select “Yes” to use the INVITE method to refresh the session FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 55 of 138...

  • Page 56: Firmware Version 1.0.1.46

    Assigns the mechanism to send DTMF. There are three supported modes: in audio (with DTMF as audio signals), through RTP and through SIP INFO. DTMF Payload Type Sends DTMF using RFC2833. The default is 101. FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 56 of 138...

  • Page 57: Firmware Version 1.0.1.46

    This value is related to the codec used and the actual frames transmitted during the in payload call. For example: if the codec is configured to be G.723 and “Voice Frames per FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 57 of 138...

  • Page 58: Firmware Version 1.0.1.46

    [3-5] - any digit of 3, 4, or 5 e) [147] - any digit of 1, 4, or 7 <2=011> - replace digit 2 with 011 when dialing g) | - the OR operand FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 58 of 138...

  • Page 59: Firmware Version 1.0.1.46

    The default setting is No. If it is set to Yes, the GXV3175 will play a “beep” Auto Answer sound and answer the phone automatically on the speaker. If “Enable FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 59 of 138...

  • Page 60: Firmware Version 1.0.1.46

    Always forward all incoming calls to a number set here. Unconditional Call Forward Time Based Sets the call forward numbers based on a timer. Call Forward Others Sets the call forward based on different conditions. FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 60 of 138...

  • Page 61: Saving/Applying The Configuration Changes

    The configuration data can be downloaded from the central server via TFTP or HTTP/HTTPS. A service provider or an enterprise with larger deployments of Grandstream devices can easily manage the configuration and service provisioning of individual devices remotely from a central server.

  • Page 62: Firmware Version 1.0.1.46

    At boot-up, Grandstream devices by default point to the Grandstream provisioning server (GAPS). Based on the unique MAC address of each device, GAPS will provision the devices with redirection settings so that they will be redirected to customer’s TFTP or HTTP server for further provisioning.

  • Page 63: Lcd Menu And Features

    Select and Tap on one contact entry then the users could view the full contact information. Direct IP Call is also supported by specifying an IP address as a contact number. FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 63 of 138...

  • Page 64: Firmware Version 1.0.1.46

    Figure 38: Adding a new contact To import/export contacts, in the screen shown as Figure 37, select “Options”  “Import/Export”. Then in the screen shown as Figure 39, select “Import” or “Export” in “Operation Mode”. FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 64 of 138...

  • Page 65: Firmware Version 1.0.1.46

    To access this feature, in the screen shown in Figure 37, select “Options”  “Download”. Then in the screen shown as Figure 40, select “OFF”, “TFTP” or “HTTP” in “Download Mode”. FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 65 of 138...

  • Page 66: Phonebook - Import/Export/Download Via Web-Gui

    To delete all the contacts, users could select “Options”  “Delete All” in Figure 37. PHONEBOOK – IMPORT/EXPORT/DOWNLOAD via WEB-GUI Another option on how to add contacts would be using the web-GUI Phonebook’s Import/Export/Download feature. Figure 41: Web-GUI Phonebook Import/Export/Download FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 66 of 138...

  • Page 67: Ldap

    The IP address or DNS name of the LDAP server Port The LDAP server port Base DN The LDAP search base refers to the location in the directory where the search is requested to begin. Example: dc=grandstream,dc=com FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 67 of 138...

  • Page 68: Firmware Version 1.0.1.46

    Configures the filter used for number lookups. Examples: (|(telephoneNumber=%)(Mobile=%) returns all records which has the LDAP Number Filter "telephoneNumber" or "Mobile" field starting with the entered prefix; (&(telephoneNumber=%) (cn=*)) returns records with FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 68 of 138...

  • Page 69: Blf

    "telephoneNumber" field starting with the entered prefix and "cn" field set. Configures the filter used for email lookups. LDAP Mail Filter LDAP Displaying Name The entry information to be shown on phone LCD. Grandstream phones will Attributes display up to 3 fields. Example: %cn %sn %telephoneNumber Max.

  • Page 70: Firmware Version 1.0.1.46

    BLF list. The “UserID” is the extension that will be monitored. When done, click “OK”. The new BLF should be added to the BLF list at the left (Figure 44). FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 70 of 138...

  • Page 71: Firmware Version 1.0.1.46

    If status is shows BLINKING RED, it means that the extension is receiving an incoming call. The GRAY outlining shows a status of a user unregistered. With this status the user is unable to monitor the extension. FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 71 of 138...

  • Page 72: Call History

    Similarly, if other IP products support this feature, the text message feature can also be used to send/receive messages between the device and the GXV3175. This application is accessible by selecting “MENU”  “Messages” (See figure 47). FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 72 of 138...

  • Page 73: Firmware Version 1.0.1.46

    To send message, press “New” button. In Figure 47, edit the message by tapping on the blank area in the message content. Figure 48: Edit new message FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 73 of 138...

  • Page 74: Firmware Version 1.0.1.46

    Figure 50: Add receiver’s number from contact list . Now tap on “Add” button and the A yellow check will show on the left of the contact after pressing FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 74 of 138...

  • Page 75: Firmware Version 1.0.1.46

    To view and reply message, select “Inbox” or press “View” in the incoming message alert window. (See Figure 52) Figure 52: New message alert To reply or forward the received message, press “Reply” or “Forward” in Figure 53. FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 75 of 138...

  • Page 76: Social Networks (Sns)

    Google Voice account. Figure 54: Google Voice in GXV3175 In Figure 54, press “Login” button and enter Email and Password via soft keyboard in Figure 55. Then FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 76 of 138...

  • Page 77: Firmware Version 1.0.1.46

    . See Figure 57. Users will be able to dial out or send message to the contact in Call Logs by tapping on the selected entry in the displayed list. FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 77 of 138...

  • Page 78: Firmware Version 1.0.1.46

    To view the contacts set in google voice account, press “Contacts” and a list of contacts will show up in the screen. Users could also call or send messages to selected contact here by choosing one entry and tapping on it. See Figure 59. FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 78 of 138...

  • Page 79: Twitter

    . Press icon to exit Google Voice. TWITTER Twitter has been implemented in the GXV3175 so that the user can stay connected to their social network. FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 79 of 138...

  • Page 80: Facebook

    Another social network added to the GXV3175 is Facebook. Stay connected with all of your friend and family with just a quick touch of the screen. To access Facebook go to “Menu””SNS  “Facebook .(see figure 62) Figure 62: Facebook Login FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 80 of 138...

  • Page 81: Browser

    Users can view the web page by holding the finger and dragging in the touchscreen. Press icon move backward and to move forward. Figure 64 shows the screen of the web browser while visiting Grandstream website. Figure 64: Using the GXV3175 Web Browser Options FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 81 of 138...

  • Page 82: Music

    As shown in Figure 65, users can select one of the channels according to their preference. Then toggle through the channel list using scroll bar and select one channel. Press to play or stop the selected program. Scroll the volume bar to adjust the volume. FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 82 of 138...

  • Page 83: Last.fm

    Last.fm account yet, press “Sigh up for a Last.fm account” then the web browser will open and direct to https://www.last.fm/join for registration. Fill in Username and Password after registration then press “Login”. FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 83 of 138...

  • Page 84: Firmware Version 1.0.1.46

    Press to play the music in search result as shown in Figure 68. Users could select audio output among “Speaker”, “Headset” or “Stereo” by pressing “Output” button. FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 84 of 138...

  • Page 85: Video

    Standard Feeds (Top Rated, Most Popular and etc), Category (Music, Sports, Entertainment, News and etc.), Shows, Movies and etc. (See figure 70) Press the thumbnail and select “Watch now” to watch the video in Media Player. FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 85 of 138...

  • Page 86: Firmware Version 1.0.1.46

    After login is successful, select “Option”  “Upload”. In the screen as Figure 72 shows, fill in the required information (Title, Category, Keyword and Description), select the video file from local or external storage device and press “Submit”. FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 86 of 138...

  • Page 87: Firmware Version 1.0.1.46

    To add the video to “Favorite”, users need to login Youtube account. Then after select a video, press “Favorite” button (See Figure 74). Now users will be able to access to all videos marked as “Favorite” in “Option”  Favorite. FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 87 of 138...

  • Page 88: Media Player

    List. Users could choose speaker, headset or stereo in Options  Output. After adding files to the playlist, press “Loop” to select the play mode in “Single Loop”, “List Loop” or “Loop None”. Figure 75: Media Player Play Music Icon Function FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 88 of 138...

  • Page 89: Firmware Version 1.0.1.46

    The following table shows the icons for the operation when playing the video. Figure 76: Media Player Play Video Icon Function Output option: Stereo Output option: Headset. It will be available if the headset is plugged in. Output option: Speaker Stop Pause FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 89 of 138...

  • Page 90: Movie Trailer

    Tap on the image of the movie to select it. See Figure 78. Press the “Down” arrow next to “watch now” button to select the trailer available to watch. FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 90 of 138...

  • Page 91: Firmware Version 1.0.1.46

    To find a movie trailer, tap on “Quick Find” and enter the name of the movie in the popping out soft keyboard. Press “Enter” in the keyboard for the searching result. See Figure 79 and 80. Figure 79: Quick Find in Movie Trailer FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 91 of 138...

  • Page 92: Tudou

    Play Count, Publisher, Editor, Clarity of Video, Comments, and Rating. There are also settings for the Search which gives the user control over the content results. FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 92 of 138...

  • Page 93: Firmware Version 1.0.1.46

    Figure 81: Tudou recently posted videos Figure 82: Tudou viewing by category FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 93 of 138...

  • Page 94: Photos

    (i.e. Photobucket, Flickr, Phanfare). After the application is loaded, users will need to add the pre-exist account to login. A screen similar to figure 85 will appear. Press “Add” then users will be directed to the web login page. FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 94 of 138...

  • Page 95: World Photo

    (See figure 86) Figure 86: World Photo Once a country of interest is selected, press the name of it the pictures will be shown in the screen. See FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 95 of 138...

  • Page 96: Photo Viewer

    Tap on the folder to open it and select the photos in the folder then the screen will look similar to the figure 89. For example, open the first picture from the “screensaver” folder. FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 96 of 138...

  • Page 97: Firmware Version 1.0.1.46

    If a picture slideshow is selected, the photos will be shown in a picture slideshow with the time frame (10/15/20 seconds) configured. Icon Function View the previous photo FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 97 of 138...

  • Page 98: Slide Show

    Figure 91: Slide Show Settings If “Customized Folder” is selected in Source, users will need to specify the folder by pressing “Browser” to select a folder from local or external storage device. FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 98 of 138...

  • Page 99: News

    Figure 92: News Videos TOOLS GXV3175 provides a collection of useful applications that are accessible via MENU including Notes, File Manager, Alarm Clock, Calendar, Location and Calculator. FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 99 of 138...

  • Page 100: File Manager

    The GXV3175 provides a flexible alarm clock application that lets users configure a custom alarm tone and alarm time in detail to suit their needs. Access the settings for Alarm Clock via “Menu”  “Tools” “Alarm Clock”. (See Figure 94) FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 100 of 138...

  • Page 101: Calendar

    The Calendar application is accessed by selecting “MENU”  “Tools”  “Calendar”. Users can view the calendar, add events to the calendar and synchronize it to a preexisting Google calendar account. See Figure 95. FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 101 of 138...

  • Page 102: Firmware Version 1.0.1.46

    “Repeats”, users could select no repeat, daily, weekly or monthly to set alarm alert of the event for reminder purpose. Figure 97 shows the calendar after an event is added. Figure 96: Add Event in Calendar FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 102 of 138...

  • Page 103: Firmware Version 1.0.1.46

    Google Calendar. To setup Google Calendar synchronization, press “Login” on the top of the screen. Then the Email and Password associated with the Google Calendar will be prompt. Enter the account information and press “Login” button in Figure 99. FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 103 of 138...

  • Page 104: Location

    Based on the IP address provided, the following information is given: Country, Region, City, Latitude, Longitude, Time Zone and Weather Code. This information is useful when configuring the phone to provide FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 104 of 138...

  • Page 105: Calculator

    Please refer to Figure 101, Figure 102, and Figure 103 for these three built-in calculators. Figure 101: Calculator: Simple Figure 102: Calculator: Science FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 105 of 138...

  • Page 106: Settings

    See Figure 104. Figure 104: Settings ACCOUNT SETTINGS Account Settings allows users to configure the three SIP accounts; the same configurations may be FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 106 of 138...

  • Page 107: Network Settings

    Ethernet, Wifi, Virtual, 3G and Proxy. Figure 106: Network Settings  Ethernet In page “Ethernet” (See Figure 106), users can choose to use DHCP or Static IP. If Static IP is selected, FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 107 of 138...

  • Page 108: Firmware Version 1.0.1.46

    After user selects the network, return to the Wifi menu to configure the wireless network security mode and key. See Figure 110. The supported Security Mode in GXV3175 includes “WEP/Open”, “WEP/Shared”, “WPA PSK TKIP”, “WPA PSK AES”, “WPA2 PSK TKIP” and “WPA2 AES”. FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 108 of 138...

  • Page 109: Firmware Version 1.0.1.46

    MENU  System Info  Network on the phone to view the current IP address and other network status (Figure 111). Wifi settings can also be configured from the web-GUI of the device under “Maintenance””Wifi Settings”. FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 109 of 138...

  • Page 110: Firmware Version 1.0.1.46

    NOTE: If the user has the connection to the Internet through both the wired network and the Wifi Network, the phone will use the wired network as it is have a higher priority. FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 110 of 138...

  • Page 111: Firmware Version 1.0.1.46

    The field “No proxy” defines the destination IP address where no proxy server is needed. ‘The phone will not use a proxy server when sending packets to the destination IP address specified. FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 111 of 138...

  • Page 112: Time Settings

    See Figure 113, in Manual, users could tap on the blank field and edit the time then press “Apply”. Press “Save” button after finishing the settings. Then the time will display at the right corner of the top status bar in the LCD screen as configured. FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 112 of 138...

  • Page 113: Display

    In page “Factory Functions”, GXV3175 provides some testing diagnostics for the LCD, camera and video, audio and touchscreen on the device. Press “Start” and follow the instructions on the screen for each test. (See Figure 115) FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 113 of 138...

  • Page 114: Firmware Version 1.0.1.46

    Capture Packets option. The captured traces are available for downloading through the web configuration interface and can be sent to Grandstream Support for troubleshooting. The captured trace files can also be deleted by pressing the “delete” button.

  • Page 115: Firmware Version 1.0.1.46

    NOTE: After factory reset, a calibration operation is required before the phone’s main screen shows up. Please follow the instructions on the screen to finish calibration before using the phone. FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 115 of 138...

  • Page 116: Camera

    Fixed), Flicker Control (Auto, 50Hz, 60Hz) and Lens Correction (Disable, Enable) can be configured. (See Figure 119) Figure 119: Camera Settings Make the proper selection based on the users’ requirement and press “Save”. CALL FEATURES FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 116 of 138...

  • Page 117: Firmware Version 1.0.1.46

    Flash Light, and Direct IP Call could be disabled/enable as shown in figure 121. If a USB LED light is connected to GXV3175 USB Port1 or Port2, and the feature is enabled, the USB LED light will flash for incoming calls. FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 117 of 138...

  • Page 118: Video

    When the phone is in idle, the photos will be displayed as configured in Screen Saver. The default folder for the pictures used in screen saver could be accessed from Menu  Tools  File Manager  FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 118 of 138...

  • Page 119: Background

    See picture 124. For each desktop, users could select a Color or an image from local/external files to display. After the selection, users could preview the settings and then press “Save” for the phone to take effect. FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 119 of 138...

  • Page 120: Tones

    In page “Tones”, users could set the Event Alert Tones for the events added in Calendar application, New Message Tone and Key Tone when pressing the touchscreen. All the tones could be set from the built-in FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 120 of 138...

  • Page 121: Language

    Enter the Caller ID in “Match Incoming Caller ID” and select the ringtone. Then “Press” Save for the configuration to take effect. Figure 127: Ring Tones Settings LANGUAGE There are three built-in languages available in GXV3175: English, Simplified Chinese and Tradition FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 121 of 138...

  • Page 122: Firmware Version 1.0.1.46

    If users wish to import their own language, two files are needed: Language file and Menu Language file. Both files need to be in CSV format and in UTF-8 encoding. Besides English keyboard, GXV3175 also supports Chinese, Russian and Korean keyboard. Users can FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 122 of 138...

  • Page 123: System Info

    Account info shows the account and registration status on the phone. See Figure 129. Figure 129: Account Info System info shows the product model, hardware version, part number, system up time and software version. See Figure 130. Figure 130: System Info FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 123 of 138...

  • Page 124: Pip

    To take a photo, press “Snapshot” and then the photo will be saved to folder “Snapshot” in File Manager. To record a video, press “Record” and start. Then press “Stop” after the recording. The video will be saved to folder “Video” in File Manager. FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 124 of 138...

  • Page 125: Desktop Widgets

    “Info”, “Weather”, “RSS News”, “Contacts (Favorite)” and “Internet Radio (Favorite)”. (See Figure 133) Press to hide the widget menu. Figure 133: Desktop Widgets FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 125 of 138...

  • Page 126: World Clock

    Press “Time Zone”, users will see a list of options. After checking on the box for the time zone, the time on the clock will be automatically updated accordingly. See Figure 135. FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 126 of 138...

  • Page 127: Currency

    In the currency conversion table below, select one row and press the “Delete” button then this item will be hidden. To add new currency conversion entry, in the last row of the table, select the currency to convert from and to, then press “Add” button. FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 127 of 138...

  • Page 128: News Videos

    News Videos settings. See Figure 139. The slide times (s) and sites list could be set here. Also, users could disable/enable the categories by checking/unchecking box for the corresponding options. FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 128 of 138...

  • Page 129: Stock

    To delete one entry, select and press “Delete” button on the right. In the last row of the table, users could also add new entries by tapping on the blank area and select “Add”. FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 129 of 138...

  • Page 130: Weather

    “Search Result”. Select the desired location and press “Add” button. Then the city will show in highlighted area below with the weather information in the widget on desktop. FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 130 of 138...

  • Page 131: Rss News

    Make selections on the options in “Subscribe” by checking on the preferred categories. To add RSS Feed, tap on the blank field of “RSS Feed” and enter the link. After pressing “Add”, it will be added in the box FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 131 of 138...

  • Page 132: Contacts (Favorite)

    Slide to left/right to select the contact in the favorite list. Then users could press or to dial out or send message. Refer to the table below for more operations in this widget. FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 132 of 138...

  • Page 133: Internet Radio (Favorite)

    Radio Name and Radio URL in the popped out window. Press “OK” after editing the radio information. Figure 147: Desktop Widget Internet Radio (Favorite) FIRMWARE VERSION 1.0.1.46 GXV3175V2 USER MANUAL Page 133 of 138...

  • Page 134: Customizing The Gxv3175 Ip Multimedia Phone

    For more details on the XML Based GUI Configuration on the GXV3175, please refer to: GXV3175 GUI Customization Guide GXV3175 XML GUI Customization Tool V2 GMI (Grandstream Manager Interface) is a management API developed by Grandstream Networks. Designed for our IP Multimedia phones, it allows partners to develop customized applications on the phone.

  • Page 135: Software Upgrade

    LAN environment. No LOCAL FIRMWARE SERVERS For users without a local firmware upgrade server, Grandstream offers a public HTTP server. This enables users to download the latest software upgrades for their phone via this server. Please refer to the webpage: http://www.grandstream.com/support/firmware.

  • Page 136: Configuration File Download

    Microsoft IIS web server. CONFIGURATION FILE DOWNLOAD Grandstream SIP Devices can be configured via the Web Interface as well as via a Configuration File (binary or XML) through TFTP or HTTP/HTTPS. The “Config Server Path” is the TFTP or HTTP/HTTPS server path for the configuration file.

  • Page 137: Restore Factory Default Settings

    Restoring the Factory Default Settings will delete all configuration information on the phone. Please backup or print all the settings before you restore to the factory default settings. Grandstream is not responsible for restoring lost parameters and cannot connect your device to your VoIP service provider.

  • Page 138: Firmware Version 1.0.1.46 Gxv3175V2 User Manual

    FAQs User and Developer Forum for answers to your general questions. If you have purchased our products through a Grandstream Certified Partner or Reseller, please contact them directly for immediate support. Our technical support staff is trained and ready to answer all of your questions. Contact a...

Table of Contents
