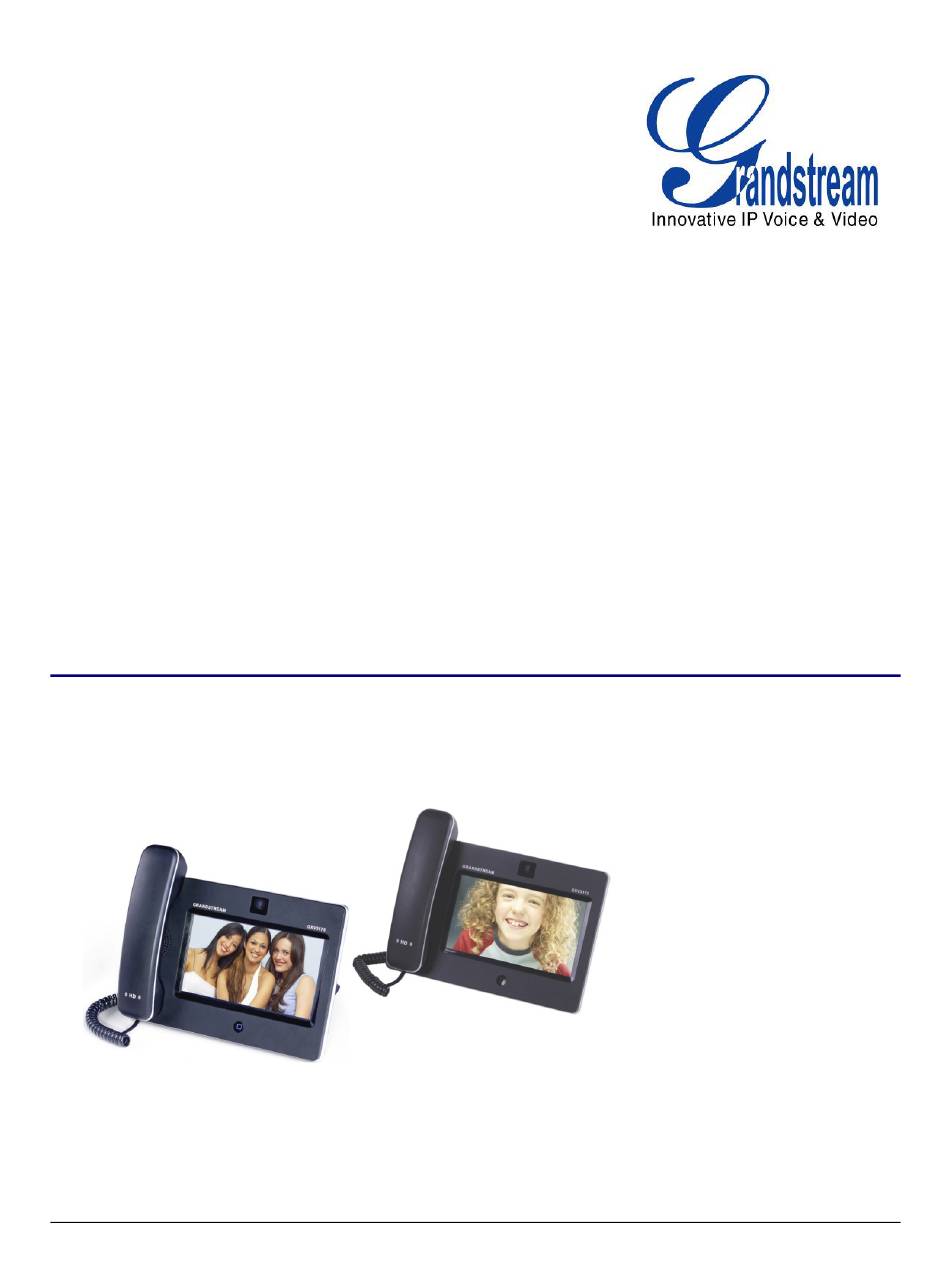

- Page 1 Grandstream Networks, Inc. GXV3175 Touchscreen IP Multimedia Phone GXV3175 USER MANUAL Grandstream Networks, Inc. Updated : 11/2010 FIRMWARE VERSION 1.0.0.32...
- Page 2 Access to build-in games like Gottet, Simsu, Picture Matching and QChecker • Digital Photo Frame • Full duplex speakerphone • Ability to project video onto TV for larger picture GXV3175 USER MANUAL Grandstream Networks, Inc. Updated : 11/2010 FIRMWARE VERSION 1.0.0.32...
- Page 3 • Reproduction or transmittal of the entire or any part, in any form or by any means, electronic or print, for any purpose without the express written permission of Grandstream Networks, Inc. is not permitted. GXV3175 USER MANUAL Page 3 of 68 Grandstream Networks, Inc.
-
Page 4: Product Overview
(AES encrypted) central configuration file for mass deployment, 7” resistive touch screen LCD, auto/manual provisioning system, GUI interface, phone book, remote software (TFTP/HTTP/HTTPS) upgrade for deployed devices including those GXV3175 USER MANUAL Page 4 of 68 Grandstream Networks, Inc. Updated : 11/2010 FIRMWARE VERSION 1.0.0.32... - Page 5 - MD5 and MD5-sess DIGEST encoding and authentication. - Security protection: SIP over TLS and SRTP. - Support for TR-069. - Support for OpenVPN for increased security and control. GXV3175 USER MANUAL Page 5 of 68 Grandstream Networks, Inc. Updated : 11/2010 FIRMWARE VERSION 1.0.0.32...
-
Page 6: Installation
The GXV3175 phone complies with FCC/CE and various safety standards. The GXV power adapter is compliant with the UL standard. Use the universal power adapter provided with the GXV package only. GXV3175 USER MANUAL Page 6 of 68 Grandstream Networks, Inc. Updated : 11/2010 FIRMWARE VERSION 1.0.0.26... -
Page 7: Warranty
RJ11 Jack Phone handset connector port Camera Adjust Wheel Scroll the wheel to turn on/off or adjust the camera position Stylus Stylus for touch screen GXV3175 USER MANUAL Page 7 of 68 Grandstream Networks, Inc. Updated : 11/2010 FIRMWARE VERSION 1.0.0.32... -
Page 8: Wall Mount
(2) positions for the stand on the back of the phone; each position supports a different angle. Figure 4: Phone Stand for GXV3175 CONNECTING THE GXV3175 IP MULTIMEDIA PHONE GXV3175 USER MANUAL Page 8 of 68 Grandstream Networks, Inc. Updated : 11/2010 FIRMWARE VERSION 1.0.0.32... -
Page 9: Making The First Call With Ipvideotalk Service
GXV3175. If a user has only one GXV3175, the user can choose to experience GXV3175 USER MANUAL Page 9 of 68 Grandstream Networks, Inc. Updated : 11/2010 FIRMWARE VERSION 1.0.0.32... - Page 10 0 to establish a video call with the preset extension on the server. Figure 6: Select IPVideoTalk account in the marked area to make first call Figure 7: Press 0 and select Video Call GXV3175 USER MANUAL Page 10 of 68 Grandstream Networks, Inc. Updated : 11/2010 FIRMWARE VERSION 1.0.0.32...
- Page 11 Figure 8: Establishing Video Call in GXV3175 GXV3175 USER MANUAL Page 11 of 68 Grandstream Networks, Inc. Updated : 11/2010 FIRMWARE VERSION 1.0.0.32...
-
Page 12: Using The Gxv3175 Ip Multimedia Phone
Users could slide to left/right to view the different desktop widgets in the four screens. Figure 10 shows the screen that displays weather and currency information. GXV3175 USER MANUAL Page 12 of 68 Grandstream Networks, Inc. Updated : 11/2010 FIRMWARE VERSION 1.0.0.32... - Page 13 Figure 11: LCD IDLE screen displaying News Videos and Stock information Switch again to a screen that shows Calendar and RSS News. See figure 12. GXV3175 USER MANUAL Page 13 of 68 Grandstream Networks, Inc. Updated : 11/2010 FIRMWARE VERSION 1.0.0.32...
- Page 14 Figure 13: Open new widget in IDLE screen Users may close/configure the widget by holding the widget area until close/setting options show up on the right (Marked in Figure 14). GXV3175 USER MANUAL Page 14 of 68 Grandstream Networks, Inc. Updated : 11/2010 FIRMWARE VERSION 1.0.0.32...
- Page 15 Connected to the network Network Failed to connect to the network Call Related Account 1 Auto Answer Account 2 Auto Answer Account 3 Auto Answer GXV3175 USER MANUAL Page 15 of 68 Grandstream Networks, Inc. Updated : 11/2010 FIRMWARE VERSION 1.0.0.32...
- Page 16 Background running program The icon is displayed at the center of the status bar External devices SD card USB flash drive. USB keyboard USB mouse GXV3175 USER MANUAL Page 16 of 68 Grandstream Networks, Inc. Updated : 11/2010 FIRMWARE VERSION 1.0.0.32...
-
Page 17: Multiple Sip Accounts And Lines
NAT configurations. The registered account will display in the idle screen by default. When the phone is off-hook, users could press Line1/Line 2/Line 3 or the account option to switch GXV3175 USER MANUAL Page 17 of 68 Grandstream Networks, Inc. Updated : 11/2010 FIRMWARE VERSION 1.0.0.32... -
Page 18: Handset, Speaker And Headset Mode
Dial the number and press “Audio Call”/”Video Call” to dial out. Or press “Redial” for the last dialed number. Figure 17: Making a call by select account displayed in IDLE screen 2. By “Phone” in idle screen GXV3175 USER MANUAL Page 18 of 68 Grandstream Networks, Inc. Updated : 11/2010 FIRMWARE VERSION 1.0.0.32... - Page 19 Access the Phone Menu by pressing “MENU” icon in idle screen, and then select “Contacts”. Or choose “Contacts” icon in dial pad to access contact list. GXV3175 USER MANUAL Page 19 of 68 Grandstream Networks, Inc. Updated : 11/2010 FIRMWARE VERSION 1.0.0.32...
- Page 20 Figure 20: Dial by Contact List – more contact information 6. By Contact Favorite in idle screen In idle screen, press and select to open the contact favorite widget. Users could add the GXV3175 USER MANUAL Page 20 of 68 Grandstream Networks, Inc. Updated : 11/2010 FIRMWARE VERSION 1.0.0.32...
-
Page 21: During Calls
1. Incoming Video Call: When the phone rings, select “Accept Audio”, “Accept Video” or “Reject”. (See Figure 22) Users could toggle among handset/speaker/headset to answer the call and adjust the call volume as well. GXV3175 USER MANUAL Page 21 of 68 Grandstream Networks, Inc. Updated : 11/2010 FIRMWARE VERSION 1.0.0.32... - Page 22 3. Missed Call: if the call is unanswered, a missed call message will show up in idle screen. (See Figure 24). Users could press View to access the missed call detail. GXV3175 USER MANUAL Page 22 of 68 Grandstream Networks, Inc. Updated : 11/2010 FIRMWARE VERSION 1.0.0.32...
-
Page 23: Call Function Options
Figure 25 shows the screen after the users answer the call. Press “Options” button with the UP arrow to access all the call functions. Figure 25: During a video call GXV3175 USER MANUAL Page 23 of 68 Grandstream Networks, Inc. Updated : 11/2010 FIRMWARE VERSION 1.0.0.32... - Page 24 1. Call Hold：During a call, press “Hold” button to place the call on hold. The line icon will become yellow after call hold. The following will be displayed on the screen. (See Figure 27) GXV3175 USER MANUAL Page 24 of 68 Grandstream Networks, Inc. Updated : 11/2010 FIRMWARE VERSION 1.0.0.32...
-
Page 25: Call Transfer
“Dial Number (Blind) OR Select Line (Attended)”. (See Figure 29). Dial the extension number and press “Send”. This will transfer the call to the other GXV3175 USER MANUAL Page 25 of 68 Grandstream Networks, Inc. Updated : 11/2010 FIRMWARE VERSION 1.0.0.32... - Page 26 If the user is on a video call with the first party, the users may need to turn off the video by pressing “Video off” or pressing “Hold” to activate the screen to select another line. GXV3175 USER MANUAL Page 26 of 68 Grandstream Networks, Inc. Updated : 11/2010 FIRMWARE VERSION 1.0.0.32...
-
Page 27: Way Conference
If the user is on a video call with the first party, the users may need to turn off the video by pressing “Video off” or pressing “Hold” to activate the screen to select another line. GXV3175 USER MANUAL Page 27 of 68 Grandstream Networks, Inc. Updated : 11/2010 FIRMWARE VERSION 1.0.0.32... -
Page 28: Voicemail（Message Waiting Indication
The build-in soft keypad in GXV3175 supports English and Chinese for text input. See Figure 32. Figure 32: GXV3175 Soft Keypad Table 7: GXV3175 Keypad Definition Item Function Caps lock. GXV3175 USER MANUAL Page 28 of 68 Grandstream Networks, Inc. Updated : 11/2010 FIRMWARE VERSION 1.0.0.32... - Page 29 Hide Keypad Switch between English/Chinese input. Switch between Letter/Number/Symbol Delete NOTE: External Keyboard could also be used by plugging via USB port on the phone. GXV3175 USER MANUAL Page 29 of 68 Grandstream Networks, Inc. Updated : 11/2010 FIRMWARE VERSION 1.0.0.32...
-
Page 30: Call Features
Table 7: GXV3140 Audio/Video Codec Feature Code Codec Feature Code PCMU 7110 PCMA 7111 G723 G726-32 72632 G729 G722 7200 L16-256 7202 H.264 H.263 GXV3175 USER MANUAL Page 30 of 68 Grandstream Networks, Inc. Updated : 11/2010 FIRMWARE VERSION 1.0.0.32... - Page 31 H.263+ 2631998 GXV3175 USER MANUAL Page 31 of 68 Grandstream Networks, Inc. Updated : 11/2010 FIRMWARE VERSION 1.0.0.32...
-
Page 32: Gxv3175 Web Configuration Interface
0-255. Users will need this number to access the Web Configuration Menu. For example, if the phone shows 192.168.0.60, please enter “http://192.168.0.60” in the GXV3175 USER MANUAL Page 32 of 68 Grandstream Networks, Inc. Updated : 11/2010 FIRMWARE VERSION 1.0.0.32... - Page 33 This field shows the type of NAT configured. Status/System Info Product Model Defines the product model: GXV3175. Hardware Revision Hardware version number: Main Board, Interface Board. GXV3175 USER MANUAL Page 33 of 68 Grandstream Networks, Inc. Updated : 11/2010 FIRMWARE VERSION 1.0.0.32...
-
Page 34: Advanced Settings Page Definitions
The default setting is No. If set to Yes, the call waiting feature will be disabled. Disable Call-Waiting The default setting is No. If set to Yes, the call waiting tone will be GXV3175 USER MANUAL Page 34 of 68 Grandstream Networks, Inc. Updated : 11/2010 FIRMWARE VERSION 1.0.0.32... - Page 35 By default, Dial Tone they are set to the North American standard. Ring Back Tone Frequencies should be configured with known values to avoid GXV3175 USER MANUAL Page 35 of 68 Grandstream Networks, Inc. Updated : 11/2010 FIRMWARE VERSION 1.0.0.32...
-
Page 36: Maintenance Page Definitions
This parameter defines the channel (1-10) for the wireless network. Channel The default setting is set to “Auto”. ESSID This parameter sets the ESSID for the Wireless network. Press GXV3175 USER MANUAL Page 36 of 68 Grandstream Networks, Inc. Updated : 11/2010 FIRMWARE VERSION 1.0.0.32... - Page 37 This defines the administrator password for web interface access. Only the administrator can configure the “Advanced Settings” and “Account x” pages. The password is case sensitive and the maximum GXV3175 USER MANUAL Page 37 of 68 Grandstream Networks, Inc. Updated : 11/2010 FIRMWARE VERSION 1.0.0.32...
- Page 38 Automatic Upgrade Rule Defines the rules for automatic upgrade: Always Check, when F/W suffix/prefix changes, Skip the Firmware Check. GXV3175 USER MANUAL Page 38 of 68 Grandstream Networks, Inc. Updated : 11/2010 FIRMWARE VERSION 1.0.0.32...
