Grandstream Networks, Inc.
GXV3175
IP Multimedia Phone

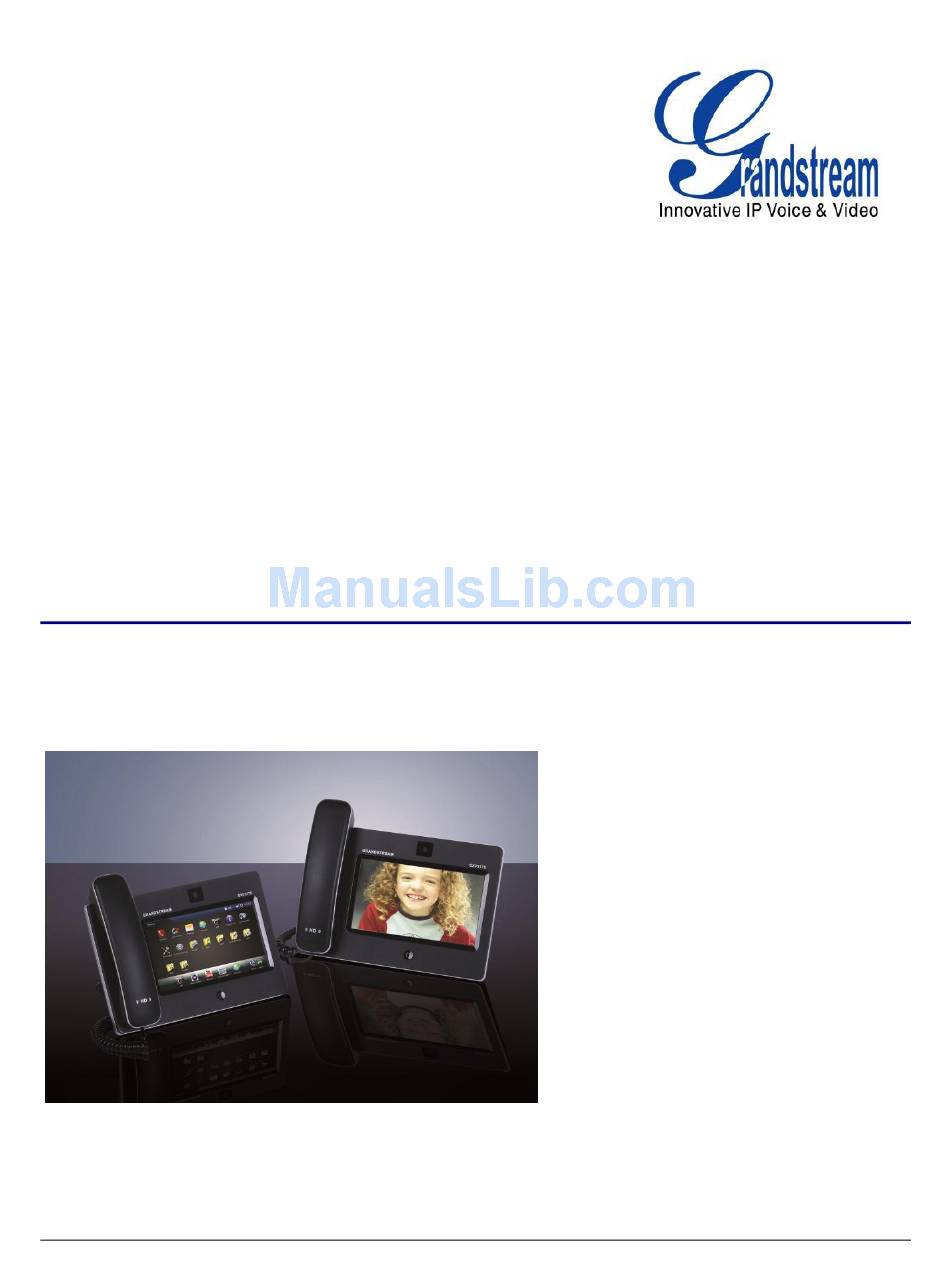

GXV3175 USER MANUAL

Advertisement

Table of Contents
loading

Related Manuals for Grandstream Networks GXV3175

Summary of Contents for Grandstream Networks GXV3175

  • Page 1 Grandstream Networks, Inc. GXV3175 IP Multimedia Phone GXV3175 USER MANUAL...

  • Page 2: Table Of Contents

    GXV3175 User Manual Index GNU GPL INFORMATION ................6 CHANGE LOG ..................... 7 CHANGES FROM 1.0.3.57 USER MANUAL ..................7 CHANGES FROM 1.0.3.40 USER MANUAL ..................7 WELCOME ....................9 GXV3175 OVERVIEW ........................... 9 PRODUCT OVERVIEW ................11 INSTALLATION ..................14 EQUIPMENT PACKAGING .........................
  • Page 3 MEDIA PLAYER ..........................89 MOVIE TRAILER .......................... 91 TUDOU ............................93 PHOTOS .............................. 95 PHOTO ALBUM ..........................95 WORLD PHOTO ........................... 96 PHOTO VIEWER .......................... 97 SLIDE SHOW ..........................99 NEWS ..............................100 FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 3 of 139...
  • Page 4 XML GUI CUSTOMIZATION ......................135 GMI ..............................135 SOFTWARE UPGRADE ................136 UPGRADE VIA MENU ........................136 UPGRADE VIA WEB CONFIGURATION PAGE ................136 NO LOCAL FIRMWARE SERVERS ....................136 FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 4 of 139...
  • Page 5 Table 6: GXV3175 DIALPAD ........................27 Table 7: GXV3175 CALL FUNCTIONS ....................... 35 Table 8: GXV3175 KEYPAD ........................41 Table 9: GXV3175 CALL FEATURES ......................42 Table 10: GXV3175 AUDIO/VIDEO CODEC FEATURE CODES ............... 43 FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 5 of 139...

  • Page 6: Gnu Gpl Information

    GXV3175 firmware contains third-party software licensed under the GNU General Public License (GPL). Grandstream uses software under the specific terms of the GPL. Please see the GNU General Public License (GPL) for the exact terms and conditions of the license.

  • Page 7: Change Log

    Added an option to send silent RTP during mute [61]  Add the support for SIP INFO Flash event [35]  Added the support to update SIP settings without reboot [64]  Added GNU GPL information FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 7 of 139...
  • Page 8  Added Change Log for this user manual FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 8 of 139...

  • Page 9: Welcome

    WELCOME Thank you for purchasing Grandstream GXV3175 IP Multimedia Phone. GXV3175 IP Multimedia Phone represents the future in personal IP multimedia communication as the ultimate desktop multimedia phone. You will experience a brand-new exploration with GXV3175’s 7” touch screen color LCD, plug-and-play access to free real-time video/voice call, always-on Internet web entertainment and social networking applications.
  • Page 10  Reproduction or transmittal of the entire or any part, in any form or by any means, electronic or print, for any purpose without the written permission of Grandstream Networks, Inc. is not permitted. FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL...

  • Page 11: Product Overview

    US/Euro/UK/Australian style plug available. Dimension 243.5mm x 168mm x 36mm. Weight 1.04kg (phone with handset and stand), 1.95kg (package weight). Operating Temperature 32°F - 104° F/0°C - 40°C. Humidity 10%-90% Non-Condensing. Compliance FCC/CE/C-Tick. FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 11 of 139...

  • Page 12: Table 3: Gxv3175 Technical Specifications

    (VGA) and visual voice message indicator. Call Handling Features Caller ID, call waiting ID, call waiting/flash, call transfer, call holding, call forwarding, Do-Not-Disturb, three-way conference, redial, automatic FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 12 of 139...
  • Page 13 Security - MD5 and MD5-sess DIGEST encoding and authentication. - Security protection: SIP over TLS and SRTP. - Support for TR-069. - Support for OpenVPN for increased security and control. FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 13 of 139...

  • Page 14: Installation

    6. One (1) Phone Cord 7. One (1) 12V Power Adapter 8. One (1) Phone Stand 9. One (1) Wall Mount 10. One (1) TV VGA Adapter Cable Figure 1: GXV3175 Equipment Packaging FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 14 of 139...

  • Page 15: Safety Compliances

    Grandstream Sales and Service Representative for a RMA (Return Materials Authorization) number before the product is returned. Grandstream reserves the right to remedy warranty policy without prior notification. WARNING: Use the power adapter provided with the phone. Do not use a different power adapter as this may damage the phone.

  • Page 16: Connecting The Gxv3175 Ip Multimedia Phone

    SD Card Slot SD card could be inserted in for picture/music/video files storage Headset Jack 3.5mm stereo headset connector port RCA Video/Audio Jack Audio/Video output port for external peripherals (e.g. TV) FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 16 of 139...

  • Page 17: Wall Mount

    GXV3175 can also be placed on the table or desk via the phone stand. (See Figure 4) There are two positions for the stand on the back of the phone with each position supporting a different angle. Figure 4: Phone Stand for GXV3175 FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 17 of 139...

  • Page 18: Connecting Gxv3175 Ip Multimedia Phone

    After the GXV3175 completes the touch screen collaboration a welcome screen will appear that will allow the user to access the Setup Guide. In this Setup Guide, a user can configure account information, network settings, and upgrade settings. FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 18 of 139...
  • Page 19 GXV3175 allows up to 3 accounts. Figure 7: Setup Guide Account Settings The following screen that appears is the Network settings. Here the user can select between DHCP, PPPoE, or Static IP. FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 19 of 139...
  • Page 20 Figure 9: Setup Guide Upgrade Settings Once completed with all the Setup Guide steps, the user will be prompted to reboot the phone so that changes can take effect immediately. FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 20 of 139...

  • Page 21: Making The First Call With Ipvideotalk Service

    GXV3175 offers users the ability to send and receive free lifetime video calling to other GXV3175/GXV3140 on the IPVideoTalk network. Once the GXV3175 is connected, video calls can be made using Grandstream’s configuration peer-to-peer SIP technology and IPVideoTalk service. To place the first video call, complete the following three simple steps: 1.
  • Page 22 Figure 11: Select IPVideoTalk account in the marked area to make first call FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 22 of 139...

  • Page 23: Using The Gxv3175 Ip Multimedia Phone

    (4) green tabs indicating the current page of the screen. Figure 13 shows the screen that displays weather and currency information. Figure 13: LCD IDLE screen displaying Weather and Currency Information FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 23 of 139...
  • Page 24 Info, Weather, RSS News, Contacts and Internet Radio will be available to open and display in the main screen. (See Figure 16) FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 24 of 139...
  • Page 25 Figure 17: Close/Configure the widget in Idle screen By selecting the right hand side area of the status bar, users will be able to set the phone’s status in the popped out dropdown list. See Figure 18. FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 25 of 139...

  • Page 26: Table 5: Lcd Icons

    The headset is in use and is off hook The headset is plugged in The phone is on speaker The handset is off hook WiFi WiFi signal strength, ranging from 0 to 4 FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 26 of 139...

  • Page 27: Multiple Sip Accounts And Lines

    SD card USB flash drive USB keyboard USB mouse USB LED light 1 USB LED light 2 MULTIPLE SIP ACCOUNTS AND LINES Figure 19: GXV3175 Dial Pad Table 6: GXV3175 DIALPAD FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 27 of 139...

  • Page 28: Handset, Speaker And Headset Mode

    GXV3175 allows users to switch among handset, speaker or headset by pressing corresponding icons shown in Dial Pad (Table 6, Item 5). If headset is plugged in, the headset icon will be activated for users to select. FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 28 of 139...

  • Page 29: Making A Call

    Take the handset off hook then the dial pad will show up with dial tone.  Select line/account.  Press “Redial” or dial the number and press “Audio Call”/”Video Call” to dial out. FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 29 of 139...
  • Page 30 The LCD monitor will display the contact list. Scroll to the contact to be dialed.  Press to call the select contact. The primary number of the contact will be dialed out. See Figure 22. FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 30 of 139...
  • Page 31 “Contacts” widget. Users could add the In idle screen, press and select contact to the favorite list. Select the contact and press to dial out. (See Figure 24) FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 31 of 139...

  • Page 32: Answering Calls

    When the phone rings, select “Accept Audio”, “Accept Video” or “Reject”. (See Figure 25) Users could toggle among handset/speaker/headset to answer the call and adjust the call volume by pressing the speaker icon as well. FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 32 of 139...
  • Page 33 If a call is unanswered, a missed call message will show up in idle screen. (See Figure 27). Users could press View to access the detail of the missed call. FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 33 of 139...

  • Page 34: Call Function Options

    CALL FUNCTION OPTIONS Figure 28 shows the screen after users answer the call. Press “Options” button to access all the call functions. Figure 28: Use Call Options during a video call FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 34 of 139...

  • Page 35: Table 7: Gxv3175 Call Functions

    Press to switch between Video off and Video on. In the screen, the default picture will show instead of the video when video is turned off Conf Press to make 3-way conference call FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 35 of 139...

  • Page 36: Call Hold

    “Video off” in “Option” (See Figure 29) if it is a video call. Then the following figure will show up for users to select between multiple lines. See Figure 31. FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 36 of 139...

  • Page 37: Call Transfer

    During a call, select another line to establish call with the third party using the same account. This will put the previous line (Line 1) on hold. Now, press the “Transfer” button and the message: “Dial Number (Blind) FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 37 of 139...

  • Page 38: 3-Way Conference

    If the user is on a video call with the first party, the users may need to turn off the video by pressing “Video off” or pressing “Hold” to activate the screen to select another line. 3-WAY CONFERENCE GXV3175 supports 3-way video conferencing. See Figure 34. FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 38 of 139...
  • Page 39 If the user is on a video call with the first party, the users may need to turn off the video by pressing “Video off” or pressing “Hold” to activate the screen to select another line. FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 39 of 139...

  • Page 40: Voicemail（Message Waiting Indication

    KEYPAD INPUT The build-in soft keypad in GXV3175 supports English, Chinese, Russian and Korean for text input. See Figure 35. Figure 35: GXV3175 Soft Keypad FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 40 of 139...

  • Page 41: Table 8: Gxv3175 Keypad

    Switch between Letter/Number/Symbol Delete NoTE: External keyboard could also be used by plugging via USB port on the phone. To select input language, please go to Menu  Settings  Language. FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 41 of 139...

  • Page 42: Call Features

    Delayed Call Forward: Dial *92 + Phone/Ext. Number followed by the # key. Wait for a dial-tone and then hang up. Cancel Delayed Call Forward: Dial *93 and wait for a dial-tone before hanging up. FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 42 of 139...

  • Page 43: Table 10: Gxv3175 Audio/Video Codec Feature Codes

    Table 10: GXV3175 AUDIO/VIDEO CODEC FEATURE CODES Codec Feature Code PCMU 7110 PCMA 7111 G723 G726-32 72632 G729 G722 7200 L16-256 7202 H.264 H.263 H.263+ 2631998 FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 43 of 139...

  • Page 44: Gxv3175 Web Configuration Interface

    This address has the format: xxx.xxx.xxx.xxx, where xxx stands for a number from 0-255. Users will need this number to access the Web Configuration Menu. For example, if the phone FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 44 of 139...

  • Page 45: Definitions

    The device ID, in HEX format. This is a very important ID for ISP troubleshooting. Address Type This field shows the type of address configured: DHCP, Static IP or PPPoE. IP Address This field shows the IP address of the GXV-3175. FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 45 of 139...

  • Page 46: Advanced Settings Page Definitions

    The IP address or Domain name of the STUN server. STUN resolution STUN Server results are displayed in the STATUS page of the Web UI. Only non-symmetric NAT routers work with STUN. Default STUN server: stun.ipvideotalk.com FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 46 of 139...
  • Page 47 The Default value is 1400, range from 100 to 1400. Video Packet Size It is recommended to use 600~800 if you have an Outbound Proxy or Media Gateway. FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 47 of 139...
  • Page 48 ON ms and a pause of OFF ms and then repeat the pattern. Up to three cadences are supported. Default Ring Cadence This defines the ring cadence for the phone. The default setting is: FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 48 of 139...

  • Page 49: Maintenance Page Definitions

    Maintenance/WIFI Settings WIFI Functions This parameter enables/disables the WIFI function. The default setting is set to “Disable”. Wireless Mode This parameter defines the wireless mode used. The GXV3175 supports 802.11b/g/n FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 49 of 139...
  • Page 50 3G modems below) WCDMA  Huawei E1750  Huawei E180  Sierra Wireless 306 CDMA2000  ZTE AC581  Huawei EC1260 EVDO  Novatel Ovation MC760 Maintenance/Time Settings FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 50 of 139...
  • Page 51 Access Method This defines the access method for web access: HTTP or secure HTTPS protocol. Port This defines the port for web access. By default, HTTP uses port 80 and FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 51 of 139...
  • Page 52 DHCP Option 66 override The Default setting is Yes. If DHCP option 66 is enabled on the LAN side, FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 52 of 139...
  • Page 53 NAT related info (INFO level) Sent or received SIP message (DEBUG level) SIP message summary (INFO level) Inbound and outbound calls (INFO level) Registration status change (INFO level) Negotiated codec (INFO level) FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 53 of 139...
  • Page 54 Periodic Inform Enable Enable periodic inform. By default, it is disabled Periodic Inform Interval(s) Enter periodic inform interval(s). By default, it is set to 300s. Connection Request Enter connection request username Username FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 54 of 139...
  • Page 55 The screen saver is a picture slide show. This defines the frequency to Screen Saver Interval change the picture on the screen for the screen saver. (s)xd The default setting is 10 seconds. FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 55 of 139...

  • Page 56: Sip Account Configuration Page Definitions

    Select the desired TV Output type (PAL or NTSC). NTSC 4:3 by default. SIP ACCOUNT CONFIGURATION PAGE DEFINITIONS The GXV3175 has three lines that can be configured to accommodate independent SIP accounts. Every FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 56 of 139...
  • Page 57 STUN server to examine which type of Firewall/NAT setting is employed. If the type of NAT detected is Full Cone, Restricted Cone or Port-Restricted cone, the phone will try to use FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 57 of 139...
  • Page 58 Caller Request Timer The default setting is Yes. If Yes is selected, the phone will use the session timer when it makes outbound calls if remote party supports session timer. FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 58 of 139...
  • Page 59 It is recommended to use the default setting “PCMU”; if other vocoders are chosen, there could be an audio transmission error. Preferred Video Codec Selects the preferred video codec from the available list. It is recommended FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 59 of 139...
  • Page 60 The maximum value is 64 frames. Adjusting these values will also change the jitter buffer. The phone has an algorithm for setting the jitter buffer and the jitter buffer rate is around FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 60 of 139...
  • Page 61 Allows any number with leading digit 1 followed by a 3 digit number, followed by any number between 2 and 9, followed by any 7 digit number OR Allows any length of numbers with leading digit 2, replacing the 2 with 011 when FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 61 of 139...
  • Page 62 Options to log calls are Log All, Log Incoming/Outgoing Only(missed calls will not be recorded), Disable All Special Feature Different soft switch vendors have special requirements; therefore users may need to select special features to meet these requirements. Users can FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 62 of 139...
  • Page 63 Forward the call if do not answer after a number of rings. Delayed Call Forward The wait time before transferring the call to another extension or to Wait Time (s) voicemail; the default setting is 20 seconds. FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 63 of 139...

  • Page 64: Saving/Applying The Configuration Changes

    At boot-up, Grandstream devices by default point to the Grandstream provisioning server (GAPS). Based on the unique MAC address of each device, GAPS will provision the devices with redirection settings so that they will be redirected to customer’s TFTP or HTTP server for further provisioning.
  • Page 65 Grandstream also provides a configuration tool to facilitate the task of generating device configuration files. The configuration tool is free to end users. The tool and configuration templates are available for download from http://www.grandstream.com/support/tools FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL...

  • Page 66: Lcd Menu And Features

    Select and Tap on one contact entry then the users could view the full contact information. Direct IP Call is also supported by specifying an IP address as a contact number. FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 66 of 139...
  • Page 67 Figure 38: Adding a new contact To import/export contacts, in the screen shown as Figure 37, select “Options”  “Import/Export”. Then in the screen shown as Figure 39, select “Import” or “Export” in “Operation Mode”. FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 67 of 139...
  • Page 68 To access this feature, in the screen shown in Figure 37, select “Options”  “Download”. Then in the screen shown as Figure 40, select “OFF”, “TFTP” or “HTTP” in “Download Mode”. FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 68 of 139...

  • Page 69: Phonebook - Import/Export/Download Via Web-Gui

    To delete all the contacts, users could select “Options”  “Delete All” in Figure 37. PHONEBOOK – IMPORT/EXPORT/DOWNLOAD via WEB-GUI Another option on how to add contacts would be using the web-GUI Phonebook’s Import/Export/Download feature. Figure 41: Web-GUI Phonebook Import/Export/Download FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 69 of 139...

  • Page 70: Blf

    BLF is viewed in the BLF application after configuring extensions. The Virtual BLF can also be accessed and placed on one of the home screens as shown in Figure 43. Figure 42: Example of BLF Screen FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 70 of 139...
  • Page 71 The second option of creating BLFs would be using an Eventlist (must be created in SIP server first). To access Event-List BLF, access the same BLF settings screen, and select the “URI” tab at the top FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 71 of 139...

  • Page 72: Call History

    If status is shows BLINKING RED, it means that the extension is receiving an incoming call. The GRAY outlining shows a status of a user unregistered. With this status the user is unable to monitor the extension. CALL HISTORY FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 72 of 139...

  • Page 73: Messages

    Similarly, if other IP products support this feature, the text message feature can also be used to send/receive messages between the device and the GXV3175. This application is accessible by selecting “MENU”  “Messages” (See figure 47). FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 73 of 139...
  • Page 74 To send message, press “New” button. In Figure 47, edit the message by tapping on the blank area in the message content. Figure 48: Edit new message FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 74 of 139...
  • Page 75 Figure 50: Add receiver’s number from contact list . Now tap on “Add” button and the A yellow check will show on the left of the contact after pressing FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 75 of 139...
  • Page 76 To view and reply message, select “Inbox” or press “View” in the incoming message alert window. (See Figure 52) Figure 52: New message alert To reply or forward the received message, press “Reply” or “Forward” in Figure 53. FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 76 of 139...

  • Page 77: Social Networks (Sns)

    Google Voice account. Figure 54: Google Voice in GXV3175 In Figure 54, press “Login” button and enter Email and Password via soft keyboard in Figure 55. Then FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 77 of 139...
  • Page 78 . See Figure 57. Users will be able to dial out or send message to the contact in Call Logs by tapping on the selected entry in the displayed list. FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 78 of 139...
  • Page 79 To view the contacts set in google voice account, press “Contacts” and a list of contacts will show up in the screen. Users could also call or send messages to selected contact here by choosing one entry and tapping on it. See Figure 59. FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 79 of 139...

  • Page 80: Twitter

    . Press icon to exit Google Voice. TWITTER Twitter has been implemented in the GXV3175 so that the user can stay connected to their social network. FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 80 of 139...

  • Page 81: Facebook

    Another social network added to the GXV3175 is Facebook. Stay connected with all of your friend and family with just a quick touch of the screen. To access Facebook go to “Menu””SNS  “Facebook .(see figure 62) Figure 62: Facebook Login FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 81 of 139...

  • Page 82: Browser

    Users can view the web page by holding the finger and dragging in the touchscreen. Press icon move backward and to move forward. Figure 64 shows the screen of the web browser while visiting Grandstream website. Figure 64: Using the GXV3175 Web Browser Options FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 82 of 139...

  • Page 83: Music

    As shown in Figure 65, users can select one of the channels according to their preference. Then toggle through the channel list using scroll bar and select one channel. Press to play or stop the selected program. Scroll the volume bar to adjust the volume. FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 83 of 139...

  • Page 84: Last.fm

    Last.fm account yet, press “Sigh up for a Last.fm account” then the web browser will open and direct to https://www.last.fm/join for registration. Fill in Username and Password after registration then press “Login”. FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 84 of 139...
  • Page 85 Press to play the music in search result as shown in Figure 68. Users could select audio output among “Speaker”, “Headset” or “Stereo” by pressing “Output” button. FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 85 of 139...

  • Page 86: Video

    Standard Feeds (Top Rated, Most Popular and etc), Category (Music, Sports, Entertainment, News and etc.), Shows, Movies and etc. (See figure 70) Press the thumbnail and select “Watch now” to watch the video in Media Player. FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 86 of 139...
  • Page 87 After login is successful, select “Option”  “Upload”. In the screen as Figure 72 shows, fill in the required information (Title, Category, Keyword and Description), select the video file from local or external storage device and press “Submit”. FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 87 of 139...
  • Page 88 To add the video to “Favorite”, users need to login Youtube account. Then after select a video, press “Favorite” button (See Figure 74). Now users will be able to access to all videos marked as “Favorite” in “Option”  Favorite. FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 88 of 139...

  • Page 89: Media Player

    List. Users could choose speaker, headset or stereo in Options  Output. After adding files to the playlist, press “Loop” to select the play mode in “Single Loop”, “List Loop” or “Loop None”. Figure 75: Media Player Play Music Icon Function FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 89 of 139...
  • Page 90 The following table shows the icons for the operation when playing the video. Figure 76: Media Player Play Video Icon Function Output option: Stereo Output option: Headset. It will be available if the headset is plugged in. Output option: Speaker Stop Pause FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 90 of 139...

  • Page 91: Movie Trailer

    Tap on the image of the movie to select it. See Figure 78. Press the “Down” arrow next to “watch now” button to select the trailer available to watch. FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 91 of 139...
  • Page 92 To find a movie trailer, tap on “Quick Find” and enter the name of the movie in the popping out soft keyboard. Press “Enter” in the keyboard for the searching result. See Figure 79 and 80. Figure 79: Quick Find in Movie Trailer FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 92 of 139...

  • Page 93: Tudou

    Play Count, Publisher, Editor, Clarity of Video, Comments, and Rating. There are also settings for the Search which gives the user control over the content results. FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 93 of 139...
  • Page 94 Figure 81: Tudou recently posted videos Figure 82: Tudou viewing by category FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 94 of 139...

  • Page 95: Photos

    (i.e. Photobucket, Flickr, Phanfare). After the application is loaded, users will need to add the pre-exist account to login. A screen similar to figure 85 will appear. Press “Add” then users will be directed to the web login page. FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 95 of 139...

  • Page 96: World Photo

    (See figure 86) Figure 86: World Photo Once a country of interest is selected, press the name of it the pictures will be shown in the screen. See FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 96 of 139...

  • Page 97: Photo Viewer

    Tap on the folder to open it and select the photos in the folder then the screen will look similar to the figure 89. For example, open the first picture from the “screensaver” folder. FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 97 of 139...
  • Page 98 If a picture slideshow is selected, the photos will be shown in a picture slideshow with the time frame (10/15/20 seconds) configured. Icon Function View the previous photo FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 98 of 139...

  • Page 99: Slide Show

    Figure 91: Slide Show Settings If “Customized Folder” is selected in Source, users will need to specify the folder by pressing “Browser” to select a folder from local or external storage device. FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 99 of 139...

  • Page 100: News

    Figure 92: News Videos TOOLS GXV3175 provides a collection of useful applications that are accessible via MENU including Notes, File Manager, Alarm Clock, Calendar, Location and Calculator. FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 100 of 139...

  • Page 101: File Manager

    The GXV3175 provides a flexible alarm clock application that lets users configure a custom alarm tone and alarm time in detail to suit their needs. Access the settings for Alarm Clock via “Menu”  “Tools” “Alarm Clock”. (See Figure 94) FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 101 of 139...

  • Page 102: Calendar

    The Calendar application is accessed by selecting “MENU”  “Tools”  “Calendar”. Users can view the calendar, add events to the calendar and synchronize it to a preexisting Google calendar account. See Figure 95. FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 102 of 139...
  • Page 103 “Repeats”, users could select no repeat, daily, weekly or monthly to set alarm alert of the event for reminder purpose. Figure 97 shows the calendar after an event is added. Figure 96: Add Event in Calendar FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 103 of 139...
  • Page 104 Google Calendar. To setup Google Calendar synchronization, press “Login” on the top of the screen. Then the Email and Password associated with the Google Calendar will be prompt. Enter the account information and press “Login” button in Figure 99. FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 104 of 139...

  • Page 105: Location

    Based on the IP address provided, the following information is given: Country, Region, City, Latitude, Longitude, Time Zone and Weather Code. This information is useful when configuring the phone to provide FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 105 of 139...

  • Page 106: Calculator

    Please refer to Figure 101, Figure 102, and Figure 103 for these three built-in calculators. Figure 101: Calculator: Simple Figure 102: Calculator: Science FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 106 of 139...

  • Page 107: Settings

    See Figure 104. Figure 104: Settings ACCOUNT SETTINGS Account Settings allows users to configure the three SIP accounts; the same configurations may be FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 107 of 139...

  • Page 108: Network Settings

    Ethernet, Wifi, Virtual, 3G and Proxy. Figure 106: Network Settings  Ethernet In page “Ethernet” (See Figure 106), users can choose to use DHCP or Static IP. If Static IP is selected, FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 108 of 139...
  • Page 109 After user selects the network, return to the Wifi menu to configure the wireless network security mode and key. See Figure 110. The supported Security Mode in GXV3175 includes “WEP/Open”, “WEP/Shared”, “WPA PSK TKIP”, “WPA PSK AES”, “WPA2 PSK TKIP” and “WPA2 AES”. FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 109 of 139...
  • Page 110 MENU  System Info  Network on the phone to view the current IP address and other network status (Figure 111). Wifi settings can also be configured from the web-GUI of the device under “Maintenance””Wifi Settings”. FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 110 of 139...
  • Page 111 NoTE: If the user has the connection to the Internet through both the wired network and the Wifi Network, the phone will use the wired network as it is have a higher priority. FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 111 of 139...
  • Page 112 The field “No proxy” defines the destination IP address where no proxy server is needed. ‘The phone will not use a proxy server when sending packets to the destination IP address specified. FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 112 of 139...

  • Page 113: Time Settings

    See Figure 113, in Manual, users could tap on the blank field and edit the time then press “Apply”. Press “Save” button after finishing the settings. Then the time will display at the right corner of the top status bar in the LCD screen as configured. FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 113 of 139...

  • Page 114: Display

    In page “Factory Functions”, GXV3175 provides some testing diagnostics for the LCD, camera and video, audio and touchscreen on the device. Press “Start” and follow the instructions on the screen for each test. FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 114 of 139...
  • Page 115 Capture Packets option. The captured traces are available for downloading through the web configuration interface and can be sent to Grandstream Support for troubleshooting. The captured trace files can also be deleted by pressing the “delete” button.
  • Page 116 NOTE: After factory reset, a calibration operation is required before the phone’s main screen shows up. Please follow the instructions on the screen to finish calibration before using the phone. FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 116 of 139...

  • Page 117: Camera

    Fixed), Flicker Control (Auto, 50Hz, 60Hz) and Lens Correction (Disable, Enable) can be configured. (See Figure 119) Figure 119: Camera Settings Make the proper selection based on the users’ requirement and press “Save”. CALL FEATURES FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 117 of 139...
  • Page 118 Flash Light, and Direct IP Call could be disabled/enable as shown in figure 121. If a USB LED light is connected to GXV3175 USB Port1 or Port2, and the feature is enabled, the USB LED light will flash for incoming calls. FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 118 of 139...

  • Page 119: Video

    When the phone is in idle, the photos will be displayed as configured in Screen Saver. The default folder for the pictures used in screen saver could be accessed from Menu  Tools  File Manager  FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 119 of 139...

  • Page 120: Background

    See picture 124. For each desktop, users could select a Color or an image from local/external files to display. After the selection, users could preview the settings and then press “Save” for the phone to take effect. FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 120 of 139...

  • Page 121: Tones

    In page “Tones”, users could set the Event Alert Tones for the events added in Calendar application, New Message Tone and Key Tone when pressing the touchscreen. All the tones could be set from the built-in FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 121 of 139...

  • Page 122: Language

    Enter the Caller ID in “Match Incoming Caller ID” and select the ringtone. Then “Press” Save for the configuration to take effect. Figure 127: Ring Tones Settings LANGUAGE There are three built-in languages available in GXV3175: English, Simplified Chinese and Tradition FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 122 of 139...
  • Page 123 If users wish to import their own language, two files are needed: Language file and Menu Language file. Both files need to be in CSV format and in UTF-8 encoding. Please contact Grandstream technical support for the list of English strings.

  • Page 124: System Info

    Account info shows the account and registration status on the phone. See Figure 129. Figure 129: Account Info System info shows the product model, hardware version, part number, system up time and software version. See Figure 130. FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 124 of 139...

  • Page 125: Pip

    In MENU  PIP, users could utilize the built-in camera in GXV3175 to take photos and record video. See Figure 132. Figure 132: PIP Application To take a photo, press “Snapshot” and then the photo will be saved to folder “Snapshot” in File Manager. FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 125 of 139...

  • Page 126: Desktop Widgets

    To open new widgets on the desktop, press and the widget menu in the bottom will show including “Info”, “Weather”, “RSS News”, “Contacts (Favorite)” and “Internet Radio (Favorite)”. (See Figure 133) Press to hide the widget menu. FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 126 of 139...

  • Page 127: World Clock

    Figure 134: World Clock Settings Exterior Press “Time Zone”, users will see a list of options. After checking on the box for the time zone, the time FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 127 of 139...

  • Page 128: Currency

    In the currency conversion table below, select one row and press the “Delete” button then this item will be hidden. To add new currency conversion entry, in the last row of the table, select the currency to convert FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 128 of 139...

  • Page 129: News Videos

    News Videos settings. See Figure 139. The slide times (s) and sites list could be set here. Also, users could disable/enable the categories by checking/unchecking box for the corresponding options. FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 129 of 139...

  • Page 130: Stock

    To delete one entry, select and press “Delete” button on the right. In the last row of the table, users could also add new entries by tapping on the blank area and select “Add”. FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 130 of 139...

  • Page 131: Weather

    “Search Result”. Select the desired location and press “Add” button. Then the city will show in highlighted area below with the weather information in the widget on desktop. FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 131 of 139...

  • Page 132: Rss News

    Make selections on the options in “Subscribe” by checking on the preferred categories. To add RSS Feed, tap on the blank field of “RSS Feed” and enter the link. After pressing “Add”, it will be added in the box FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 132 of 139...

  • Page 133: Contacts (Favorite)

    Slide to left/right to select the contact in the favorite list. Then users could press or to dial out or send message. Refer to the table below for more operations in this widget. FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 133 of 139...

  • Page 134: Internet Radio (Favorite)

    Radio Name and Radio URL in the popped out window. Press “OK” after editing the radio information. Figure 147: Desktop Widget Internet Radio (Favorite) FIRMWARE VERSION 1.0.3.74 GXV3175 USER MANUAL Page 134 of 139...

  • Page 135: Customizing The Gxv3175 Ip Multimedia Phone

    For more details on the XML Based GUI Configuration on the GXV3175, please refer to: GXV3175 GUI Customization Guide GXV3175 XML GUI Customization Tool V2 GMI (Grandstream Manager Interface) is a management API developed by Grandstream Networks. Designed for our IP Multimedia phones, it allows partners to develop customized applications on the phone.

  • Page 136: Software Upgrade

    LAN environment. NO LOCAL FIRMWARE SERVERS For users without a local firmware upgrade server, Grandstream offers a public HTTP server. This enables users to download the latest software upgrades for their phone via this server. Please refer to the webpage: http://www.grandstream.com/support/firmware.

  • Page 137: Configuration File Download

    Microsoft IIS web server. CONFIGURATION FILE DOWNLOAD Grandstream SIP Devices can be configured via the Web Interface as well as via a Configuration File (binary or XML) through TFTP or HTTP/HTTPS. The “Config Server Path” is the TFTP or HTTP/HTTPS server path for the configuration file.

  • Page 138: Restore Factory Default Settings

    Restoring the Factory Default Settings will delete all configuration information on the phone. Please backup or print all the settings before you restore to the factory default settings. Grandstream is not responsible for restoring lost parameters and cannot connect your device to your VoIP service provider.

  • Page 139: Experiencing The Gxv3175 Multimedia Phone

    FAQs User and Developer Forum for answers to your general questions. If you have purchased our products through a Grandstream Certified Partner or Reseller, please contact them directly for immediate support. Our technical support staff is trained and ready to answer all of your questions. Contact a...

Table of Contents
