16 channel h.264 compression dvr with (cif) real-time recording and 8 color ccd camera kits (9 pages)
Summary of Contents for Q-See QSD9004
Page 1

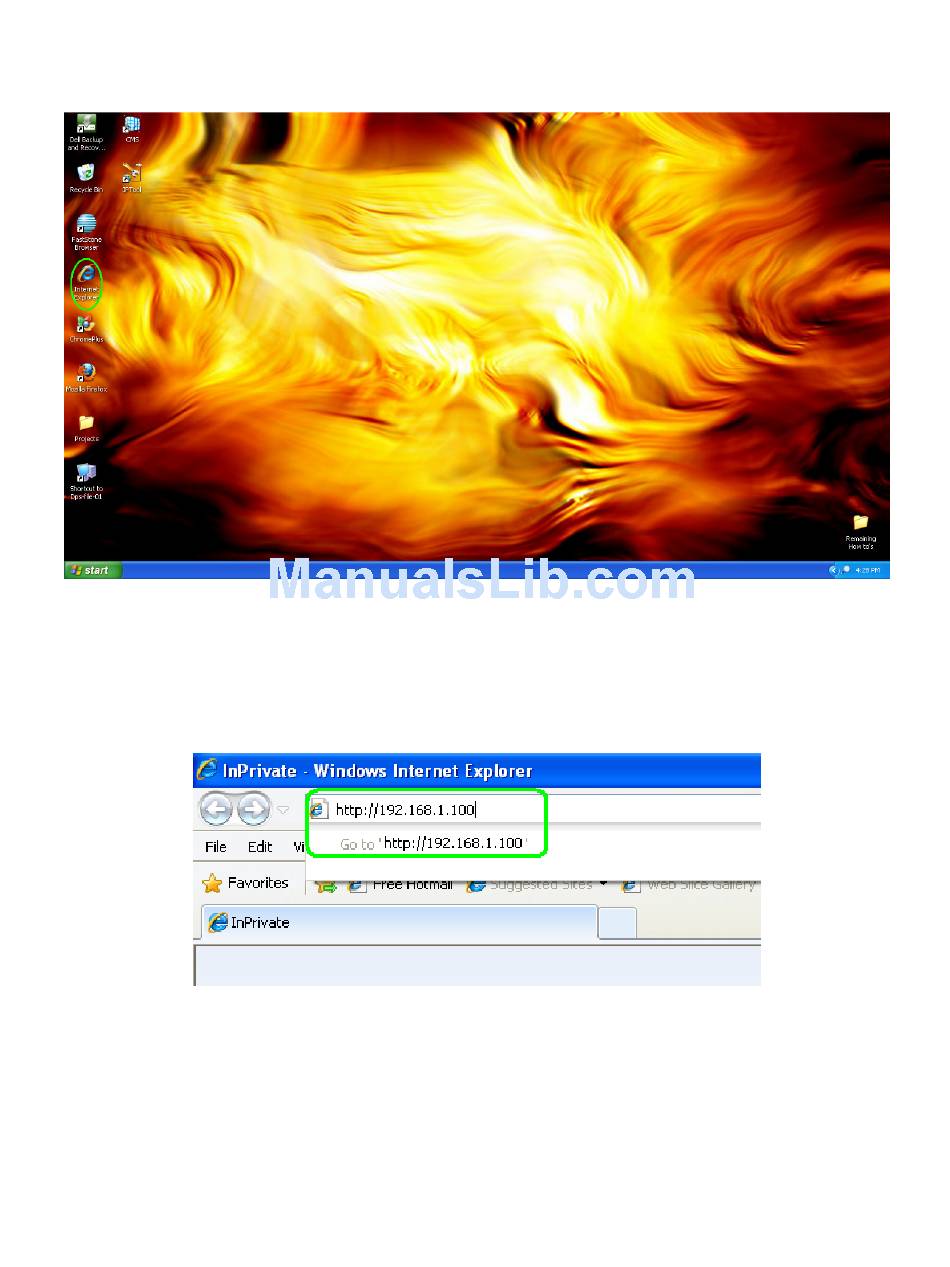

QSD9004 Manual Recording over the Network STEP 1: Turn on your computer and open Internet Explorer. STEP 2: In the address bar, enter in the IP address of your DVR.
Page 2
QSD9004 Manual Recording over the Network STEP 3: Click on the “LOGIN” button. If you set up a password on your DVR, enter it in the “PASSWORD” field before clicking “LOGIN”. (If this screen does not appear, see the “ActiveX Controls” guide) STEP 4: Click on the “REPLAY”...
Page 3
QSD9004 Manual Recording over the Network STEP 5: Set all channels to “ON”. STEP 6: Click “APPLY”.
Page 4
QSD9004 Manual Recording over the Network STEP 7: Click “LIVE”. STEP 8: Click on the “Record” button to start or stop recording.
Page 5
QSD9004 Manual Recording over the Network STEP 9: On the Channel Display, a small “R” will show which channels are recording. STEP 10: In order to locate the files that you manually recorded, go to your desktop, click on the “Start” menu, and go to “My Computer”.
Page 6
QSD9004 Manual Recording over the Network STEP 11: Go to the C:/ drive. STEP 12: Go to the “DVR” folder.
Page 7
QSD9004 Manual Recording over the Network STEP 13: A folder with the IP address of your DVR will be in this folder; all of your manually recorded files will be located here.
