WINTAIR AW-10CR1FM Use And Care Manual

Remote/mechanical control
Hide thumbs

Advertisement

Available languages

Available languages

Quick Links

Download this manual

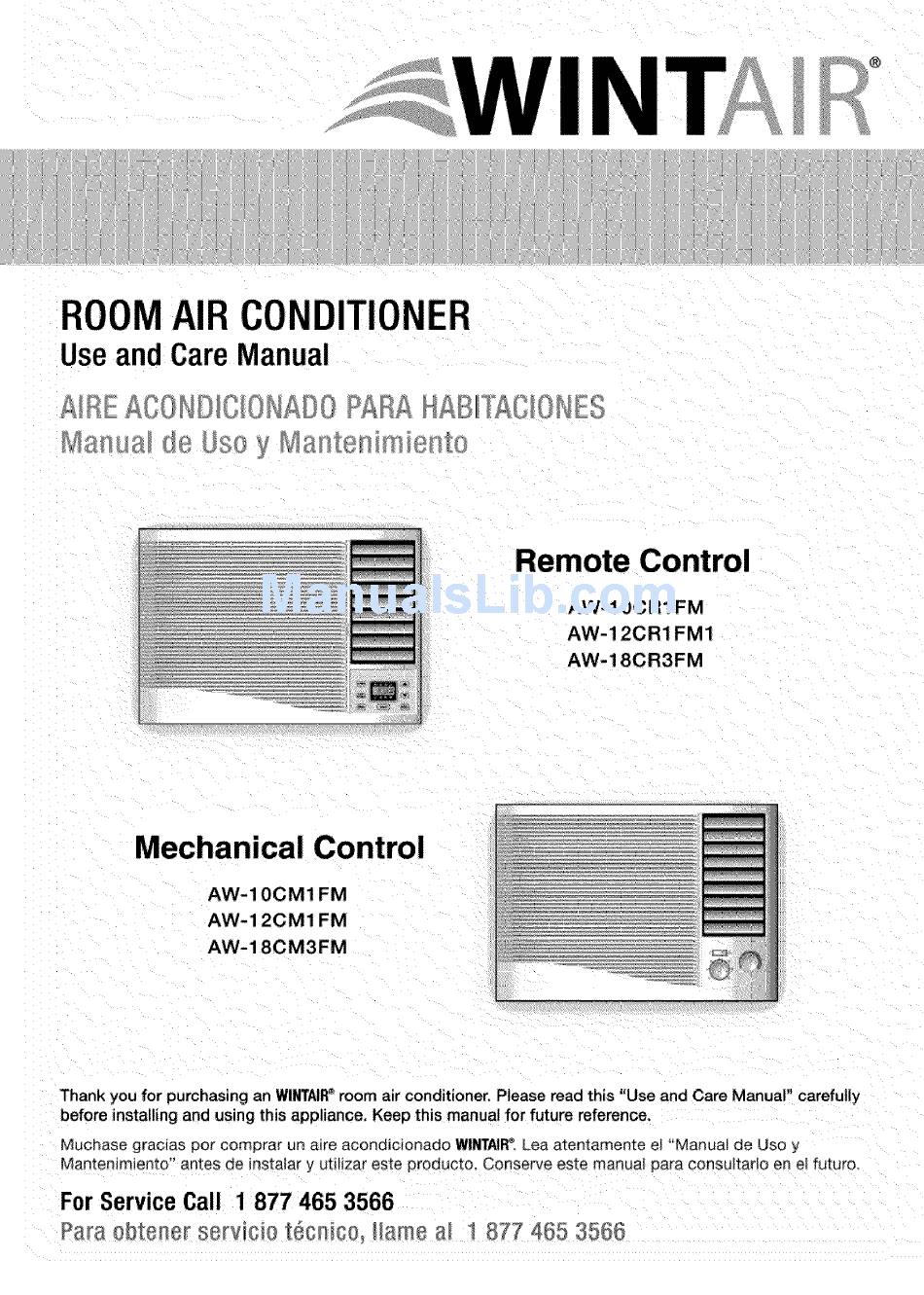

ROOMAIR CONDITIONER
Useand CareManual
Remote Control
AW*IOCR1
FM
AW-12CR1
FM1
AW-18CR3FM
Mechanical Control
AW-10CM1FM
AW-1 2CM1FM
AW-18CM3FM
Thank you for purchasing
an WINTAIR _ room air conditioner.
Please read this "Use and Care Manual"
carefully
before installing
and using this appliance. Keep this manual for future reference.
Muchase
grac_as per comprar
un aNre acondic/onado
WINTAIF_Lea atentamente
el "Manual de Uso y
MantenJmiento"
antes de Jnstalar y utilizar este proaucto.
Conserve este manua| oara consuitado
en el futuro_
For Service Call 1 877 465 3566
_ara obtener servicio :ecn_co, f_am8 a/ _ _77 465 3565

Advertisement

loading
Need help?

Need help?

Do you have a question about the AW-10CR1FM and is the answer not in the manual?

Questions and answers

Related Manuals for WINTAIR AW-10CR1FM

Summary of Contents for WINTAIR AW-10CR1FM

  • Page 1 AW-18CR3FM Mechanical Control AW-10CM1FM AW-1 2CM1FM AW-18CM3FM Thank you for purchasing an WINTAIR _ room air conditioner. Please read this "Use and Care Manual" carefully before installing and using this appliance. Keep this manual for future reference. Muchase grac_as per comprar...
  • Page 2 Page Air Conditioner Safety ......... Introduction and Parts Identification ......Electrical Specifications ......... Tips Before Installation ......... Installation Instructions ........8-12 Operating Instructions ........13-16 Care and Maintenance ......... Trouble Shooting Guide ........Warranty ........... Page Introducci6n ..........Identificaci6n de las Piezas ........

  • Page 3: What You Need To Know About Safety Instructions

    What You Need to Know About Safety instructions Warning and important Safety instructions appearing in this manual are not meant to cover all possible conditions and situations that may occur. Common sense, caution, and care must be exercised when operating or cleaning tools and equipment. Always contact your dealer, distributor, service agent, or manufacturer about problems or conditions you do not understand.

  • Page 4: Power Supply Cord

    • The air conditioner should be connected to the Power Supply Cord appropriate electrical receptacle as shown in the chart on Page 6 (Receptacle and Fuse Types). NOTE: Your unit's device may differ from the one shown. The use of a time-delay fuse or time-delay circuit breaker is recommended.
  • Page 5 Thank you for choosing this room air conditioner to cool your home. This USE AND CARE MANUAL provides information necessary for the proper care and maintenance of your new room air conditioner. If properly maintained, your air conditioner will give you many years of trouble free operation. To avoid installation difficulties,...
  • Page 6 Remote control model Front Panel Cabinet Air Filter Air Outlet Interior ....Air Inlet Grille \\\\\\\\ \ Exterior Air Inlet "\ "\\ Remote Controller <_ Control Panel Fresh Air Power Cord Vent Lever Control Panel Remote Controller ../ _ _PEeO T_ME_ Note:...
  • Page 7 1. All wiring must comply with local and national electrical codes and must be installed by a licensed electrician. If you have any questions If the air conditioner has a serial plate rating of 115 volts and up to and including 7.5 amps, regarding the following instructions,...

  • Page 8: Tools Needed

    Your RoomAir Conditioner unit is designed to Your RoomAir Conditioner was designed be highly efficient and save energy. Follow these for easy installation in a single or double-hung recommendations for greater efficiency. window. NOTE: This unit is NOT designed for vertical (slider type) windows.
  • Page 9 E. Be certain the proper electrical outlet is within reach of the installation. Use only a single outlet circuit rated Because thecompressor is located o nthe at proper current (see table 1 on page 4). All wiring controls side oftheunit ( right side), t his side should be in accordance with local and national...
  • Page 10 2. Preparation to Remove Air Conditioner Slide-Out Chassis A. Remove total of (4) Philips screws securing the chassis to the cabinet. There are (2) screws on each side. The set of screws closest to the front of the unit secure the front panel to the cabinet.
  • Page 11 5. Installation of Mounting Brackets (TOP VIEW) First Sealing Strip V-slot_ ..NOTE: Windows come in a variety of different ..o ..styles. Therefore, it may be necessary to modify Bracket Assembly or improve your particular installation. Leve Support Brackets A.
  • Page 12 6. Installation of the cabinet A. Align one hole in the bottom of the cabinet with one hole in the bracket assembly. Secure the cabinet to the bracket using (3) 1/4" screws provided. Repeat the same procedure on the opposite side of the cabinet. See (Fig.
  • Page 13 9. Complete the installation A. Cut the foam to fit the opening between the top of Foam the inside and outside window. See (Fig. 13). B. Some installations may require additional sealing around the window and air conditioner. Check for any air leaks and seal where necessary.
  • Page 14 MODE Swing s_,4tch The mode knob controls fan speeds and cooling speeds. To set desired cooling temperature, simply rotate the mode knob dial to the appropriate setting. THERMOSTAT The thermostat automatically controls the cooling cycle (compressor) of the air conditioner to maintain room temperature.
  • Page 15 Youcan easily operate this air conditioner by pressing relevant button on the control panel as well as the Control Panel remote control ON/OFF Button The air conditioner will be started when it is energized or will be stopped when it is in operation, if you press this button.
  • Page 16 Remote controB Power BUTTON i¸ !?fillet _i _ • The appliance willbe started when it is energizedor wiltbe stopped when it is in operation, if you press this button. MODE BUTTON ..Used to select the operation mode. Modo Swir_g P(/wc,_S_vr ÷...
  • Page 17 Remote control How to insert the Batteries Remove the battery cover according to the arrow direction. Insert new batteries making sure that the (+) and (-) of battery are matched correctly. Reattach the cover by sliding it back into position. Notet * Use 2 LR06 AAA (1.5 volt) batteries,...
  • Page 18 When servicing the air conditioner, be sure to _!',__.111 i [o) turn the mode switch to the "OFF" position and disconnect the power cord from the electrical outlet. DO NOT forget to install the air filter. If the air conditioner is left to operate without the air filter, dust is not removed from the room and may 1.
  • Page 19 Frequently, a problem is minor and a service call may not be necessary, use this troubleshooting guide for a possible solution. PROBLEM POSSIBLE CAUSE SUGGESTED SOLUTION Air conditioner will No power to the unit. Check connection of power cord to not operate power source.
  • Page 20 5 YEAR FULL WARRANTY This product is warranted for 5years from date of original purchase. part which fails in materials or workmanship will be replaced within the warranty period. This warranty covers in home service. Acopy of your proof of purchase, with date of purchase...
  • Page 21 Gracias per elegir este aire acondicionado para enfriar su hogar. Este MANUAL DE USO Y MANTENIMIENTO proporciona la informaci6n necesaria para cuidar y mantener en forma adecuada su nuevo aire acondicionado. Funcionar_] sin problemas durante muchos ahos si le brinda el mantenimiento apropiade.
  • Page 22 Modelo de Remoto controlador Outlet de Aire Filtro de Aim Panel Frontal Gabinete Rejilla Entrada de Aire Interior "\\ Entrada de Abe Exterior Remoto Control Tablero de Rejilla Cable de AlJmentaci6n Palanca Mandos de AJre Fresco Panel de Control Control Remoto i ...
  • Page 23 1.Todos l oscables deben cumplir c onlosc6digos el6ctricos locales y nacionales y losdebe instalar Si el r6tulodelaireacondicionado indica115 unelectricista licenciado. Sitiene preguntas voltiosy hasta7.5amperios, l a unidad se relacionadas conlassiguientes instrucciones, puedeconectar a uncortacircuito o fusible comuniquese conuneiectricista l icenciado. utilizado porotrosdispositivos.
  • Page 24 El Aire Acondicionado para Habitaciones se ha dise_ado de mode tal que resulte Ricil su instalaci6n Su unidad de AireAcondicionado para Habitaciones en ventanas armadas sencillas o dobles. NOTA: esta se ha disen'ado para Iograr un alto rendimiento y unidad NO se ha disenado para ventanas verticales ahorrar energia electrica.
  • Page 25 I_ z1=[_l[H _ _1V_I E. Asegflrese de instalar la unidad cerca de un tomacorriente el6ctrico adecuado. Utilice un estime Debido a que el compresor se encuentra del lade al cordente propio (lea tabla 1 en p gina 20) con de los controles (a la derecha de la unidad), este circuito exclusivo para el aire acondicionado.
  • Page 26 2. Cdmoquitar el armaz6n deslizable del aire acondicionado A. Quite los 4tornillos Philipsque sujetanel armaz6n al gabinete. Hay 2tornillos decada lado. Los tornillo s queest6n m6s cercadel frentede la unidad sujetan el panel frontal algabinete. Lostornillos queestan 6s cercade la parte traserade la unidad sujetanel...
  • Page 27 5. Instalaci6n de los Soportes Horizontales (VISTA SUPERIOR) la Primera Tira Adhesiva en V Selladora NOTA: Existe unagran variedad de estilos de v entanas. Porlo tanto, es probableque a necesario modificar o mejorar su propia instalaci6n. Pern os rdellSOport e SoFort ..
  • Page 28 6. Instalaci6n del gabinete A. Alinee un agujero dela parteinferior gabinete con un agujerodel soporteensambla do. Sujete el gabinete al soporte ensamblado con 3de los tornillos de 1/4" proporcionados. Repita el mismo procedimiento del otrolado gabinete. Vea la(Fig. 10). B.Asegt_rese deque el canal demontaje...
  • Page 29 9. Finalice la instalaci6n A. Cortela espumapara quequepa en la abertura entre la parte superiordel interior y exteriorde Espuma ventana. Vea la (Fig. 13). B. Es probable que algunas instalaciones necesiten tira selladora adicional alrededorde laventana aire acondicionado. Verifique si hay alguna p6rdida de airey s_llela sies...
  • Page 30 MODE (Modo) Oscilar Selector La perilla de modo controla las velocidades ventilador y de enfriamiento. Para fijar una temperatura de enfriamiento, simplemente haga rotar la perilla y .._v_vtN_G ..colOquela en el nivel deseado. Vea la Fig. 15. THERMOSTAT (Termostato) El termostato controla automaticamente...
  • Page 31 Esteaireacondicionado sepuede operarf6cilmente Panel de Control conlosbotones delpanel d econtrol a slcomo tambi6n conelcontrol r emoto. Bot6n (Encendido/Apagado) Si presiona e stebot6n, encender6el aireacondicionado. Cuando elaireacondicionado estadecalefacci6n, seper imprentar este bot6n 3minutos despues. @_-a:@ Bot6n Mode (Modo) Bs ?s Cada vezque sepresiona elbot6n MODE, el modo deoperaci6n c ambia e nestassecuencias: COOLING (Enfriamiento) FAN ONLY (S61o ventilador) ENERGY S AVING (Ahorrode Energia) C OOLING...

  • Page 32: Control Remoto

    Control remoto Bot6n Power (Encendido/Apagado) El aparato se encender_ si est,1 apagado o apagar_ cuando estd en operaci6n, si oprime este bot6n. Bot6n Mode (Modo) Utilice este bot6n para seleccionar el modo de operaci6n. Bot6n Botones de ajuste de temperatura oprima para ajustar la temepratura...
  • Page 33 Control remoto • Colocai6n de las pilas Retire la tape de las en el sentido de la flecha. r_troduzca las pi|as nuevas,con cuidado de que coincidan los polos(+)y(-), Vuelva a instalar la tapa,deslizAndola otra vez a su posici6n. Note: • Utllice piles 2 LRO6AAA(I.5tO.No utilice piles...
  • Page 34 Cuando repare el aire acondicionado, aseg_irese de colocar la perilla de modo en OFF y luego desconectar el cable de alimentaci6n del tomacorriente electrico. NO olvide instaJar et filtro de aire. Si el aire acondicionado funciona sin el filtro de aire, 1.
  • Page 35 Generalmente losproblemas s onsencillos yesprobableque n oseanecesariollamar auntecnico. Estaguiapuede ayudarlo aresolverlos. PROBLEMA CAUSAPOSlBLE SOLUCI6N SUGERIDA Elaireacondicionado Launidadnorecibe Verifique si el cable dealimentaci6n e nofunciona suministro el6ctrico. st6conectado al tomacorriente. Verifique el fusibleo el cortacircuito. Fijeel FANCONTROL ( control d el ventilador) e n unaposici6n q uenosea OFF.
  • Page 36 GARANTIA COMPLETADE 5ANOS Este producto se garantiza por 5 a_os a partir dela fechade la compra original. Cualquier parte que falle en materiales o la ejecuciOn serd substituida dentro periodo dela garant_a. Estagarantia incluyeservicio adomicilio. Una copia de su prueba dela compra, lafecha...
  • Page 39 WIN'[ @2006 WlN_ . Kelon Air Conditioner Co,, Ltd., and Kelon USA. inc. All rights reserved, Kelon Air Conditioner Co., Ltd. Kelon USA, inc, No.12 Qiaodong Road 8000 Virginia Manor Rdo, Suite 170 Ronggui, Shunde, Guangdong China 52830:3 Bettsville, MD 20705 P_rtn_ed i_ China Version No.
