Extreme Networks Evaluation Guide
Altitude 4511
Access Point
Evaluation Guide
© 2011 Extreme Networks, Inc. All rights reserved. Do not reproduce.
This document will describe the industrial design and
modularity, and provide step-by-step configurations for
typical use cases in multi-tenant markets such as hotels.
The glossary of features lists the webUI screens, along
with a short description of the functionality. The high-
powered radio will need to be tested by comparing the
Altitude™ 4511 with other, "known" access points. When the
comparison is made, the value of the Altitude 4511 will
become more apparent.

Advertisement

Table of Contents
loading

Related Manuals for Extreme Networks Altitude 4511

Summary of Contents for Extreme Networks Altitude 4511

  • Page 1 Altitude™ 4511 with other, “known” access points. When the comparison is made, the value of the Altitude 4511 will become more apparent. © 2011 Extreme Networks, Inc. All rights reserved. Do not reproduce.
  • Page 2 Extreme Networks Evaluation Guide: Altitude 4511 Access Point Scope of this Document The Extreme Networks Altitude 4511 Access Point can change the way wireless networks are installed, while lowering the deployment and operations expense This document will describe the industrial design and associated with a wireless network.

  • Page 3: Key Features

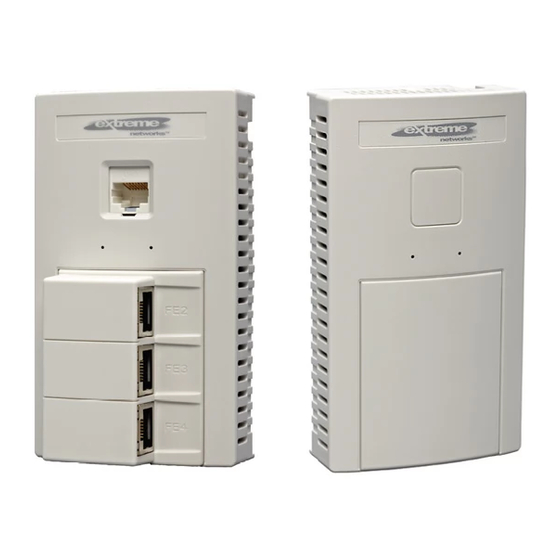

    Extreme Networks Evaluation Guide: Altitude 4511 Access Point Advanced Industrial Design One-Port RJ-45 Ethernet Module The keystone port also accepts a one-port RJ-45 Ethernet Module. This module is supplied in the shipping box with a Key Features pigtail connector terminating in a 9-pin header. Snap in • Keystone or Leviton QuickPort®...
  • Page 4 Extreme Networks Evaluation Guide: Altitude 4511 Access Point Vital Information Before After the first login following a factory default configura- tion, the administrator will be prompted to change the We Begin password. Power The Altitude 4511 requires Power over Ethernet. Connect an 802.3af PoE switch or PoE midspan injector to the...
  • Page 5 Extreme Networks Evaluation Guide: Altitude 4511 Access Point Reset Default Configuration, View Running Config Use the Operations menu to reload firmware, restart, or view the running configuration. Navigate to Operations -> Devices. Select the action from the list at the bottom of the page.

  • Page 6: Device Overrides

    Extreme Networks Evaluation Guide: Altitude 4511 Access Point Initial Setup Wizard Policies, Profiles and Adoptions Policies The Wizard will run automatically after a factory reset. It will walk the administrator through a set of minimum Most (but not all) configuration elements such as required configurations.
  • Page 7 Extreme Networks Evaluation Guide: Altitude 4511 Access Point Adoption Dependent APs are adopted by a Controller AP. By default, each AP is standalone or dependent. When a new AP is installed in the network, it will begin the network discovery process to find a Controller AP. On the Controller AP, an adoption policy can be created to control which APs are adopted.

  • Page 8: Test Setup

    Extreme Networks Evaluation Guide: Altitude 4511 Access Point Use Case One Test Setup This case will show the configuration required for a Standalone AP using the device Overrides configuration. Configure the network and test PCs as shown in This is the most direct method to configure a standalone the diagram.
  • Page 9 Extreme Networks Evaluation Guide: Altitude 4511 Access Point Configuration Use the device Overrides configuration to configure a standalone AP. Profiles can be used, but the easier path is to directly configure the device. RF Domain Overrides webUI navigation: Configuration -> Devices -> Device Configuration ->...
  • Page 10 Extreme Networks Evaluation Guide: Altitude 4511 Access Point Use Case Two Test Setup One WLAN will be configured with open authentication. The access points will bridge all packets and VLANs will 1. Reset the unit to factory defaults. Consult the not be used anywhere in the network.
  • Page 11 Extreme Networks Evaluation Guide: Altitude 4511 Access Point Configuration The setup wizard will start on the first boot after a factory reset. To reset the AP to factory defaults, press the reset button on the bottom of the AP. Click Start Wizard Select “Controller AP”...
  • Page 12 Extreme Networks Evaluation Guide: Altitude 4511 Access Point Select Bridge Mode Click Next Enter 192.168.100.1/24 as the LAN IP Click Next In this example, we will not be using the router mode. Click Next © 2011 Extreme Networks, Inc. All rights reserved.
  • Page 13 Extreme Networks Evaluation Guide: Altitude 4511 Access Point Click the “Add WLAN” button Enter an SSID, select No authentication Click OK Click Next Since we are using Open authentication, RADIUS configuration is not needed. Click Commit/Next The dependent APs will be adopted by this Controller AP and will show up in the discovery list.
  • Page 14 Extreme Networks Evaluation Guide: Altitude 4511 Access Point Connect a wireless Test PC to the WLAN The wireless Test PC will show up in the Wireless Client Association list Click Finish/Save Set the time or enter an NTP serve Click Finish...
  • Page 15 Extreme Networks Evaluation Guide: Altitude 4511 Access Point Use Case Three Test Setup Two WLANs will be configured; one with open authenti- cation and the other with a pre-shared key authentica- 1. Snap-in the RJ-45 module to the keystone port.
  • Page 16 Extreme Networks Evaluation Guide: Altitude 4511 Access Point Configuration Create Adoption Policy webUI navigation: Configuration -> Device -> Adoption Policy Click add Enter a name Click Continue Click add Select Match Type, any Select Profile Name “dependent-AP4511” Click OK, then Exit...
  • Page 17 Extreme Networks Evaluation Guide: Altitude 4511 Access Point Create a Primary Controller AP Profile webUI navigation: Configuration -> Profiles (or edit the default Controller AP Profile to match your settings) Click add Assign a name, select the ALTITUDE 4511 type Check the box to Set as Controller AP Leave adoption policy at <none>...
  • Page 18 Extreme Networks Evaluation Guide: Altitude 4511 Access Point Click Management Select Settings, Select the default Management Policy, click the Edit button Select the access modes you wish to enable; Telnet, SSH, HTTP, HTTPS Under Access Restrictions, select “source-address” as the Filter Type In the “Source Subnets”...
  • Page 19 Extreme Networks Evaluation Guide: Altitude 4511 Access Point Diagnostics Network and Access Point Statistics The Controller AP and its network of connected access To determine if a WLAN is operational, click Statistics, points can be examined using the Statistics menu. From then select the Controller AP.

  • Page 20: Network View

    Extreme Networks Evaluation Guide: Altitude 4511 Access Point Network View The Dashboard view provides quick status of the Use the Dashboard Network View to quickly gauge the network and clients. One key feature of the Dashboard is status of the wireless clients and identify if corrective the Network View where the administrator can color action is needed.

  • Page 21: Management Interface

    Extreme Networks Evaluation Guide: Altitude 4511 Access Point Common Configuration Mistakes WLAN is not Broadcasting on My This section will be updated during the course of the Test Laptop evaluation period. It will contain common configuration mistakes and the corrections recommended by This usually means then WLANs are not mapped to a Extreme Networks support.
  • Page 22 Extreme Networks Evaluation Guide: Altitude 4511 Access Point Glossary of Features This glossary provides a short description of key features found in the Altitude 4511 webUI. Dashboard The Dashboard provides graphical and statistics view of the network. A key feature in the dashboard allows the administrator to select from a list of critical parameters to display the network and client connectivity.
  • Page 23 Altitude 4511 for efficient use of the RF spectrum. The RF Domain is a key element of a Extreme Networks management entity. Note that all APs “belong” to an RF Domain. On the Altitude 4511 Controller AP feature, there is only one RF Domain supported.
  • Page 24 Extreme Networks Evaluation Guide: Altitude 4511 Access Point SmartRF is a set of software algorithms that provides automatic transmit power adjustment, automatic channel selection, and automatic neighbor recovery if a failure occurs in a neighbor access point. On a dedicated RF Controller, SmartRF adds additional functionality for an enterprise network.
  • Page 25 Create filter rules to display network events. Filters can be set by severity and source MAC address. MAC addresses can be a radio BSS or a client MAC address. Core and panic snapshots and UI logs may be requested by Extreme Networks customer support for remote diagnostics Operations Use the Operations menu to reset the AP to factory defaults, or reboot the AP to make changes effective.
  • Page 26 Extreme Networks Evaluation Guide: Altitude 4511 Access Point File Transfers webUI navigation: Operations -> File Transfers details: Use this menu to upload firmware and configuration files to and from the access point. Click on the Advanced tab to select TFTP, FTP, SFTP, or HTTP and select the logical port number to use.

  • Page 27: Led Behavior

    Extreme Networks Evaluation Guide: Altitude 4511 Access Point Appendix LED Behavior The Altitude 4511 has two LEDs to display device status. The following acronyms are used in the table: The green LED is used to indicate 2.4Ghz operation and CAP = controller AP the Amber LED is used to indicate 5Ghz operation.
  • Page 28 Extreme Networks Evaluation Guide: Altitude 4511 Access Point Convert a MAC Address Into its Zero- Conf IP Address Equivalent For example: MAC address 00:C0:23:00:F0:0A Zero-conf IP address equivalent: 169.254.240.10 The last two bytes of the MAC address will become the last two octets of the zero-conf IP address.
  • Page 29 Extreme Networks Evaluation Guide: Altitude 4511 Access Point Reset to Factory Defaults There are two ways to reset the unit to factory defaults. From the webUI, navigate to the Operations main menu. Select Reset (factory default) from the menu at the To revert to factory default configuration using the bottom of the page.

  • Page 30: Upgrade The Firmware

    © 2011 Extreme Networks, Inc. All rights reserved. Extreme Networks, the Extreme Networks Logo and Altitude are either registered trademarks or trademarks of Extreme Networks, Inc. in the United States and/or other countries. All other trademarks are the trademarks of their respective owners.
