Troy-Bilt Storm Tracker 31AH7T74063 Operator's Manual
  1. Manuals
  2. Brands
  3. Troy-Bilt Manuals
  4. Snow Blower
  5. Storm Tracker 31AH7T74063
  6. Operator's manual
Troy-Bilt Storm Tracker 31AH7T74063 Operator's Manual

Troy-Bilt Storm Tracker 31AH7T74063 Operator's Manual

Hide thumbs Also See for Storm Tracker 31AH7T74063:

Advertisement

Quick Links

Download this manual

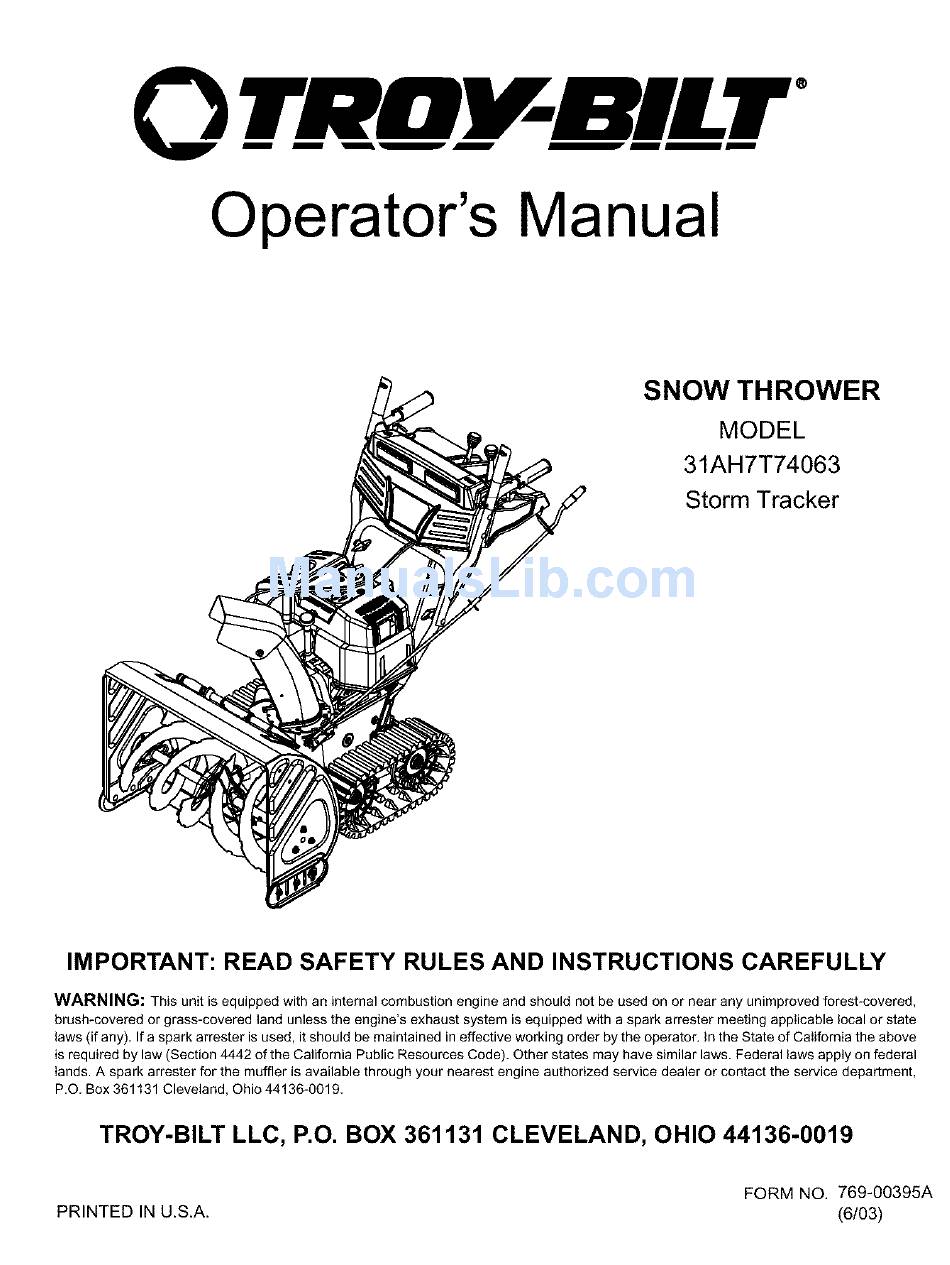

OTRO_ BILT
°__
Operator's Manu I
SNOW THROWER
MODEL
31AH7T74063
Storm Tracker
IMPORTANT:
READ SAFETY
RULES AND INSTRUCTIONS
CAREFULLY
WARNING:
This unit is equipped with an internal combustion engine and should not be used on or near any unimproved
forest-covered,
brush-covered
or grass-covered
land unless the engine's exhaust system is equipped with a spark arrester meeting applicable local or state
laws (if any). If a spark arrester is used, it should be maintained
in effective working order by the operator. In the State of California the above
is required by law (Section 4442 of the California Public Resources Code). Other states may have similar laws. Federal laws apply on federal
lands. A spark attester for the muffler is available through your nearest engine authorized service dealer or contact the service department,
P.O. Box 361131 Cleveland, Ohio 44136-0019.
TROY-BILT
LLC, P.O. BOX 361131 CLEVELAND,
OHIO 44136-0019
FORM NO. 769-00395A
PRINTED IN U.S.A.
(6/03)
