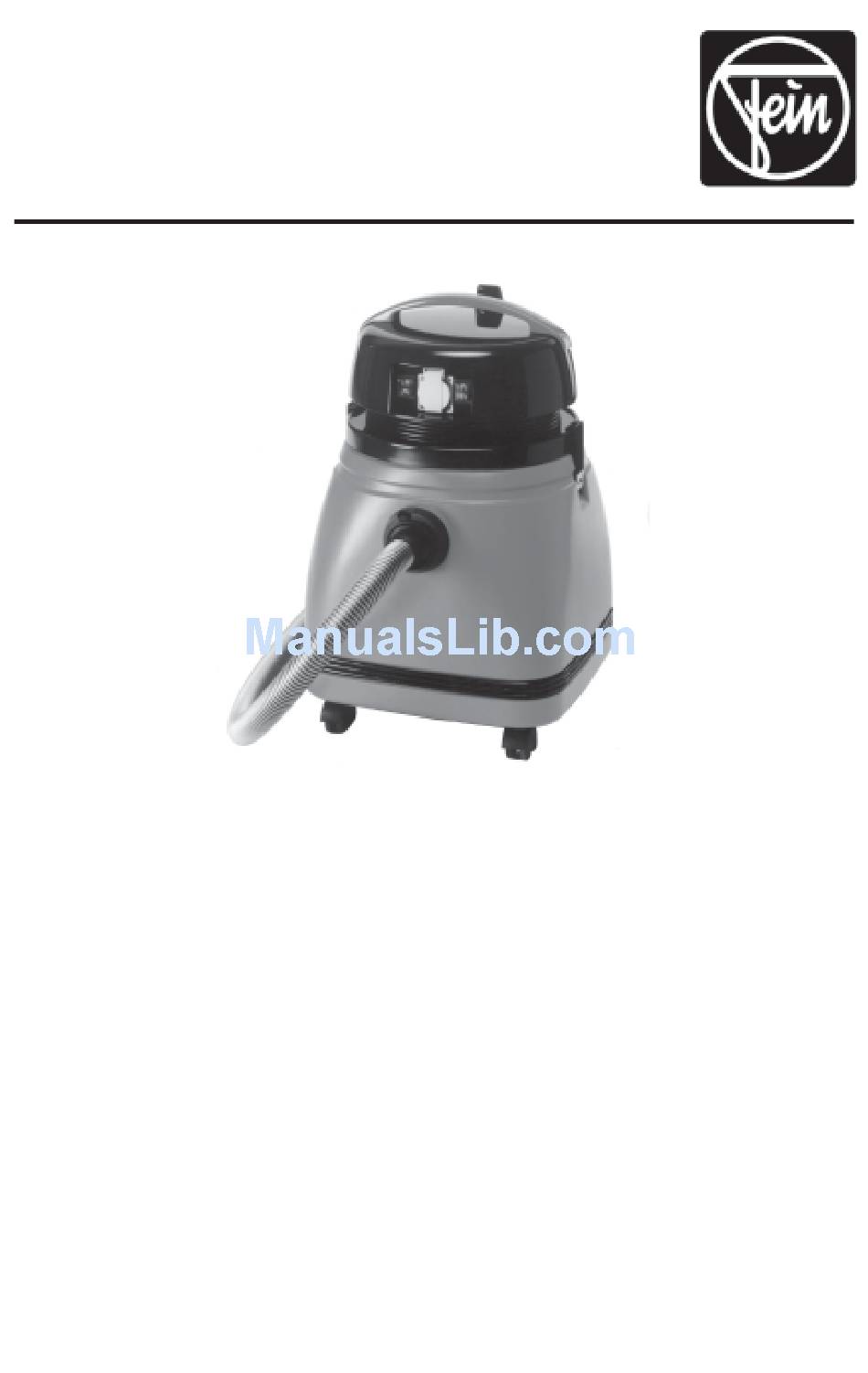

FEIN Turbo Vac II
9-55-13
Operating Instructions

ATTENTION: READ BEFORE USING

Make sure that the voltage nameplate of the device corresponds to the voltage of
your network. The plug has to be protected with a minimum of 15 Amps.
IMPORTANT! THE VACUUM CLEANER IS SUPPLIED FROM THE
FACTORY WITH A SUPPLY CABLE WITH A GROUNDED PLUG . IT
MUST ONLY BE CONNECTED TO AN APPROVED GROUNDED
SOCKET.
Before performing any maintenance work, unplug the vacuum from the outlet.
WARNING! EXPLOSION AND FIRE HAZARD! Never vacuum flammable
fluids or gas, oil, alcohol, solvents, etc. Do not operate near flammable fluids or
gas. Never vacuum warm fluids or materials at more than 140º Fahrenheit
(60º Celsius), such as burning cigarettes, ashes, glowing coals, etc.
WARNING! DO NOT VACUUM HAZARDOUS/CARCINOGENIC DUST
UNLESS THE OPTIONAL HEPA FILTER IS INSTALLED.
Do not pull the vac by the cable and do not damage the insulation on the cable.
If the cable is damaged, it must be replaced immediately.
Always keep the filter cartridge clean so the vacuum cleaner operates properly.
/
9-55-13PE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9-55-13 and is the answer not in the manual?

Questions and answers

John O’Connor
March 19, 2025

How do I disassemble to clean motor and clean foam filter

1 comments:
Mr. Anderson
March 19, 2025

1. Turn Off and Unplug: Ensure the vacuum is switched off and unplugged.
2. Remove the Suction Head: Detach the suction head from the tank.
3. Take Out the Filter Cartridge: Turn the screw (I) a quarter turn counterclockwise and pull out the filter cartridge.
4. Remove the Cloth or Cartridge Filter: If present, remove these filters before cleaning.
5. Replace with Anti-Foam Filter: If cleaning fluids, use the anti-foam filter (R) instead.
6. Clean the Foam Filter: If reusing, ensure the foam filter is in good condition before reinstalling.
7. Reassemble: Put the cleaned or replaced filters back, reattach the suction head, and secure all parts properly.

This answer is automatically generated

Summary of Contents for Fein 9-55-13

  • Page 1 Do not pull the vac by the cable and do not damage the insulation on the cable. If the cable is damaged, it must be replaced immediately. • Always keep the filter cartridge clean so the vacuum cleaner operates properly. 9-55-13PE...
  • Page 2: Assembly Instructions

    ASSEMBLY INSTRUCTIONS To attach the wheels, press the wheel posts into the four holes provided. a) Connect the vacuum end of hose 2 to the receptacle Q by pressing in. In order to remove the hose, press button L on recep- tacle and pull the hose out simultaneously.
  • Page 3 Do not use both at the same time. Failure to use a filter when dry vacuum cleaning will damage the motor. NEVER USE VACUUM CLEANER WITH A WET FILTER CARTRIDGE FOR DRY VACUUM CLEANING. It quickly becomes clogged and unusable.
  • Page 4 9-55-13 / 9-55-13PE TURBO II VAC ITEM # DESCRIPTION POWER CORD SET SCREW CABLE CLAMP SCREW WASHER TERMINAL BLOCK SCREW CABLE BUNGEE FACE PLATE RECEPTACLE COVER AUTO START SWITCH AUTO START SWITCH (9-55-13PE) 905490A000 SWITCH (ON/OFF) RECEPTACLE SWITCH (MANUAL / AUTO)(WIDE) 905307A000...
  • Page 5 SUCTION OF DRY DUST AND DIRT (continued) ATTENTION: If suction pressure decreases, replace the paper dust bag H with a new one. From time to time the filter cartridge G should be cleaned with a soft brush, ensuring longer life and higher perfor- mance.
  • Page 6 9-55-13 / 9-55-13PE TURBO II VAC ACCESSORIES Item Part Number Description 919036B94 Extension tube-chrome 921067A13 Handle 921069A13 Adaptor 921072K13 Step adaptor 919001A13 Brush 919003K13 Upholstery nozzle 919007K13 Crevice tool 921051A13 Wet brush 921056000 Rubber strip 919064B13 Floor brush with rollers...
  • Page 7 Always keep a reserve of paper dust bags and filter cartridges, so that the vacuum is always ready for use. FEIN Power Tools Inc. 1030 Alcon Street Pittsburgh, PA 15220 (800) 441-9878...
