This heavy-duty Deluxe Tool Rest for the Model
G1036 Grinder is ideal for holding and guiding
all types of woodturning and carving tools during
sharpening. It will help produce hollow-ground
bevels which can be simply and quickly honed
to razor sharpness using an oilstone or diamond
whetstone.
For your own protection, read and follow all
safety instructions for your grinder before
mounting the Model G8987 tool rest. Failure
to do so may result in personal injury and
property damage.

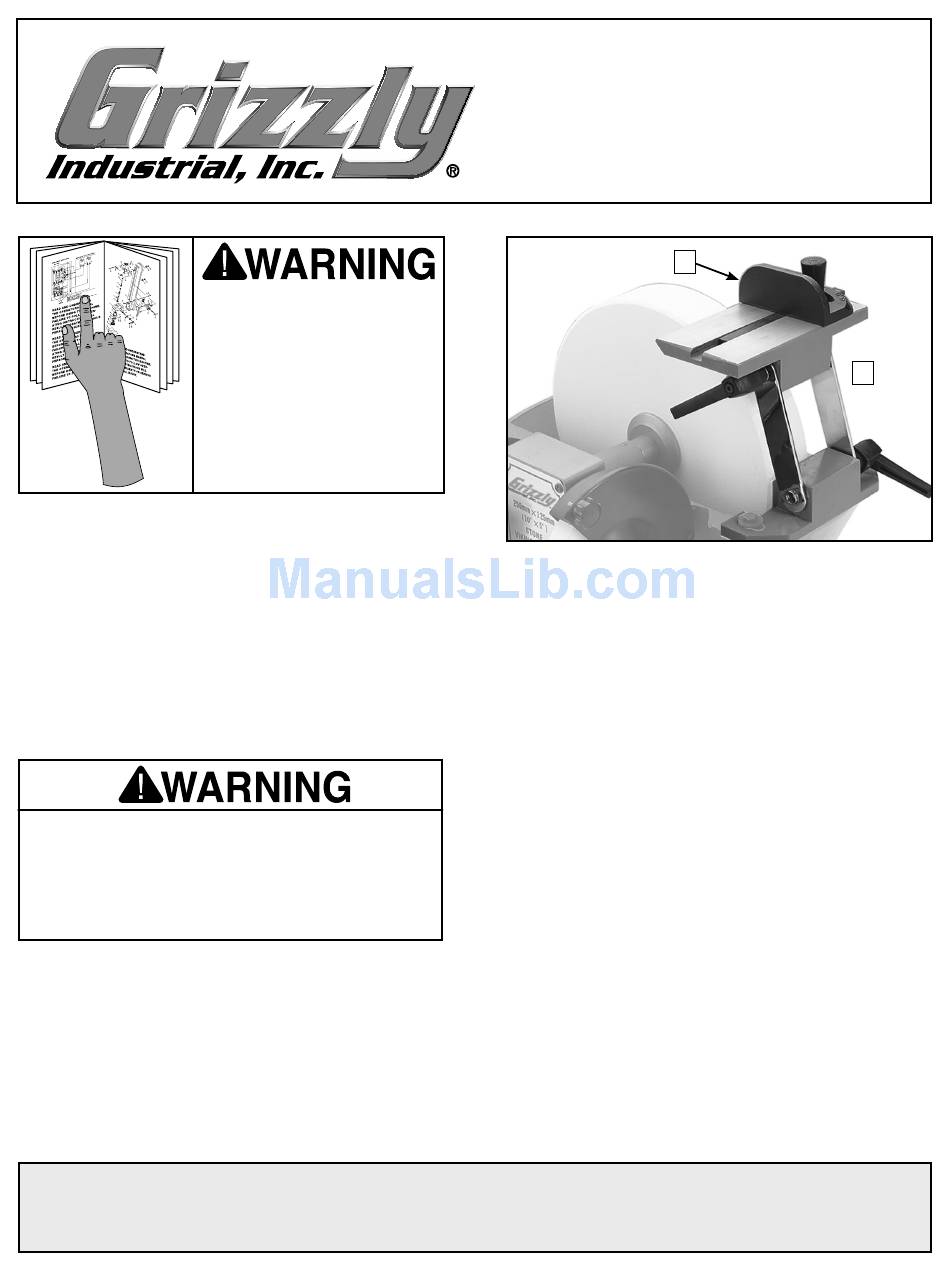

Inventory (Figure 1)
A. Miter Gauge ................................................ 1
B. Tool Rest Body ........................................... 1
C. Allen Wrench 4mm (not shown) ................. 1
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
Read all of the mounting
and operations
infor-
mation included in this
instruction sheet. Failure
to correctly mount and
operate the Model G8987
tool rest may result in
personal injury and prop-
erty damage.
COPYRIGHT © JULY, 2006 BY GRIZZLY INDUSTRIAL, INC.
#TS8331 PRINTED IN CHINA
MODEL G8987
DELUXE TOOL REST
FOR G1036 GRINDER
INSTRUCTION SHEET
A
Figure 1.
Mounting Instructions
1.
Remove the existing tool rest from the Model
G1036 grinding wheel.
2.
Use these same hex bolts and washers to
securely mount the Model G8987 tool rest as
shown in Figure 1.
3.
Use the adjustable handles to position the
tool rest table as necessary.
4.
Make sure that the grinding wheel is not mak-
ing contact with any part of the tool rest.
5.
Make sure all lock levers are tight so that the
tool rest assembly will not fall into the grind-
ing wheel during operation.
If you need help with your new tool rest, call our
Tech Support at: (570) 546-9663.
