Eureka Heavy Duty HD4570 Series Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

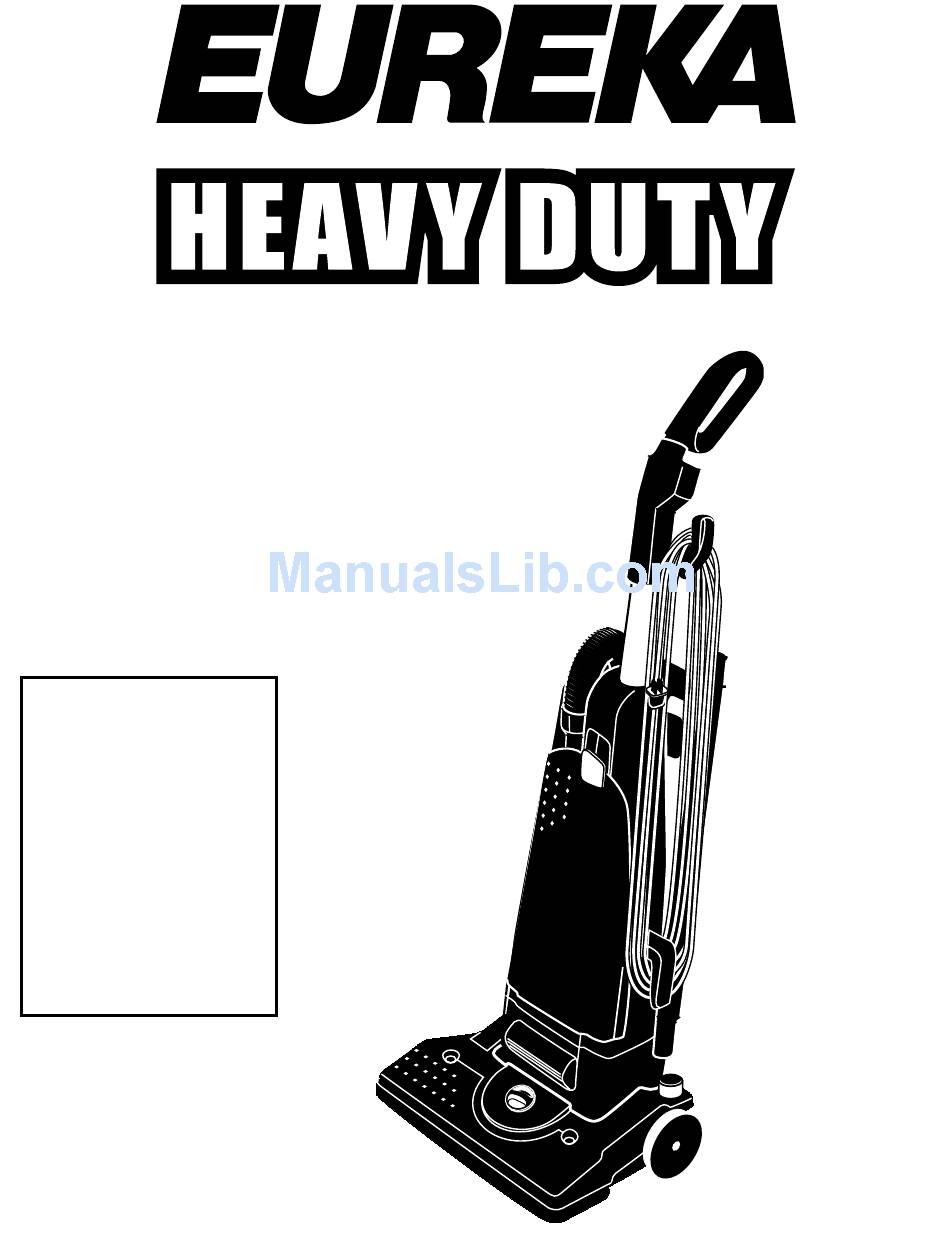

Heavy Duty Upright
Vacuum Cleaner
Ownerʼs Guide
HD4570 Series
Index
Important Safeguards .............2
Service Information ................4
Assembly .............................5-6
Use .........................................7
Thermal Cut Off ............... 4 & 7
Accessories ............................8
Brush Roll ...............................9
Brush Roll Belt ...................9-10
Dust Bag ..........................10-11
Hose Blockage ................12-13
Filters ....................................14
HEPA Filter ...........................14
Light Bulb .............................15
Problem Solving ...................16
Warranty ...............................17
Repair Parts List ..............18-27
www.eureka.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Heavy Duty HD4570 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Eureka Heavy Duty HD4570 Series

Summary of Contents for Eureka Heavy Duty HD4570 Series

  • Page 1: Table Of Contents

    Thermal Cut Off ....4 & 7 Accessories ......8 Brush Roll .......9 Brush Roll Belt ....9-10 Dust Bag ......10-11 Hose Blockage ....12-13 Filters ........14 HEPA Filter ......14 Light Bulb ......15 Problem Solving ....16 Warranty .......17 Repair Parts List ....18-27 www.eureka.com...

  • Page 2: Important Safeguards

    IMPORTANT SAFEGUARDS When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS VACUUM CLEANER. WARNING To reduce the risk of fire, electric shock, or injury: • Do not use outdoors or on wet surfaces. •...
  • Page 3 CONSEILS DE SÉCURITÉ Lors de lʼutilisation dʼun appareil électrique, quelques précautions élémentaires doivent être observées, incluant les suivantes: LISEZ TOUTES LES INSTRUCTIONS AVANT DʼUTILISER VOTRE ASPIRATEUR. AVERTISSEMENT Pour réduire le risque de feu, de choc électrique, ou de blessure: • Ne pas utiliser à lʼextérieur ou sur des surfaces mouillées. •...

  • Page 4: Service Information

    The instructions in this booklet serve as a guide to routine maintenance. For additional service information telephone our toll free number for the nearest Eureka Authorized Warranty Station. You should know the model, type and serial numbers when you call:...

  • Page 5: Assembly

    HOW TO ASSEMBLE CAUTION: Moving parts, make sure on/off switch is in off position before plugging in. CAUTION: Assemble the cleaner before using. NOTE: Features may vary by model yet all parts assemble the same. Step A Attach Handle Step B Attach Hose CAUTION: Do not catch cord under handle.
  • Page 6 Step C Check Disposable Dust Bag Step D Store Hose and Accessories Hose Adapter Dusting Brush Upholstery Tool Paper Bag Collar 1. Check to be sure the paper bag collar is secure with Crevice the hose adapter inside the paper bag collar. Tool Carrying Handle...

  • Page 7: Use

    6. After 30 minute cool down period, plug the cleaner in and push weight from front wheels. the power switch on. The cleaner should turn on. 7. If the cleaner still does not operate, take it to any Eureka Authorized Service Center for repair.

  • Page 8: Accessories

    How To Use Accessories Crevice Tool cleans corners, baseboards, between cushions, sliding door tracks. NOTE: Do not place cleaner on furniture or steps as the brush roll may cause damage. Place cleaner on floor with the handle in storage position while using accessories.

  • Page 9: Brush Roll

    HOW TO MAINTAIN The instructions in this booklet serve as a guide to routine maintenance. To avoid unnecessary service calls, check the bag, belt, and brush roll often. Brush Roll The brush roll turns as it sweeps and combs the carpet nap. Remove hair and threads from the brush roll so it continues brushing the carpet.
  • Page 10 When vacuuming carpet fresheners or cleaners, powder, Use GENUINE EUREKA replacement belt, 54312. plaster dust, or similar fine substances, the bag and filters may require more frequent maintenance.
  • Page 11 F. Tuck bag into bottom and along sides. Collar G. Align front cover tabs and close cover. Side Make sure paper bag is not caught under the front cover. We recommend using only Genuine Eureka Standard AA Bags, part number 58236.
  • Page 12 How to Check and Clear Hose Blockages Low suction or poor pickup may be due to a blockage in the vacuum cleaner. 1. Remove hose and check suction at end of hose - if little or no suction, check disposable dust bag. Change if needed. If no improvement proceed to Step 2.
  • Page 13 How to Check and Clear Blockages in Base 1. Remove the attachment hose from the lower hose 2. Remove the hood by loosening the two fasteners retainer and look into the hose retainer for any located on the top of the hood and lifting upward. These obstructions.

  • Page 14: Dust Bag

    To replace HEPA Filter 1. Place bottom tabs of filter into slots. 2. Rotate filter toward cleaner. 3. Push upward on the latch to secure into place. Obtain replacement filters from a local dealer or order them from The Eureka Company, Bloomington, IL.
  • Page 15 How To Change Light Bulb (only for models with a headlight) NOTE: Turn off the power switch and disconnect the electrical cord before changing light bulb. Use 15 watt replacement light bulb, part number 48815.

  • Page 16: Filters

    PROBLEM SOLVING NOTE: Turn off the switch and unplug the electrical cord before servicing. PROBLEM CAUSE SOLUTION Motor will not start. Electric Plug Push plug securely into outlet. ✓ Try another outlet. Check circuit breaker. Motor suddenly stops. Thermal Cut Off Refer to page 7.

  • Page 17: Warranty

    WHAT THE EUREKA COMPANY WILL DO The Eureka Company will, at its option, repair or replace a defective cleaner or cleaner part that is covered by this warranty. As a matter of warranty policy, the Eureka Company will not refund the consumerʼs purchase price.

  • Page 18: Repair Parts List

    REPAIR PARTS LIST HD4570A Eureka Heavy Duty THE EUREKA COMPANY BLOOMINGTON, IL 61701 4/7/04...
  • Page 20 HD4570A 60940 FASTENER - pkg of 10 60249-8 HOOD ASSEMBLY 60941 RETAINER - pkg of 10 58506-3 GASKET 27462E-288N HEIGHT ADJUSTMENT KNOB 38590A REAR AXLE 60939 RECEPTACLE - pkg of 10 60938-7 BASE ASSEMBLY* 54376-2 BELT CAP ASSEMBLY** 57569 GASKET - BELT CAP 15591A-288N FURNITURE GUARD 62352-1...
  • Page 22 HD4570A 58505SV BAG COVER GASKET 39268 LATCH SPRING 28256-288N BAG COVER LATCH 60937-7 BAG COVER ASSEMBLY* 38613 BAG GASKET - BOTTOM 53197-1 SCREW - pkg of 10 60942-7 MOTOR COVER ASSEMBLY** 15407-313N LENS 60068-2 SCREW - pkg of 10 48815 HEADLIGHT 38611-1 LIGHT SOCKET...
  • Page 24 HD4570A 15597-288N GRIP (RH) 02349A-288N SWITCH HOUSING (RH) 39455-1 ROCKER SWITCH 15580 HANDLE 53238-39 SCREW - pkg of 10 59741-316N WIRING SHIELD 15533-366N FRONT HANDLE HOUSING 39585-11 SUPPLY CORD ASSEMBLY 60192-1 WIRE SPLICE - pkg of 5 28011-2 UPPER CORD ASSEMBLY 15596-288N GRIP (LH) 53197-1...
  • Page 26 HD4570A 60920-2 HOSE ASSEMBLY* 28375-119N HOSE ADAPTER 39514A TELESCOPIC WAND ASSEMBLY 58236A DISPOSABLE BAG (style AA FILTERAIRE) - pkg of 3 37057B-3 HOSE COUPLING 27237-3 CREVICE TOOL 38284-3 UPHOLSTERY NOZZLE ASSEMBLY 60290-1 DUSTING BRUSH 39231-2 HOSE STRAP 39152A-333N HOOK PLATE 70124A HARDWARE PACKAGE 74339...
  • Page 28 1 upholstery brush 1 front cover Thank you for selecting a Eureka cleaner. Donʼt Forget to Use Genuine Eureka Bags and Belts Caution: Damages caused by the use of non- genuine Eureka bags are not covered by The Eureka Heavy Duty Limited Warranty.
