Audiotrak Prodigy HD2 User Manual

High-end 192 khz reference hifi audio interface
Hide thumbs
Table of Contents

Advertisement

Quick Links

High-End 192 kHz Reference HiFi Audio Interface
User's Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AUDIOTRAK Prodigy HD2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Audiotrak AUDIOTRAK Prodigy HD2

Summary of Contents for Audiotrak AUDIOTRAK Prodigy HD2

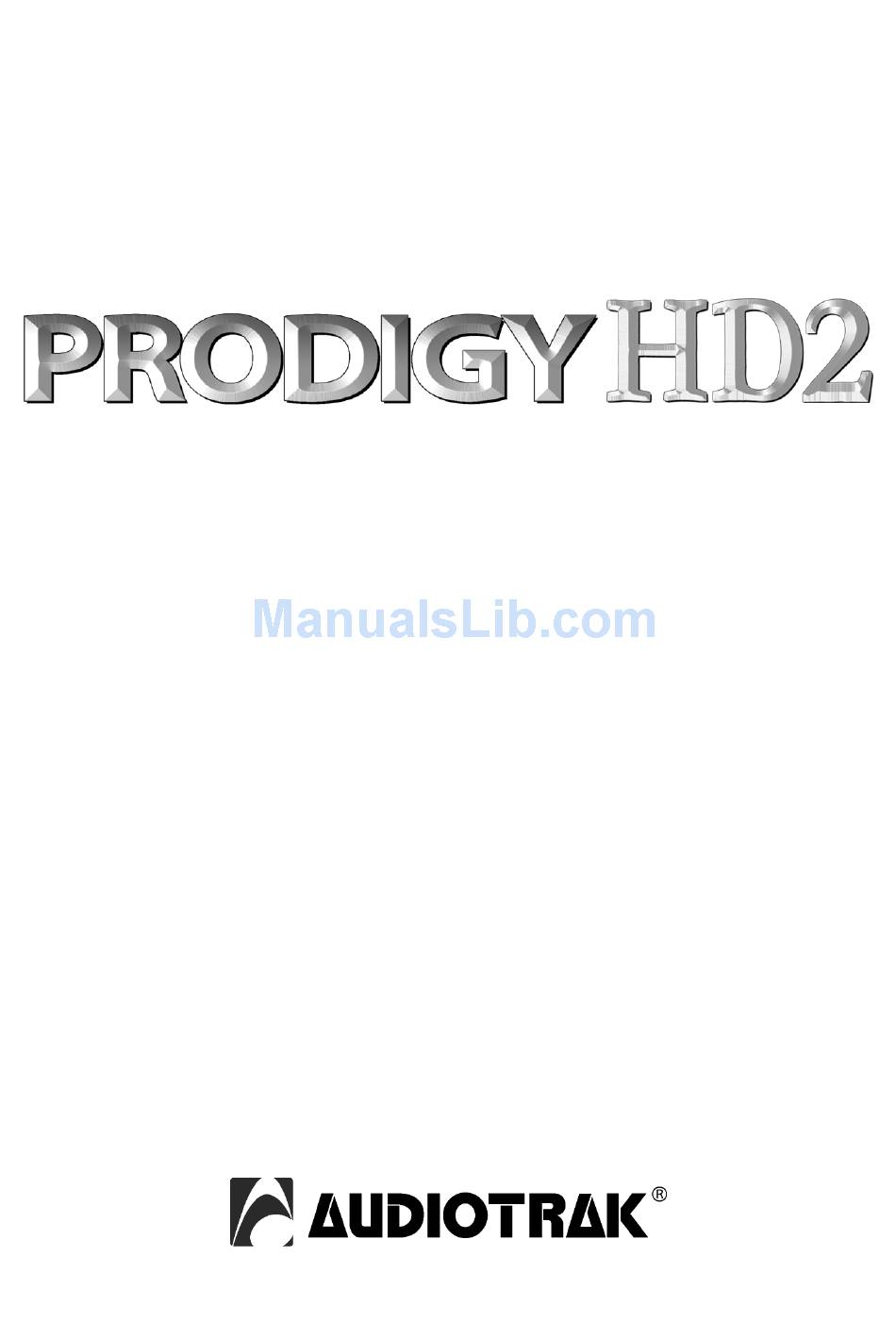

  • Page 1 High-End 192 kHz Reference HiFi Audio Interface User’s Guide...
  • Page 2 AUDIOTRAK - Copyright © 2007 Revision 1, July 2007 www.audiotrak.net...

  • Page 3: Table Of Contents

    AUDIOTRAK Prodigy HD2 INDEX 1. Introduction..........................4 2. System Requirements ........................4 Minimum System Requirements....................4 3. Connectors ............................ 5 4. Hardware Installation ......................... 5 5. Software Installation........................7 6. Prodigy HD2 Control Panel ...................... 10 1. Main / QSound panel ......................11 2.

  • Page 4: Introduction

    AUDIOTRAK Prodigy HD2 1. Introduction Thank you for choosing the AUDIOTRAK Prodigy HD2. Prodigy HD2 shows the latest technology in high end audio playback for audiophile users. The hardware supports 192 kHz at 24-bit with a sensational dynamic range of 120dB(a) for playback - no other hardware in this price range provides this high level of output quality.

  • Page 5: Connectors

    AUDIOTRAK Prodigy HD2 3. Connectors 1) Stereo Line Output (left / right), provides the main output signal via RCA connectors 2) Headphone Output (stereo 1/8") 3) Line In, analog input connector (stereo 1/8"), the main input 4) S/PDIF Digital Output, via Toslink connector 5) internal Aux Input (stereo, 4 pin) 4.
  • Page 6 AUDIOTRAK Prodigy HD2 Figure 1. Disconnecting the Power Cord 2. Refer to your computer user’s manual and remove the computer cover. Make sure that you have an available PCI slot on your motherboard to install the Prodigy HD2. Figure 2. Removing the computer cover To avoid possible static shock damage to the computer parts, discharge it by touching the computer case or something grounded.

  • Page 7: Software Installation

    AUDIOTRAK Prodigy HD2 Figure 4. Removing the PCI Slot faceplate If the PCI slot is covered by a faceplate, you can remove it by removing the screw holding it in place or by prying it off with a screwdriver. Insert the Prodigy HD2 card into the PCI slot, firmly pushing the card into the slot until it is seated securely.
  • Page 8 AUDIOTRAK Prodigy HD2 Note: Please make sure that you have installed a recent version of the chipset drivers and patches provided by your mainboard manufacturer for your mainboard. It is important that this is done before you install the Prodigy HD2 drivers. One way to check this is to see if there are any unknown devices listed in Device Manager before you install the Prodigy HD2 hardware.
  • Page 9 AUDIOTRAK Prodigy HD2 4. After that, follow instructions on screen. Sometimes Windows requests you to reboot the system, if so, please confirm it. Also typically several devices are installed after each other – just keep going until new messages from Windows appear no longer. 5.

  • Page 10: Prodigy Hd2 Control Panel

    AUDIOTRAK Prodigy HD2 You can choose each stereo device or multi channel device for your use as Default device on Sound playback or Sound recording which will be used as default in your audio applications. 6. Prodigy HD2 Control Panel The Prodigy HD2 driver software provides a simple yet powerful interface with your computer.

  • Page 11: Main / Qsound Panel

    AUDIOTRAK Prodigy HD2 The Prodigy HD2 control panel features a menu area for configuration: 1. Main / QSound panel You can control input and output on the MAIN / QSound panel. It is also the default screen you see when you first launch the panel. Basic functions of Prodigy HD2 are controlled from this screen. 1) The QXpander™...

  • Page 12: Qem Panel

    AUDIOTRAK Prodigy HD2 9) S.R: Shows the sampling rate. When you click “AUTO” then the setting changes to “LOCK” for fixed sample rate. The sample rates will be converted during playback when the “LOCK” setting is active. 2. QEM panel QSound Environmental Modeling (QEM™) is an acoustic environment simulation.

  • Page 13: Qsizzle™ Switch

    AUDIOTRAK Prodigy HD2 5. QSizzle™ switch QSizzle™ on/off. 6. QRumble™ switch QRumble™ on/off. 7. Normalizer switch Turns the Normalize function on/off. 8. 3D effect switch QMSS and QXpander, QRumble™ on/off. 9. Equalizer switch Turns the Equalizer function on/off. 10. DirectWIRE panel Clicking this menu will open the DirectWIRE 3.0 screen.

  • Page 14: File Menu

    1. What is DirectWIRE? DirectWIRE is a 100% purely digital wire! DirectWIRE is a driver technology, developed by from pro audio manufacturer ESI, which can be used for routing audio streams internally within applications using EWDM Audio/MIDI drivers, exclusively available for ESI and AUDIOTRAK.

  • Page 15: Directwire Control Panel

    AUDIOTRAK Prodigy HD2 2. DirectWIRE Control Panel Click on DirectWIRE on the Prodigy HD2 control panel. The DirectWIRE panel window as shown below will appear. a) the INPUT column is a new feature of DirectWIRE 3.0. It's used to route signals from the card's hardware inputs.

  • Page 16: Windows Multimedia Setup

    AUDIOTRAK Prodigy HD2 If you set up DirectWIRE like shown, you can record a mix between a microphone signal and music (e.g. MP3) playback from WinAmp. If you want to record/broadcast only the MP3-Playback, disconnect the input lines. 2) internal recording: you can record all WDM playback signals from your PC 3) recording of WDM signals from ASIO input 4) recording ASIO playback in a WDM application 5) recording from GigaStudio (GSIF) to Cubase (ASIO)

  • Page 17: Specifications

    ESI, AUDIOTRAK, Prodigy, and Prodigy HD2 are trademarks of Ego Systems Inc., Gyrocom C&C Co. Ltd., ESI Audiotechnik GmbH and RIDI multimedia GmbH. Windows is a trademark of Microsoft Corporation. Other product and brand names are trademarks or registered trademarks of their respective companies.

  • Page 18: Disclaimer

    AUDIOTRAK Prodigy HD2 Disclaimer All features and specifications subject to change without notice. Parts of this manual are continually being updated. Please check our web site www.audiotrak.net occasionally for the most recent update information.
