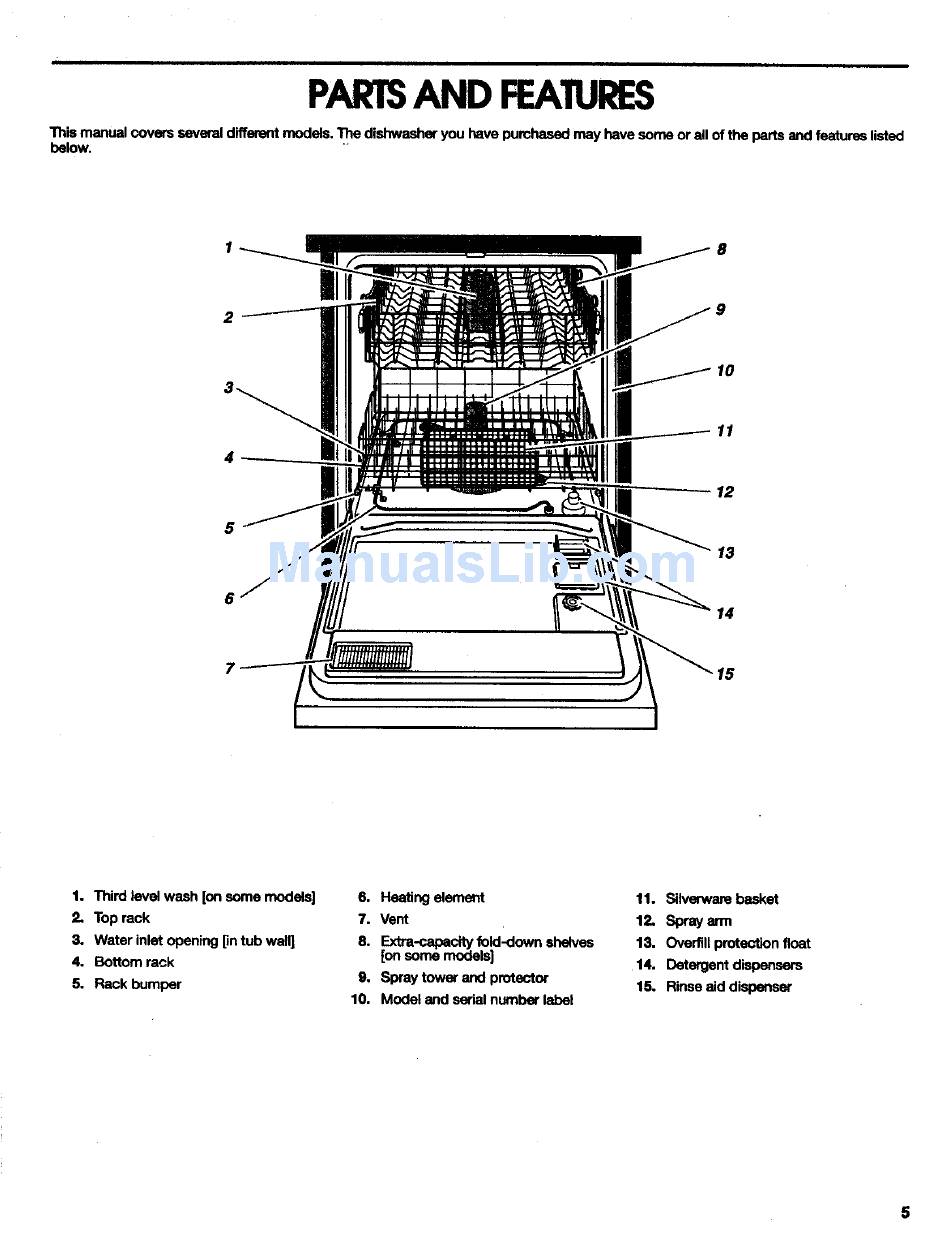

PARTS AND FEAIURES
Thismanualcovers severaldiffererrtmodels._ dishwasheryou have purchasedmay have someor eli of the parts and featureslisted
below.
8
2
9
4
5
11
12
13
6
14
15
1. Third level wash [on some models]
2. Top rack
3. Water inlet opening [in tub wall]
4. BoSom rack
5. Rack bumper
6. Heating elerrlerlt
7. Vent
8. Extra-capacity fold-down shelves
Ionsomem,xleis)
9. Spray tower and protector
10. Model and seriel number label
11. Silverware basket
12. Spray arrn
13. Overfill protection float
14. Detergent dispensers
15. Rinse aid dispenser
