Undercounter Dishwasher
PRODUCT MODEL NUMBERS
RUD1000K
RUD4500M
RUD3000K
RUD5000K
RUD4000M
RUD5750K
Electrical: 120-volt, 60-Hz, AC-only, 15- or
20-amp. electrical supply. Use copper wire only. A
time-delay fuse or circuit breaker and separate
circuit is recommended.
Water: A hot water line with 20-120 psi
(138-862 kPa) water pressure. Water temperature
must be 120°F (49°C) at dishwasher. Use 3/8" O.D.
copper tubing with compression fitting or flexible
stainless steel braided fill line (1/2" minimum plastic
tubing is optional but not recommended). Use a 90°
elbow with 3/8" N.P.T. external pipe threads on one
end to connect to water inlet valve. Do not solder
within 6" (15.2 cm) from water inlet valve.
Drain: Use the new drain hose supplied with your
dishwasher. If this is not suitable, use a new drain
hose with a maximum length of 12 feet (3.7 m)
that meets all current AHAM/IAPMO test
standards, is resistant to heat and detergent, and
fits the drain connector of the dishwasher. Must
have a high drain loop 20 inches (50.8 cm) above
the subfloor or floor. Connect drain hose to waste
tee or disposer inlet above drain trap in house
plumbing and 20 inches (50.8 cm) minimum
above the floor. An air gap must be used if the
drain hose is connected to house plumbing lower
than 20 inches (50.8 cm) above subfloor or floor.
Use 1/2" minimum I.D. drain line fittings.
Corner installation: Allow 2" (5,1 cm)
minimum between corner wall and dishwasher
opening.
Grommet is required for electrical cable or power
supply cord hole cut in a metal cabinet.
Do NOT install dishwasher over carpeted floor.
Accepts custom door panels:
RUD1000K, RUD3000K, RUD4000M
Accepts custom door and access panels:
RUD5000K, RUD5750K
CUSTOM FRONT PANEL DIMENSIONS
7/32"
(5.6 mm)
3/8"
door panel
(9.5 mm)
(side view)
1"
(25.4 mm)
7/32"
(5.6 mm)
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.

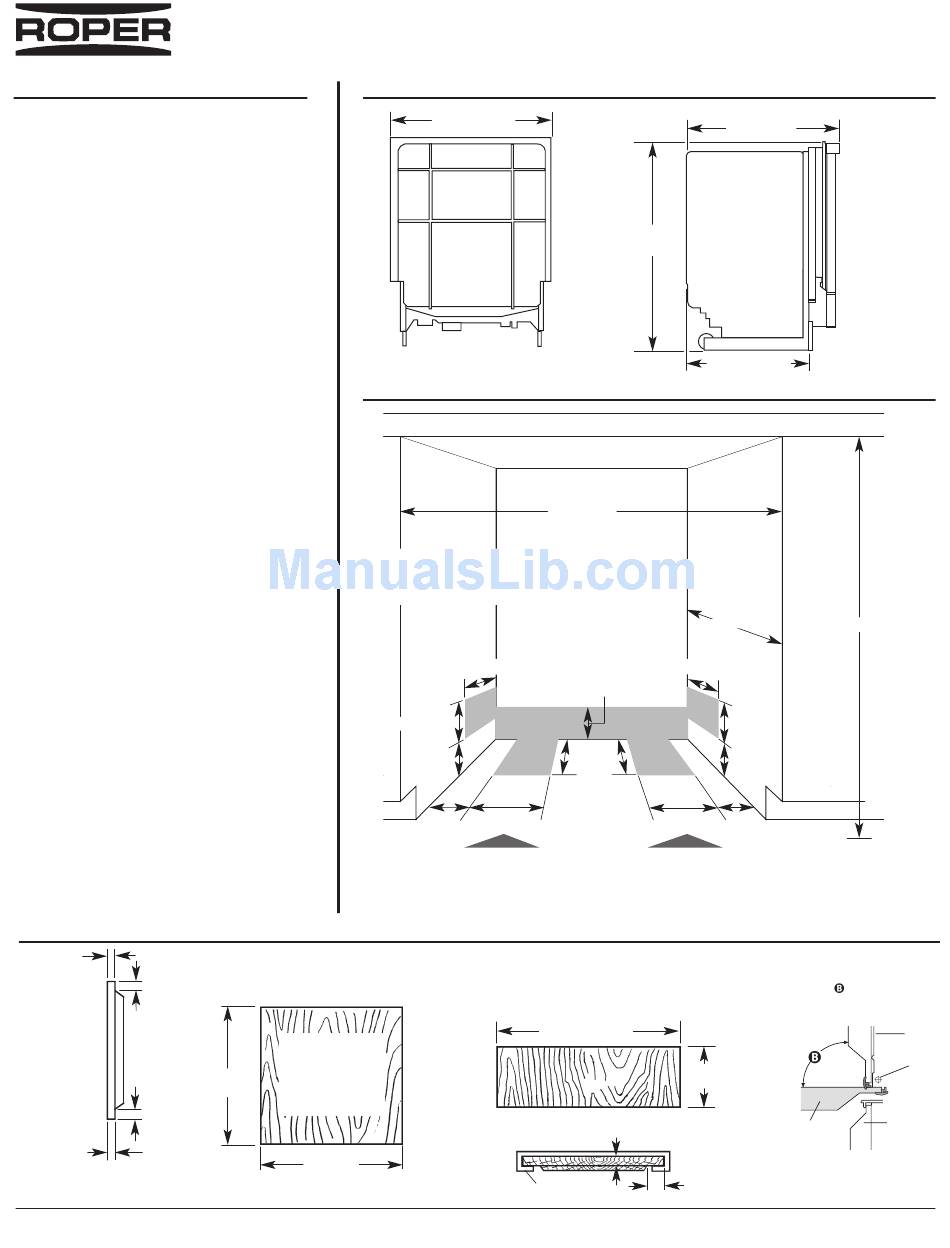

OVERALL DIMENSIONS
CABINET OPENING DIMENSIONS
* Measured from the lowest point
on the underside of countertop.
** Minimum, measured from
narrowest point of opening.
door panel (front view)
Note: Access panel is wider than door panel.
maximum weight is
8 lbs (3.6 kg). Heavy
duty door springs
18 21/32"
required for door
(47.4 cm)
panels weighing more
than 4 lbs (1.8 kg).
22 31/32"
(58.3 cm)
23-7/8" (60.6 cm)
*
24" (61 cm)**
6"(15.2 cm)
4" (10.2 cm)
4" (10.2 cm)
2-1/2"
(25.4 cm
(6.4 cm)
5" (12.7 cm)
2"
(5.1 cm)
Water line should enter through the
left side of opening in shaded areas.
Minimum 1/2" (12,7 mm) hole.
Drain hose should enter through cabinet in shaded areas.
Drain hose size: 1-1/2" (3.8 cm)
access panel (front view)
All edges routed to 7/32" (5.6 mm) thickness.
Note: This panel is wider than the door panel.
23 5/16" (59.2 cm)
7/32" (5.6 mm) thick
(top view)
access panel frame
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
24" (61 cm)
33-7/8"
(86 cm) min.
to front of
door frame
20-3/4" (52.7 cm)
24" (61 cm)
6"(15.2 cm)
4"
(10.2 cm)
10"
2-1/2"
)
(6.4 cm)
2"
5" (12.7 cm)
(5.1 cm)
Power supply line should enter through the right side
of opening in shaded areas.
Power supply line hole-direct wired: 3/4" (1.9 cm)
Power supply line hole-with plug: 1-1/2" (3.8 cm)
4 7/16"
11.3 cm
1/4"
(6.4 mm) min.
*
34" (86.4 cm) min.*
Cut door panel to clear access
panel when door is in open
position
.
side view
door
closed
door
pivot
access
door
panel
opened
Ref. 3385181
03-09-04
