Chapter 3: Mounting

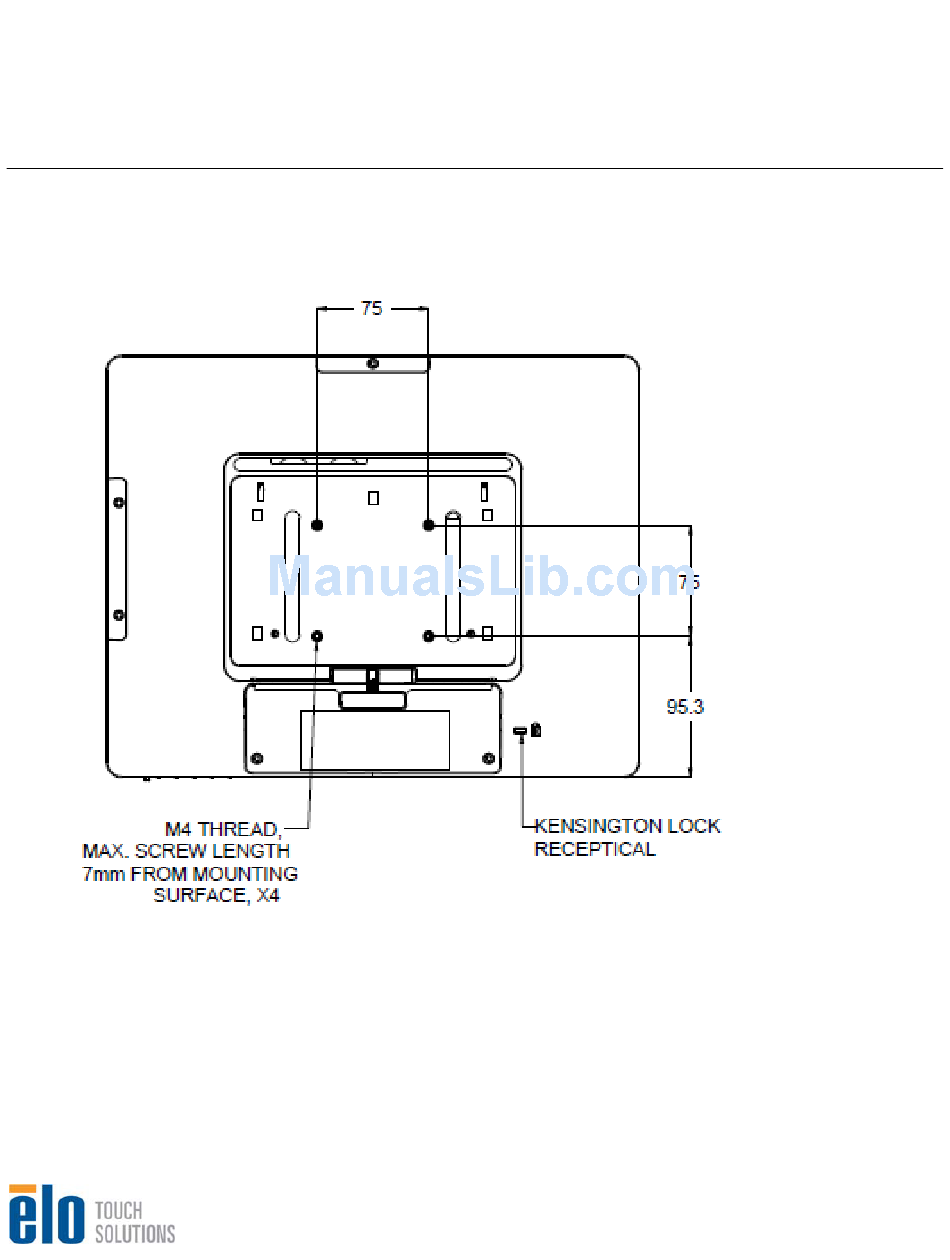

Rear VESA Mount
For the 15-inch touchmonitor, a four-hole 75x75mm mounting pattern for M4 screws is provided
on the rear of the monitor. Remove the stand using a Phillips screwdriver to access this
mounting interface. The VESA FDMI-compliant counting is coded: VESA MIS-B, 75, C.
User Manual: 1523L, 1723L
SW601951 Rev A, Page 11 of 29
