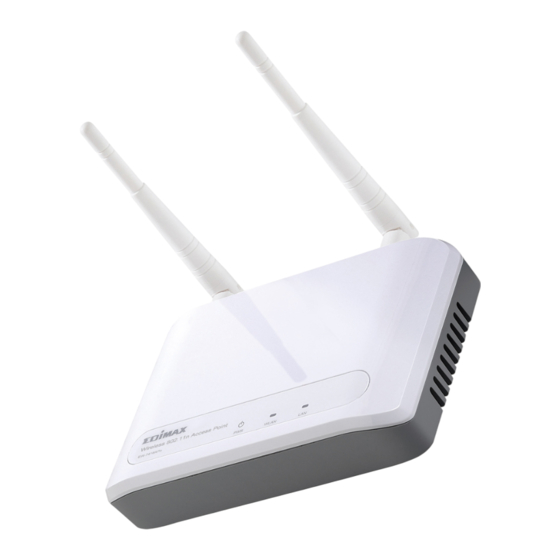

Edimax Access Point Application Manual
Wireless adaptor
Hide thumbs
Also See for Access Point:
- User manual (125 pages) ,
- User manual (57 pages) ,
- User manual (34 pages)
Advertisement
Quick Links
Advertisement
Related Manuals for Edimax Access Point
Summary of Contents for Edimax Access Point
- Page 1 Wireless Adaptor Application Guide...
- Page 2 Before Star up Before applying Edimax Access Point as your Wireless Adaptor for wired devices, please check the following items: 1. You need to have a wireless router connected 2. You need to have a PC (or notebook) for setting 3.
- Page 3 Step by Step settings Step 1: Connect your PC (notebook) with Edimax Access Points by using a RJ-45 cable. (Use 192.168.2.1 as default IP address)
- Page 4 Step by Step settings Step 2: Connected to Edimax Access Points and select System Utility...
- Page 5 Step by Step settings Step 3: Change the IP address to 192.168.2.2...
- Page 6 Step by Step settings Step 4: 1. Select Basic Setting 2. Select “Station Infrastructures” 3. Select Site Survey...
- Page 7 Step by Step settings Step 5 (Part 1 of 2): Select the router which connects to the internet...
- Page 8 Step by Step settings Step 5 (Part 2 of 2): Check if the selected router is correct then click “Apply”...
- Page 9 Step by Step settings Step 6: Connect the Access Point with the device as following diagram...
- Page 10 Benefits Edimax 802.11n Access Point could be your best choice to extend the signal coverage and quality for your XBOX360 or PS3 gaming consoles. Let you enjoy the online gaming without suffering bad wireless signals. Edimax 802.11n Access Point could let your wired devices such as Media adaptors or NAS become wireless device.
