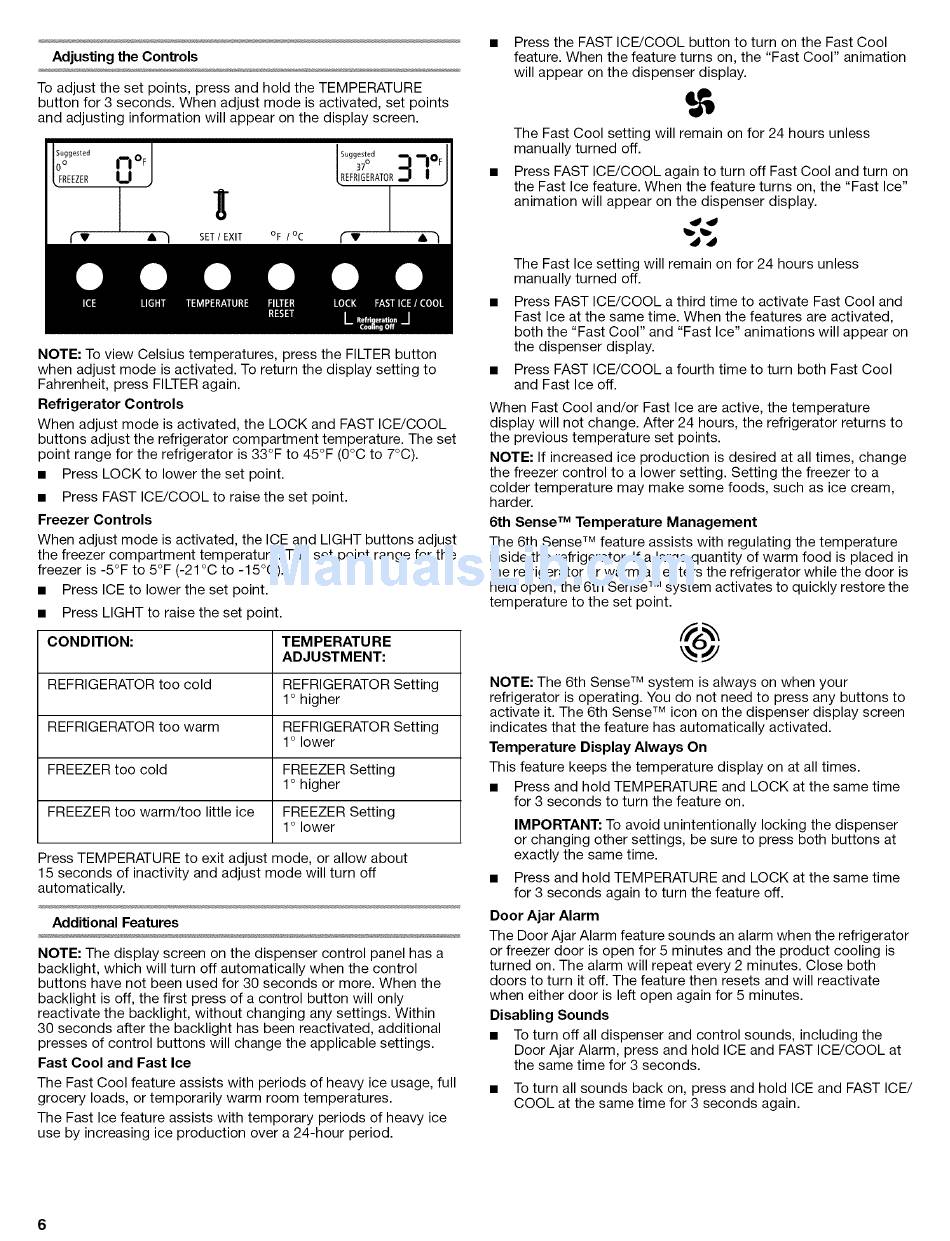

Whirlpool GS6NHAXVA05 User Instructions page 6

Table of Contents

Advertisement

Available languages

Available languages

Adjusting the Controls
To adjust the set points, press and hold the TEMPERATURE
button for 3 seconds. When adjust mode is activated, set points
and adjusting information will appear on the display screen.
Suggested
FREEZER
n
oF
U
I
x
I'- •
A
_
SET I EXIT
°F I °C
[REFRGERATOR
f-
NOTE: To view Celsius temperatures,
press the FILTER button
when adjust mode is activated. To return the display setting to
Fahrenheit, press FILTER again.
Refrigerator
Controls
When adjust mode is activated, the LOCK and FAST ICE/COOL
buttons adjust the refrigerator compartment
temperature. The set
point range for the refrigerator is 33°F to 45°F (0°C to 7°C).
Press LOCK to lower the set point.
Press FAST ICE/COOL to raise the set point.
Freezer Controls
When adjust mode is activated, the ICE and LIGHT buttons adjust
the freezer compartment
temperature. The set point range for the
freezer is -5°F to 5°F (-21 °C to -15°C).
Press ICE to lower the set point.
Press LIGHT to raise the set point.
CONDITION:
TEMPERATURE
ADJUSTMENT:
REFRIGERATOR too cold
REFRIGERATOR Setting
1° higher
REFRIGERATOR too warm
REFRIGERATOR Setting
1° lower
FREEZER too cold
FREEZER Setting
1° higher
FREEZER too warm/too little ice
FREEZER Setting
1° lower
Press TEMPERATURE to exit adjust mode, or allow about
15 seconds of inactivity and adjust mode will turn off
automatically.
Additional Features
NOTE: The display screen on the dispenser control panel has a
backlight, which will turn off automatically when the control
buttons have not been used for 30 seconds or more. When the
backlight is off, the first press of a control button will only
reactivate the backlight, without changing any settings. Within
30 seconds after the backlight has been reactivated, additional
presses of control buttons will change the applicable settings.
Fast Cool and Fast Ice
The Fast Cool feature assists with periods of heavy ice usage, full
grocery loads, or temporarily warm room temperatures.
The Fast Ice feature assists with temporary periods of heavy ice
use by increasing ice production over a 24-hour period.
6
Press the FAST ICE/COOL button to turn on the Fast Cool
feature. When the feature turns on, the "Fast Cool" animation
will appear on the dispenser display.
The Fast Cool setting will remain on for 24 hours unless
manually turned off.
Press FAST ICE/COOL again to turn off Fast Cool and turn on
the Fast Ice feature. When the feature turns on, the "Fast Ice"
animation will appear on the dispenser display.
dd
The Fast Ice setting will remain on for 24 hours unless
manually turned off.
Press FAST ICE/COOL a third time to activate Fast Cool and
Fast Ice at the same time. When the features are activated,
both the "Fast Cool" and "Fast Ice" animations will appear on
the dispenser display.
Press FAST ICE/COOL a fourth time to turn both Fast Cool
and Fast Ice off.
When Fast Cool and/or Fast Ice are active, the temperature
display will not change. After 24 hours, the refrigerator returns to
the previous temperature set points.
NOTE: If increased ice production
is desired at all times, change
the freezer control to a lower setting. Setting the freezer to a
colder temperature
may make some foods, such as ice cream,
harder.
6th Sense
TM
Temperature Management
The 6th Sense
TM
feature assists with regulating the temperature
inside the refrigerator. If a large quantity of warm food is placed in
the refrigerator or warm air enters the refrigerator while the door is
held open, the 6th Sense
TM
system activates to quickly restore the
temperature to the set point.
NOTE: The 6th Sense
TM
system is always on when your
refrigerator is operating. You do not need to press any buttons to
activate it. The 6th Sense
TM
icon on the dispenser display screen
indicates that the feature has automatically
activated.
Temperature
Display Always On
This feature keeps the temperature display on at all times.
Press and hold TEMPERATURE and LOCK at the same time
for 3 seconds to turn the feature on.
IMPORTANT: To avoid unintentionally
locking the dispenser
or changing other settings, be sure to press both buttons at
exactly the same time.
Press and hold TEMPERATURE and LOCK at the same time
for 3 seconds again to turn the feature off.
Door Ajar Alarm
The Door Ajar Alarm feature sounds an alarm when the refrigerator
or freezer door is open for 5 minutes and the product cooling is
turned on. The alarm will repeat every 2 minutes. Close both
doors to turn it off. The feature then resets and will reactivate
when either door is left open again for 5 minutes.
Disabling Sounds
To turn off all dispenser and control sounds, including the
Door Ajar Alarm, press and hold ICE and FAST ICE/COOL at
the same time for 3 seconds.
To turn all sounds back on, press and hold ICE and FAST ICE/
COOL at the same time for 3 seconds again.
