Summary of Contents for Whirlpool GS6NHAXVQ - 25 Cubic Foot Qualified Refrige
- Page 1 CABINET PARTS REFRIGERATOR For Models: GS6NHAXVQ00, GS6NHAXVB00, GS6NHAXVT00, GS6NHAXVS00, GS6NHAXVA00, GS6NHAXVY00, GS6NHAXVK00 (White) (Black) (Biscuit) (Black/Stainless) (Monochromatic (Monochromatic (Stainless) Satina) Stainless) Part No. W10204189 Rev. B 9−09 Printed In U.S.A. (jdc)(bay)
-
Page 2: Cabinet Parts

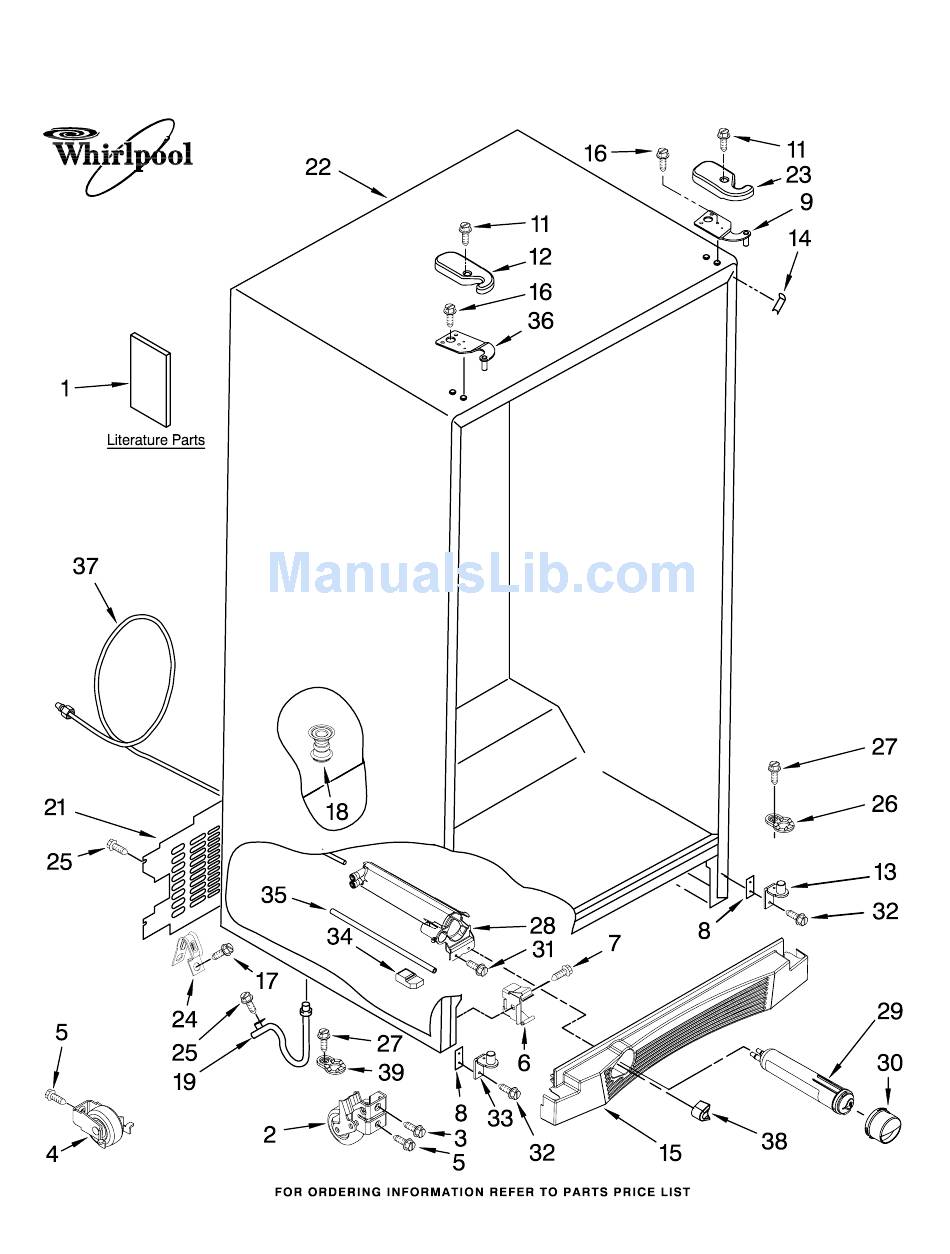

CABINET PARTS For Models: GS6NHAXVQ00, GS6NHAXVB00, GS6NHAXVT00, GS6NHAXVS00, GS6NHAXVA00, GS6NHAXVY00, GS6NHAXVK00 (White) (Black) (Biscuit) (Black/Stainless) (Monochromatic (Monochromatic (Stainless) Satina) Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Filler, Wrapper 489483 Screw Literature Parts 2304846 White 2260507 Housing, Water Filter W10194138 Energy Guide 2304848 Black 4396841 Water Filter... -
Page 3: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: GS6NHAXVQ00, GS6NHAXVB00, GS6NHAXVT00, GS6NHAXVS00, GS6NHAXVA00, GS6NHAXVY00, GS6NHAXVK00 (White) (Black) (Biscuit) (Black/Stainless) (Monochromatic (Monochromatic (Stainless) Satina) Stainless) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2 W10175967 Escutcheon, Meat Pan Control 2182757 Slide Meat Pan Control 2257741 Louver 1118894 Switch, Rocker Arm... -
Page 4: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Models: GS6NHAXVQ00, GS6NHAXVB00, GS6NHAXVT00, GS6NHAXVS00, GS6NHAXVA00, GS6NHAXVY00, GS6NHAXVK00 (White) (Black) (Biscuit) (Black/Stainless) (Monochromatic (Monochromatic (Stainless) Satina) Stainless) Illus. Part DESCRIPTION 2223517 Frame Assembly (2) 2223261 Snack Bin Asm 2223307 Cover, Crisper (Includes 11 & 12) 2196485 Stud Assembly 3400894 Screw 2223714 Glass, Meat Cover 2223591 Glass, Cover... -
Page 5: Freezer Liner Parts
FREEZER LINER PARTS For Models: GS6NHAXVQ00, GS6NHAXVB00, GS6NHAXVT00, GS6NHAXVS00, GS6NHAXVA00, GS6NHAXVY00, GS6NHAXVK00 (White) (Black) (Biscuit) (Black/Stainless) (Monochromatic (Monochromatic (Stainless) Satina) Stainless) W10204189... - Page 6 FREEZER LINER PARTS For Models: GS6NHAXVQ00, GS6NHAXVB00, GS6NHAXVT00, GS6NHAXVS00, GS6NHAXVA00, GS6NHAXVY00, GS6NHAXVK00 (White) (Black) (Biscuit) (Black/Stainless) (Monochromatic (Monochromatic (Stainless) Satina) Stainless) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 2211746K Shelf, Slide Out 2301190 Basket, Tall 3400893 Screw 2195905K Trim, Basket Shelf Track 2301289 Right Side 2301290 Left Side...
-
Page 7: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Models: GS6NHAXVQ00, GS6NHAXVB00, GS6NHAXVT00, GS6NHAXVS00, GS6NHAXVA00, GS6NHAXVY00, GS6NHAXVK00 (White) (Black) (Biscuit) (Black/Stainless) (Monochromatic (Monochromatic (Stainless) Satina) Stainless) W10204189... - Page 8 MOTOR AND ICE CONTAINER PARTS For Models: GS6NHAXVQ00, GS6NHAXVB00, GS6NHAXVT00, GS6NHAXVS00, GS6NHAXVA00, GS6NHAXVY00, GS6NHAXVK00 (White) (Black) (Biscuit) (Black/Stainless) (Monochromatic (Monochromatic (Stainless) Satina) Stainless) Illus. Part DESCRIPTION 1 W10188746 Ice Bin 2 W10174543 Crusher Bin 3 W10140642 Auger 2258220 Washer, Auger 1119007 Spacer, Flat (4) 6 W10139321 Cover, Crusher 2257024 Blade, Rotary...
-
Page 9: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: GS6NHAXVQ00, GS6NHAXVB00, GS6NHAXVT00, GS6NHAXVS00, GS6NHAXVA00, GS6NHAXVY00, GS6NHAXVK00 (White) (Black) (Biscuit) (Black/Stainless) (Monochromatic (Monochromatic (Stainless) Satina) Stainless) W10204189... - Page 10 REFRIGERATOR DOOR PARTS For Models: GS6NHAXVQ00, GS6NHAXVB00, GS6NHAXVT00, GS6NHAXVS00, GS6NHAXVA00, GS6NHAXVY00, GS6NHAXVK00 (White) (Black) (Biscuit) (Black/Stainless) (Monochromatic (Monochromatic (Stainless) Satina) Stainless) Illus. Part DESCRIPTION Refrigerator Door (Includes Item #6) W10167185 White W10167186 Black W10169212 Biscuit W10167187 Stainless W10169214 Mono Satina W10169213 Mono Stainless 2255421 Dairy Door 2223464K Mat, Bin (2)
-
Page 11: Freezer Door Parts
FREEZER DOOR PARTS For Models: GS6NHAXVQ00, GS6NHAXVB00, GS6NHAXVT00, GS6NHAXVS00, GS6NHAXVA00, GS6NHAXVY00, GS6NHAXVK00 (White) (Black) (Biscuit) (Black/Stainless) (Monochromatic (Monochromatic (Stainless) Satina) Stainless) W10204189... - Page 12 FREEZER DOOR PARTS For Models: GS6NHAXVQ00, GS6NHAXVB00, GS6NHAXVT00, GS6NHAXVS00, GS6NHAXVA00, GS6NHAXVY00, GS6NHAXVK00 (White) (Black) (Biscuit) (Black/Stainless) (Monochromatic (Monochromatic (Stainless) Satina) Stainless) Illus. Part DESCRIPTION Freezer Door (Includes #5 W10151313 White W10151315 Black W10151314 Biscuit W10151318 Stainless W10151317 Mono Satina W10151319 Mono Stainless Handle W10210942 White W10210943 Black...
-
Page 13: Dispenser Front Parts
DISPENSER FRONT PARTS For Models: GS6NHAXVQ00, GS6NHAXVB00, GS6NHAXVT00, GS6NHAXVS00, GS6NHAXVA00, GS6NHAXVY00, GS6NHAXVK00 (White) (Black) (Biscuit) (Black/Stainless) (Monochromatic (Monochromatic (Stainless) Satina) Stainless) W10204189... - Page 14 DISPENSER FRONT PARTS For Models: GS6NHAXVQ00, GS6NHAXVB00, GS6NHAXVT00, GS6NHAXVS00, GS6NHAXVA00, GS6NHAXVY00, GS6NHAXVK00 (White) (Black) (Biscuit) (Black/Stainless) (Monochromatic (Monochromatic (Stainless) Satina) Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Housing, Dispenser 2223877 Latch 20 W10143528 LED Assembly (Not Serviced) 14 W10127842 Barrier, Front Cover, 8281163 Screw (4)
-
Page 15: Unit Parts
UNIT PARTS For Models: GS6NHAXVQ00, GS6NHAXVB00, GS6NHAXVT00, GS6NHAXVS00, GS6NHAXVA00, GS6NHAXVY00, GS6NHAXVK00 (White) (Black) (Biscuit) (Black/Stainless) (Monochromatic (Monochromatic (Stainless) Satina) Stainless) W10204189... - Page 16 UNIT PARTS For Models: GS6NHAXVQ00, GS6NHAXVB00, GS6NHAXVT00, GS6NHAXVS00, GS6NHAXVA00, GS6NHAXVY00, GS6NHAXVK00 (White) (Black) (Biscuit) (Black/Stainless) (Monochromatic (Monochromatic (Stainless) Satina) Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2169104 Insulation, Sound 2310441 Harness, Unit Following Parts Not Illustrated 12825802 Fan, Blade Drier and Optional Parts Not Included 2324712 Condenser Assembly...
-
