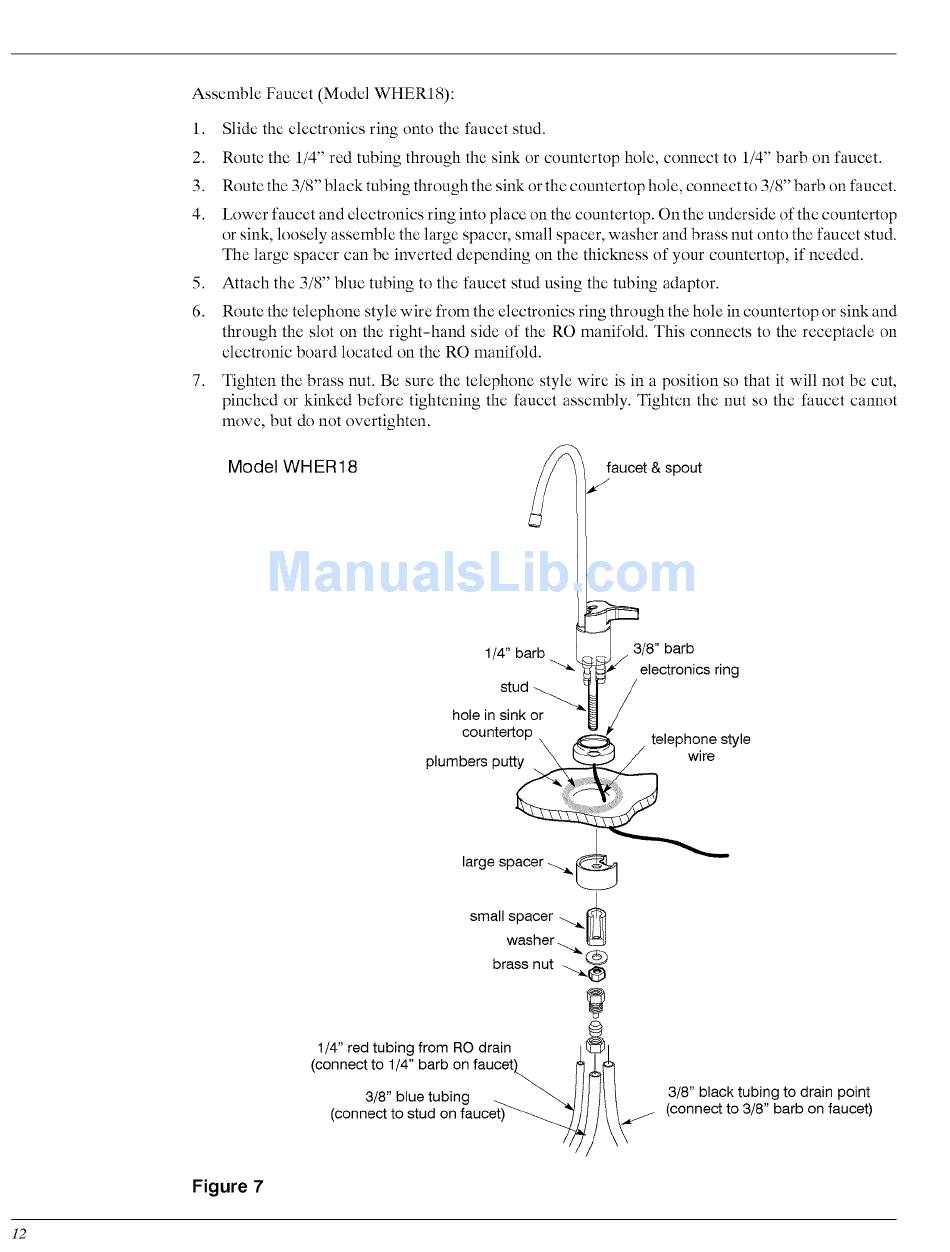

Assemble Faucet (Model WHER18):
1.
Slide the electronics
ring onto the faucet stud.
2.
Route the 1/4" red tubing through the sink or countertop
hole, connect to 1/4" barb on faucet.
3.
Route the 3/8" black tubing through the sink or the countertop hole, connect to 3/8" barb on faucet.
4.
Lower faucet and electronics ring into place on the countertop. On the underside of the countertop
or sink, loosely assemble the large spacer, small spacer, washer and brass nut onto the faucet stud.
The large spacer can be inverted depending
on the thickness of your countertop,
if needed.
5.
Attach the 3/8" blue tubing to the faucet stud using the tubing adaptor.
6.
Route the telephone style wire from the electronics ring through the hole in countertop or sink and
through the slot on the right-hand
side of the Re manifold. This connects
to the receptacle
on
electronic
board located on the Re manifold.
7.
Tighten the brass nut. Be sure the telephone style wire is in a position so that it will not be cut,
pinched or kinked before tightening
the faucet assembly. Tighten the nut so the faucet cannot
move, but do not overtighten.
Model WHER18
faucet & spout
1/4" barb _
stud
hole in sink or
countertop
plumbers putty
3/8" barb
electronics ring
telephone style
wire
Figure 7
large spacer
small spacer -....._
washer _
brass nut -._(_
1/4" red tubing from RO drain_@
I
(connect to t/4" barb on faucet
3/8" blue
tubing
_
(connect to stud on faucet) _._/
_
3/8" black tubing to drain point
(connect to 3/8" barb on faucet)
12
