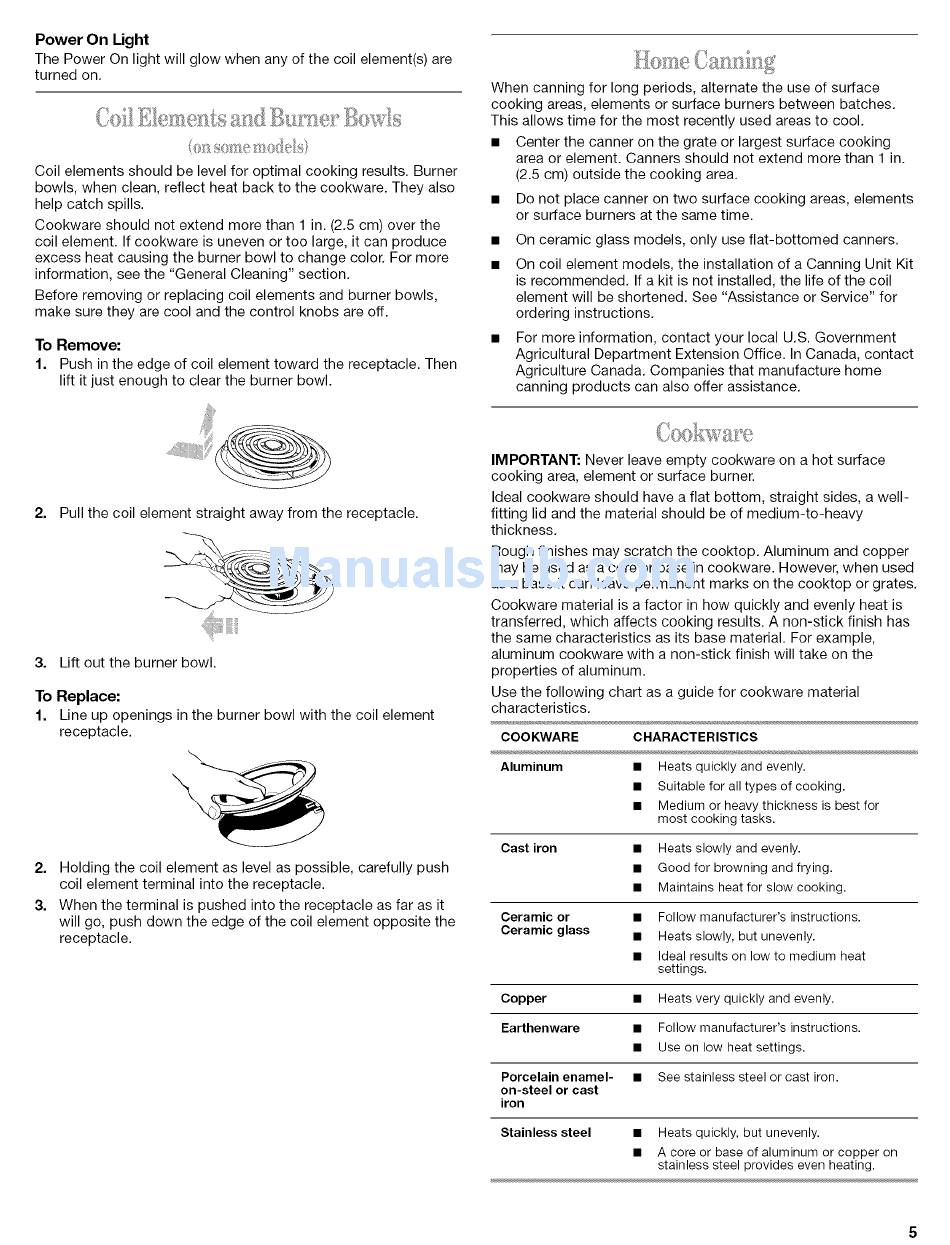

Whirlpool RCS2002 Use & Care Manual page 5

Power On Light
The Power On light will glow when any of the coil element(s) are
turned on.
Coil elements should be level for optimal cooking results. Burner
bowls, when clean, reflect heat back to the cookware. They also
help catch spills.
Cookware should not extend more than 1 in. (2.5 cm) over the
coil element. If cookware is uneven or too large, it can produce
excess heat causing the burner bowl to change color. For more
information, see the "General Cleaning" section.
Before removing or replacing coil elements and burner bowls,
make sure they are cool and the control knobs are off.
To Remove:
1. Push in the edge of coil element toward the receptacle. Then
lift it just enough to clear the burner bowl.
When canning for long periods, alternate the use of surface
cooking areas, elements or surface burners between batches.
This allows time for the most recently used areas to cool.
• Center the canner on the grate or largest surface cooking
area or element. Canners should not extend more than 1 in.
(2.5 cm) outside the cooking area.
• Do not place canner on two surface cooking areas, elements
or surface burners at the same time.
• On ceramic glass models, only use flat-bottomed canners.
On coil element models, the installation of a Canning Unit Kit
is recommended. If a kit is not installed, the life of the coil
element will be shortened. See "Assistance or Service" for
ordering instructions.
For more information, contact your local U.S. Government
Agricultural Department Extension Office. In Canada, contact
Agriculture Canada. Companies that manufacture home
canning products can also offer assistance.
2. Pull the coil element straight away from the receptacle.
%
_iii!iiiiiiiii ilililiiiiii _i_iii
3. Lift out the burner bowl.
To Replace:
1. Line up openings in the burner bowl with the coil element
receptacle.
\
2. Holding the coil element as level as possible, carefully push
coil element terminal into the receptacle.
3. When the terminal is pushed into the receptacle as far as it
will go, push down the edge of the coil element opposite the
receptacle.
IMPORTANT: Never leave empty cookware on a hot surface
cooking area, element or surface burner.
Ideal cookware should have a flat bottom, straight sides, a well-
fitting lid and the material should be of medium-to-heavy
thickness.
Rough finishes may scratch the cooktop. Aluminum and copper
may be used as a core or base in cookware. However, when used
as a base it can leave permanent marks on the cooktop or grates.
Cookware material is a factor in how quickly and evenly heat is
transferred, which affects cooking results. A non-stick finish has
the same characteristics as its base material. For example,
aluminum cookware with a non-stick finish will take on the
properties of aluminum.
Use the following chart as a guide for cookware material
characteristics.
COOKWARE CHARACTERISTICS
Aluminum • Heats quickly and evenly.
• Suitable for all types of cooking.
• Medium or heavy thickness is best for
most cooking tasks.
Cast iron • Heats slowly and evenly.
• Good for browning and frying.
• Maintains heat for slow cooking.
Ceramic or • Follow manufacturer's instructions.
Ceramic glass • Heats slowly, but unevenly.
• Ideal results on low to medium heat
settings.
Copper • Heats very quickly and evenly.
Earthenware • Follow manufacturer's instructions.
• Use on low heat settings.
• See stainless steel or cast iron. Porcelain enamel-
on-steel or cast
iron
Stainless steel • Heats quickly, but unevenly.
• A core or base of aluminum or copper on
stainless steel provides even heating.
