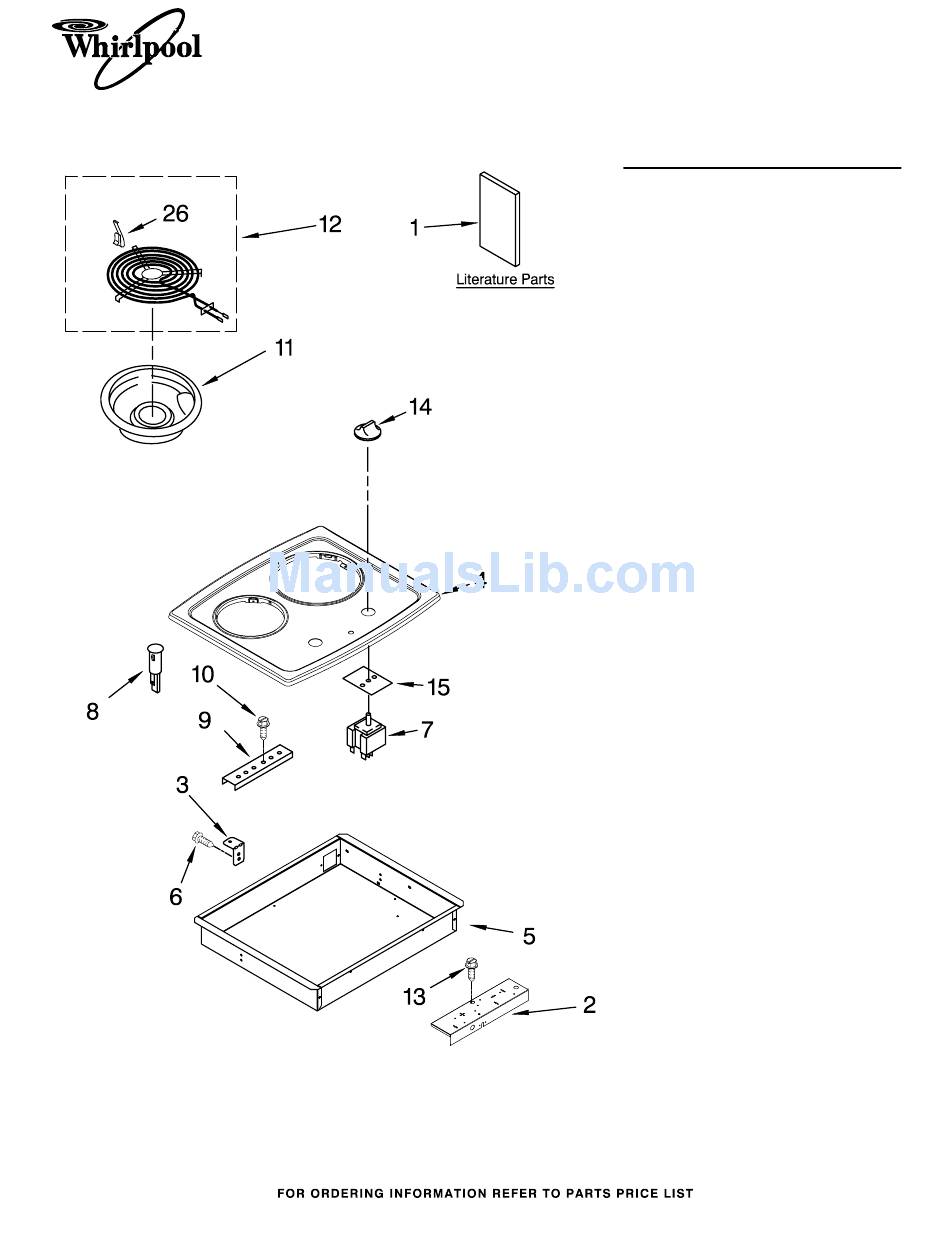

COOKTOP PARTS
For Models:RCS2002RS02
(Stainless Steel)
1
Illus.
Part
No.
No.
DESCRIPTION
1
LITERATURE PARTS
8286310 Installation
Instructions
8286613 Use & Care Guide
3191638 Safer Cooking Tips
9759133 Safer Cooking Tips
2
8286443 Bracket, Switch
Mounting
3
3192454 Bracket, Mounting
4
Cooktop
8286389LM Stainless Steel
5 W10005700 Burner Box
6
3196537 Screw
7
Switch Infinite
3191475 Use W/8" Element
(Yellow Shaft)
3191472 Use W/6" Element
(Blue Shaft)
8
3192213 Light, Indicator
9
4455917 Bracket, Mounting
10
3400093 Screw
11
Pan, Surface Unit
3195208 6"
3195209 8"
12
Element, Surface
3191460 6"
3191459 8"
13
3400855 Screw
14
8286043BL Knob, Control (2)
15
3183956 Seal, Switch
Shaft (2)
26
3195917 Clip, Element
Part No. 8186653
20"ELECTRIC
BUILT−IN
COOKTOP
