If the Garmin16-HVS is to be connected to a computer for setups, an RJ45 to
DB9 adapter is needed.

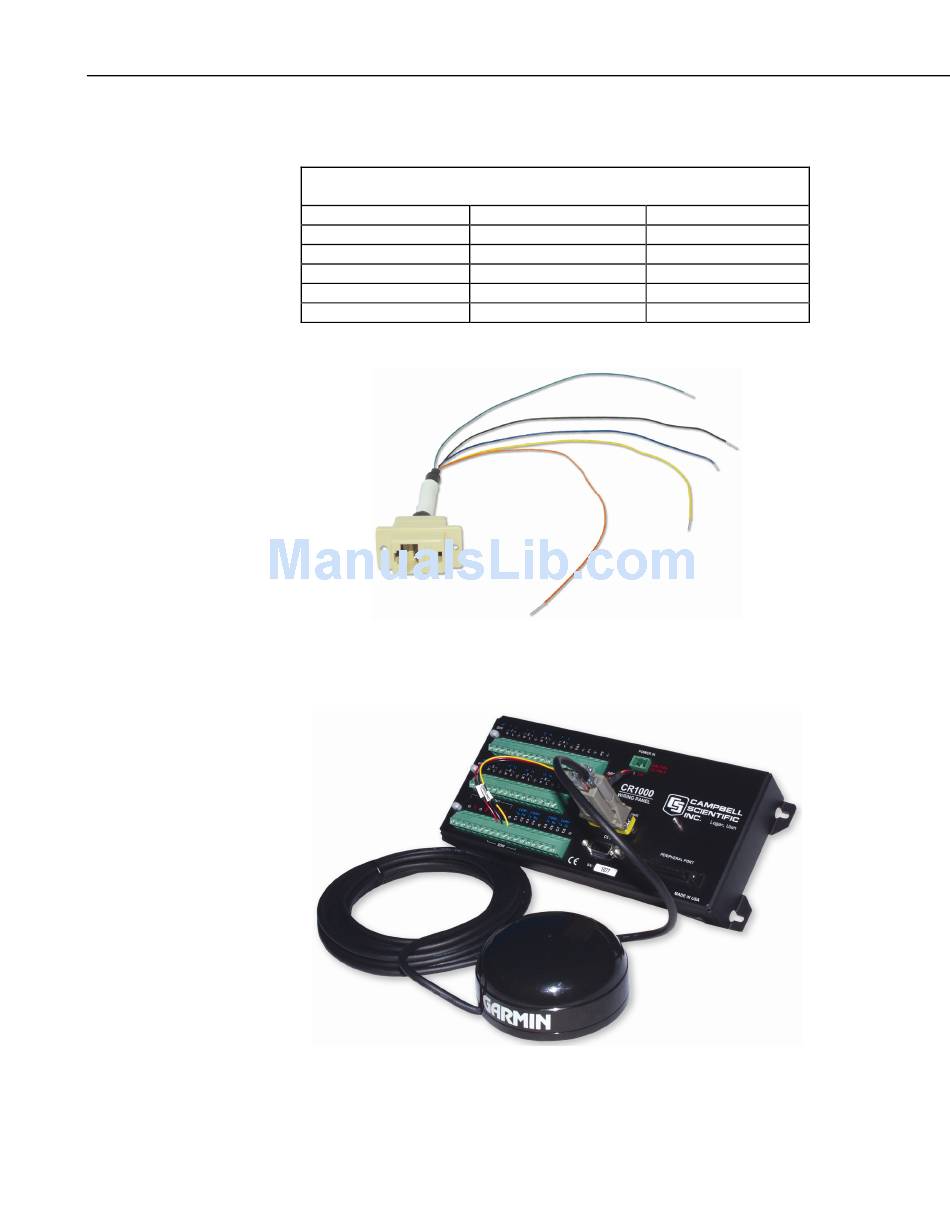

TABLE 2-1. Wiring the RJ45 Connector with Flying Leads
GPS-Garmin16-HVS Datalogger Connection
Blue 12 volts
Orange Ground
Black Ground
Green Data in
Yellow None
FIGURE 2. RJ45 with Flying Leads, Part Number 17217
FIGURE 3. CR1000 to GPS16-HVS Using the 17218 Adapter
Function
Power
Power Ground
Remote on/off
RS232 TX out of GPS
1 Pulse Per Second
