Section 1 - FAMILIARIZATION
PARK
BRAKE
LEVER
CUTTING HEIGHT
SEAT
ADJUSTMENT
KNOB
SPEED
CONTROL
LEVER
BATTERY
(UNDER SEAT)
OVERRIDE
LEVER
BLADE
ENGAGEMENT
LEVER
DISCHARGE
DEFLECTOR
MOWING DECK
(33" SHOWN)
CONTROL PANEL
"**÷÷
OPERATOR'S
SEAT
SLOW
*°°..,÷÷
°*°_.
"*,Oo.
°°_°°o
°°'°*_,,°°,,..
STEERING
WHEEL
KEY
CONTROL
DASHBOARD
CONTROLS
FUEL TANK
(UNDER HOOD)
HOOD
H EADLIGHTS
ENGINE

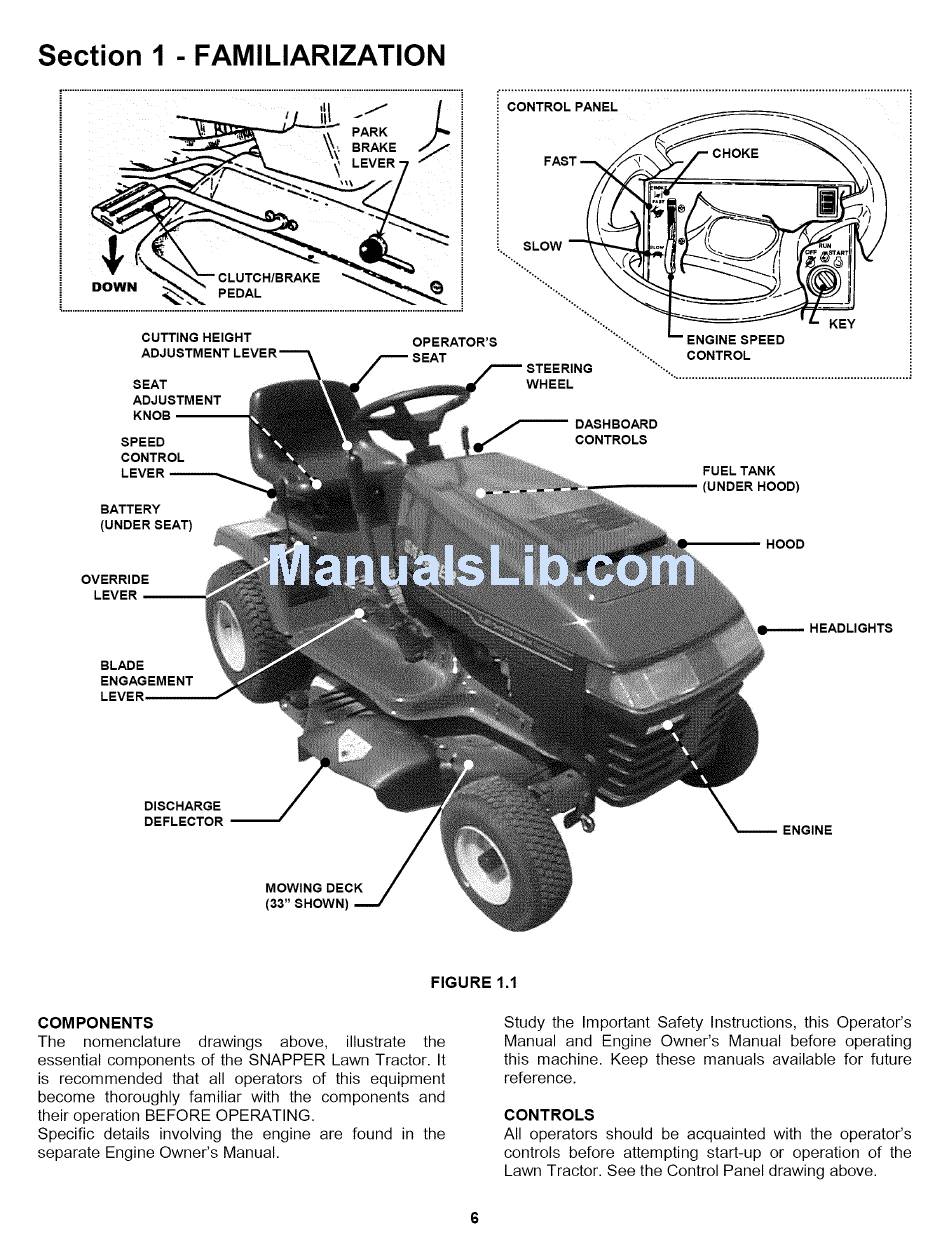

FIGURE 1.1
COMPONENTS
The nomenclature drawings above, illustrate the
essential components of the SNAPPER Lawn Tractor. It
is recommended that all operators of this equipment
become thoroughly familiar with the components and
their operation BEFORE OPERATING.
Specific details involving the engine are found in the
separate Engine Owner's Manual.
Study the Important Safety Instructions, this Operator's
Manual and Engine Owner's Manual before operating
this machine. Keep these manuals available for future
reference.
CONTROLS
All operators should be acquainted with the operator's
controls before attempting start-up or operation of the
Lawn Tractor. See the Control Panel drawing above.
