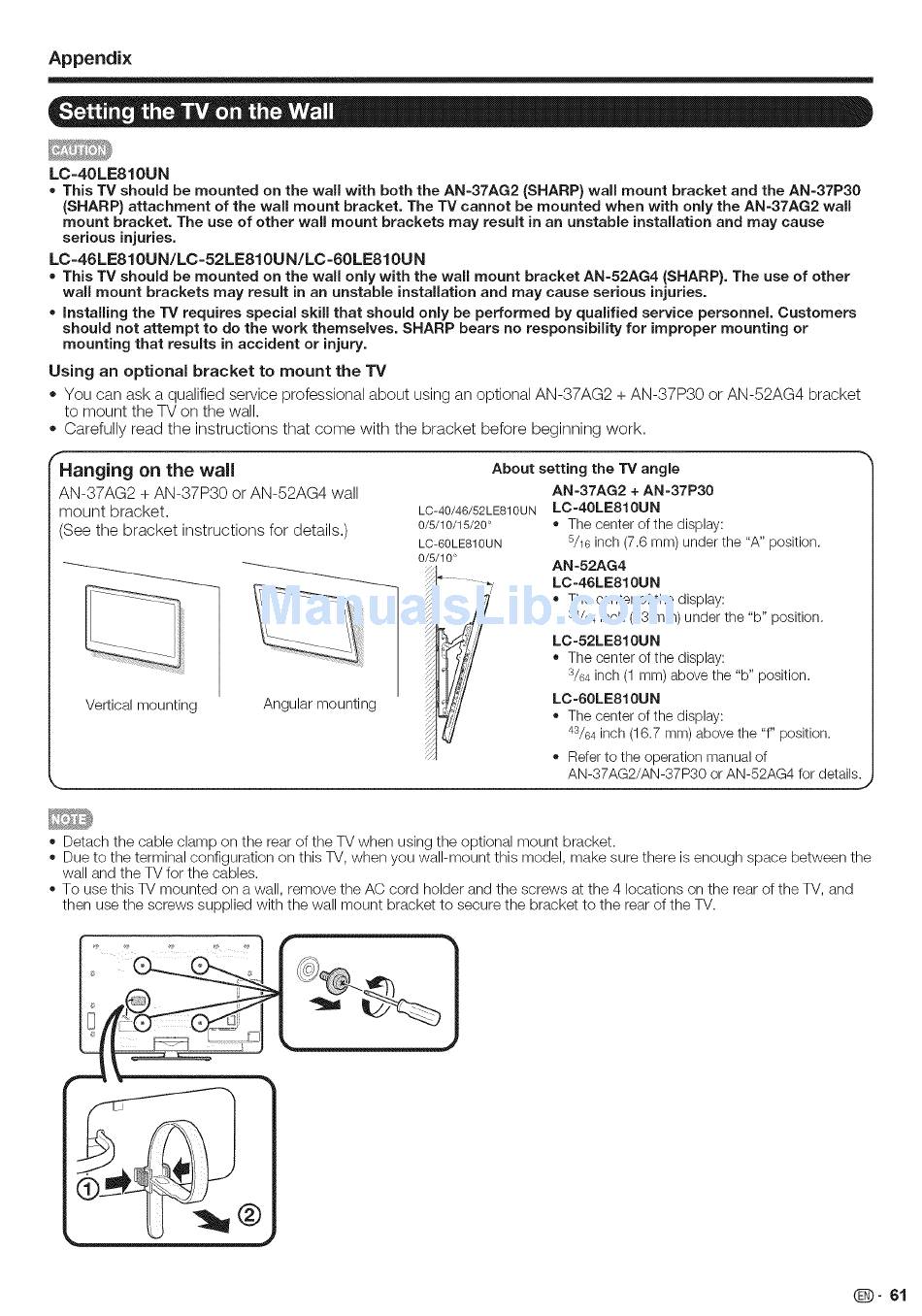

Appendix
LC=40LE810UN
This TV should be mounted on the wall with both the AN-37AG2 (SHARP} wall mount bracket and the AN-37P30
(SHARP} attachment of the wall mount bracket. The TV cannot be mounted when with only the AN-37AG2 wall
mount bracket. The use of other wall mount brackets may result in an unstable installation and may cause
serious injuries.
LC=46LE810UN/LC=52LE810UN/LC=60LE810UN
This TV should be mounted on the wall only with the wall mount bracket AN-52AG4 (SHARP}. The use of other
wall mount brackets may result in an unstable installation and may cause serious injuries.
Installing the TV requires special skill that should only be performed by qualified service personnel. Customers
should not attempt to do the work themselves. SHARP bears no responsibility for improper mounting or
mounting that results in accident or injury.
Using an optional bracket to mount the "iV
• You can ask a qualified service professional about using an optional AN-37AG2 + AN-37P30 or AN-52AG4 bracket
to mount the TV on the wall.
Carefully read the instructions that come with the bracket before beginning work.
f
Hanging on the wall
AN-37AG2 + AN-37P30 or AN-52AG4 wall
mount bracket.
(See the bracket instructions for details.)
Vertical mounting
Angular mounting
About setting the TV angle
AN-37AG2 + AN-37P30
LC-40/46/52LE810UN LC-40LE810UN
0/5/10/15/20 °
LC-60LE810UN
0/5/10 °
• The center of the display:
5/16inch (7.6 mm) under the "A" position.
AN-52AG4
LC-46LE810UN
,, The center of the display:
ss/64 inch (13 mm) under the "b" position.
LC-52LE810UN
• The center of the display:
s/64 inch (1 ram) above the "b" position.
LC-60LE810UN
• The center of the display:
4s/64 inch (16.7 mm) above the "f" position.
,, Refer to the operation manual of
AN-37AG2/AN-37P30 or AN-52AG4 for details.
J
Detach the cable clamp on the rear of the TV when using the optional mount bracket.
Due to the terminal configuration on this TV, when you wall-mount this model, make sure there is enough space between the
wall and the TV for the cables.
To use this TV mounted on a wall, remove the AC cord holder and the screws at the 4 locations on the rear of the TV, and
then use the screws supplied with the wall mount bracket to secure the bracket to the rear of the TV.
Q- 61
