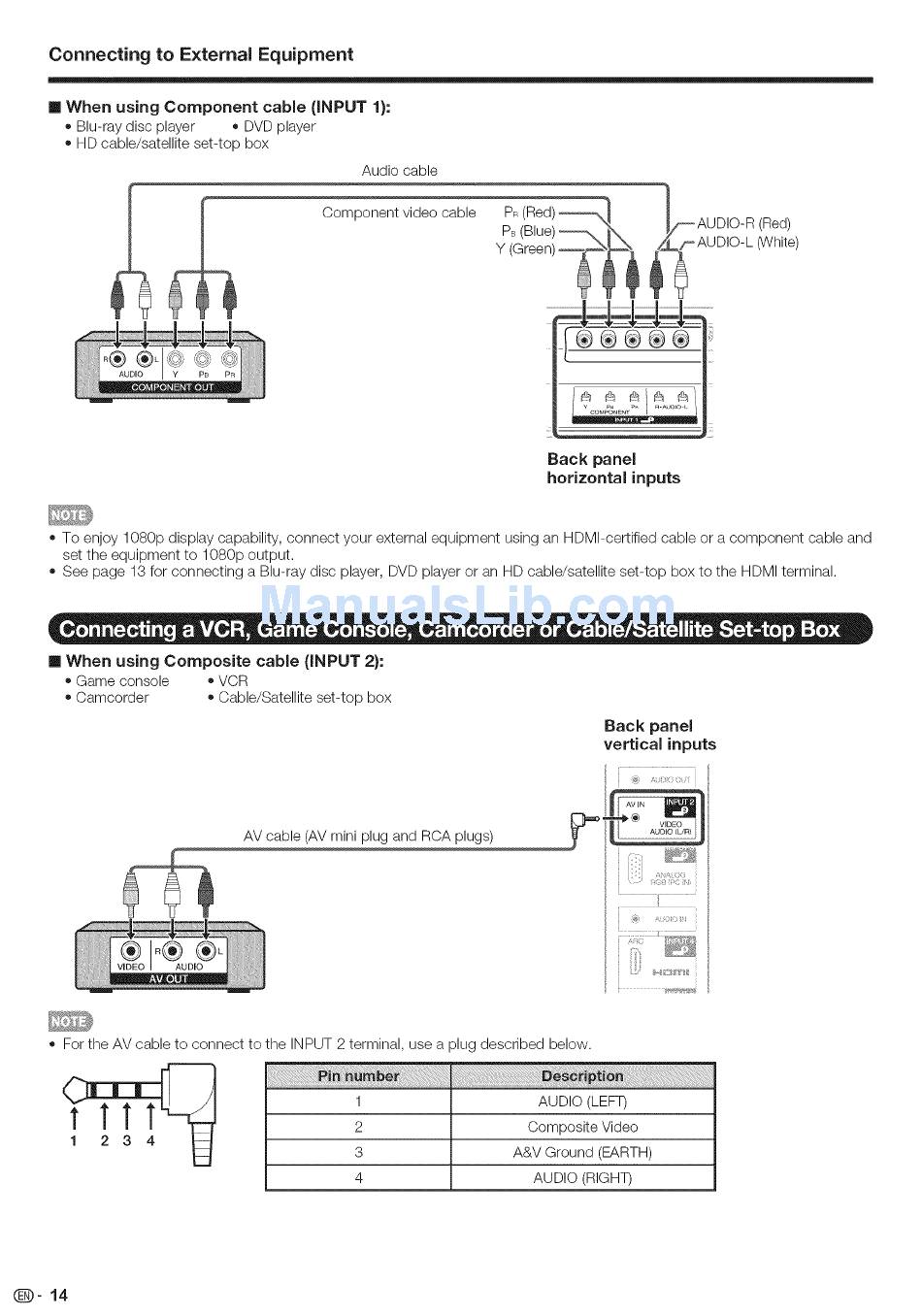

Connecting to E×ternal Equipment
[] When using Component cable (iNPUT 1}:
BID-ray disc player • DVD player
HD cable/satellite set-top box
Audio cable
Component video cable
AUDIO-R (Red)
AUDIO-L (White)
Back panel
horizontal inputs
To enjoy 1080p display capability, connect your external equipment using an HDMI-certified cable or a component cable and
set the equipment to 1080p output.
See page 13 for connecting a BID-ray disc player, DVD player or an HD cable/satellite set-top box to the HDMI terminal.
[] When using Composite cable (iNPUT 2):
= Game console = VCR
Camcorder • Cable/Satellite set-top box
Back panel
vertical inputs
AV cable (AV mini plug and RCA plugs)
,t
• For the AV cable to connect to the INPUT 2 terminal, use a plug described below.
!_!!i_i_ii!_!_!ii_ii!i_i!_ii_i_iii_i!_i_!!i!i!!_!!i_!_!_!_!!_!ii!i_i_!_!_!_!i;!_i_i_: _!iiii!_!i_!_!i_!_!_i_i_iii_i_i_iii_i_i_i_iii_i_i_i_ii_!_!_i_!!_!!_ _i!_!i_i_i_!i_i i_!i_i_!_!_!i_i!_!i_i_i!i!iii!!i!i_i_i_i_i!_!!_!!_i_!i_i _!_i_i!i!i!!i !ili_i_i_i_i!_!!_!!_i_!i_i_i_i_i_i_iiii:i;_i!_ii_!_i_!_ _!'iiJiii!iiiii!i!_!ii_i! _!!i_!!iiii_!i!iii_ _!i!iii_i_iiii_ _iiiiii_i_iii_i_iii_i_iii_ ili_ii_ii_ili_
1 AUDIO (LEFT)
2 Composite Video
3 A&V Ground (EARTH)
4 AUDIO (RIGHT)
Q-14
