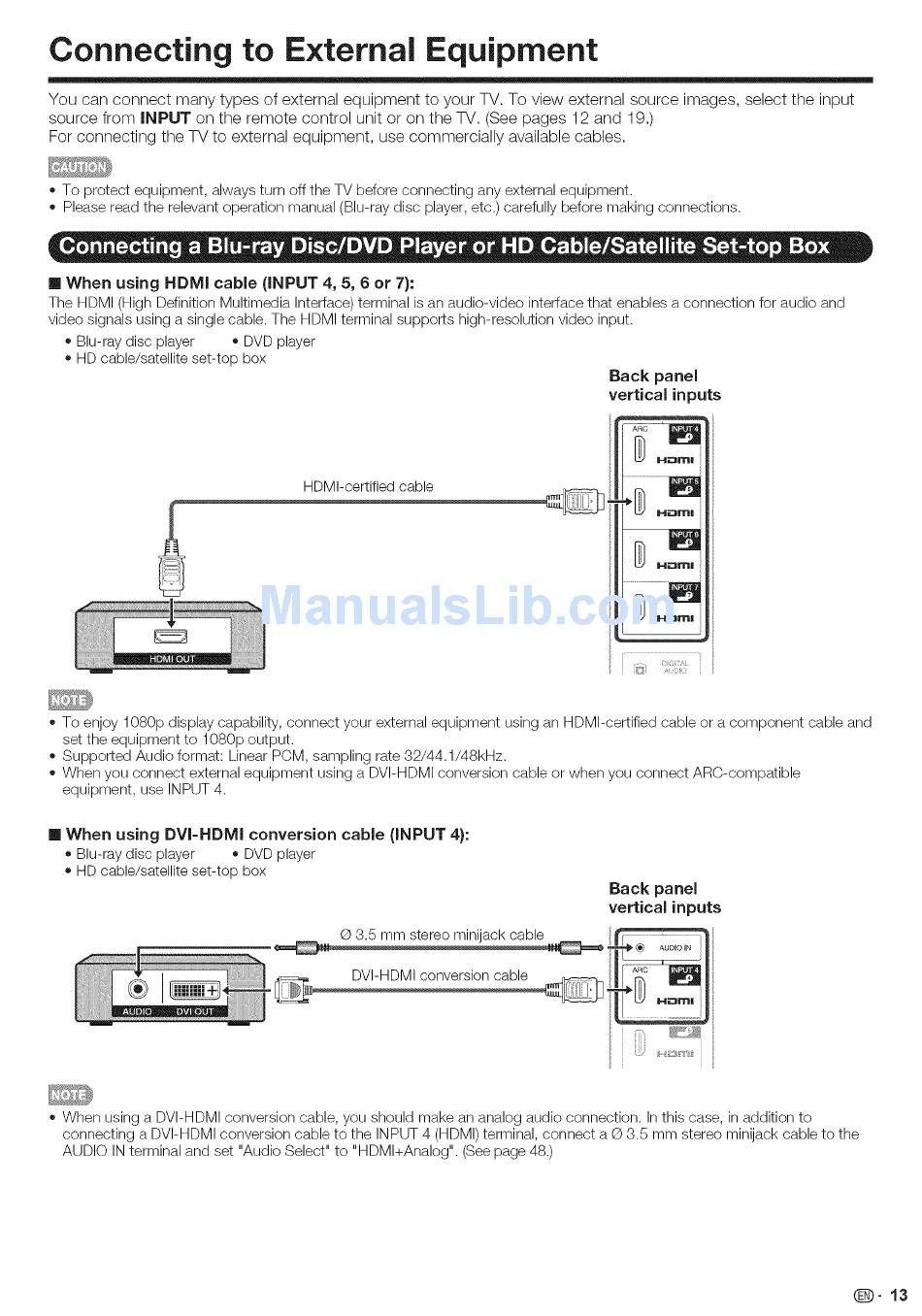

Connecting to E×ternal Equipment
You can connect many types of external equipment to your TV. To view external source images, select the input
source from INPUT on the remote control unit or on the TV. (See pages 12 and 19.)
For connecting the TV to external equipment, use commercially available cables.
To protect equipment, always turn off the TV before connecting any external equipment.
Please read the relevant operation manual (Blu-ray disc player, etc.) carefully before making connections.
When using HDMI cable (INPUT 4, 5, 6 or 7}='
The HDMI (High Definition Multimedia Interface) terminal is an audio-video interface that enables a connection for audio and
video signals using a single cable. The HDMI tern_inal supports high-resolution video input.
HDMI-certified cable
= Blu-ray disc player ,, DVD player
o HD cable/satellite set-top box
To enjoy 1080p display capability, connect your external equipment using an HDMI-certified cable or a component cable and
set the equipment to 1080p output.
Supported Audio format: Linear PCM, sampling rate 32/44.1/48kHz.
When you connect external equipment using a DVI-HDMI conversion cable or when you connect ARC-compatible
equipment, use INPUT 4.
m When using DVI=HDMI conversion cable (iNPUT 4}="
= Blu-ray disc player • DVD player
o HD cable/satellite set-top box
DVI-HDMI conversion cable
Back panel
vertical inputs
When using a DVI-HDMI conversion cable, you should make an analog audio connection. In this case, in addition to
connecting a DVI-HDMI conversion cable to the INPUT 4 (HDMI) terminal, connect a © 3.5 mm stereo minijack cable to the
AUDIO IN terminal and set "Audio Select" to "HDMl÷Analog". (See page 48.)
