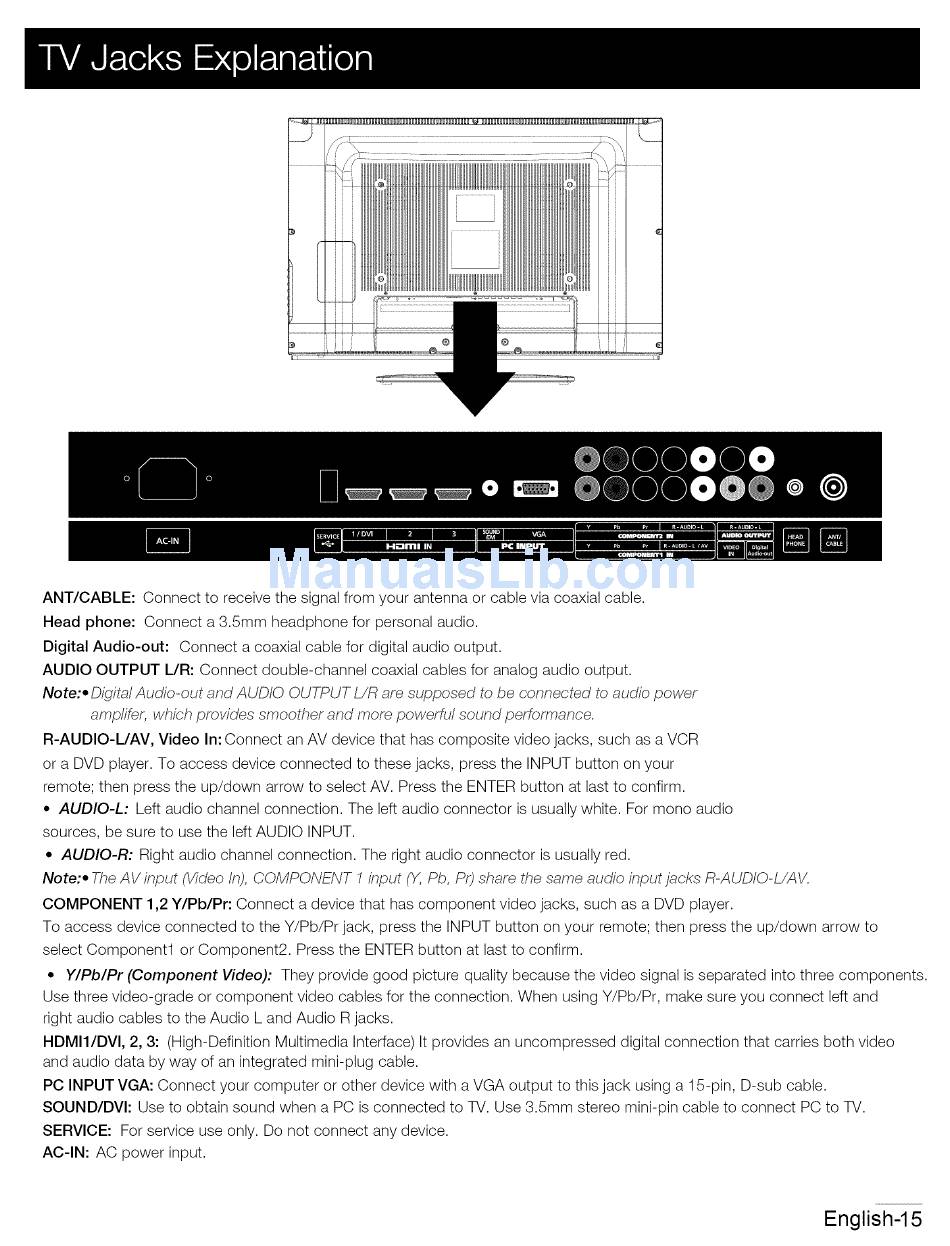

ANT/CABLE:
Connect to receive the signal from your antenna or cable via coaxial cable.
Head phone:
Connect a 3.Smm headphone for personal audio.
Digital Audio-out:
Connect a coaxial cable for digital audio output.
AUDIO OUTPUT L/R: Connect double-channel
coaxial cables for analog audio output.
Note:• Digital Audio-out
and AUD/O OUTPUT L/R are supposed
to be connected
to audio power
amplifer, which proddes
smoother and more powerful sound performance.
R-AUDIO-L/AV,
Video In: Connect an AV device that has composite
video jacks, such as a VCR
or a DVD player. To access device connected
to these jacks, press the INPUT button on your
remote; then press the up/down
arrow to select AV. Press the ENTER button at last to confirm.
• AUDIO-L:
Left audio channel connection.
The left audio connector
is usually white. For mono audio
sources, be sure to use the left AUDIO INPUT.
• AUDIO-R:
Right audio channel connection.
The right audio connector
is usually red.
Note:• The AV input (Video In), COMPONENT
I Lnput _, Pb, Pr) share the same audio Lnput jacks R-AUD/O-L/AV.
COMPONENT
1,2 Y/Pb/Pr:
Connect a device that has component
video jacks, such as a DVD player.
To access device connected
to the Y/Pb/Pr jack, press the INPUT button on your remote; then press the up/down
arrow to
select Component1
or Component2.
Press the ENTER button at last to confirm.
• Y/Pb/Pr
(Component
Video):
They provide good picture quality because the video signal is separated
into three components.
Use three video-grade
or component
video cables for the connection.
When using Y/Pb/Pr, make sure you connect left and
right audio cables to the Audio L and Audio R jacks.
HDMI1/DVl,
2, 3: (High-Definition
Multimedia Interface) It provides an uncompressed
digital connection
that carries both video
and audio data by way of an integrated
mini-plug cable.
PC INPUT VGA: Connect your computer
or other device with a VGA output to this jack using a 15-pin, D-sub cable.
SOUND/DVI:
Use to obtain sound when a PC is connected
to TV. Use 3.5mm stereo mini-pin cable to connect PC to TV.
SERVICE:
For service use only. Do not connect any device.
AC-IN: AC power input.
English-15
