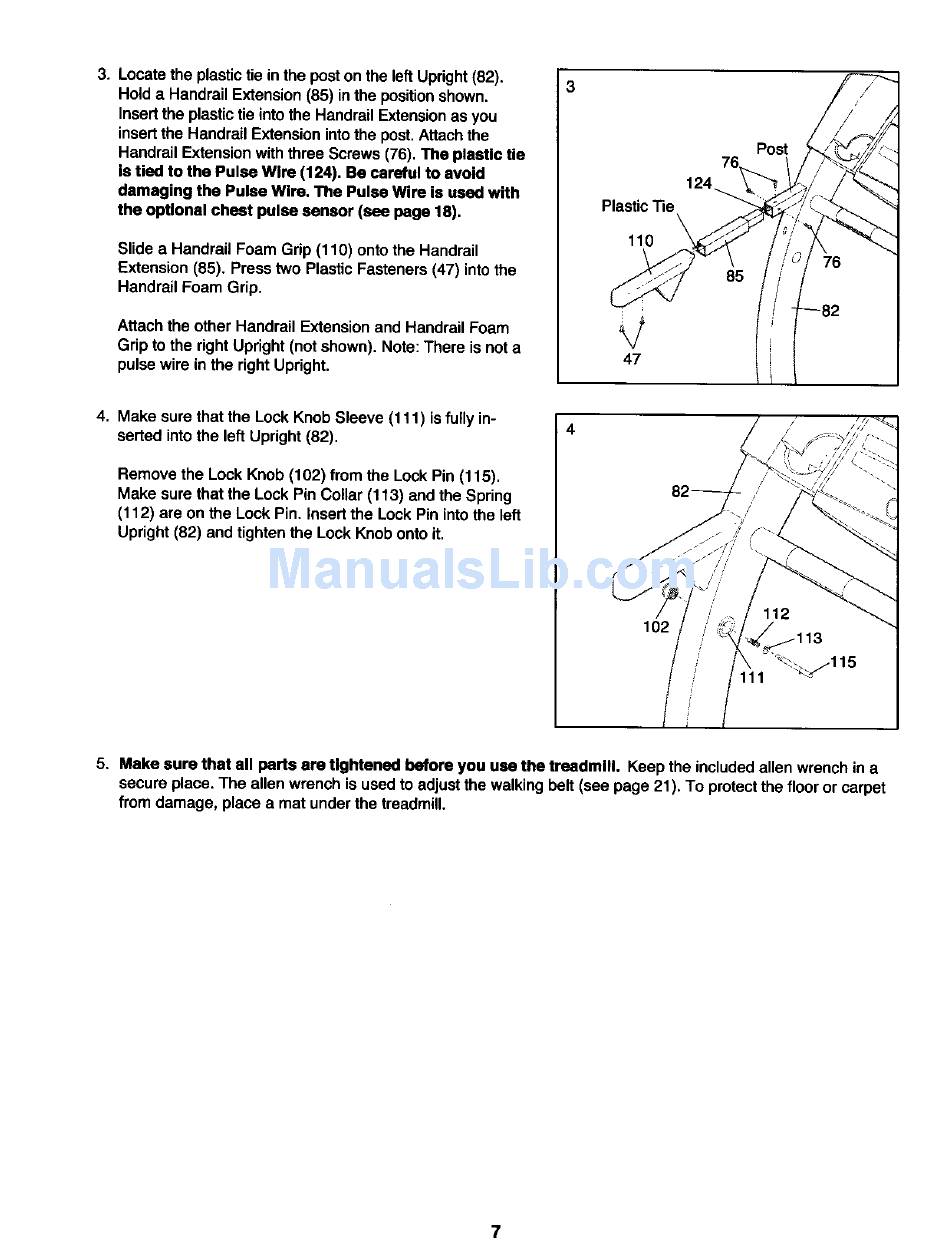

3. Locate the plastic tie in the post on the left Upright (82).
Hold a Handrail Extension (85) in the position shown.
Insert the plastic tie into the Handrail Extension as you
insert the Handrail Extension into the post. Attach the
Handrail Extension with three Screws (76). The plastic tie
Is tied to the Pulse Wire (124). Be careful to avoid
damaging the Pulse Wire. The Pulse Wire is used with
the optional chest pulse sensor (see page 18).
Slide a Handrail Foam Grip (110) onto the Handrail
Extension (85). Press two Plastic Fasteners (47) into the
Handrail Foam Grip.
Attach the other Handrail Extension and Handrail Foam
Grip to the right Upright (not shown). Note: There is not a
pulse wire in the right Upright.
3
124
Plastic Tie
110
47
Post
85
76
/
4. Make sure that the Lock Knob Sleeve (111) is fully in-
serted into the left Upright (82).
Remove the Lock Knob (102) tram the Lock Pin (115).
Make sure that the Lock Pin Collar (113) and the Spring
(112) are on the Lock Pin. Insert the Lock Pin into the left
Upright (82) and tighten the Lock Knob onto it.
4
5. Make sure that all parts are tightened before you use the treadmill. Keep the included allen wrench in a
secure place. The allen wrench is used to adjust the walking belt (see page 21 ). To protect the floor or carpet
from damage, place a mat under the treadmill.
7
