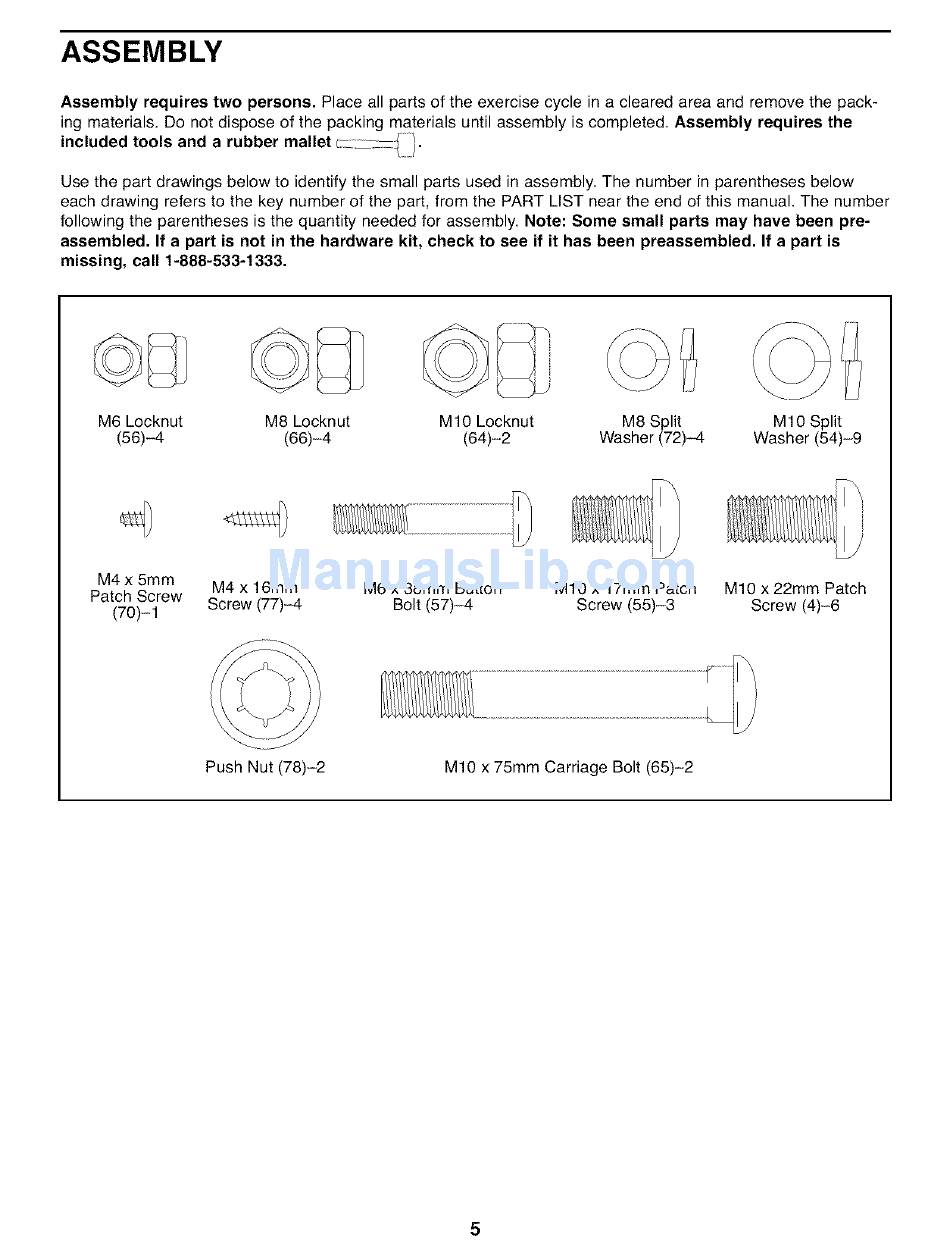

ASSEMBLY
Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove the pack-
ing materials. Do not dispose of the packing materials until assembly is completed. Assembly requires the
included tools and a rubber mallet \t i.
Use the part drawings below to identify the small parts used in assembly. The number in parentheses below
each drawing refers to the key number of the part, from the PART LIST near the end of this manual. The number
following the parentheses is the quantity needed for assembly. Note: Seine small parts may have been pro-
assembled. If a part is not in the hardware kit, check to see if it has been preassembled. If a part is
missing, call t-888-533-t333.
M6 Locknut M8 Locknut M1O Locknut
(56)-4 (66)-4 (64)-2
©';,
M8 Split M1O Split
Washer (72)-4 Washer (54)-9
M4x 5mm M4 x 16ram M6 x 38mm Button
Patch Screw
(70)-1 Screw (77)-4 Bolt (57)-4
M1O x 17mm Patch M1O x 22ram Patch
Screw (55)-3 Screw (4)-6
Push Nut (78)-2 M1O x 75mm Carriage Bolt (65)-2
5
