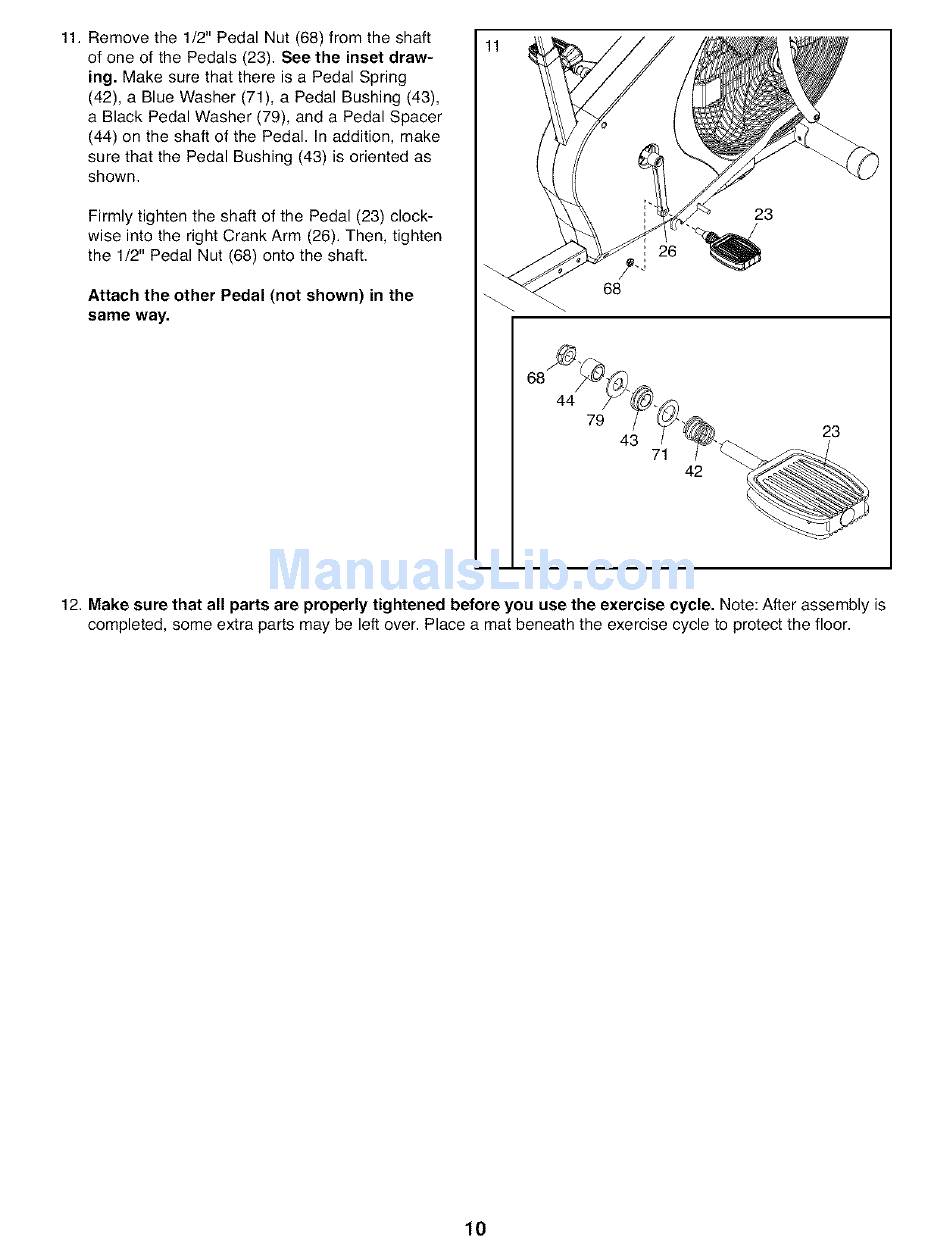

11. Remove the 1/2" Pedal Nut (68) from the shaft
of one of the Pedals (23). See the inset draw-
ing. Make sure that there is a Pedal Spring
(42), a Blue Washer (71), a Pedal Bushing (43),
a Black Pedal Washer (79), and a Pedal Spacer
(44) on the shaft of the Pedal. In addition, make
sure that the Pedal Bushing (43) is oriented as
shown.
Firmly tighten the shaft of the Pedal (23) clock-
wise into the right Crank Arm (26). Then, tighten
the 1/2" Pedal Nut (68) onto the shaft.
Attach the other Pedal (not shown) in the
same way.
11
26
68
44
79
43
71
23
42
23
12. Make sure that all parts are properly tightened before you use the exercise cycle. Note: After assembly is
completed, some extra parts may be left over. Place a mat beneath the exercise cycle to protect the floor.
