Mounting The Speaker - Advent PSS100 - Standard Rear Only System Installation Manual

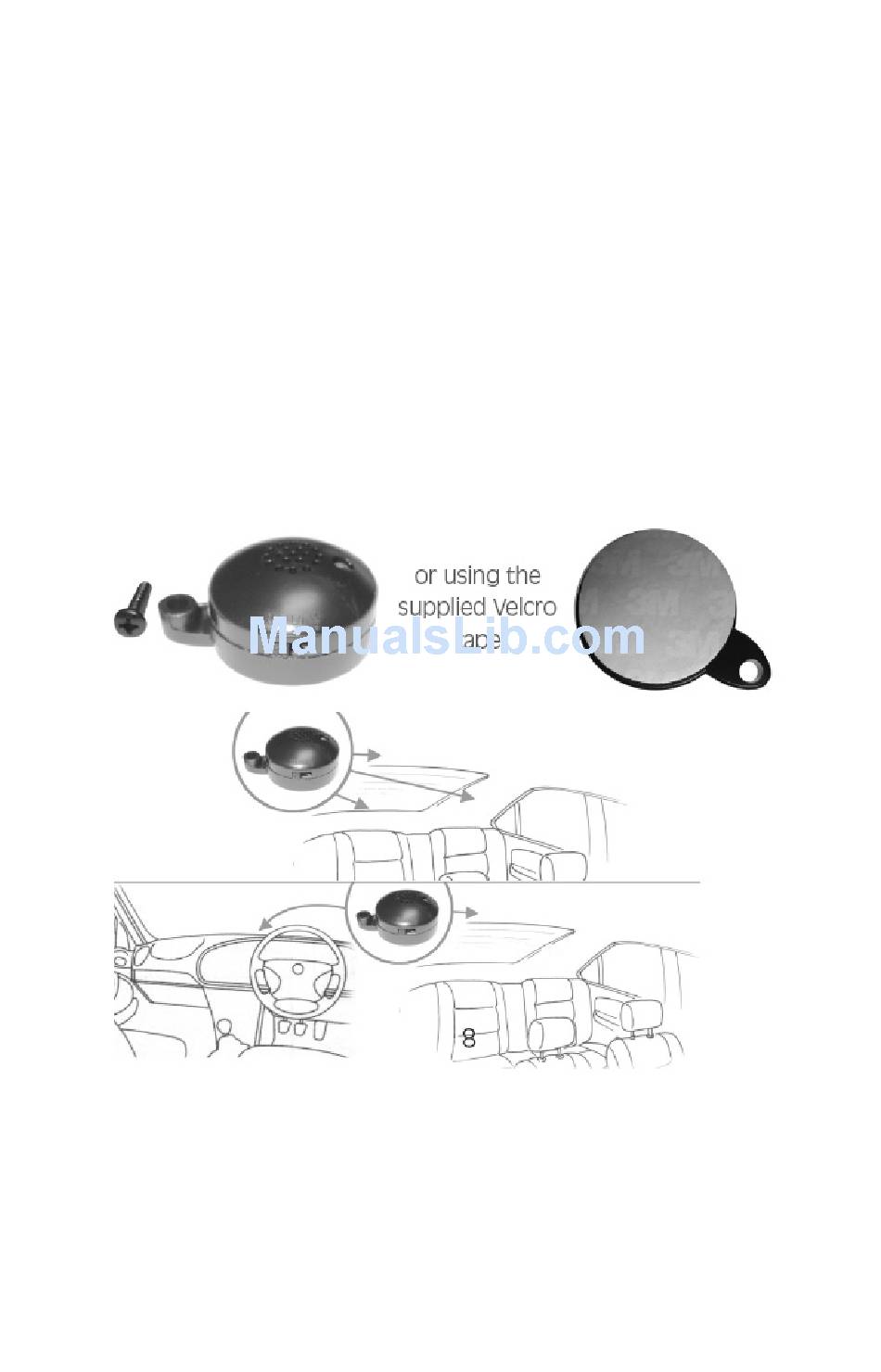

Mounting the Speaker

The speaker has three volume settings: Off, Hi, and Low. Since the speaker
can be adjusted as needed, you should mount the speaker in an accessible
location in the interior.
1. Route the wires for the speaker to the area where you will install the
control module. Make sure they will not be pinched by the panel or
moving parts.
2. Clean the back of the speaker and the mounting location to ensure
good adhesion. When the location is dry, peel the backing strip off the
Velcro tape and place on the back of the speaker. Next, peel the
backing strip off the other side of the Velcro tape and press on the
cleaned surface. Use the optional mounting screws (provided), if
necessary.
8
